User Manual for EDIMAX Technology USB 2.0 Fast Ethernet Adapter Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology USB 2.0 Fast Ethernet
- Product category: Network Interface Cards & Adapters EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Network Interface Cards & Adapters
|
User manual for the EDIMAX Technology USB 2.0 Fast Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|

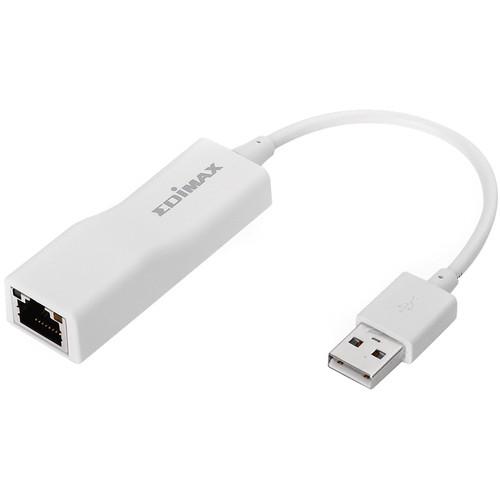

Product description The USB 2.0 Fast Ethernet Adapter from EDIMAX Technology is a compact USB adapter for an Ultrabook or Macbook Air with no Ethernet ports, or for desktop and notebooks that need an additional Fast Ethernet port. It's a suitable portable accessory or replacement network adapter, and with full 10/100 Mb/s Fast Ethernet USB 2.0 performance. Connect to a 10/100 Mb/s network from a USB enabled desktop or notebook, save costs and replace an old or broken internal network card, or use it as an additional network interface for high-speed peer-to-peer file sharing. Low power consumption in idle mode and low traffic conditions and Energy-saving design minimizes power usage when the device is idle. - Suitable for Ultrabooks
- You can simply plug the adapter into a USB 2.0 port and instantly utilize a stable 10/100 Mb/s Ethernet connection. The EU-4208 is also a quick and convenient way to add Ethernet connectivity to a desktop computer without the hassle of internal installation. It's backward compatible with USB 1.1 and works with Microsoft Windows 2000/XP/Vista/7/8/8.1, Linux and Mac OS X 10.x.
- USB 2.0 for Full 10/100Mbps Ethernet Performance
- The EU-4208 is designed with the USB 2.0 standard which supports data transfer speeds up to 480 Mb/s, ensuring full 10/100 Mb/s Ethernet performance.
- Compact Design & Power over USB
- The Edimax EU-4208 features a compact design, making it easy to use in a crowded workspace. And with power over USB support, the EU-4208 works without the need for an additional power adapter.
- Low Power Consumption
- The Edimax EU-4208 is designed to use power efficiently and prevent unnecessary waste of power. It can dynamically adjust its power supply for reduced power usage in idle mode and low traffic conditions.
UPC: 649659908604 Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology USB 2.0 Fast Ethernet Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology EU-4208 Specs | Interface | 1 x USB 2.0 (USB 1.1 backward compatible)
1 x RJ-45 10/100 Mb/s LAN port
Power and link LED indicators | | Standards | IEEE 802.3/IEEE 802.3u | | RAM | Embedded 20KB SRAM for RX and 20KB SRAM for TX packet buffering | | Power Management | Idle mode (remote wake up enabled)
Idle mode (remote wake up disabled) | | Power Consumption | 600 mW (full loading)
46.1 mW (idle with remote wake up)
0.7 mW (idle without remote wake up) | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Operating system | Windows 2000, XP, Vista, 7, 8, 8.1
Linux
Mac OS X 10.x | | Certifications | FCC, CE | | Dimensions (L x W x H) | 2.50 x 0.86 x 0.59" (66.00 x 22.00 x 15.00 mm) | | Weight | 0.88 oz (25 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 9.4 x 5.8 x 0.4" |
