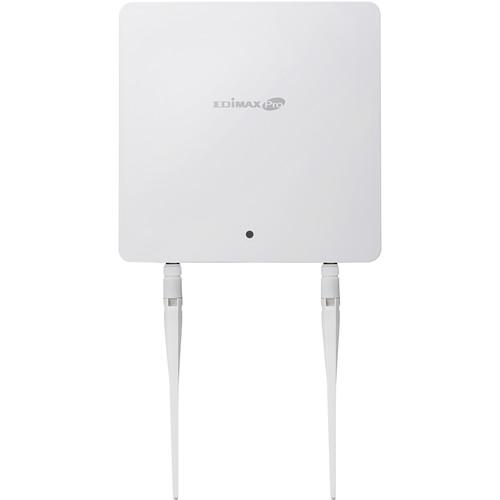

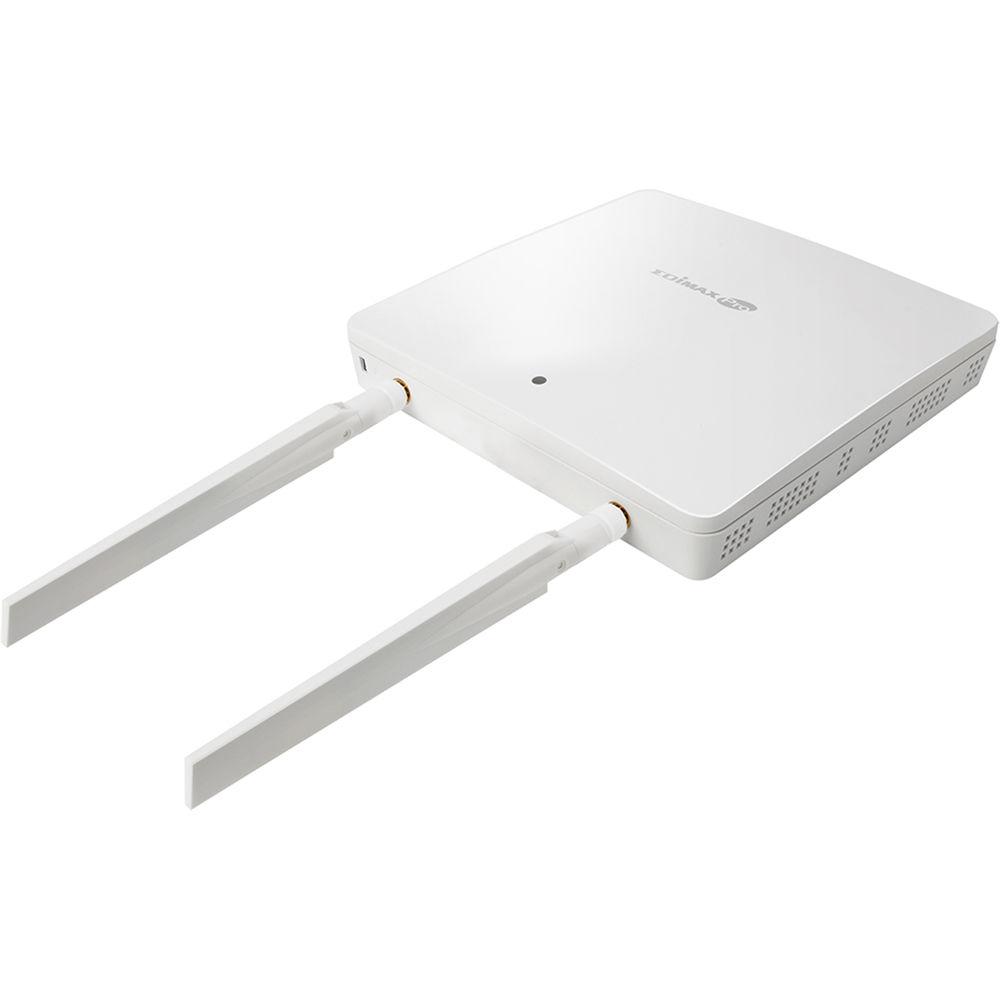

User Manual for EDIMAX Technology WAP1200 2x2 AC Dual-Band Wall-Mount PoE Access Point Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology WAP1200 2x2 AC Dual-Band
- Product category: Wireless Access Points EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Wireless Access Points
 |
User manual for the EDIMAX Technology WAP1200 2x2 AC Dual-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|

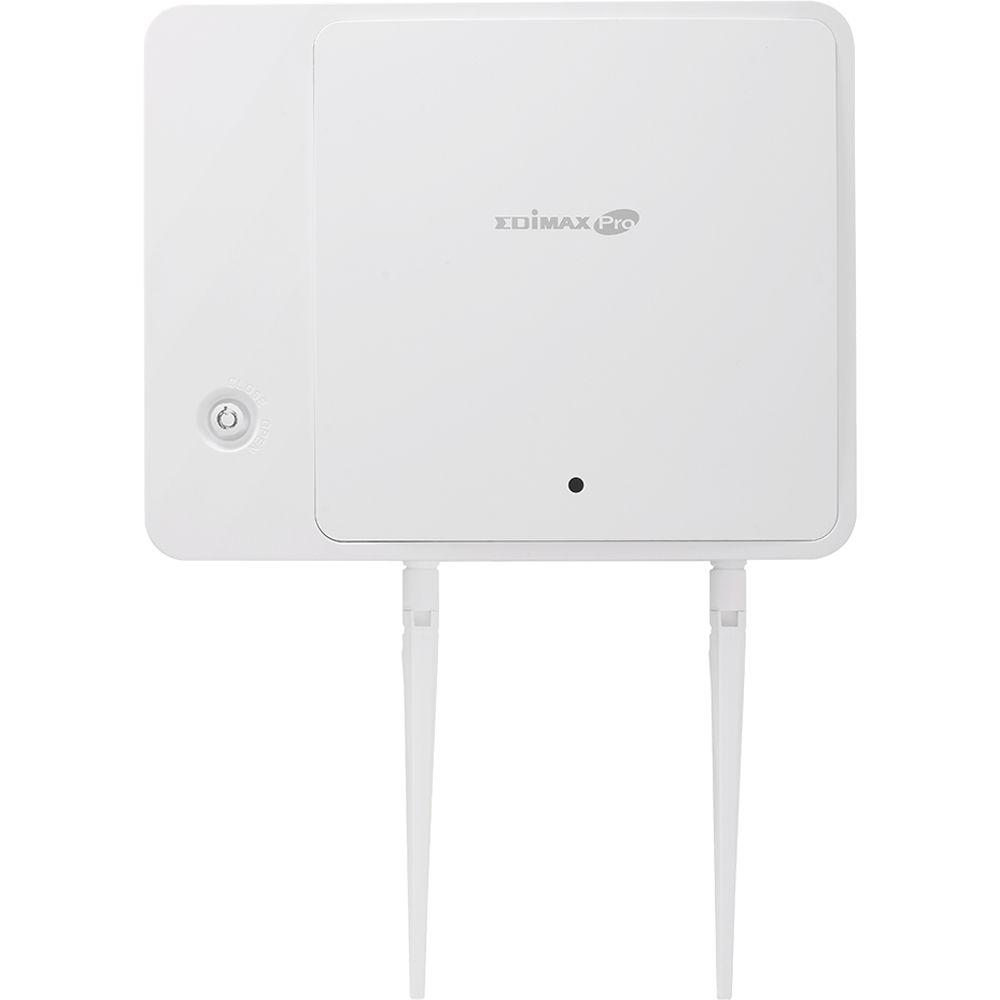

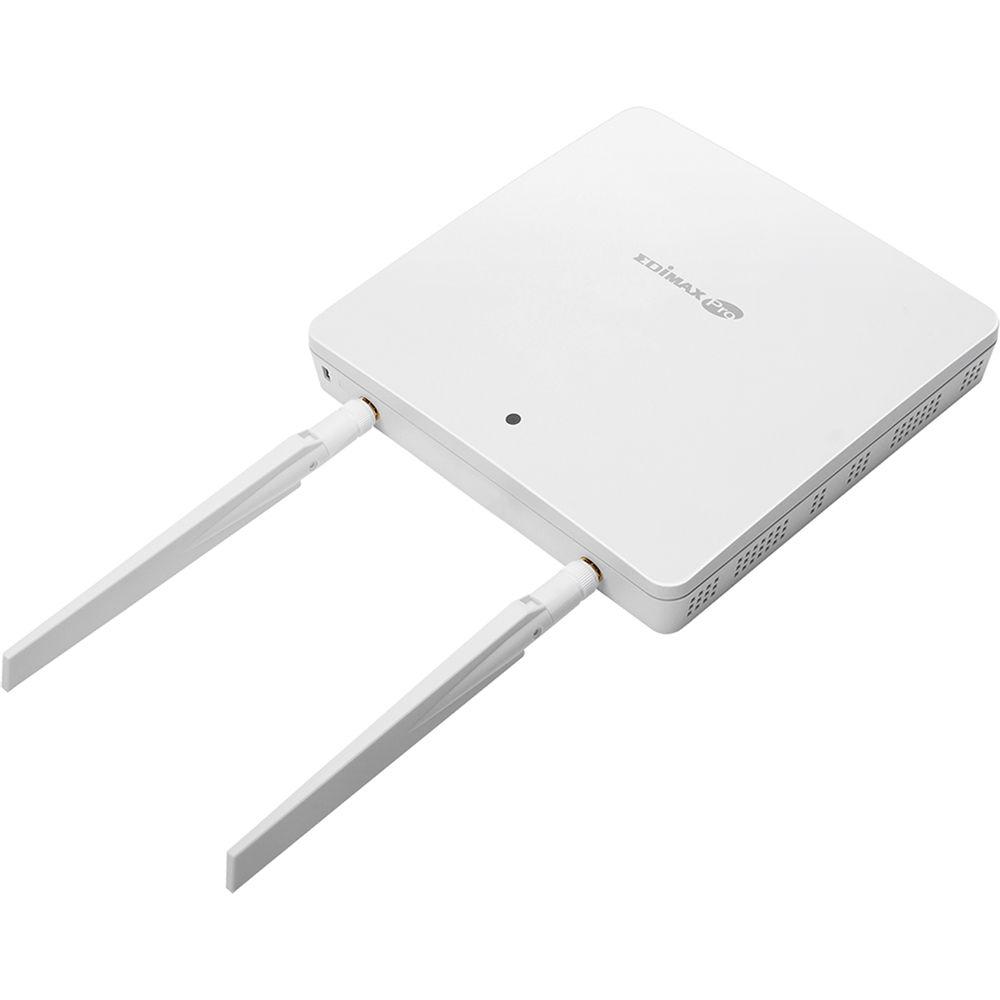

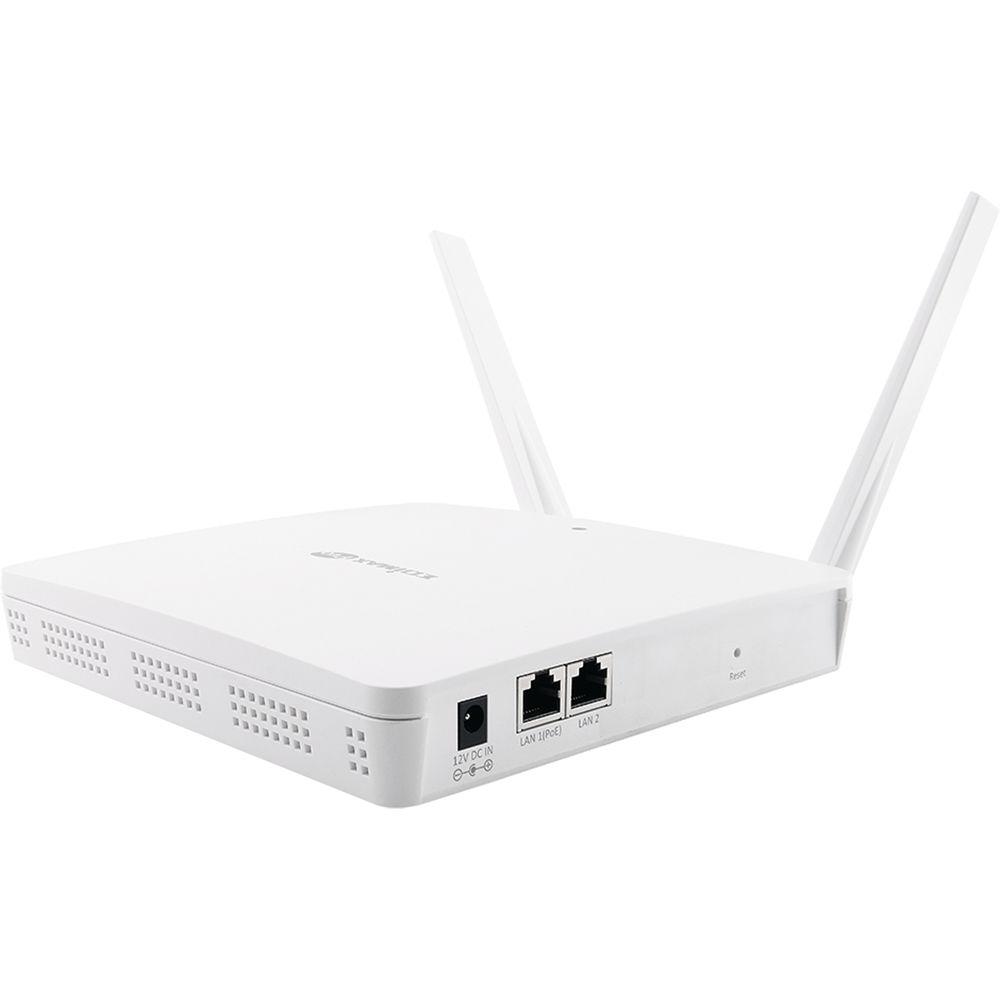

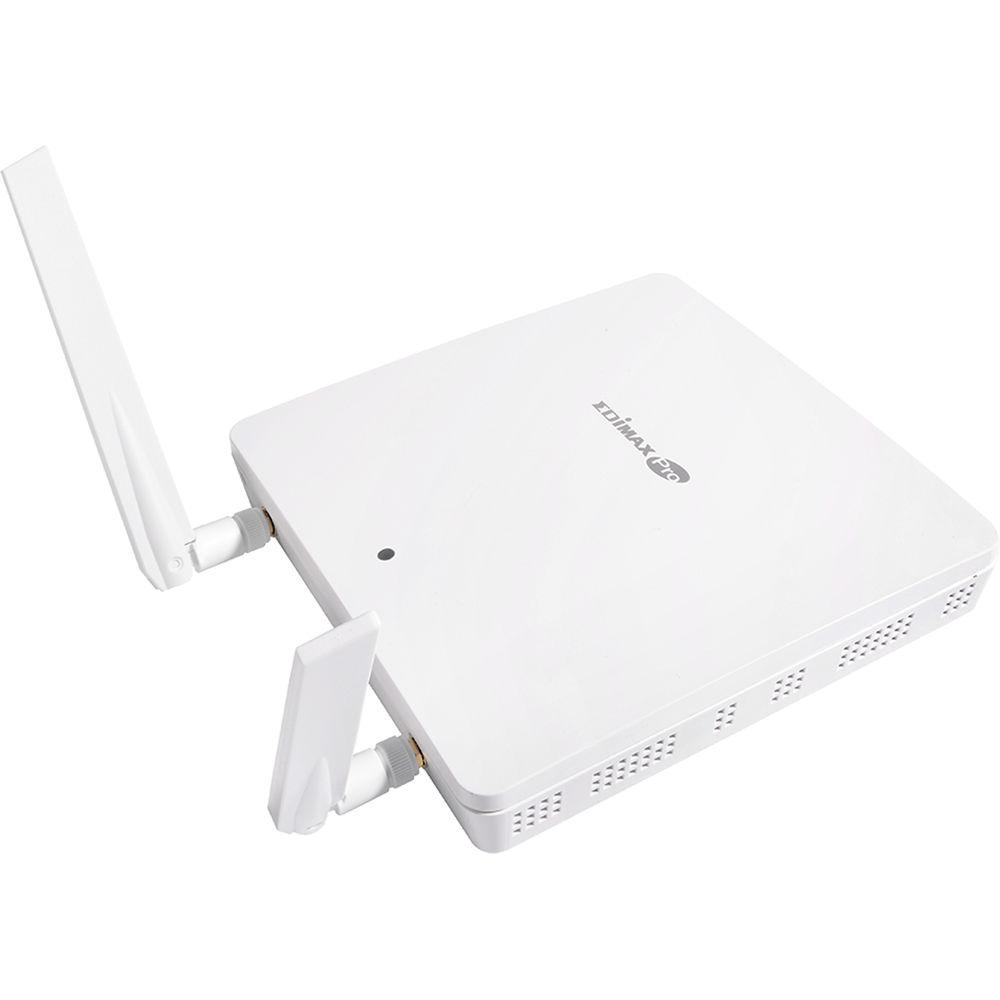

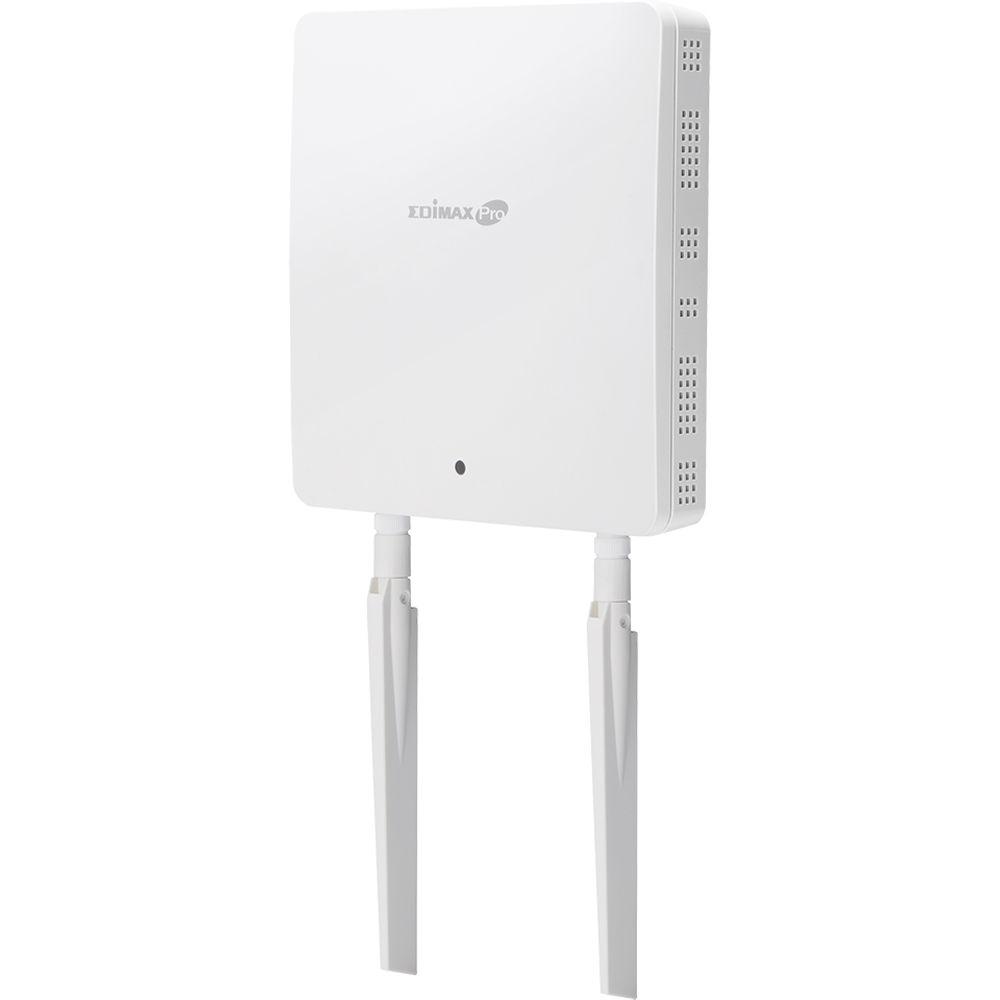

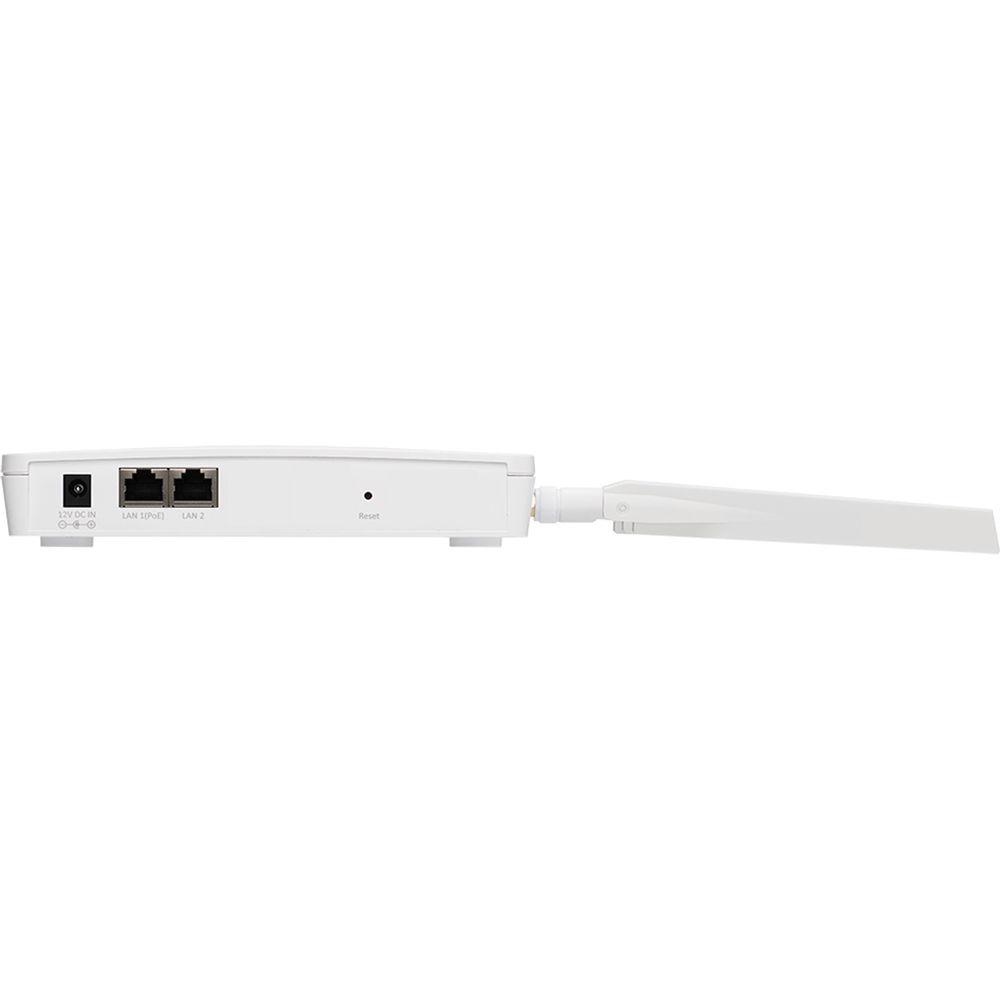

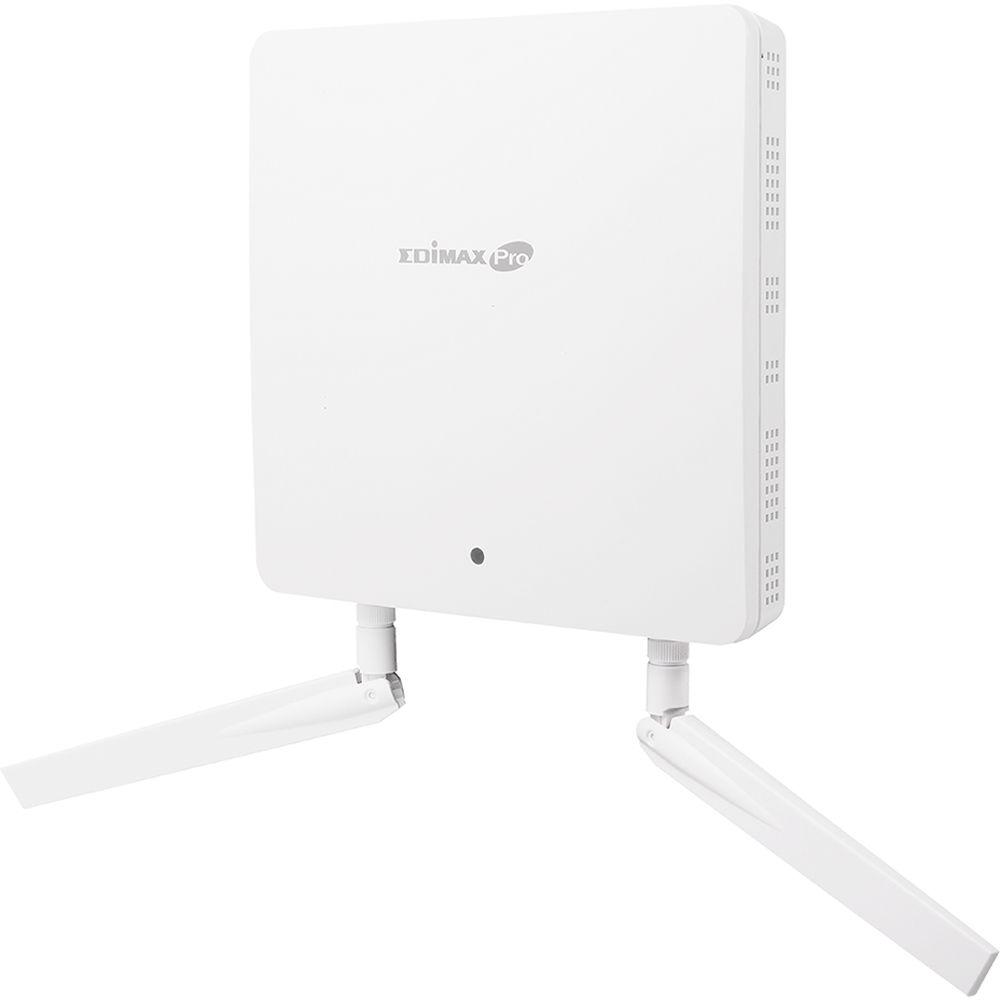

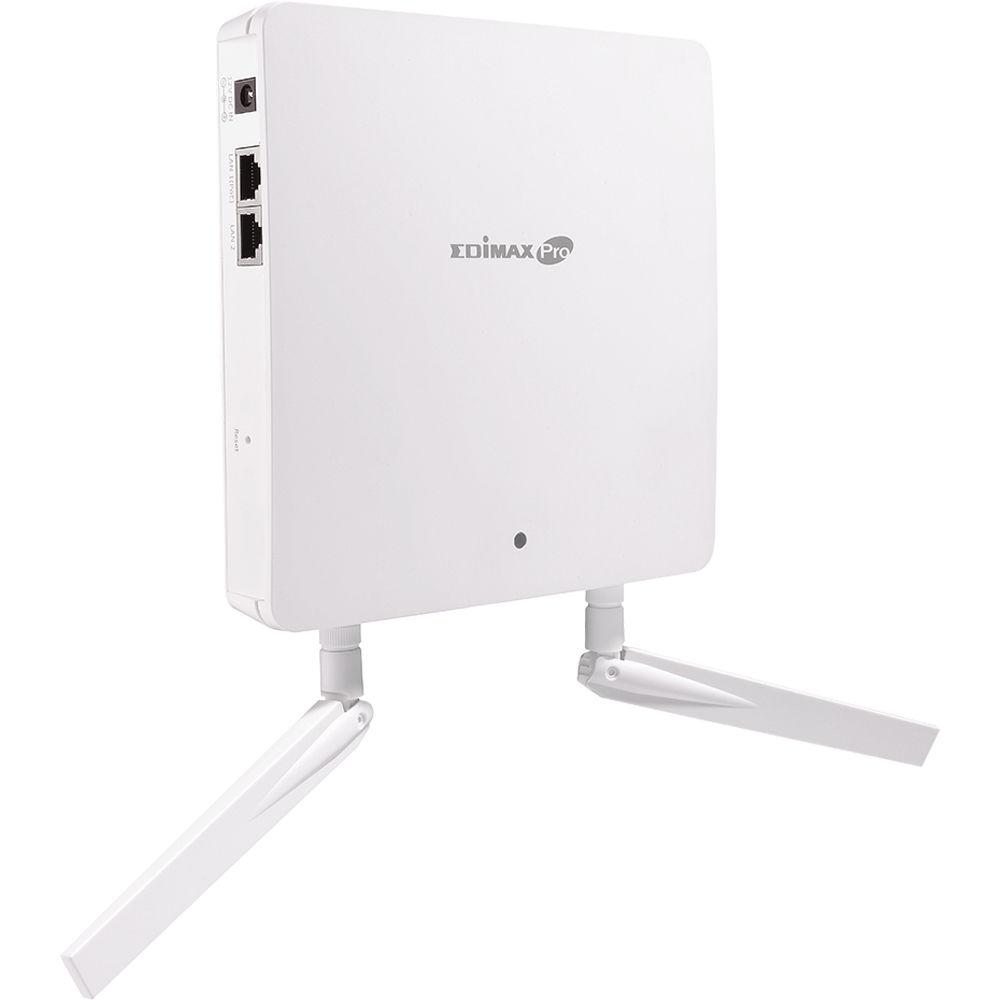

Product description ⿿The Edimax Pro WAP1200 2x2 AC Dual-Band Wall-Mount PoE Access Point from Edimax Technology is a high-speed, wireless solution designed to meet the needs of modern SMBs with the IEEE 802.11ac technology for wireless speeds up to 1200 Mb/s. Its wall-mounted design, industrial-grade performance & build quality combined with user-friendly operation, 11ac speeds, and an extensive set of features make an ideal dual-band solution for day-to-day enterprise operations.The WAP1200 PoE Access Point allows multiple SSIDs to be configured for different departments or user groups, and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. Its high-density capacity for up to 100 simultaneous users is suitable for BYOD workplaces or other environments with a high volume of users and wireless devices, while the fast-roaming feature allows for seamless transitions between multiple access points.Power over Ethernet support (PoE) and an intuitive web-based management interface provide deployment flexibility and extensive management options for company MIS departments and network administrators. The optional SC1000 Security Cover also prevents physical theft or tampering, along with a rogue AP detection function to safeguard your network from unauthorized access.The WAP1200 PoE Access Point is designed to help your business and provides the connectivity that you rely on daily, with safety and effectiveness. For businesses that demand security, flexibility and speed, the WAP1200 PoE Access Point has a wide range of potential applications from office environments to schools, campuses, hotels, and hospitals. - High Performance Design with High-Speed Dual-Band 11ac
- The WAP1200 Access Point features the IEEE 802.11ac wireless technology that delivers the giga-fast Wi-Fi speeds that meet the demands of fast-moving modern business environments. Simultaneous 2.4 & 5 GHz dual-band coverage offer maximum flexibility for mobile-centric business productivity applications. Speeds up to 300 Mb/s on the 2.4 GHz band and 867 Mb/s on the 5 GHz band can handle high-bandwidth intensive tasks, and are ideal for audio, video & voice applications.Additionally, the WAP1200 has other high-performance design features such as solid capacitors for significantly long lifespans, generating less heat and delivering increased stability
- Wide Coverage & Multiple SSIDs
- With adjustable RF output power and high receiver sensitivity, WAP1200 Access Point is equipped to provide wide coverage when needed. Suitable for large spaces across office floors, shop floors, hospital wards, or conference rooms, this access point gets the wireless coverage that staff and systems need to operate efficiently. It lets you keep every corner of your business connected and differentiate user groups, departments or guests with up to 32 separate SSIDs with independent security. It also offers wide accessible Wi-Fi coverage with strong security to protect sensitive information and supervise access to internal networks.
- BYOD Solutions & High Density Networking
- The Bring Your Own Device (BYOD) support lets employees use their own smartphones, tablets, and laptops with the latest cloud-connected productivity apps, most of which need or support high-speed 5 GHz Wi-Fi. The WAP1200 Solution supports the latest 802.11ac 2.4 GHz & 5 GHz dual-band Wi-Fi along with high-density capacity to support up to a hundred users simultaneously, ideal for BYOD workplaces and a large number of wireless devices.
- Seamless Mobility
- The WAP1200 Access Point can effectively cover a 125' to 148' radius, eliminating Wi-Fi dead zones completely and providing blanket coverage across enterprise environments. Wireless devices can stay seamlessly connected in environments where connectivity may be a critical component of efficiency and productivity, and thus benefit from mobility with high-speed connectivity across a range of wireless devices like smartphones, tablets, and computers.
- Rogue AP Detection & Wireless Isolation
- Rogue access point detection can identify any unauthorized SSIDs which may have been installed in an otherwise secure network with malicious intent, and the L2 wireless isolation provides wireless security.
- Easy and Intuitive Central Network Management Suite (NMS)
- The Edimax Pro NMS (Network Management Suite) is a web-based wireless network management system. It allows company MIS departments to plan and manage the WAP1200 Access Point’s functionalities according to their office space using an easy, remote web-based interface, which includes a dashboard, map view, traffic statistics, and wireless client list for network-wide remote administration.RADIUS settings, WLAN group settings, access control, guest network settings, and firmware upgrades can all be managed centrally from a single location to reduce network downtime, aid troubleshooting, and optimize network performance. Zone plans and setup wizards are also available for expanding and managing large networks with multiple access points.
- AP Array
- The Edimax Pro Network Management Suite (NMS) supports AP array architecture, which enables the central management of a group of the WAP1200 Access Point. NMS can be installed on an access point and supports up to 8 other access points with no additional wireless controller required, facilitating efficient remote AP management. Multiple access points can be deployed and configured according to requirements, creating a powerful network architecture which can be easily managed and expanded in the future, with an easy-to-use interface and a full range of functionality for company MISs.
- Applications
- With high-speed 11ac high-density networking for up to 100 simultaneous users, the WAP1200 is ideal for multi-tenant unit buildings, hotels, resorts, hospitals, campuses, conventions, or anywhere with large-scale network use, ensuring safety and effectiveness.
- Easy Installation Kit
- The access point features a wall mount with bracket and magnetic template.
UPC: 649659025110 In the Box EDIMAX Technology WAP1200 2x2 AC Dual-Band Wall-Mount PoE Access Point Wallmount Bracket Magnetic Template Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology WAP1200 2x2 AC Dual-Band Wall-Mount PoE Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the EDIMAX Technology WAP1200 2x2 AC Dual-Band Wall-Mount PoE Access Point can be downloaded in PDF format at the link stated below.
Technical parametersEDIMAX Technology WAP1200 Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | Number of Antennas | 2 | | WLAN Mode | 802.11ac | | Sensitivity | -60.5 to -94.5 dBm | | Antenna Gain | 2 dBi | | Transmit Power | 18 to 27.5 dBm | | Supported Protocols | IPv4
IPv6
WMM
SNMPv1
SNMPv2c
SNMPv3 | | Antenna Placement | External | | | | Ports | 2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x Ethernet (RJ45) (Console) PoE+ | | | | Wireless Security | WEP, WPA | | | | Operation Modes | Access Point, Bridge | | Supported Clients | 50 | | Throughput | 2.4 GHz: 300 Mb/s
5 GHz: 867 Mb/s | | | | Supported IEEE Standards | 802.11i, 802.3af, 802.3at, 802.3az | | | | DC Input Power | 12 VDC at 2.5 A | | Power Consumption | 12 W | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 90% | | | | Dimensions | 7.2 x 7.2 x 1.4" / 18 x 18 x 3.6 cm | | Weight | 1.2 lb / 0.5 kg |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
