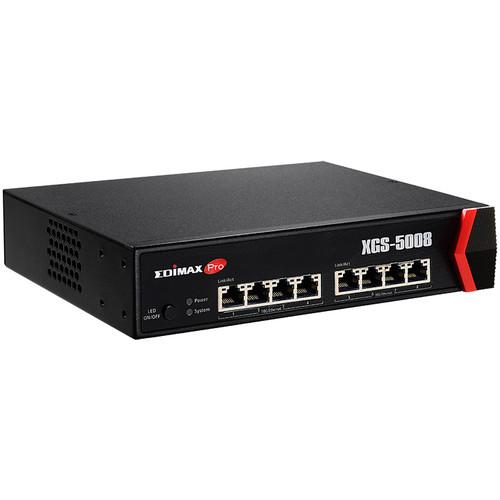

User Manual for EDIMAX Technology XGS-5008 8-Port 10-Gigabit Ethernet Managed Switch Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology XGS-5008 8-Port 10-Gigabit Ethernet
- Product category: Network Switches, Bridges & Hubs EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Network Switches, Bridges & Hubs
 |
User manual for the EDIMAX Technology XGS-5008 8-Port 10-Gigabit Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|

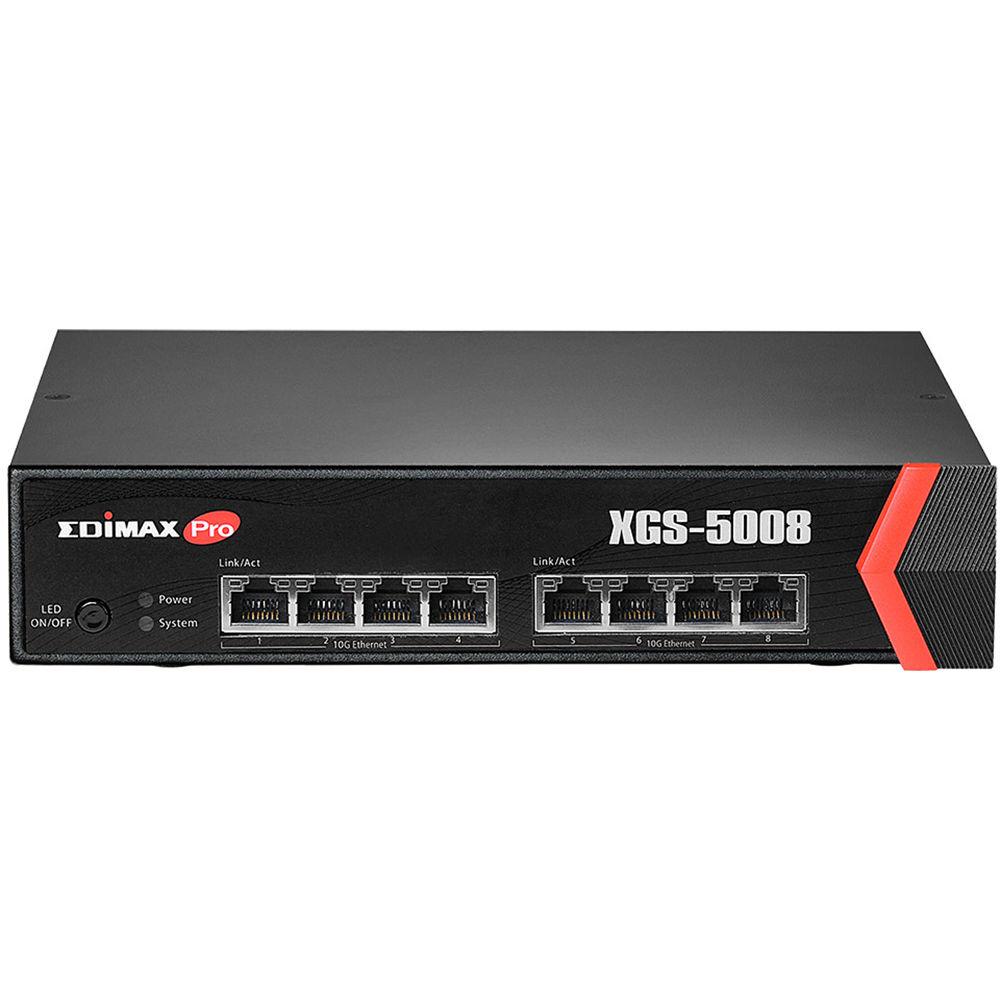

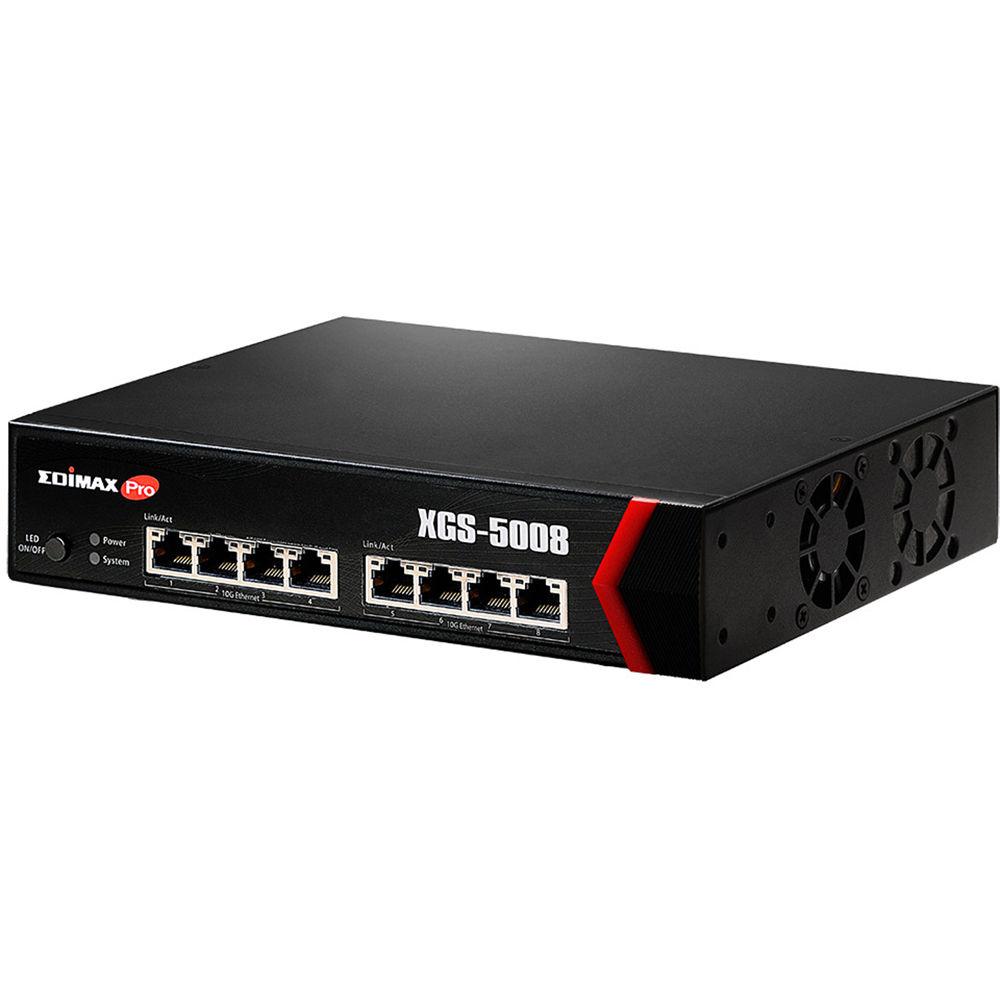

Product description With eight 10 GbE ports, the XGS-5008 Managed Switch from Edimax is capable of handling bandwidth-intensive tasks such as streaming multimedia content, transferring large files, and more.

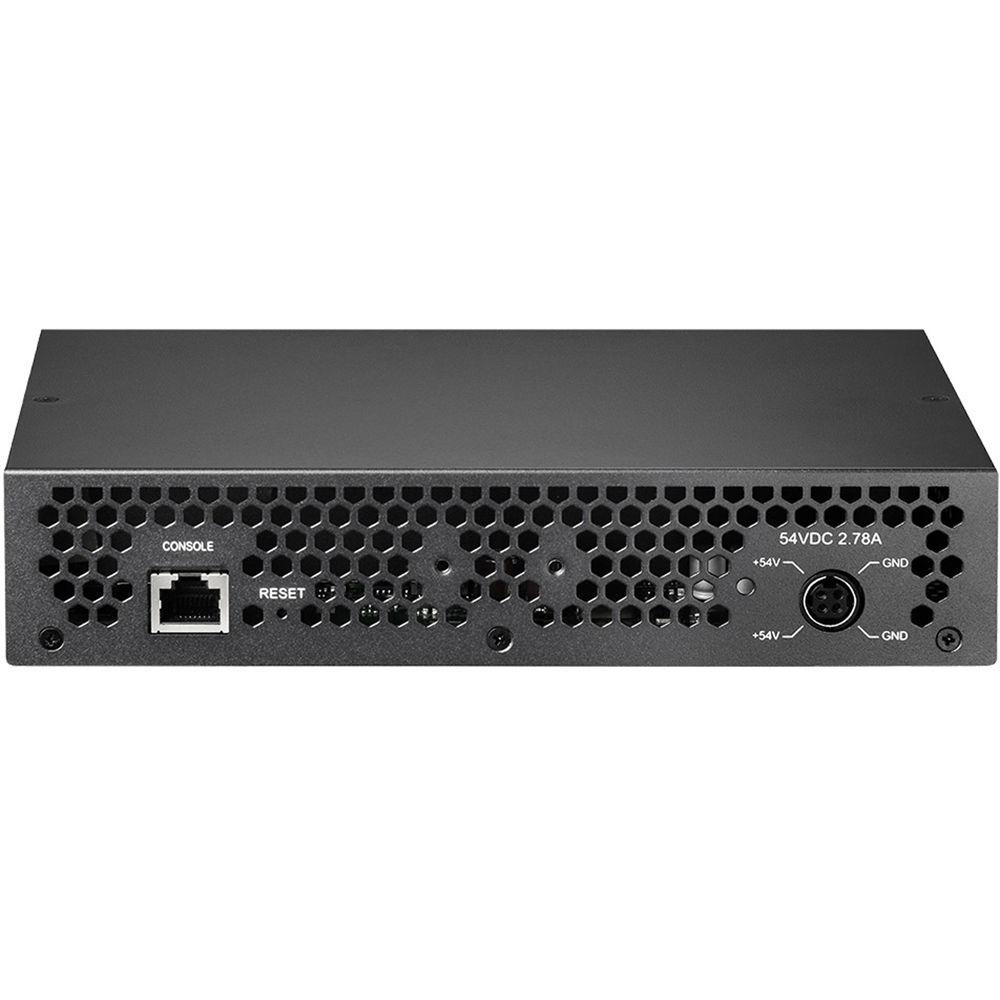

In addition to the eight high-speed network ports, this switch also comes equipped with a single RJ-45 console port and a single 12 VDC power connector. Once configured, the XGS-5008 supports a 160 Gb/s switching capacity, a 119 Mpps forwarding rate, a 16K MAC address table, and a 16M memory buffer all designed to provide enhanced network performance. Additionally, this Edimax switch is capable of supporting up to 16 VLANs and 4094 VLAN IDs along with port trunking, IGMP snooping, and enhanced QoS functionality to help prioritize traffic on the network. Installation is simple, as this switch can be easily inserted into an existing rackmount or simply place it on your desk for easy access to the network ports. - Smart Tools for Improved Network Efficiency
- The XGS-5008 features smart network monitoring tools that allow for improved network efficiency. Security and management features include bandwidth control and VLAN (IEEE 802.1Q VLAN tagging and port-based VLAN). Using its web-based interface, administrators can set up VLANs to segregate traffic and configure link aggregation settings to create fat traffic pipelines. Additionally, these features offer extra protection on the network edge and the password-protected configuration interface can be accessed remotely.
- Leverage Existing Infrastructure

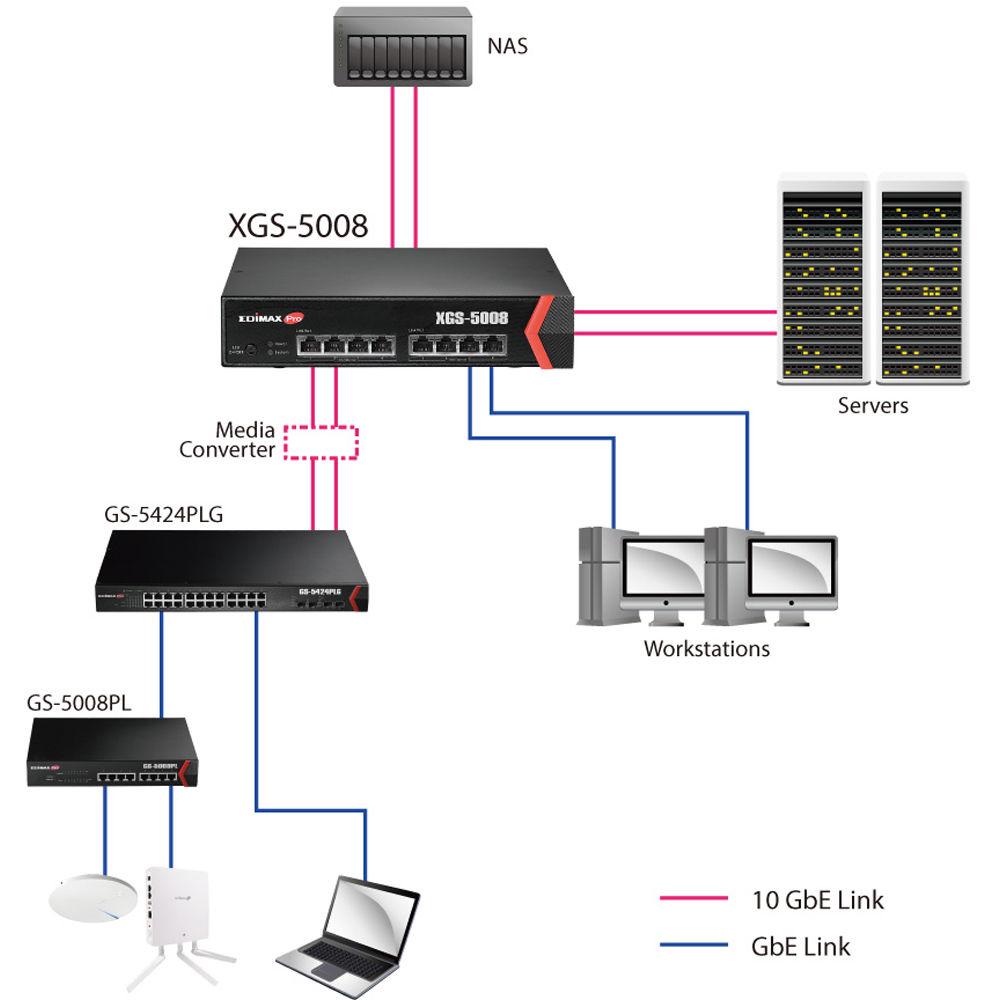

- The XGS-5008 is a simple, cost effective upgrade path to 10-Gigabit Ethernet, thanks to its backwards compatibility with Fast Ethernet and Gigabit networks using existing Cat 5e cabling. Simply upgrade to Cat 6a or better cabling to leverage 10GbE connectivity, with Cat 6 twisted pair networks also able to benefit from and leverage 10GbE Copper over shorter distances of up to 37m (with AXTLK) or 55m (without AXTLK). With an existing network infrastructure running Cat 6a or Cat 7 cabling, customers can benefit from higher-grade copper wiring than Cat 5e - supporting higher bandwidth requirements for 10 GbE Copper up to 100m using RJ-45 connectors.
- Extend Support for Converged Environments
- With the increasing demand for bandwidth, growing data consumption, and widespread server/storage visualization adoption, the need for a 10 Gigabit solution is more critical than ever before. The rise in video and mobile data alone is straining Gigabit networks as more devices, users, and content all demand bandwidth. Over 90 percent of servers are now shipping with 10 GbE port options, with data usage doubling nearly every two years.
UPC: 649659020924 In the Box EDIMAX Technology XGS-5008 8-Port 10-Gigabit Ethernet Managed Switch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology XGS-5008 8-Port 10-Gigabit Ethernet Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology XGS-5008 Specs | Ports | 8 x RJ-45 10GbE ports
1 x RJ-45 console port
1 x 12 VDC power connector | | Transmission Method | Store and forward | | Buttons | Reset button
LED On/Off | | LED Indicators | Power
System
Per Port: Link/Act
PoE: Act/Status
Per Unit: Power | | Power Input | 12 VDC / 3.5 A
100-240 VAC 50/60 Hz | | Power Budget | 24 W | | Switching Capacity | 160 Gb/s | | Forwarding Rate | 119 Mpps | | MAC Address | 16 K | | Memory Buffer | 16 M | | Jumbo Frames | 9 KB | | Filtering / Forwarding Rates | 10000 Mb/s port - 14,880,000 pps
1000 Mb/s port - 1,488,000 pps
100 Mb/s port - 148,800 pps
10 Mb/s port - 14,880 pps | | VLAN Support | Up to 16 VLANs and 4094 VLAN IDs
802.1Q tag-based VLAN
Port-based VLAN | | Port Trunking | Supports trunk-static trunk up to 4 trunk groups | | Mirror | Port mirroring both on ingress and egress traffic | | IGMP Snooping | IGMP v1/v2 snooping | | QoS (Quality of Service) | Port-based QoS, IEEE802.1p QoS, 4 Priority Queues, scheduling algorithm | | Management | User Interface: Web-based management/ CLI (Command Line Interface)
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB
Loop detection
Cable diagnostics | | Security | Rate Limit: Rate limit on ingress and egress traffic
Storm control
Access control | | Standards and Compliance | IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3z 1000BASE-X Gigabit Ethernet
IEEE 802.3an 10GBase-T 10 Gigabit Ethernet
IEEE 802.3x Full-duplex and flow control
IEEE 802.1Q Virtual LANs VLANs
IEEE 802.1P QoS Port-Based
IEEE 802.3az Energy-Efficient Ethernet | | Certifications | FCC Class A, CE | | Temperature & Humidity | Operating Temperature
32 to 122°F / 0 to 50°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
5 to 90% non-condensing | | Dimensions | 8.3 x 6.3 x 1.7" / 210 x 160 x 44 mm | | Weight | 2.3 lb / 1.04 kg | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 13.0 x 9.3 x 3.1" |
