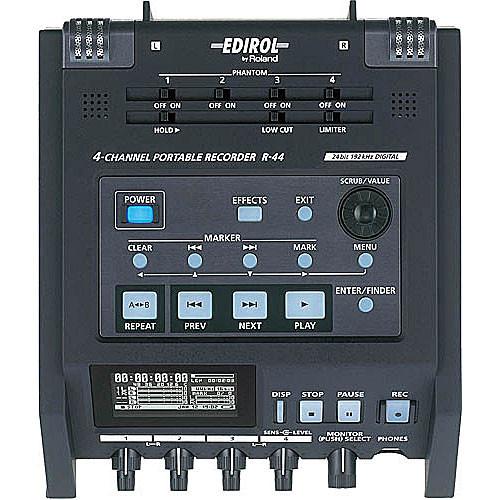

User Manual for Edirol Roland R-44 Solid-State Four-Channel Portable Field Recorder Click to enlarge the picture
Contents of the user manual for the Edirol Roland R-44 Solid-State Four-Channel Portable
- Product category: Portable Digital Recorders Edirol / Roland
- Brand: Edirol / Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Edirol / Roland Portable Digital Recorders
 |
User manual for the Edirol Roland R-44 Solid-State Four-Channel Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Edirol / Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Edirol / Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Edirol / Roland product will considerably shorten its lifespan!
|
Product description The R-44 portable field recorder from Edirol/Roland is an ideal choice for videographers, musicians, sound designers, and more. The ultra-portable unit weighs under three pounds but packs a number of great features. Record up to four channels of linear PCM audio at a variety of bit rates and sampling frequencies; up to 24-bit/192kHz!

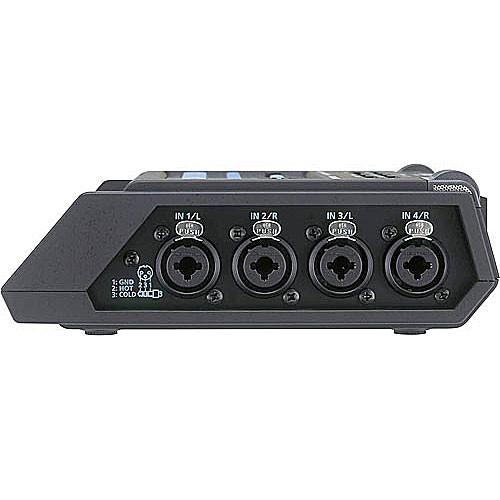

The recorder offers four XLR/TRS combo jack inputs for great versatility. The XLR connections have phantom power, allowing you to use your favorite condenser mic. The R-44 can record to widely-available SD or SDHC flash memory cards, making it easy to store and share your audio. Because there are no moving parts, the R-44 delivers silent, reliable operation that you can depend on.
In addition to the input connectors, the R-44 also offers built-in stereo microphones and monitor speakers, allowing you to record and play back audio without any additional equipment. What's more, is that the unit will operate for up to four hours on four AA batteries. You can also use the included AC adapter to use it via wall power.
Built-in effects include a three-band parametric EQ and a six-band graphic EQ, a noise gate, compressor, de-esser, limiter, and low-cut filter. A pre-record function keeps the R-44 listening at all times, so that when the record button is pressed, the previous few seconds of audio (selectable) are captured to your memory card.

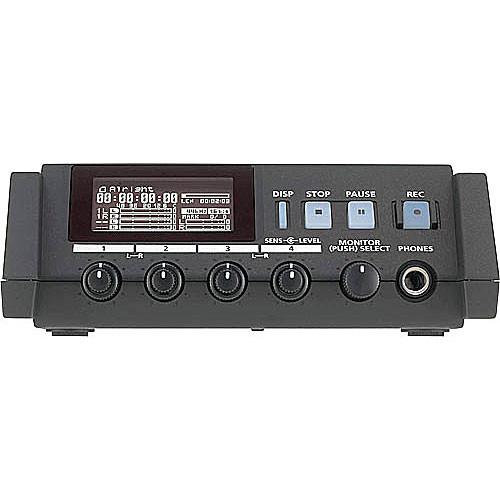

The R-44 has an easy-to-use interface, complete with a high-contrast OLED display, perfect for viewing under any conditions. You can also capture up to eight channels of audio by linking two R-44 units together. A high-speed USB 2.0 port lets you transfer your audio files quickly to a Mac or PC. - Compact and Portable
- Weighing under three pounds, it's easy to take the R-44 anywhere you like.
- Four Channels of Professional-Quality Audio
- Record up to four channels of audio at 16 or 24-bit, at sample rates from 44.1 to 192kHz.
- SD/SDHC Storage
- Your audio is recorded to widely-available SD or SDHC flash memory cards, which provide great reliability and silent operation.
- Versatile Connectivity

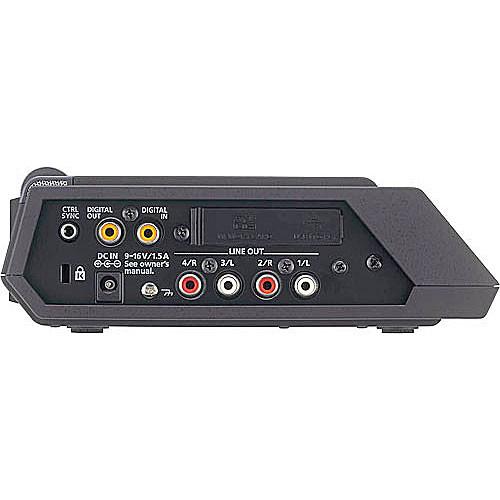

- Four XLR/TRS combo inputs allow you to connect a variety of microphones. Phantom power is provided for condenser mics. Four RCA phono jacks are provided for output connection, and a stereo headphone jack provides private monitoring.
- Built-In Mics and Speakers
- Built-in stereo mics and monitor speakers allow you to record and play back audio without attaching any external equipment.
- Power Options
- The R-44 can operate for up to four hours on four AA batteries. You can also use AC power with the included AC/DC adapter.
- Built-in Effects
- High-quality effects include a three-band parametric EQ, a six band graphic EQ, noise gate, compressor, de-esser, enhancer, limiter, and a low-cut filter. You can also sequence play along your play list.
- Intuitive Interface
- The simple interface makes it easy to record and play back audio. The bright OLED screen is viewable in practically any environment, and the high-speed USB 2.0 port allows you to transfer audio quickly to your Mac or PC. You can automatically set the gain sensitivity as well as zoom out of the level meter for use with a micro display
- Expandable
- Record up to eight channels of audio by linking two R-44 units together.
UPC: 761294405420 In the Box Edirol / Roland R-44 Solid-State Four-Channel Portable Field Recorder AC Adapter 1-Year Limited Warranty User Manual PDF 12.1mbdysxcuswudvesxbtcuyxabawdasdq Table of Contents
|
Upload User Manual
Have you got an user manual for the Edirol Roland R-44 Solid-State Four-Channel Portable Field Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEdirol / Roland R-44 Specs | | | Number of Tracks | 4 | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | Microphone | Built-In Stereo Pair | | Built-In Speaker | Yes | | Memory Card Support | SD, SDHC | | | | Sample Rates | 44.1 / 48 / 88.2 / 96 / 192 kHz | | Bit Depth | 16/24-Bit | | Timecode | No | | | | Analog I/O | 4 x Combo XLR / 1/4" TRS Input
4 x RCA Output
1 x 1/4" TRS Headphone Output | | Digital I/O | 1 x Digital RCA Input
1 x Digital RCA Output | | Host Connection | 1 x Mini-USB (USB 2.0) | | | | Frequency Response | 20 Hz to 40 kHz +0/-3 dB | | Dynamic Range | A/D Converters:
100 dB
D/A Converters:
104 dB | | SNR | -100 dBu | | THD | 0.02% | | | | Dimensions | 6.2 x 7.2 x 2.4" / 157.0 x 183.0 x 61.0 mm | | Weight | 2.9 lb / 1.3 kg (with Batteries) | | | | Package Weight | 4.35 lb | | Box Dimensions (LxWxH) | 11.0 x 10.4 x 5.1" |
