User Manual for Eizo 27" FlexScan EV2785 16:9 4K IPS Monitor Click to enlarge the picture
Contents of the user manual for the Eizo 27" FlexScan EV2785 16:9 4K
- Product category: Computer Monitors Eizo
- Brand: Eizo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eizo Computer Monitors
 |
User manual for the Eizo 27" FlexScan EV2785 16:9 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eizo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eizo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eizo product will considerably shorten its lifespan!
|

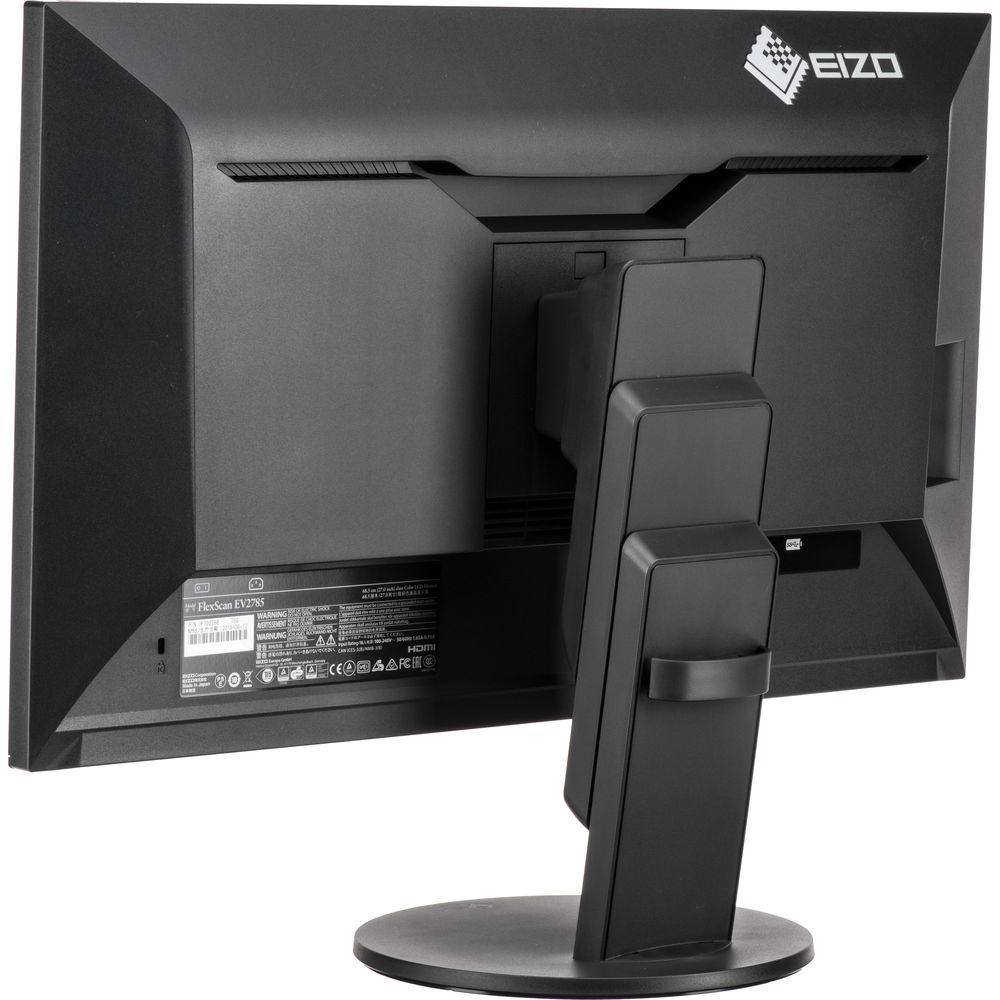

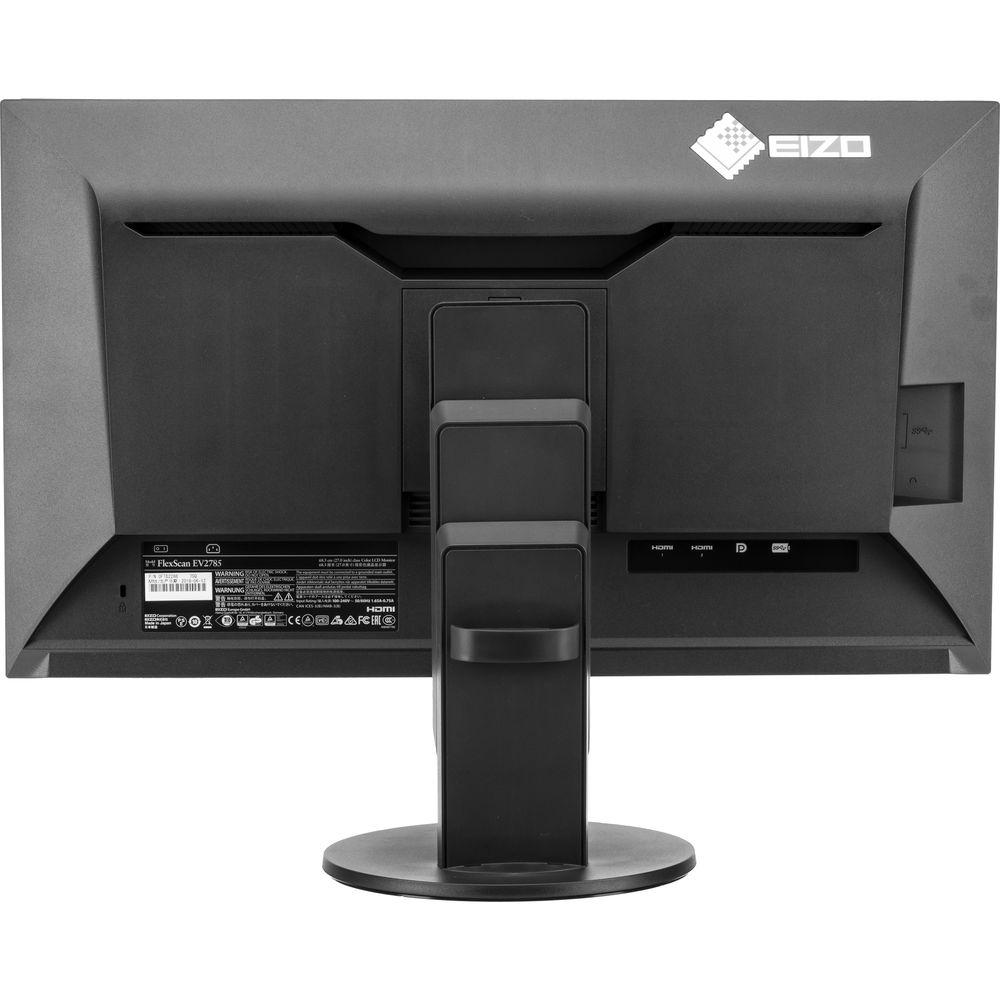

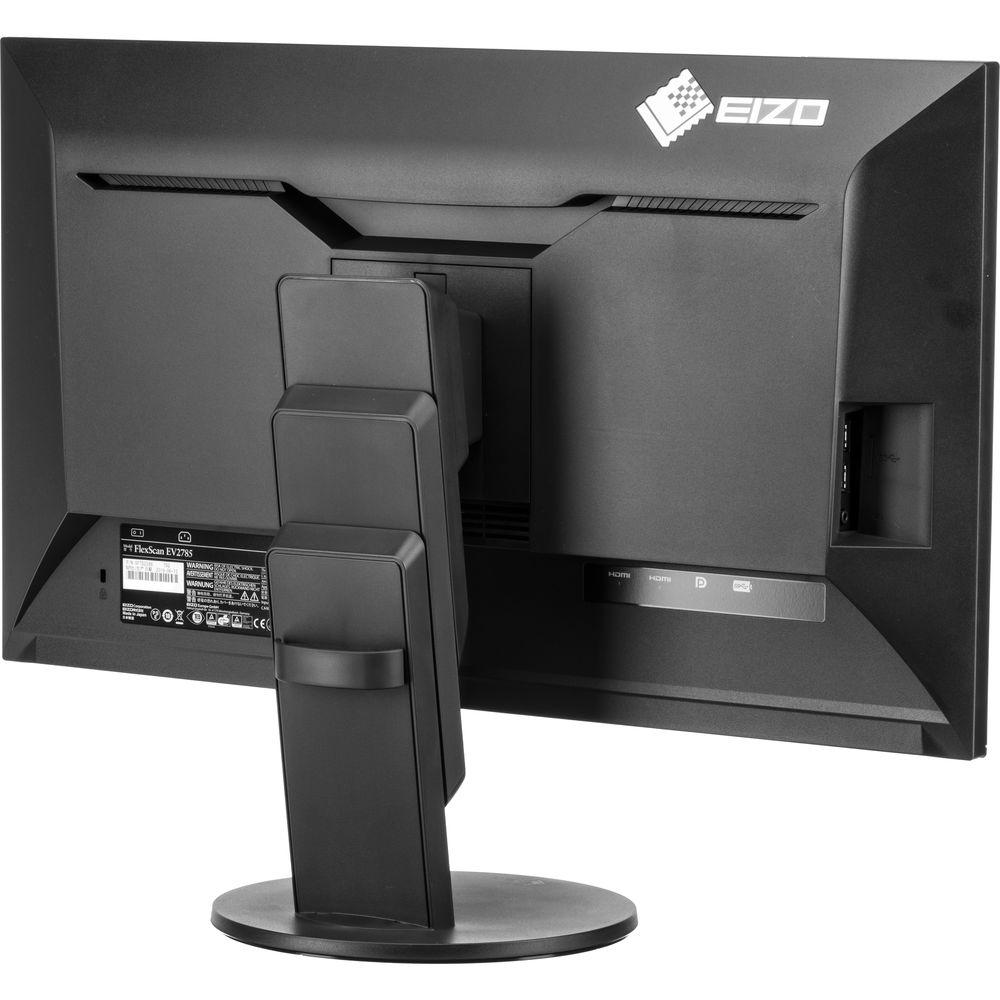

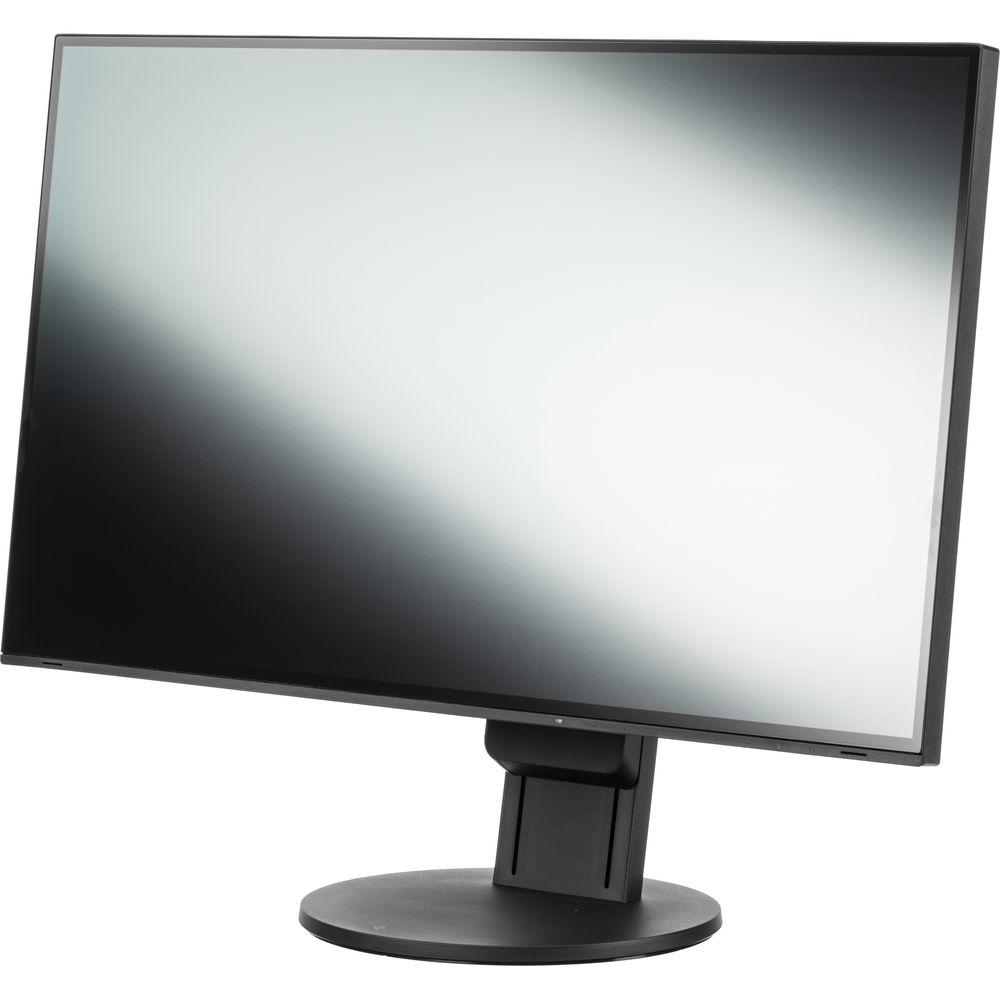

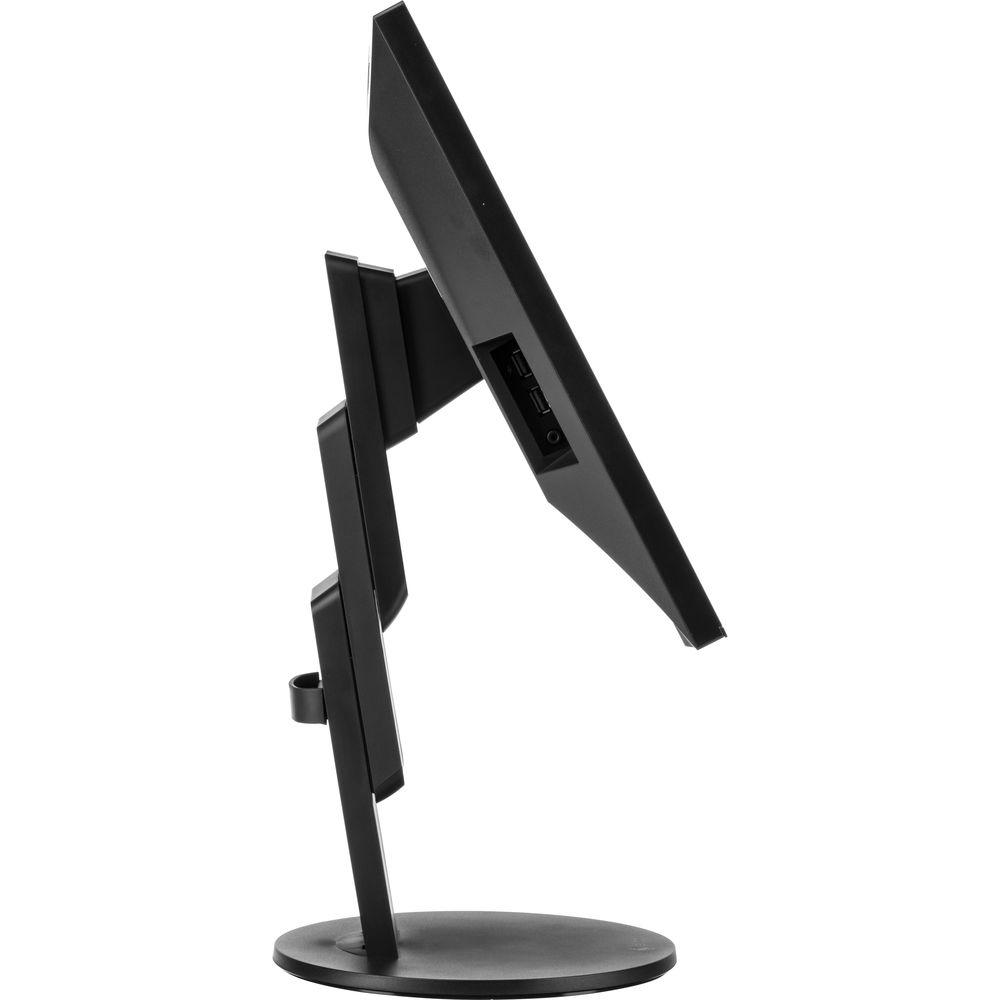

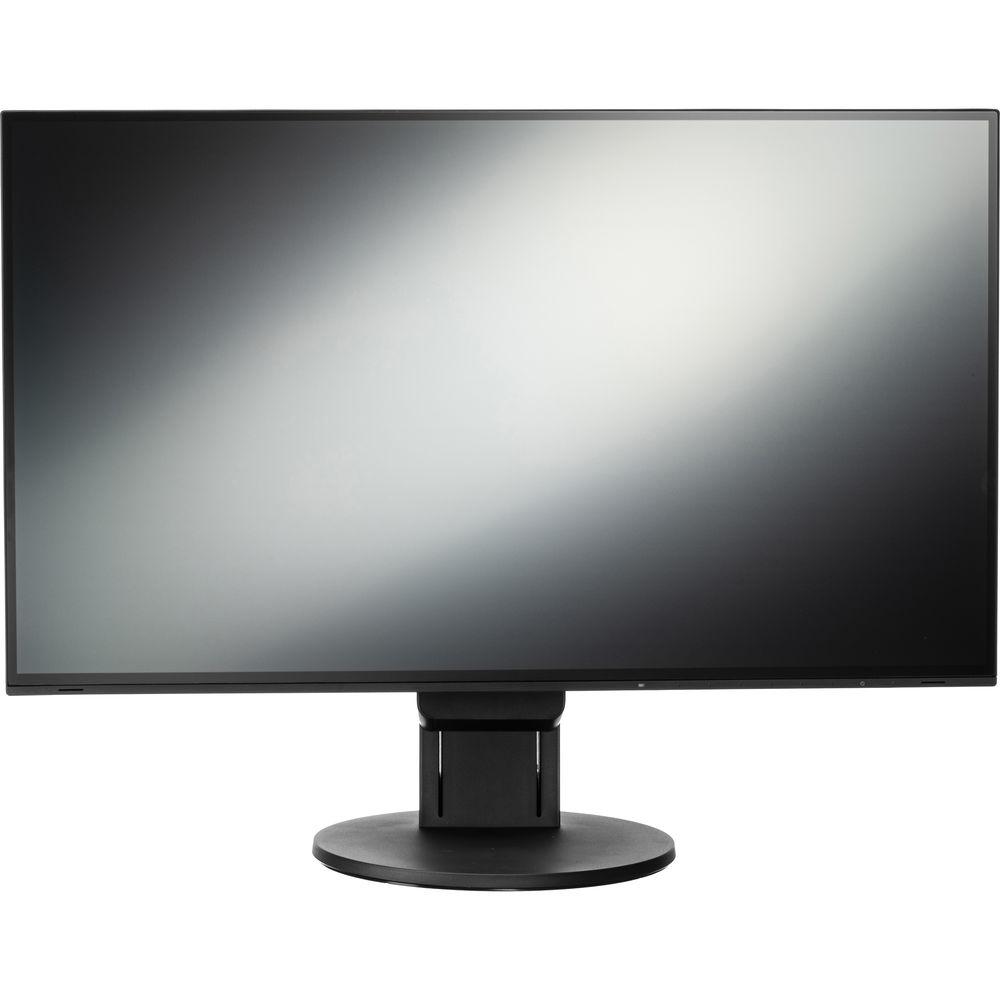

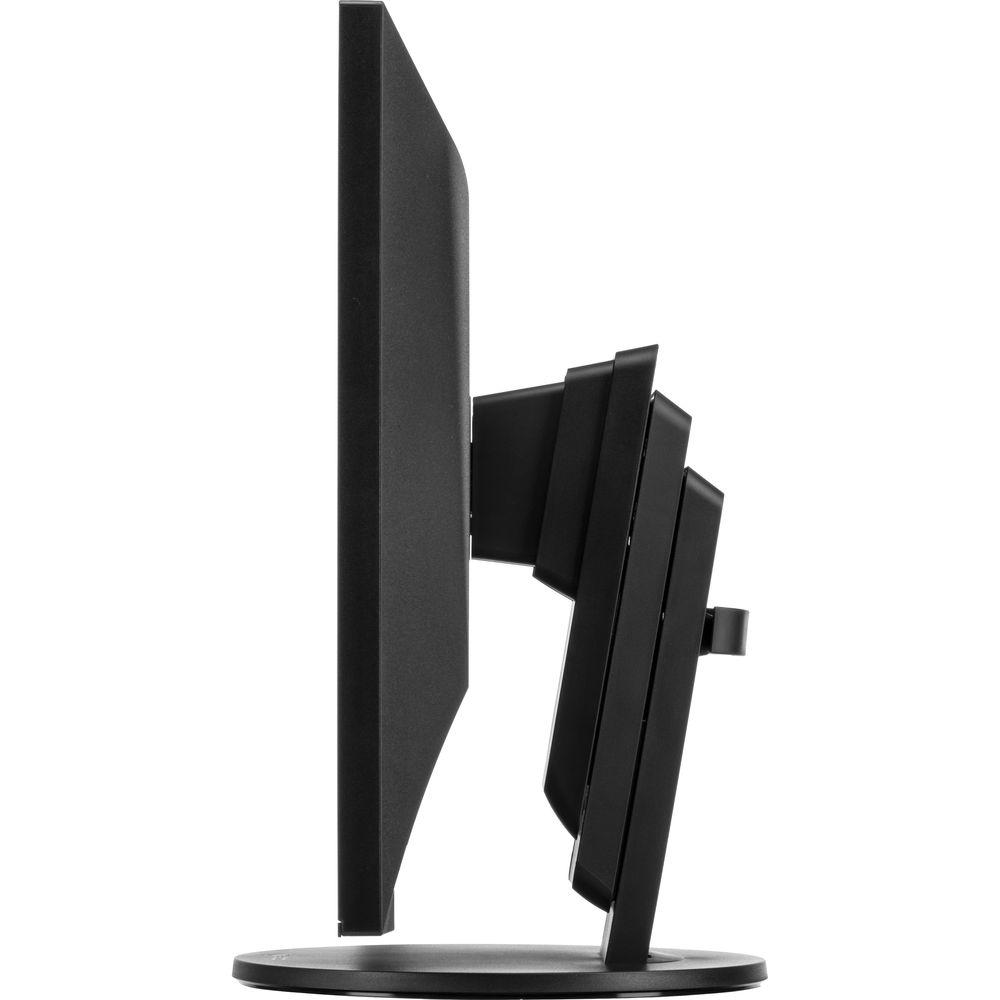

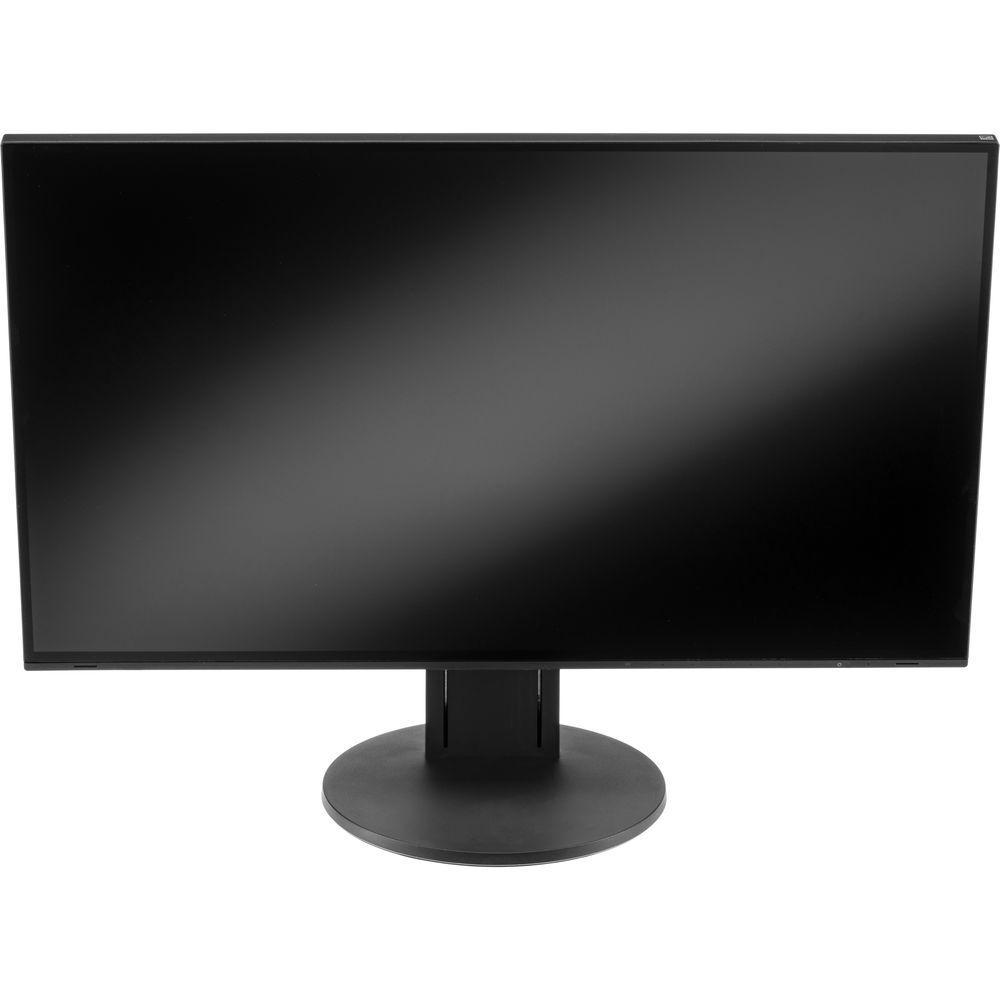

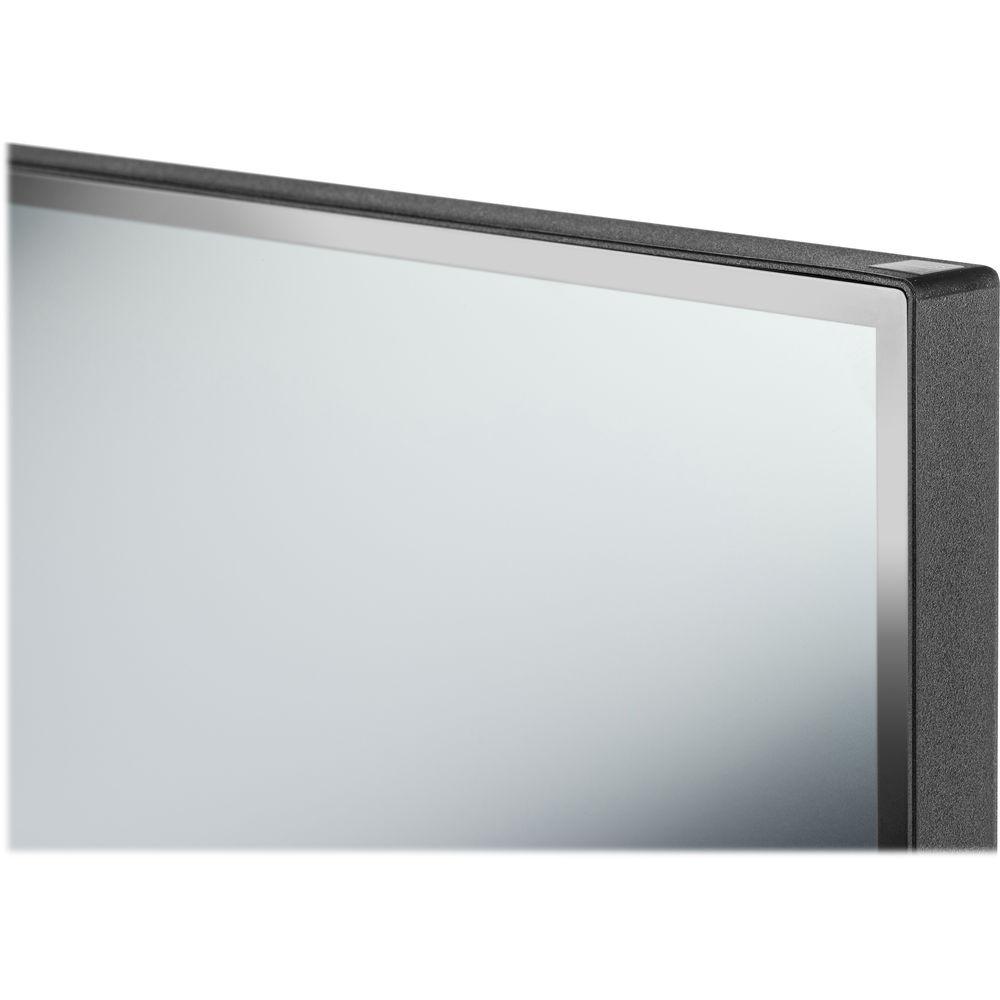

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 27" FlexScan EV2785 16:9 4K IPS Monitor from EIZO features a sleek, frameless design. Built with an In-Plane Switching (IPS) panel, this monitor offers a 3840 x 2160 4K UHD resolution, a 1300:1 static contrast ratio, a 350 cd/m² brightness rating, and support for up to 16.7 million colors for crisp, clear details and vivid colors. Once it's connected to your system via DisplayPort, HDMI, or even USB Type-C, you can adjust it to your viewing preference or mount it to a VESA compatible stand or mount. - USB Type-C
- The USB Type-C port on this display supports up to 60W of power, which can be used to charge your mobile device such as a laptop or smartphone. Moreover, it can also simultaneously transmit video and audio signals, so you can use this display as your main or secondary screen.
- Auto Brightness
- This display features a built-in brightness sensor that detects ambient brightness to automatically adjust the screen for optimal viewing.
- Auto Color Mode
- The Auto Color Mode lets you set up custom display parameters to best fit your current applications whether you're reading, watching a movie, or dealing with color-sensitive work. You can even have these modes enabled automatically when a certain application is opened, or manually select one with a hotkey.
- Eye Care
- This display features reduced blue light emissions and flickering to help minimize eyestrain and fatigue, which can be caused by extended viewing periods.
UPC: 690592044881 In the Box Eizo 27" FlexScan EV2785 16:9 4K IPS Monitor Power Cable USB Type-C Cable DisplayPort Cable HDMI Cable Cable Cover Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eizo 27" FlexScan EV2785 16:9 4K IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEizo FlexScan EV2785 Specs | | | Size | 27" | | Screen Area | 23.49 x 13.22" / 596.7 x 335.7 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 163 ppi | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1300:1 | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.155 x 0.155 mm | | | | Connectivity | 1 x USB Type-C
1 x DisplayPort 1.2
2 x HDMI
2 x USB Type-A (USB 3.1 Gen 1)
1 x 3.5 mm | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 163 W (Maximum)
31 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | USB Power Delivery | 60 W | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 20 to 80% | | | | Height Adjustment | 7.00" / 177.9 mm | | Rotation Adjustment | 90° | | Swivel Adjustment | 344° | | Tilt Adjustment | -5 to 35° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | No | | Dimensions (W x H x D) | 24.1 x 21.5 x 9.1" / 611.4 x 545.2 x 230.0 mm (With Stand)
24.1 x 14.0 x 2.0" / 611.4 x 356.3 x 50.0 mm (Without Stand) | | Weight | 18.08 lb / 8.2 kg (With Stand)
10.80 lb / 4.9 kg (Without Stand) | | | | Package Weight | 23.5 lb | | Box Dimensions (LxWxH) | 27.5 x 19.25 x 11.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
