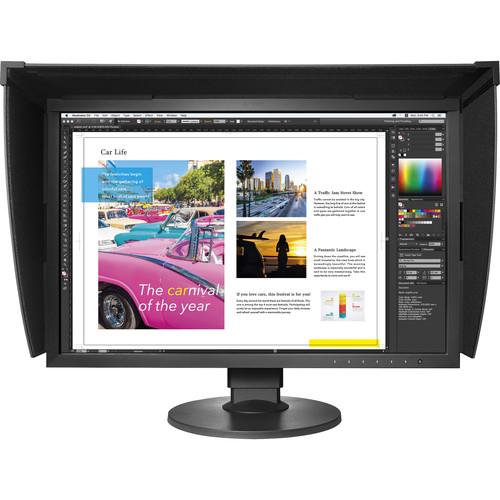

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The ColorEdge CG2420 24" 16:10 Hardware Calibration IPS Monitor from Eizo is a professional-grade monitor designed to provide you with the features and specifications required for color-accurate content production. At the top of this display is a built-in calibration sensor that speeds up your workflow as well as eliminates the need for a third party tool. This display has a 1920 x 1200 16:10 screen resolution for crisp and clear pictures along with a 1,500:1 static contrast ratio and a 400 cd/m² brightness rating for darker blacks and brighter bright colors. Furthermore, it has a 10 ms response time for lag-free content reproduction and supports up to 1.07 billion colors. Additionally, with an In-Plane Switching (IPS) display, you'll be able to enjoy wide viewing angles and vivid color reproduction. Connect this display to your system via DVI-D, HDMI, or DisplayPort and then tilt, swivel, and adjust the height to your viewing preference. Otherwise, you can remove the stand and install an optional mounting arm or stand using the 100 x 100mm VESA mounting holes on the back. - Built-In Sensor
- The automated screen calibration sensor is located in the front bezel and swings onto the screen only when calibrating, eliminating the need for a third-party calibration device. It can also be used when the monitor is set up in portrait mode.
- Reproduces 99% of the Adobe RGB Color Space
- An IPS panel with a wide color gamut reproduces 99% of the Adobe RGB color space so images shot in RAW can be converted to Adobe RGB or images shot in Adobe RGB will be displayed correctly. The wide color gamut also ensures that the monitor reproduces almost the entire ISO-coated and US web-coated CMYK color spaces used in printing as well as 98% of the DCI used in post production.
- Factory Calibrated
- This display's gamma level is pre-calibrated in the factory to ensure that it can deliver the smoothest color gradations in your images.
- Stable Color in Just 3 Minutes
- The ColorEdge CG2420 takes roughly three minutes in order for its brightness, chromaticity, and tone characteristics to stabilize providing you with reliable color display soon after turning it on.
- Uniformity from Corner to Corner
- Equipped with Eizo's patented digital uniformity equalizer (DUE) technology, this monitor ensures that the brightness and chromaticity is even across the whole screen. It also counterbalances the effects from temperature changes on color temperature and brightness for stable image display.
- True Black Display
- When viewing monitors from an angle in a dimly lit room, dark tones typically appear washed out due to the display characteristics of LCD backlights; however, this monitor is equipped with a film that allows the dark tones to retain their depth.
- I/P Conversion for Flicker-Free Display
- The HDMI input supports I/P (interlace/progressive) conversion for converting interlace signals from TV and video into progressive signals for flicker-free display.
- Light-Shielding Hood

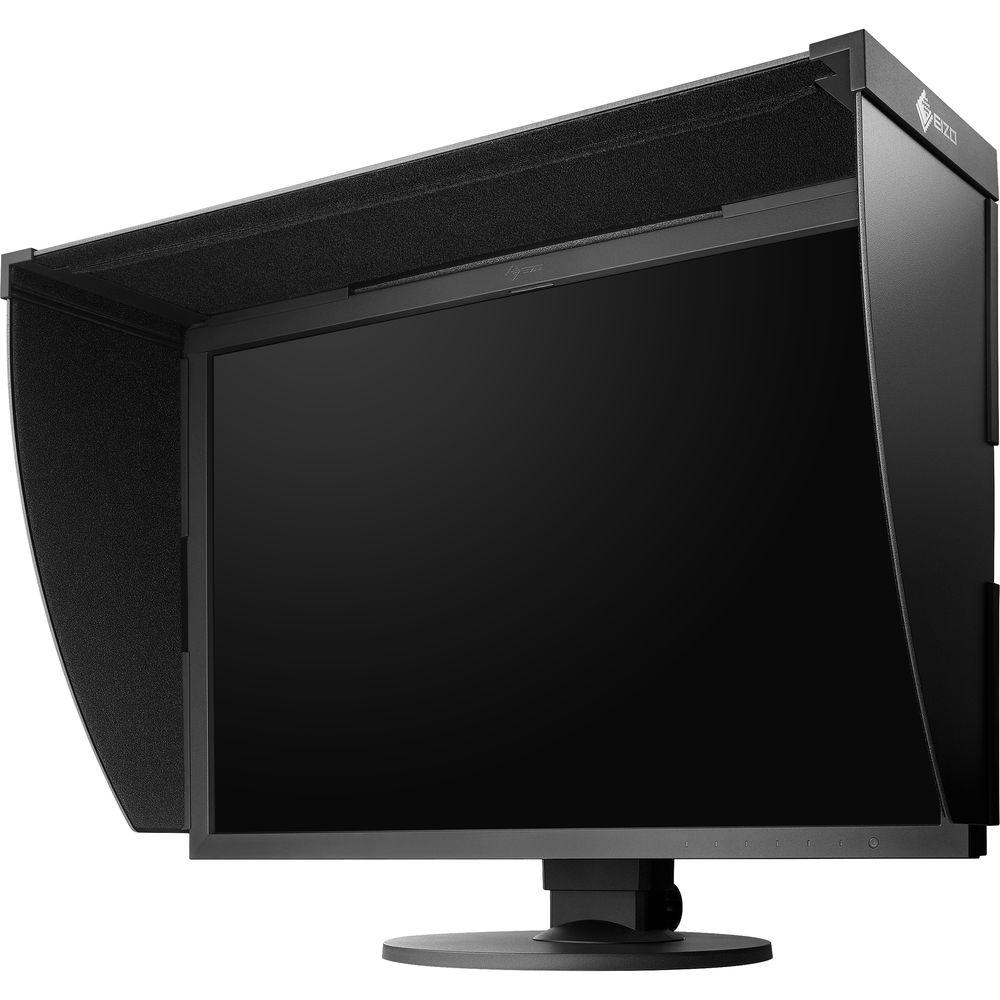

- This monitor comes with a light-shielding hood that magnetically attaches to the display to prevent glare caused by ambient lighting.
- Built-In Carrying Handle

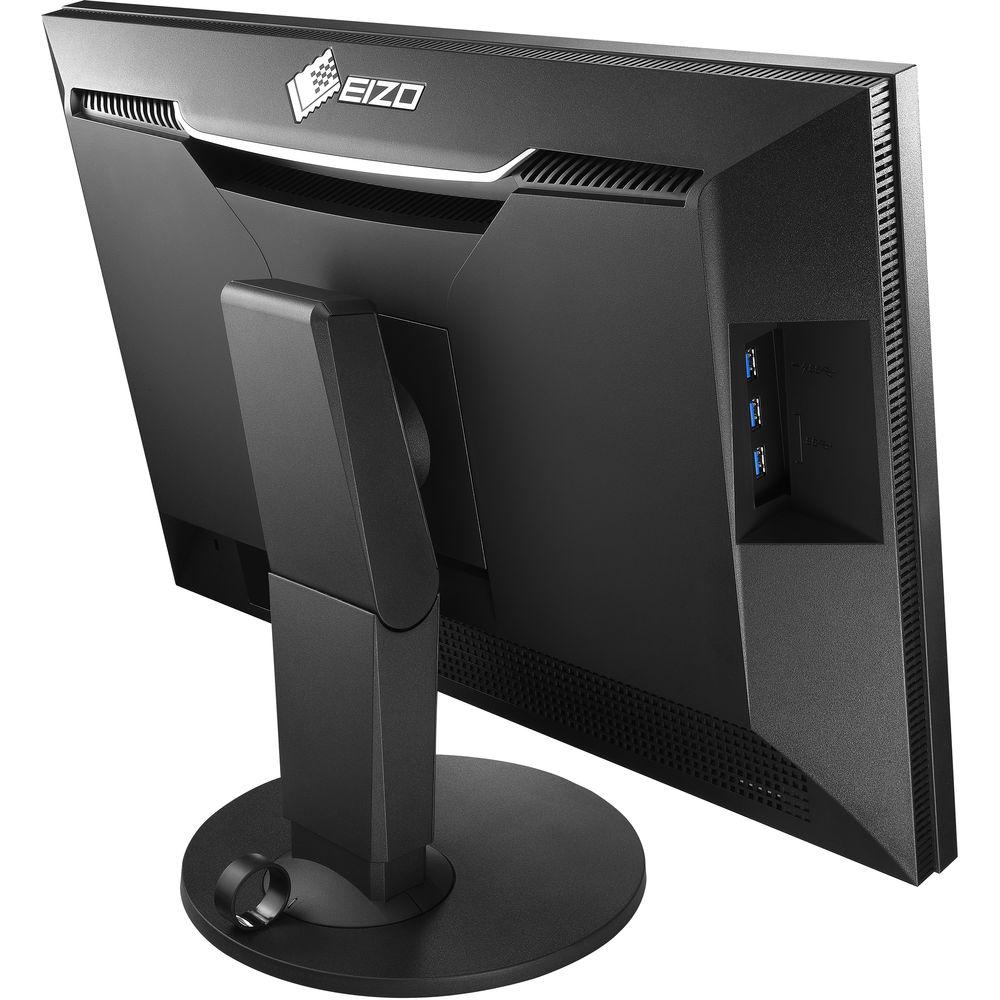

- A carrying handle on the back of the monitor allows you to easily move it from one location to another.
Colorful Software - ColorNavigator 6 Color Management Software
- ColorNavigator 6 lets you easily calibrate your monitor. Simply select your desired presets or assign values and the built-in sensor will use the monitor's look-up-table and create an ICC profile within minutes.
- ColorNavigator NX Quality Control Software
- With ColorNavigator NX, calibration information is saved to the monitor instead of your system so you don't have to recalibrate it if you're connecting it to more than one PC.
- ColorNavigator Network Quality Control Software
- ColorNavigator Network serves as a centralized quality control center for ColorEdge monitors that have ColorNavigator NX installed. With it, administrators can set color modes, schedule self-calibration, register or adjust asset management settings, and other tasks whether the monitors are local or remote. Furthermore, ColorNavigator Network is hosted on a secure cloud server so you won't be burdened with the cost of providing your own server.
- Additional Features
- Brightness Stabilization
Digital Uniformity Equalizer
Preset Color Modes - Custom Adobe RGB, sRGB, Calibration
OSD Languages - English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional ChineseColor Adjustment (Brightness, Temperature, Gamma, Color Gamut, Hue, Saturation, Clipping, Gain, Independent 6-Color Control, Reset), Picture Expansion (Auto, Full Screen, Aspect Ratio, Dot by Dot), Input Color Format, Input Range, Noise Reduction, Auto-Input Detection, Menu Rotation, USB CHARGE Port, Power Save, Indicator, Beep, Input Skip, Mode Skip, Signal Info, Monitor Info, Key Lock, DP Power Save, DUE Priority, Signal Format, Monitor Reset UPC: 690592041118 In the Box Eizo ColorEdge CG2420 24" 16:10 Hardware Calibration IPS Monitor AC Power Cord DVI-D Cable Mini DisplayPort to DisplayPort Cable USB Cable Screen Cleaner Monitor Hood Mounting Screws Eizo LCD Utility Disk Limited 5-Year Warranty User Manual PDF 3.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Eizo ColorEdge CG2420 24" 16:10 Hardware Calibration IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEizo CG2420 Specs | | | Size | 24.1" | | Screen Area | 20.4 x 12.8" / 51.8 x 32.4 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Pixels Per Inch (ppi) | 94 ppi | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1500:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 26 to 78 kHz (DisplayPort)
26 to 78 kHz (DVI)
15 to 78 kHz (HDMI) | | Vertical Frequency | 24 to 61 Hz (HDMI)
24 to 61 Hz (DisplayPort)
24 to 61 Hz (DVI) | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Color Gamut | 99% Adobe RGB
98% DCI-P3 | | Response Time | 10 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.27 x 0.27 mm | | | | Connectivity | 1 x USB Input
3 x USB Type-A Output
1 x DVI-D
1 x DisplayPort Input
1 x HDMI | | HDCP Support | Yes | | | | Power Consumption | 79 W (Maximum)
0.6 W (Standby)
20 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 20 to 80% | | Certifications | RoHS, WEEE, as per Manufacturer | | | | Height Adjustment | 6.1" / 15.5 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 344° | | Tilt Adjustment | -5 to 35° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 21.8 x 15.6 x 9.6" / 55.4 x 39.6 x 24.5 cm
21.8 x 14.3 x 2.5" / 55.4 x 36.2 x 6.4 mm (Without Stand) | | Weight | 11 lb / 5 kg (Without Stand)
17.2 lb / 7.8 kg (With Stand) | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 25.0 x 21.0 x 12.0" |
