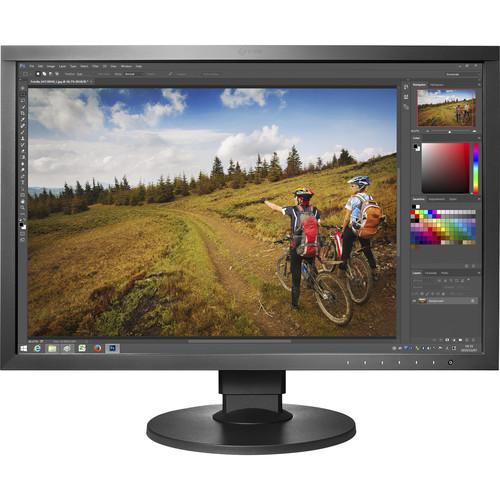

User Manual for Eizo ColorEdge CS2420 24" 16:10 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Eizo ColorEdge CS2420 24" 16:10 IPS
- Product category: Computer Monitors Eizo
- Brand: Eizo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eizo Computer Monitors
|
User manual for the Eizo ColorEdge CS2420 24" 16:10 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eizo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eizo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eizo product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The ColorEdge CS2420 24" 16:10 Hardware Calibration IPS Monitor from Eizo is a professional-grade monitor designed to provide you with the features and specifications required for color-accurate content production. This display has a 1920 x 1200 16:10 screen resolution for crisp and clear pictures along with a 1,000:1 static contrast ratio and a 350 cd/m² brightness rating for darker blacks and brighter bright colors. Furthermore, it has a 15 ms response time for lag-free content reproduction and supports up to 1.07 billion colors. Additionally, with an In-Plane Switching (IPS) display, you'll be able to enjoy wide viewing angles and vivid color reproduction. Connect this display to your system via DVI-D, HDMI, or DisplayPort and then tilt, swivel, and adjust the height to your viewing preference. Otherwise, you can remove the stand and install an optional mounting arm or stand using the 100 x 100mm VESA mounting holes on the back. - Reproduces 99% of the Adobe RGB Color Space
- An IPS panel with a wide color gamut reproduces 99% of the Adobe RGB color space so images shot in RAW can be converted to Adobe RGB or images shot in Adobe RGB will be displayed correctly. The wide color gamut also ensures that the monitor reproduces almost the entire ISO-coated and US web-coated CMYK color spaces used in printing as well as 93% of the DCI used in post production.
- Factory Calibrated
- This display's gamma level is pre-calibrated in the factory to ensure that it can deliver the smoothest color gradations in your images.
- Uniformity from Corner to Corner
- Equipped with Eizo's patented Digital Uniformity Equalizer (DUE) technology, this monitor ensures that the brightness and chromaticity is even across the whole screen. It also counterbalances the effects from temperature changes on color temperature and brightness for stable image display.
- I/P Conversion for Flicker-Free Display
- The HDMI input supports I/P (interlace/progressive) conversion for converting interlace signals from TV and video into progressive signals for flicker-free display.
- Built-In Carrying Handle
- A carrying handle on the back of the monitor allows you to easily move it from one location to another.
- ColorNavigator 6 Color Management Software
- ColorNavigator 6 lets you easily calibrate your monitor. Simply select your desired presets or assign values and the built-in sensor will use the monitor's look-up-table and create an ICC profile within minutes.
- Additional Features
- Digital Uniformity Equalizer
Preset Color Modes - Custom Adobe RGB, sRGB, Calibration
OSD Languages - English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional ChineseColor Adjustment (Brightness, Temperature, Gamma, Color Gamut, Hue, Saturation, Clipping, Gain, Independent 6-Color Control, Reset), Picture Expansion (Auto, Full Screen, Aspect Ratio, Dot by Dot), Input Color Format, Input Range, Noise Reduction, Auto-Input Detection, Menu Rotation, USB CHARGE Port, Power Save, Indicator, Beep, Input Skip, Mode Skip, Signal Info, Monitor Info, Key Lock, DP Power Save, DUE Priority, Signal Format, Monitor Reset UPC: 690592041125 In the Box Eizo ColorEdge CS2420 24" 16:10 IPS Monitor AC Power Cord DVI-D Cable Mini DisplayPort to DisplayPort Cable USB Cable Screen Cleaner Stand Base Cable Holder Mounting Screws Eizo LCD Utility Disk Limited 5-Year Warranty User Manual PDF 3.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Eizo ColorEdge CS2420 24" 16:10 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEizo CG2420 Specs | | | Size | 24.1" | | Screen Area | 20.4 x 12.8" / 51.8 x 32.4 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1200 | | Pixels Per Inch (ppi) | 94 ppi | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 26 to 78 kHz (DisplayPort)
26 to 78 kHz (DVI)
15 to 78 kHz (HDMI) | | Vertical Frequency | 24 to 61 Hz (DVI)
24 to 61 Hz (HDMI)
24 to 61 Hz (DisplayPort) | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Color Gamut | 99% Adobe RGB | | Response Time | 15 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.27 x 0.27 mm | | | | Connectivity | 1 x USB Input
3 x USB Type-A Output
1 x DVI-D
1 x DisplayPort Input
1 x HDMI | | HDCP Support | Yes | | | | Power Consumption | 0.6 W (Standby)
92 W (Maximum)
26 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 20 to 80% | | Certifications | RoHS, WEEE, as per Manufacturer | | | | Height Adjustment | 6.1" / 15.5 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 344° | | Tilt Adjustment | -5 to 35° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 21.8 x 15.6 x 9.6" / 55.4 x 39.6 x 24.5 cm
21.8 x 14.3 x 2.5" / 55.4 x 36.2 x 6.4 mm (Without Stand) | | Weight | 11 lb / 5 kg (Without Stand)
17.2 lb / 7.8 kg (With Stand) | | | | Package Weight | 22.4 lb | | Box Dimensions (LxWxH) | 25.0 x 20.0 x 9.0" |
