Eizo ColorEdge CS2730 27" 16:9 IPS

Search your instruction manual in PDF to download

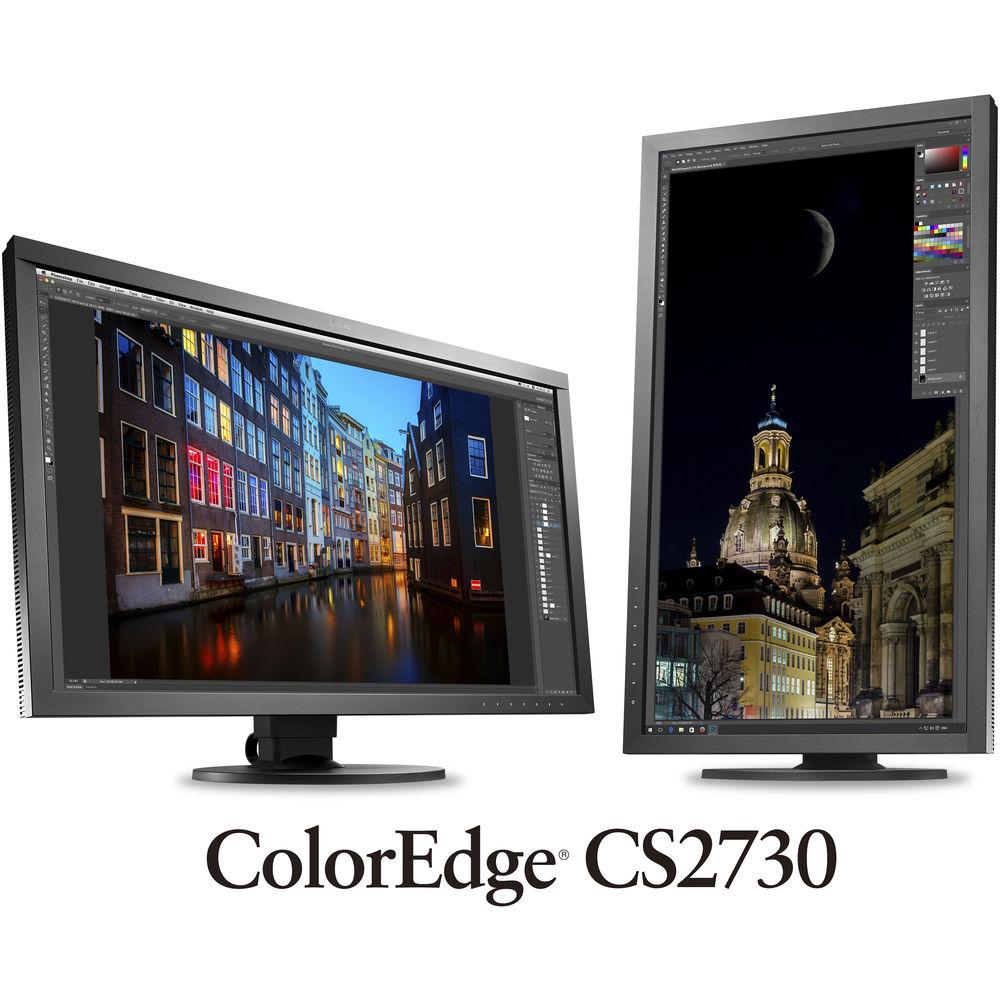

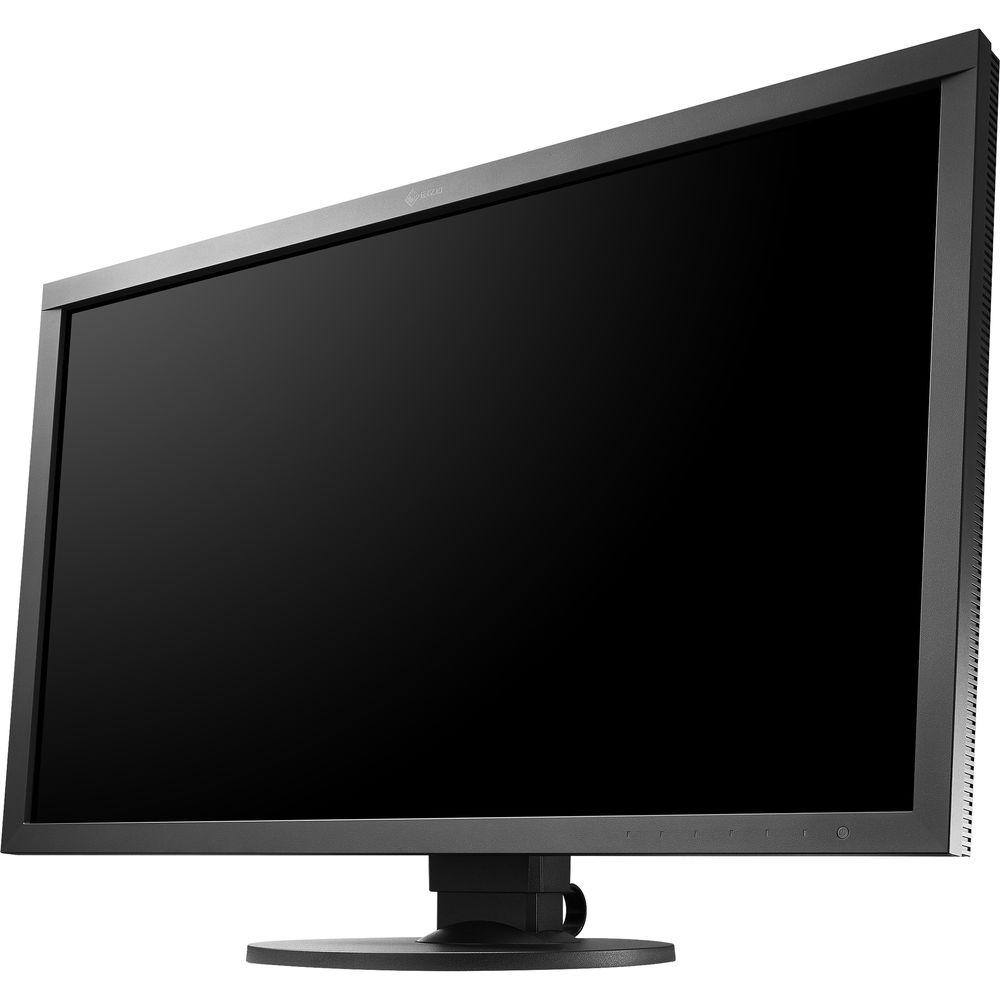

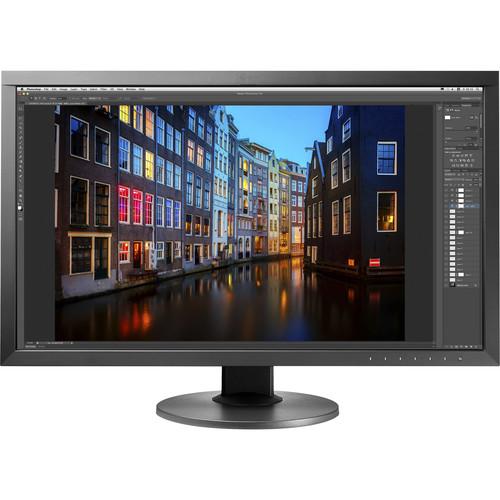

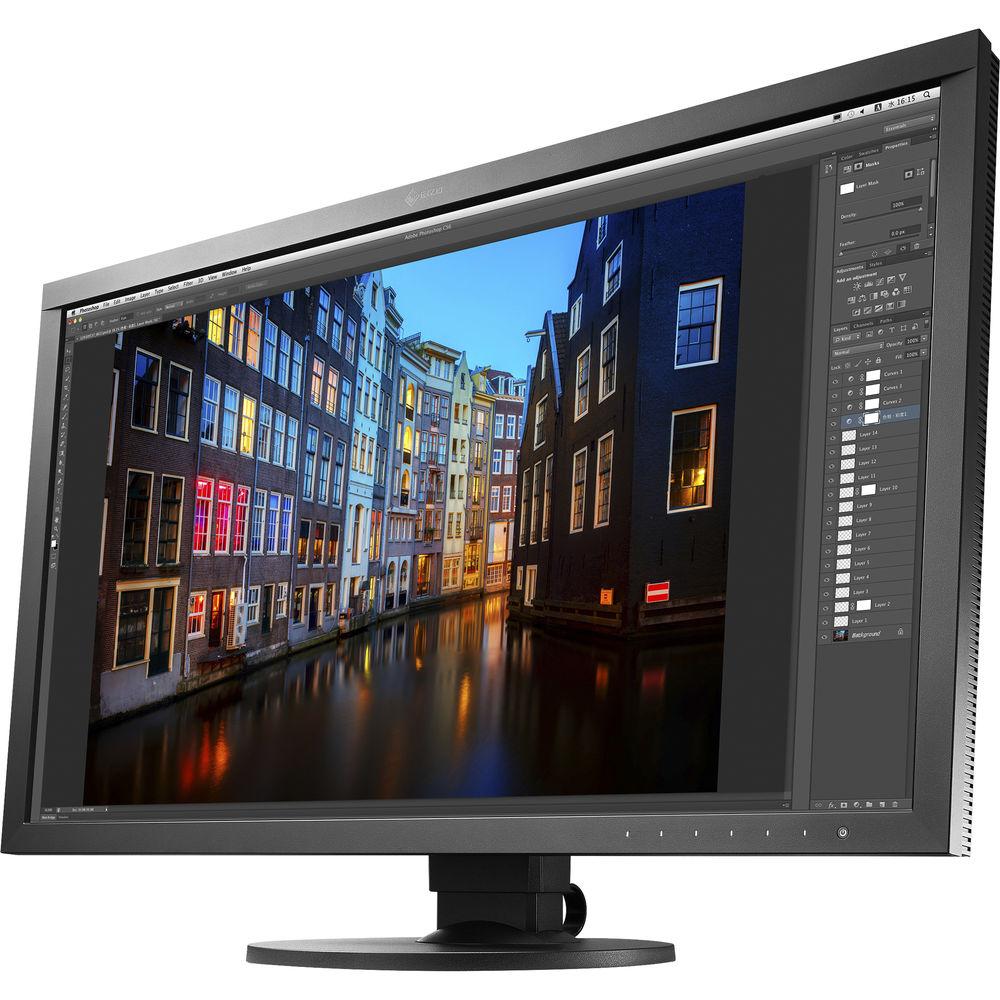

User Manual for Eizo ColorEdge CS2730 27" 16:9 IPS Monitor with EX3 Calibration Sensor

Click to enlarge the picture
Eizo ColorEdge CS2730 27" 16:9 IPS Monitor with EX3 Calibration Sensor Contents of the user manual for the Eizo ColorEdge CS2730 27" 16:9 IPS
  • Product category: Computer Monitors Eizo
  • Brand: Eizo
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Eizo Computer Monitors

Eizo ColorEdge CS2730 27" 16:9 IPS Monitor with EX3 Calibration Sensor Eizo ColorEdge CS2730 27" 16:9 IPS Monitor with EX3 Calibration Sensor Eizo ColorEdge CS2730 27" 16:9 IPS Monitor with EX3 Calibration Sensor Eizo ColorEdge CS2730 27" 16:9 IPS Monitor with EX3 Calibration Sensor Eizo ColorEdge CS2730 27" 16:9 IPS Monitor with EX3 Calibration Sensor Eizo ColorEdge CS2730 27" 16:9 IPS Monitor with EX3 Calibration Sensor
User manual for the Eizo ColorEdge CS2730 27" 16:9 IPS contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Eizo product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Eizo user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Eizo product will considerably shorten its lifespan!



Product description

10 Factors to Consider When Selecting A Monitor for Video Editing Read More The ColorEdge CS2730 27" 16:9 IPS Monitor from Eizo is a professional-grade monitor designed to provide you with the features and specifications required for color-accurate content production. This display has a 2560 x 1440 16:9 screen resolution for crisp and clear pictures, along with a 1,000:1 static contrast ratio and a 350 cd/m² brightness rating for darker blacks and brighter bright colors. Furthermore, it has a 10 ms response time for lag-free content reproduction and supports up to 1.07 billion colors. Additionally, with an In-Plane Switching (IPS) display, you'll be able to enjoy wide viewing angles and vivid color reproduction. Connect this display to your system via DVI-D, HDMI, or DisplayPort and then tilt, swivel, and adjust the height to your viewing preference. Otherwise, you can remove the stand and install an optional mounting arm or stand using the 100 x 100mm VESA mounting holes on the back.
    Eizo EX3 Calibration Sensor
  • The EX3 can be used with EIZO's ColorNavigator 6 and ColorNavigator NX software to calibrate your ColorEdge monitor to your ideal settings.
    Reproduces 99% of the Adobe RGB Color Space
  • An IPS panel with a wide color gamut reproduces 99% of the Adobe RGB color space, so images shot in RAW can be converted to Adobe RGB or images shot in Adobe RGB will be displayed correctly. The wide color gamut reproduces almost the entire ISO-coated and US web-coated CMYK color spaces used in printing as well as 93% of the DCI used in post-production.
    Factory Calibrated
  • This display's gamma level is pre-calibrated in the factory to deliver smooth color gradations in your images.
    Uniformity from Corner to Corner
  • Equipped with Eizo's patented Digital Uniformity Equalizer (DUE) technology, this monitor ensures that the brightness and chromaticity is even across the whole screen. It also counterbalances the effects from temperature changes on color temperature and brightness for stable image display.
    I/P Conversion for Flicker-Free Display
  • The HDMI input supports I/P (interlace/progressive) conversion for converting interlace signals from TV and video into progressive signals for flicker-free display.

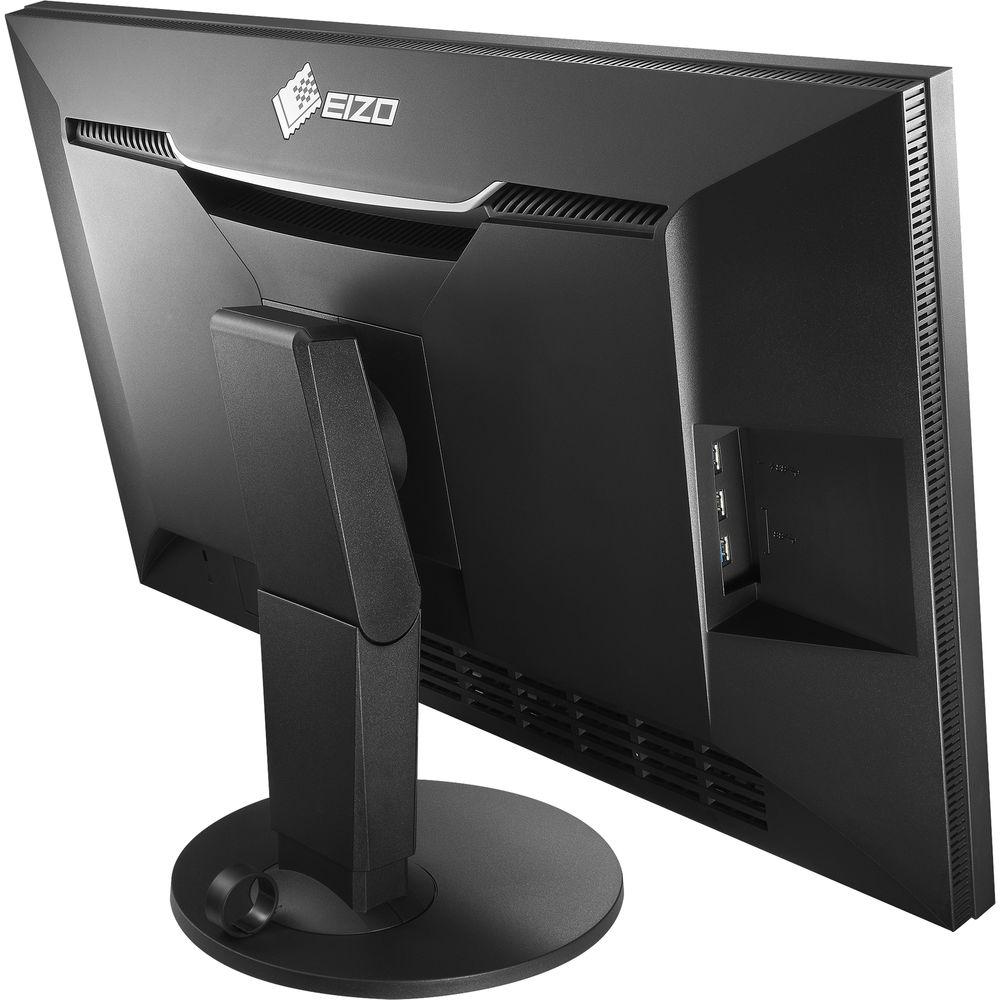

    Built-In Carrying Handle
  • A carrying handle on the back of the monitor allows you to easily move it from one location to another.
    ColorNavigator 6 Color Management Software
  • ColorNavigator 6 lets you easily calibrate your monitor. Simply select your desired presets or assign values and the built-in sensor will use the monitor's look-up-table and create an ICC profile within minutes.
    Additional Features
  • Preset Color Modes - Custom Adobe RGB, sRGB, Calibration
    OSD Languages - English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional ChineseColor Adjustment (Brightness, Temperature, Gamma, Color Gamut, Hue, Saturation, Clipping, Gain, Independent 6-Color Control, Reset), Picture Expansion (Auto, Full Screen, Aspect Ratio, Dot by Dot), Input Color Format, Input Range, Noise Reduction, Auto-Input Detection, Menu Rotation, USB CHARGE Port, Power Save, Indicator, Beep, Input Skip, Mode Skip, Signal Info, Monitor Info, Key Lock, DP Power Save, DUE Priority, Signal Format, Monitor Reset
UPC: 690592043631 In the Box Eizo ColorEdge CS2730 27" 16:9 IPS Monitor with EX3 Calibration Sensor
  • AC Power Cord
  • DVI-D Cable
  • Mini DisplayPort to DisplayPort Cable
  • USB Cable
  • Eizo LCD Utility Disk
  • Eizo EX3 Calibration Sensor
  • Limited 5-Year Warranty
  • Guides & Manuals Table of Contents




    Upload User Manual

    Have you got an user manual for the Eizo ColorEdge CS2730 27" 16:9 IPS Monitor with EX3 Calibration Sensor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Eizo ColorEdge CS2730 27" 16:9 IPS Monitor with EX3 Calibration Sensor can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Eizo ColorEdge CS2730 27" 16:9 IPS Monitor with EX3 Calibration Sensor can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Eizo ColorEdge CS2730 27" 16:9 IPS Monitor with EX3 Calibration Sensor can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Eizo ColorEdge CS2730 27" 16:9 IPS Monitor with EX3 Calibration SensorDownload PDF User Manual - Eizo ColorEdge CS2730 27" 16:9 IPS Monitor with EX3 Calibration Sensor
    (PDF file, 0 MB)


    Technical parameters

    Eizo CG2730 Specs

    Size 27"
    Screen Area 23.5 x 13.2" / 59.7 x 33.6 cm
    Panel Type IPS-Type LCD
    Touchscreen No
    Resolution 2560 x 1440
    Aspect Ratio 16:9
    Pixels Per Inch (ppi) 109 ppi
    Maximum Brightness 350 cd/m2
    Contrast Ratio 1000:1
    Adaptive Sync Technology None
    Horizontal Frequency 26 to 89 kHz (DisplayPort)
    26 to 89 kHz (DVI)
    15 to 89 kHz (HDMI)
    Vertical Frequency 23 to 61 Hz (HDMI)
    23 to 61 Hz (DisplayPort)
    23 to 61 Hz (DVI)
    Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors)
    Color Gamut 99% Adobe RGB
    Response Time 10 ms (GtG)
    Viewing Angle Horizontal: 178°
    Vertical: 178°
    Dot Pitch 0.233 x 0.233 mm
    Connectivity 2 x USB Input
    3 x USB Type-A Output
    1 x DVI-D
    1 x DisplayPort Input
    1 x HDMI
    HDCP Support Yes
    Power Consumption 110 W (Maximum)
    0.6 W (Standby)
    44 W (Typical)
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    Operating Temperature 32 to 95°F / 0 to 35°C
    Operating Humidity 20 to 80%
    Certifications RoHS, WEEE, as per Manufacturer
    Height Adjustment 6.1" / 15.5 cm

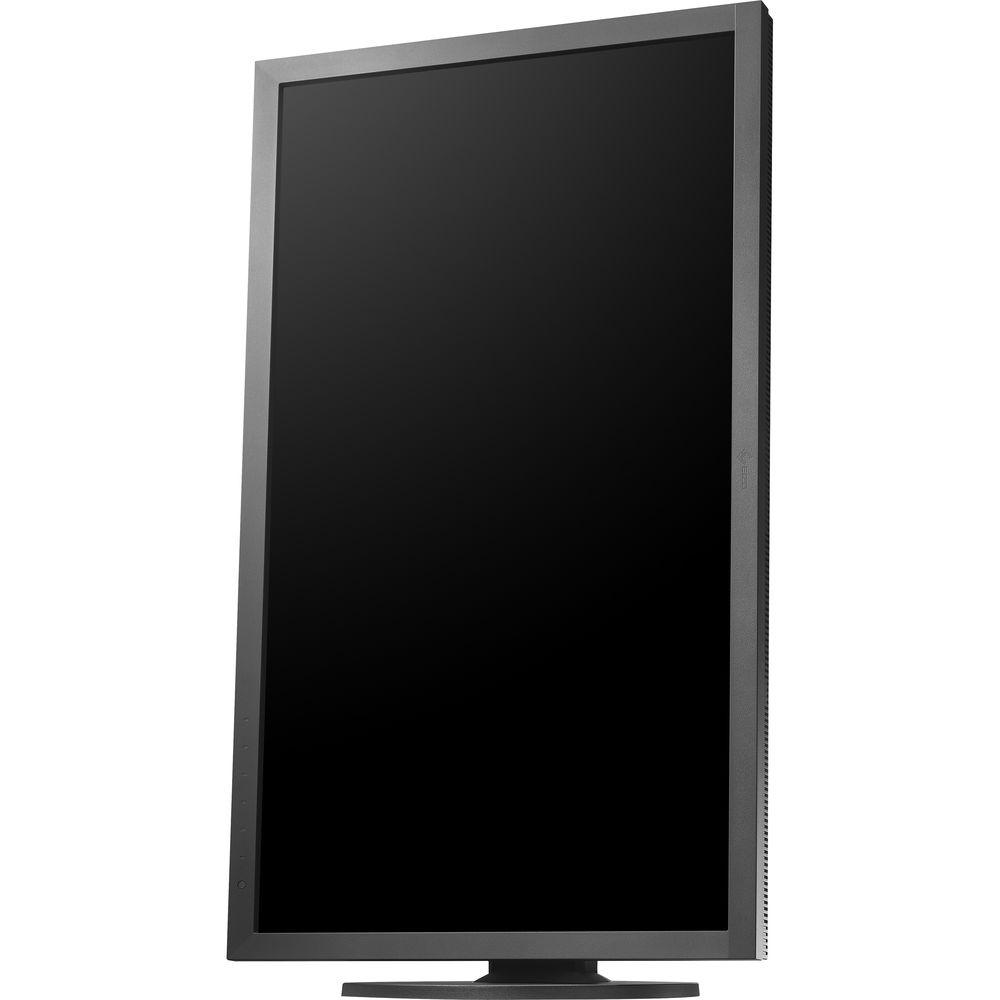

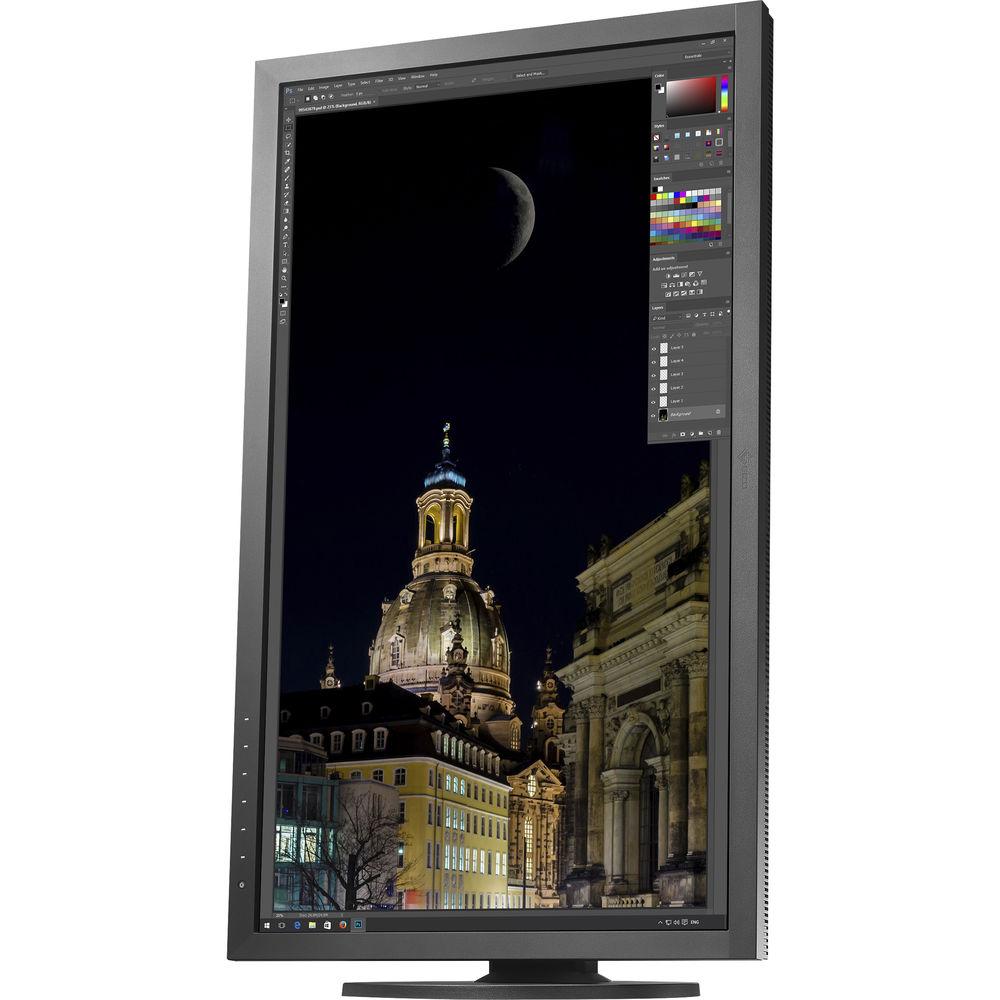

    Rotation Adjustment 90°
    Swivel Adjustment 344°
    Tilt Adjustment -5 to 35°
    Mounting-Hole Pattern 100 x 100 mm
    Dimensions (W x H x D) 25.1 x 14.9 x 2.5" / 63.8 x 37.8 x 6.4 mm (Without Stand)
    25.1 x 15.9 x 9.6" / 63.8 x 40.4 x 24.5 mm (With Stand)
    Weight 13.4 lb / 6.1 kg (Without Stand)
    19.6 lb / 8.9 kg (With Stand)
    Package Weight 26.0 lb
    Box Dimensions (LxWxH) 29.1 x 28.9 x 19.8"
