User Manual for Eizo EV2730Q 26.5" 1:1 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Eizo EV2730Q 26.5" 1:1 IPS Monitor
- Product category: Computer Monitors Eizo
- Brand: Eizo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eizo Computer Monitors
 |
User manual for the Eizo EV2730Q 26.5" 1:1 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eizo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eizo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eizo product will considerably shorten its lifespan!
|

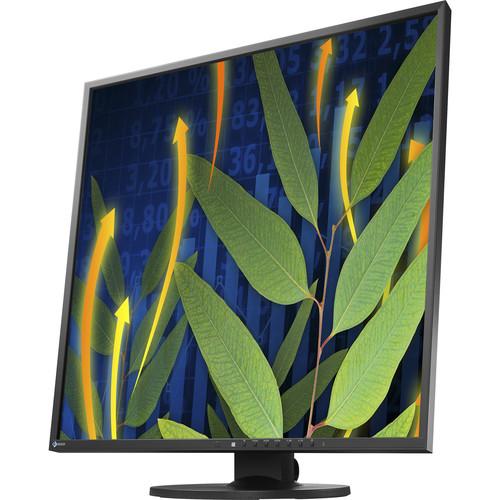

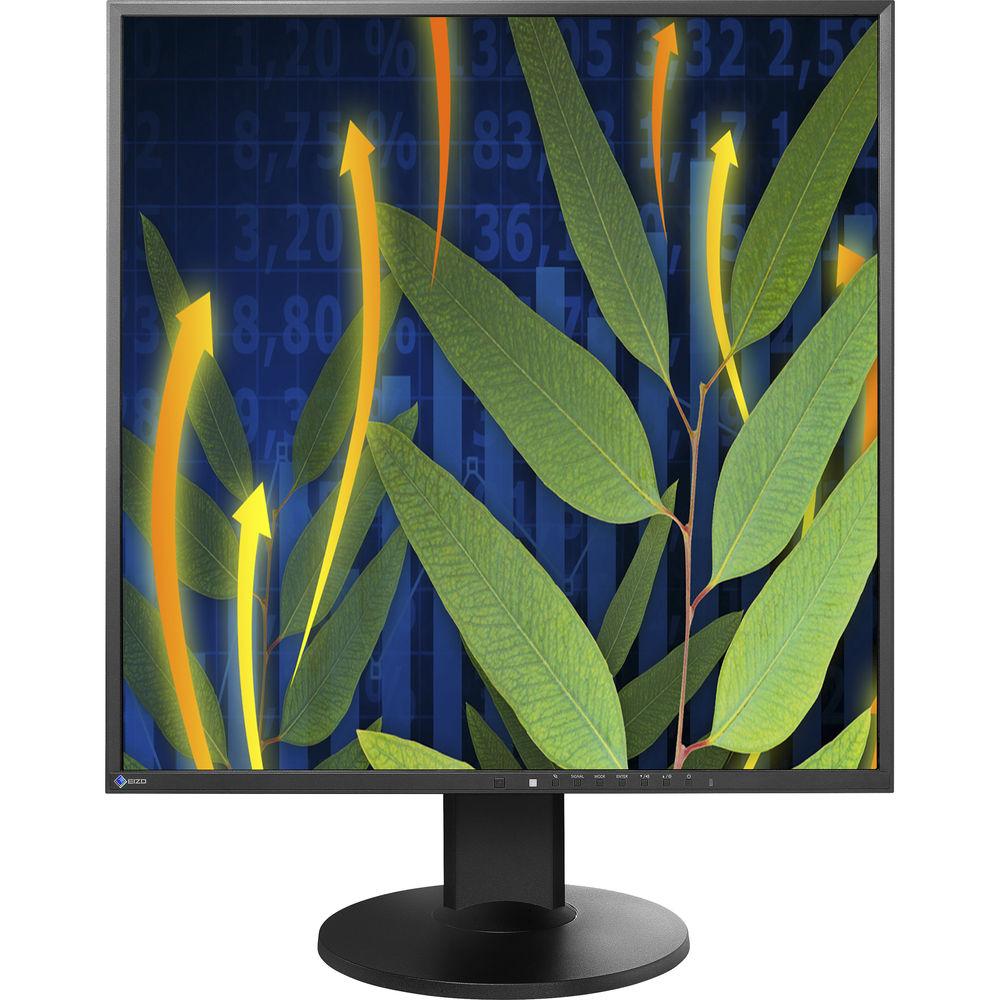

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The black EV2730Q 26.5" LCD LED 1920 x 1920 Monitor from Eizo features 1920 x 1920 resolution to provide 78% more pixels compared with a standard widescreen 1920 x 1080 monitor. This monitor is as wide vertically as it is horizontally. With an IPS panel, the display features 300 cd/m2 brightness. This wide-angle screen can be utilized for DTP design, viewing maps, graphs, web development, programming, text and photo-editing, and Full HD video and other tasks. The monitor features multiple connectivity options that include dual link DVI, DisplayPort, and a 2-port USB 2.0 hub for maximum compatibility. It also has dual 1.0W speakers and 3.5mm stereo jack audio input and outputs. - SQFHD (1920 x 1920) Resolution
- The 1920 x 1920 resolution provides you with 78% more pixels compared with a standard wide screen 1920 x 1080 monitor. The extended vertical space is convenient for displaying large amounts of information in long windows, reducing the need for excess scrolling and providing an efficient view of data.
- 3D CAD
- 3D CAD designers can view more item lists with the extended vertical space. They can also use the entire screen to enlarge 3D objects and check vital details whereas a standard wide monitor leaves a blank space around the object. With the extended vertical space, programmers can also see all their work at once. This helps them work efficiently and reduces the need for excess scrolling. This wide-angle screen can be utilized for DTP design, viewing maps, graphs, web development, programming, text and photo-editing, and Full HD video and other tasks.
- Multiple Inputs
- The monitor features multiple connectivity options that include dual link DVI, DisplayPort, and a 2-port USB 2.0 hub for maximum compatibility. It also features 3.5 mm stereo jack audio input and output. 1
Please Note: *60 Hz (1920 x 1920) with a dual-link DVI cable. 30 Hz with a single-link DVI cable. close - Ergonomics
- It has IPS panel for a clear view from all angles and features optimal positioning with flexible stand. It also features flicker-free image and reduced blue light. The brightness is adjustable to just 1% with a wide dimming range.
- Energy-Saving Features to Reduce Eco Footprint
- Its LED backlit consumes less power and features longer life. Presence sensor detects when you leave your desk and automatically switches to power save mode. When you return, it powers the monitor on again.
UPC: 690592038552 In the Box Eizo EV2730Q 26.5" 1:1 IPS Monitor AC Power Cord DVI-D to DVI-D Signal Cable (Dual Link Supported) DisplayPort to DisplayPort Cable Eizo LCD Utility Disk (PDF User's Manual, ScreenManager Pro for LCD [DDC/CI], Eizo ScreenSlicer Software) Limited 5-Year Warranty User Manual PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Eizo EV2730Q 26.5" 1:1 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEizo EV2730QFX-BK Specs | | | Size | 26.5" | | Screen Area | 18.7 x 18.7" / 47.6 x 47.6 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1920 | | Aspect Ratio | 1:1 | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31 to 127 kHz | | Vertical Frequency | 59 to 61 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2478 x 0.2478 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x USB 2.0 Input
2 x USB Type-A 2.0 Output
1 x DVI-D
1 x DisplayPort | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 1 W | | Supported Languages | English
Spanish
Simplified Chinese
German
Japanese
Swedish
Italian
Traditional Chinese
French | | | | Power Consumption | 0.5 W (Standby)
64 W (Maximum)

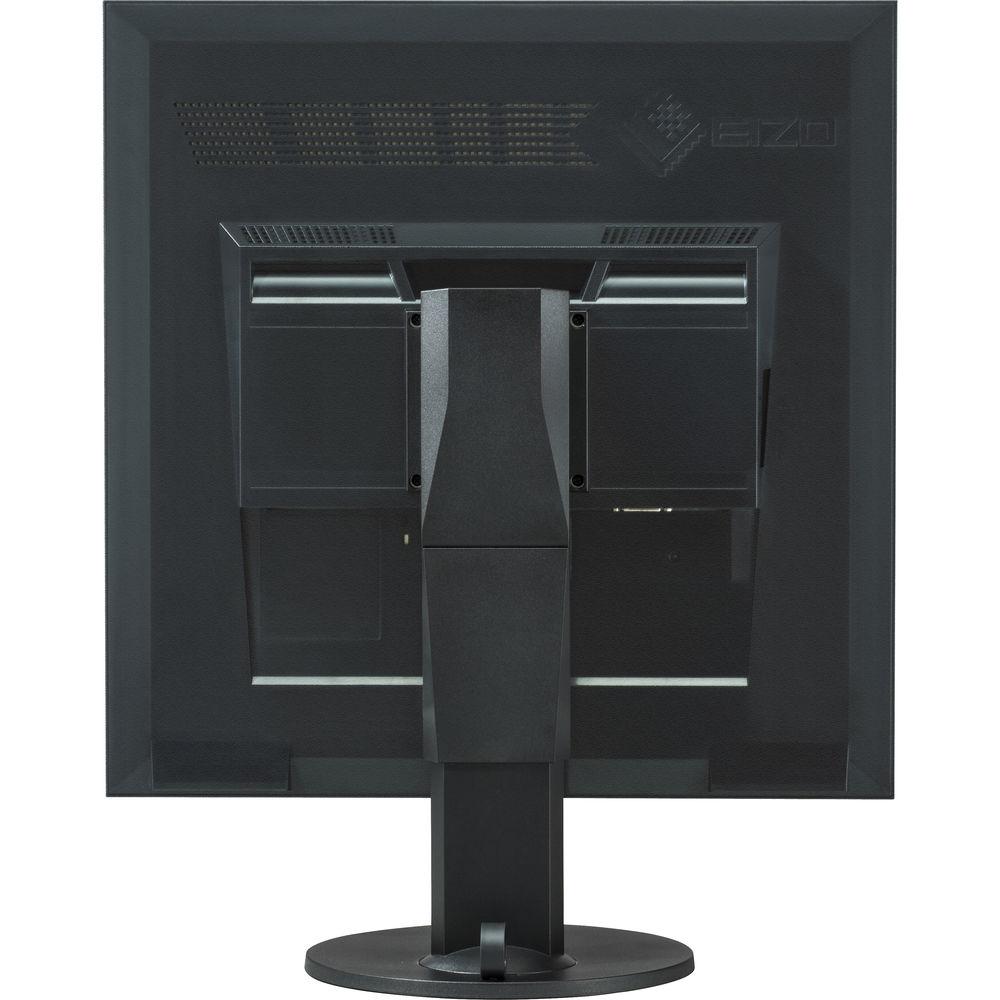

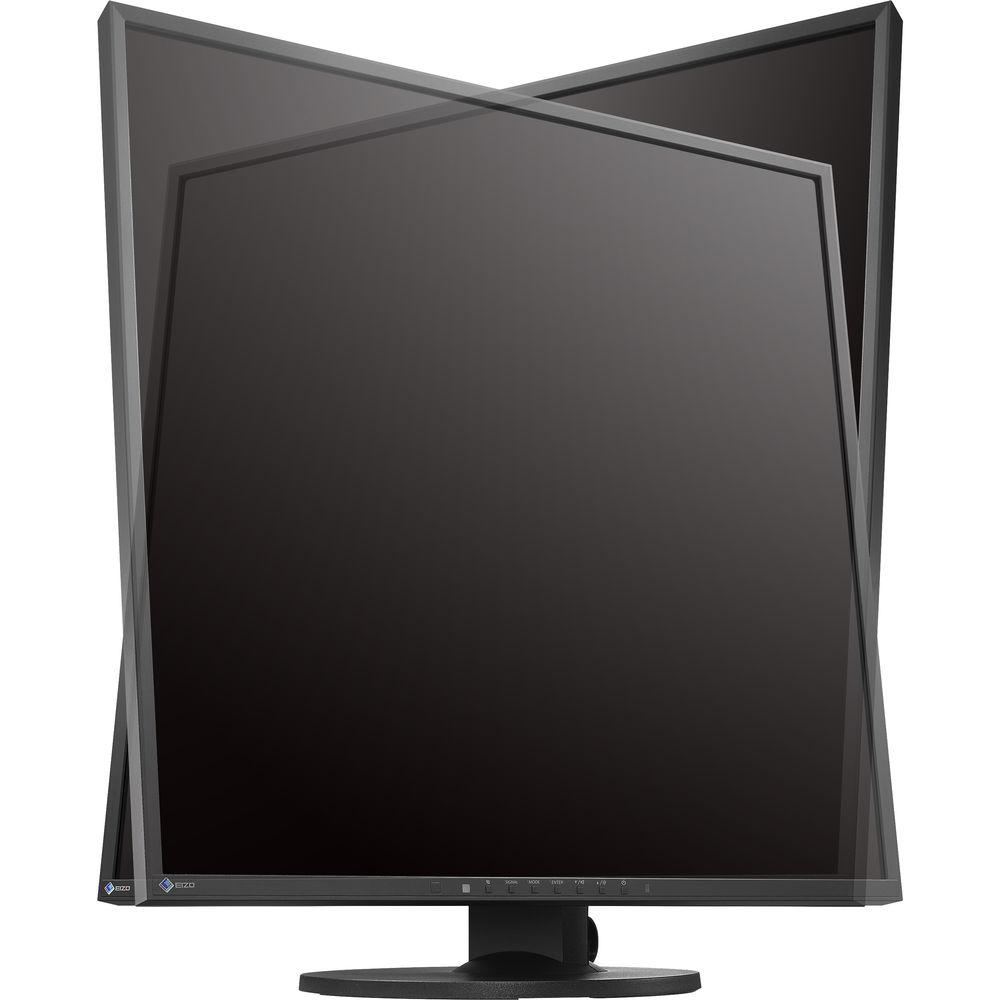

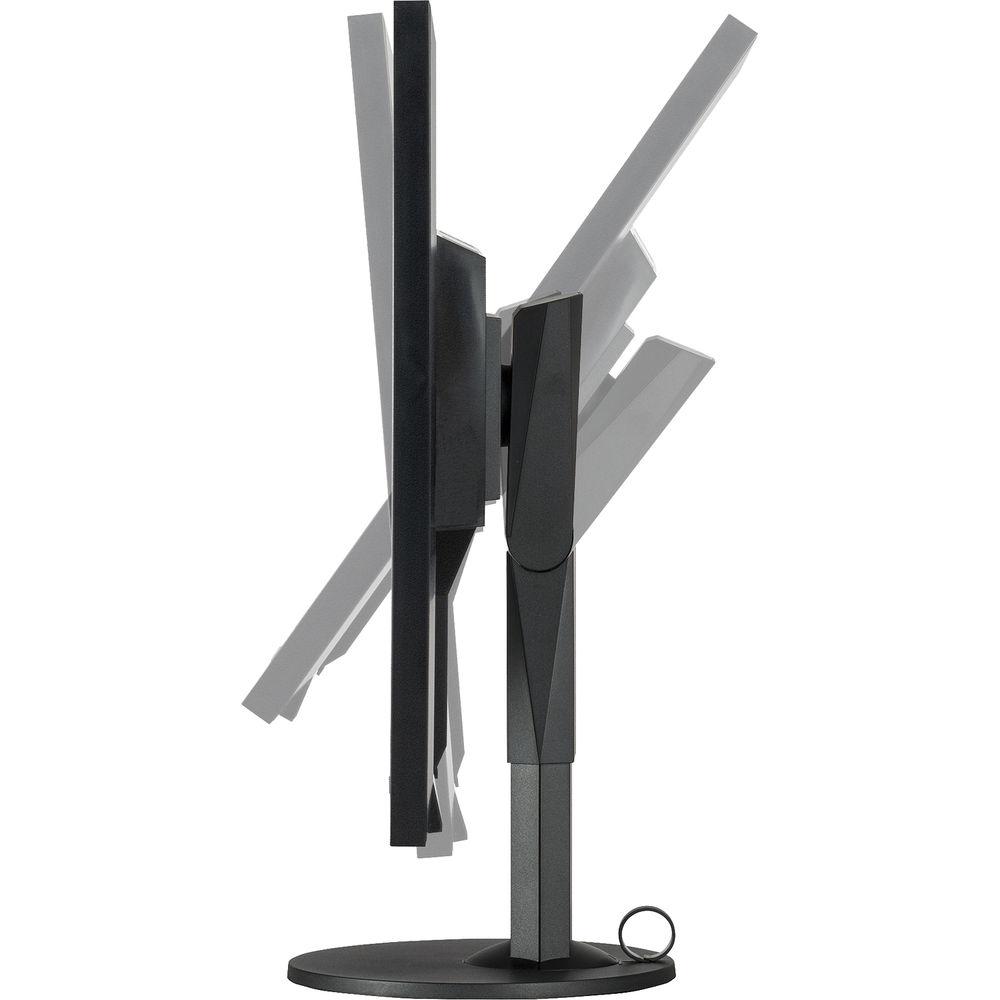

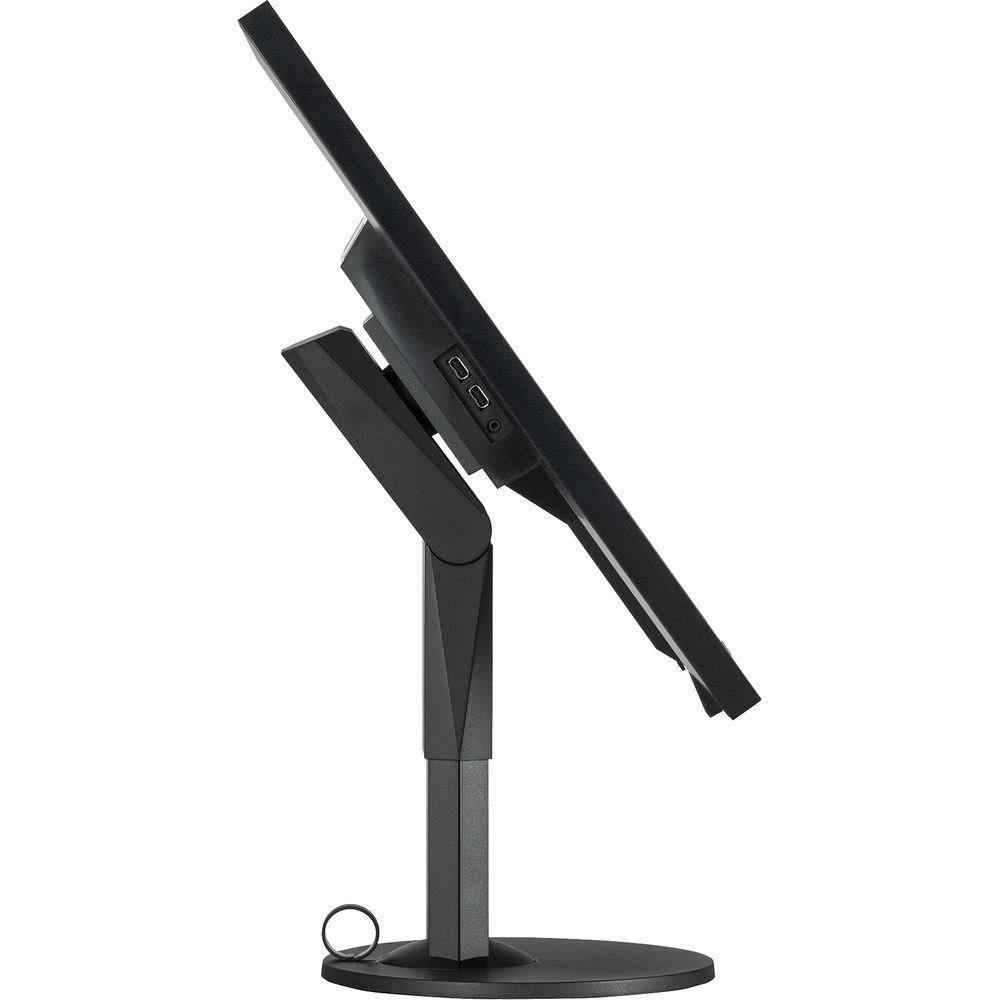

25 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 20 to 80% | | Certifications | TCO Certified, ENERGY STAR, RoHS, WEEE, EPEAT GOLD, as per Manufacturer | | | | Height Adjustment | 1.6" / 4.1 cm | | Swivel Adjustment | 344° | | Tilt Adjustment | -5 to 35° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 19.6 x 20.2 x 9.6" / 49.7 x 51.3 x 24.5 mm (With Stand)
19.6 x 19.7 x 2.2" / 49.7 x 50.2 x 5.6 mm (Without Stand) | | Weight | 15.7 lb / 7.1 kg (With Stand)
9.3 lb / 4.2 kg (Without Stand) | | | | Package Weight | 21.6 lb | | Box Dimensions (LxWxH) | 24.0 x 23.0 x 11.0" |
