User Manual for Eizo FlexScan EV2750FX 27" Widescreen LED Backlit LCD Monitor Click to enlarge the picture
Contents of the user manual for the Eizo FlexScan EV2750FX 27" Widescreen LED
- Product category: Computer Monitors Eizo
- Brand: Eizo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eizo Computer Monitors
 |
User manual for the Eizo FlexScan EV2750FX 27" Widescreen LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eizo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eizo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eizo product will considerably shorten its lifespan!
|

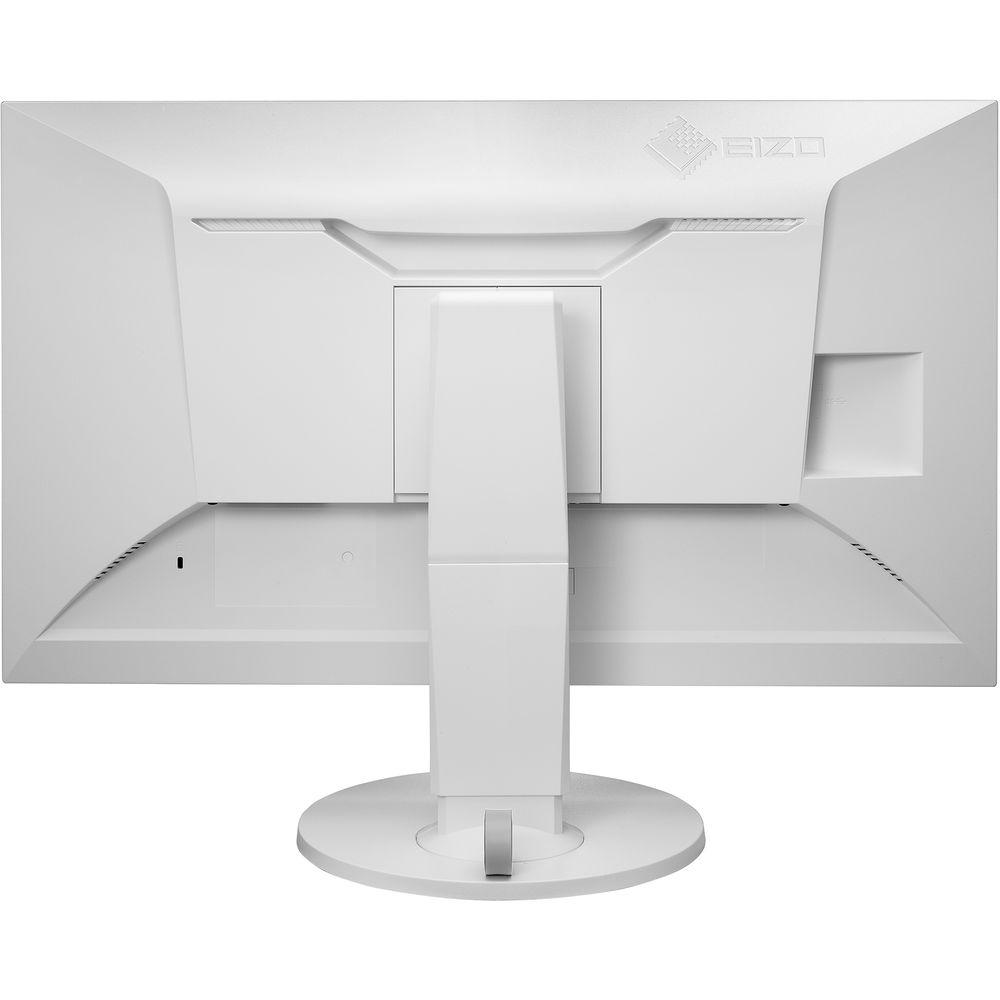

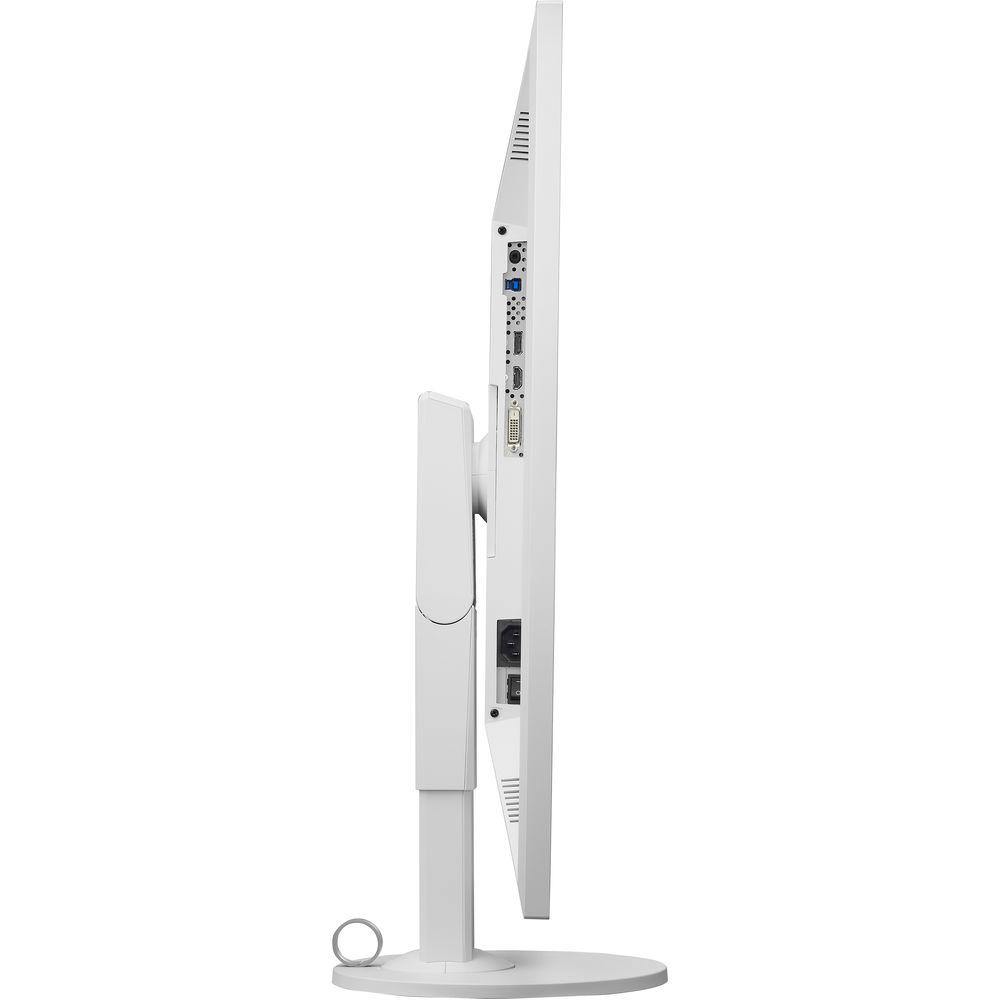

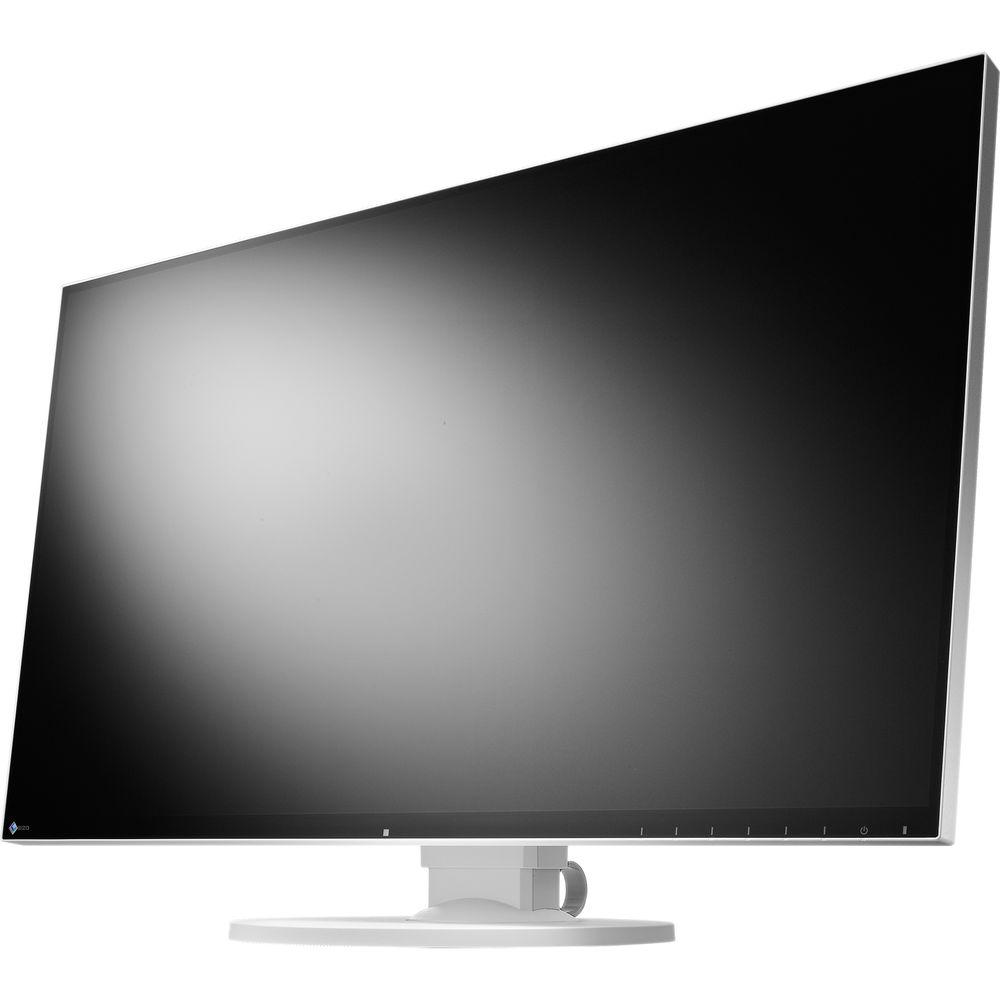

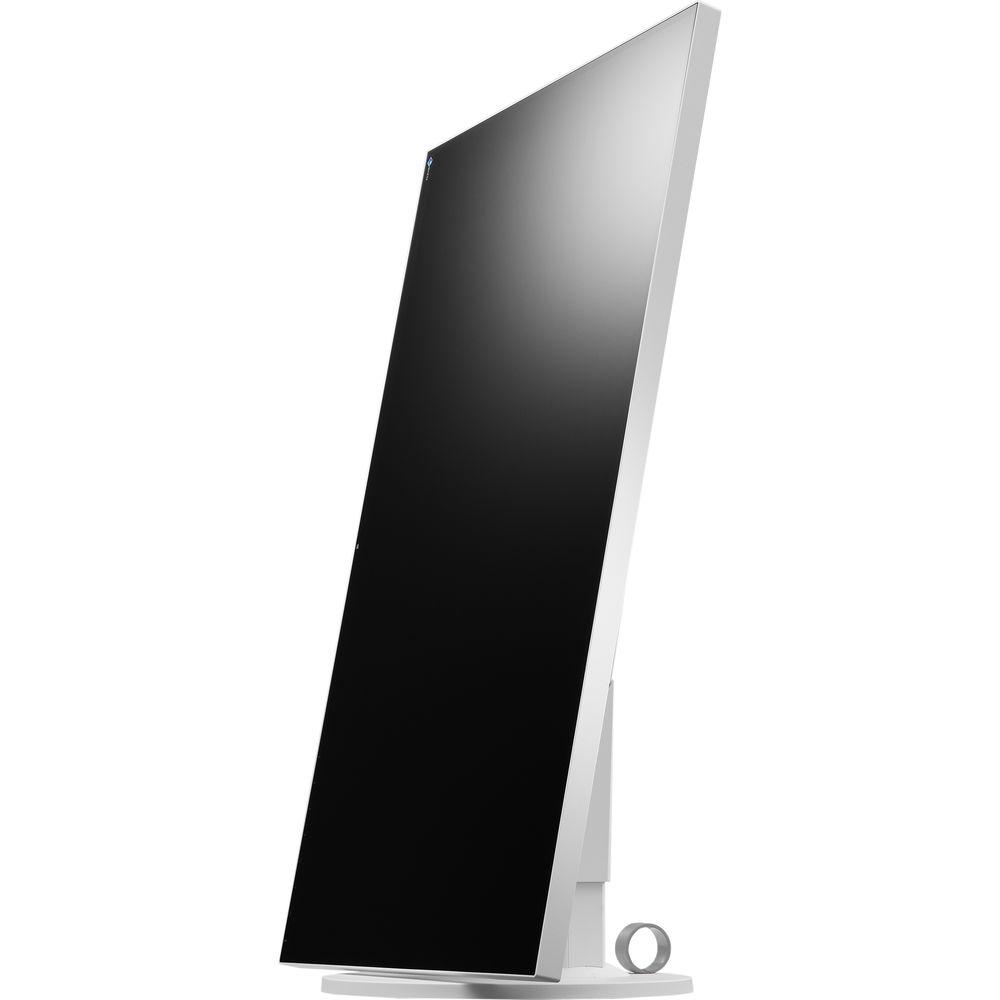

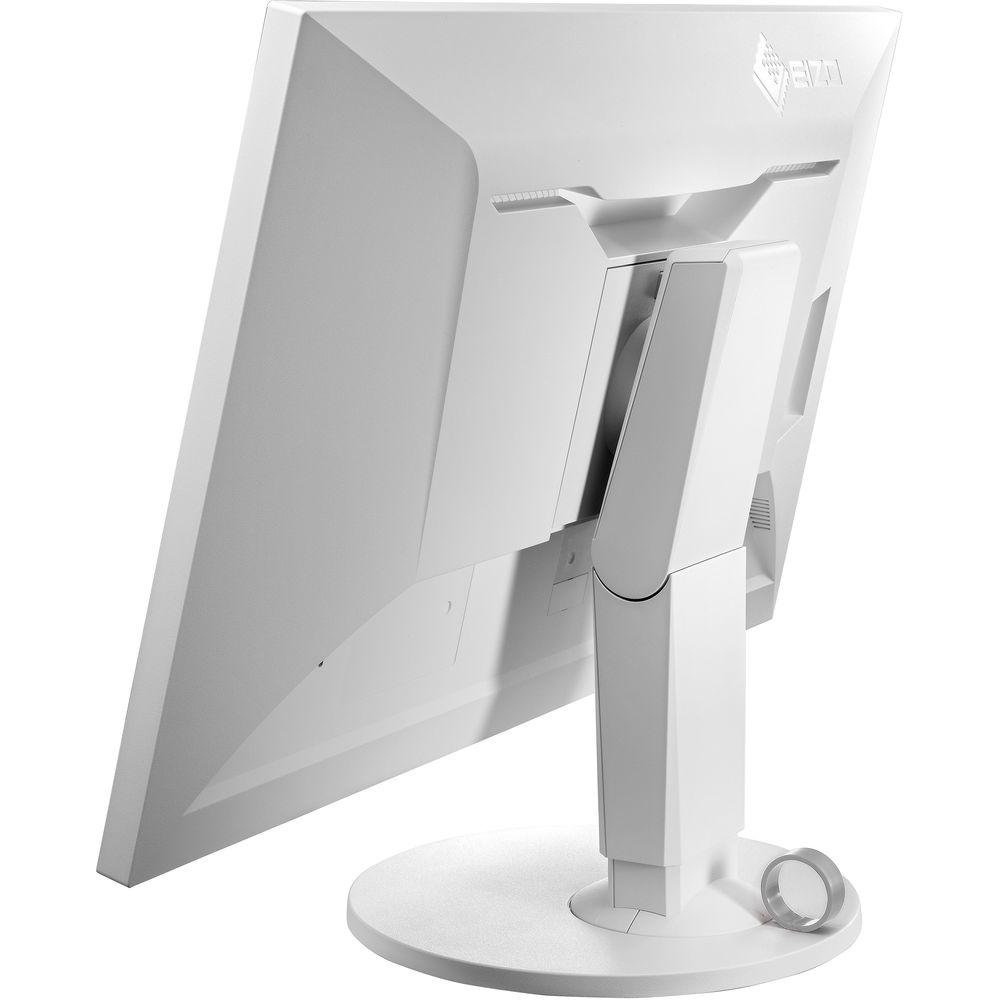

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With reduced screen flicker and an integrated ambient light sensor the FlexScan EV2750FX 27" Widescreen LED Backlit LCD Monitor from EIZO makes viewing easier on the eyes. Screen flicker often times results in eye fatigue when viewing the display for an extended period of time. As a result, EIZO has managed to reduce the flicker of the EV2750FX by up to 74% without compromising other aspects of the display quality. In addition to reduced flicker, EIZO has also incorporated an ambient light sensor into the front of the monitor. This light sensor is able to detect minor changes in the lighting environment and adjusts the brightness of the display to create a more comfortable viewing experience.
This EV2750FX EIZO monitor features an IPS panel supporting 178° horizontal and vertical viewing angles. Additionally, the display features a Full HD 2560 x 1440 resolution, 350 cd/m² brightness rating, 1,000:1 contrast ratio, 5 ms response time, and support for up to 16.77 million colors. Connectivity options include one DisplayPort, one DVI-D 24 pin port, and one HDMI port. You can also connect USB compatible peripherals to either of the USB 3.0 ports. For a complete multimedia experience, EIZO has even included two 1.0W speakers, along with one 3.5mm stereo jack, and one 3.5mm headphone jack. Once configured, you can tilt, swivel, and pivot the monitor into place for enhanced viewing comfort. - 74% More Flicker-Free
- Due to the way brightness is controlled on LED backlights, many people perceive flicker on their screen which causes eye fatigue. The FlexScan EV series makes flicker unperceivable without any drawbacks like compromising color stability. In a comparison test conducted by EIZO, the FlexScan EV2455 and EV2450 on average reduced flicker by more than 74% compared to LED-backlit monitors from other manufacturers.
- Clear View from All Angles
- The monitors use an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angles that minimize color shift and contrast changes when viewing the screen at an angle.
- Auto Brightness Control
- To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.
- Less Blue Light Reduces Eye Fatigue
- In the visible light spectrum, blue light has wave lengths adjacent to ultraviolet light. Compared to the factory preset setting of 6500K of typical LCD monitors, Paper Mode is closer to the spectral distribution with long reddish wavelengths so it reduces the amount of blue light, a cause of eye fatigue, and helps prevent eyestrain when reading documents.
- Adjustable to Less than 1% of Maximum Brightness
- In a dimly-lit work environment, a monitor with low brightness settings is more comfortable to use. With its LED backlight, the monitors are adjustable to 1 cd/m² which is less than 1% of the maximum.
- LED Backlights
- Compared to CCFL backlights, LED backlights last longer and consume less power. They are also mercury-free for minimal environmental impact.
- Reduce Power by up to 30%
- A feature called EcoView Optimizer 2 saves energy by up to 30% by reducing the backlight brightness and increasing the gain. To maintain image quality, EcoView Optimizer 2 only boosts the gain with a screen consisting mostly of dark content because the accompanying reduction in brightness is almost unperceivable.
- Picture by Picture
- The FlexScan EV2750 lets you view data from two input sources at once such as a Windows and a Macintosh computer with no distracting bezel in between.
- Eizo Monitor Configurator
- EIZO Monitor Configurator lets system administrators control the settings of all FlexScan EV monitors with a USB connection. The settings of one monitor can be saved as an xml file and can apply to other monitors via USB or office network.
UPC: 690592040791 In the Box Eizo FlexScan EV2750FX 27" Widescreen LED Backlit LCD Monitor (White) AC Power Cord DisplayPort to DisplayPort Signal Cable USB Cable EIZO LCD Utility Disk (PDF User's Manual) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eizo FlexScan EV2750FX 27" Widescreen LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEizo EV2750FX Specs | | | Size | 27" | | Screen Area | 23.5 x 13.2" / 59.7 x 33.6 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31 to 89 kHz | | Vertical Frequency | 59 to 61 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.233 x 0.233 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x USB Input
2 x USB Type-A Output
1 x DVI-D
1 x DisplayPort Input
1 x HDMI | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 1 W | | Supported Languages | English
Spanish
Simplified Chinese
German
Japanese
Swedish
Italian
Traditional Chinese
French | | | | Power Consumption | 0.5 W (Standby)
67 W (Maximum)
22 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | TCO Certified, ENERGY STAR, RoHS, WEEE, EPEAT GOLD, as per Manufacturer | | | | Height Adjustment | 6.1" / 15.5 cm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 344° | | Tilt Adjustment | -5 to 35° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 24.1 x 15.4 x 9.6" / 61.2 x 39.0 x 24.5 mm (With Stand)
24.1 x 14.1 x 1.9" / 61.2 x 35.9 x 4.9 mm (Without Stand) | | Weight | 11.2 lb / 5.1 kg (Without Stand)
17.4 lb / 7.9 kg (With Stand) | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 27.5 x 19.0 x 8.0" |
