User Manual for ELAC Adante AC-61 3-Way Center Channel Speaker Click to enlarge the picture
Contents of the user manual for the ELAC Adante AC-61 3-Way Center Channel
- Product category: Center Channel Speakers ELAC
- Brand: ELAC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ELAC Center Channel Speakers
 |
User manual for the ELAC Adante AC-61 3-Way Center Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ELAC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ELAC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ELAC product will considerably shorten its lifespan!
|

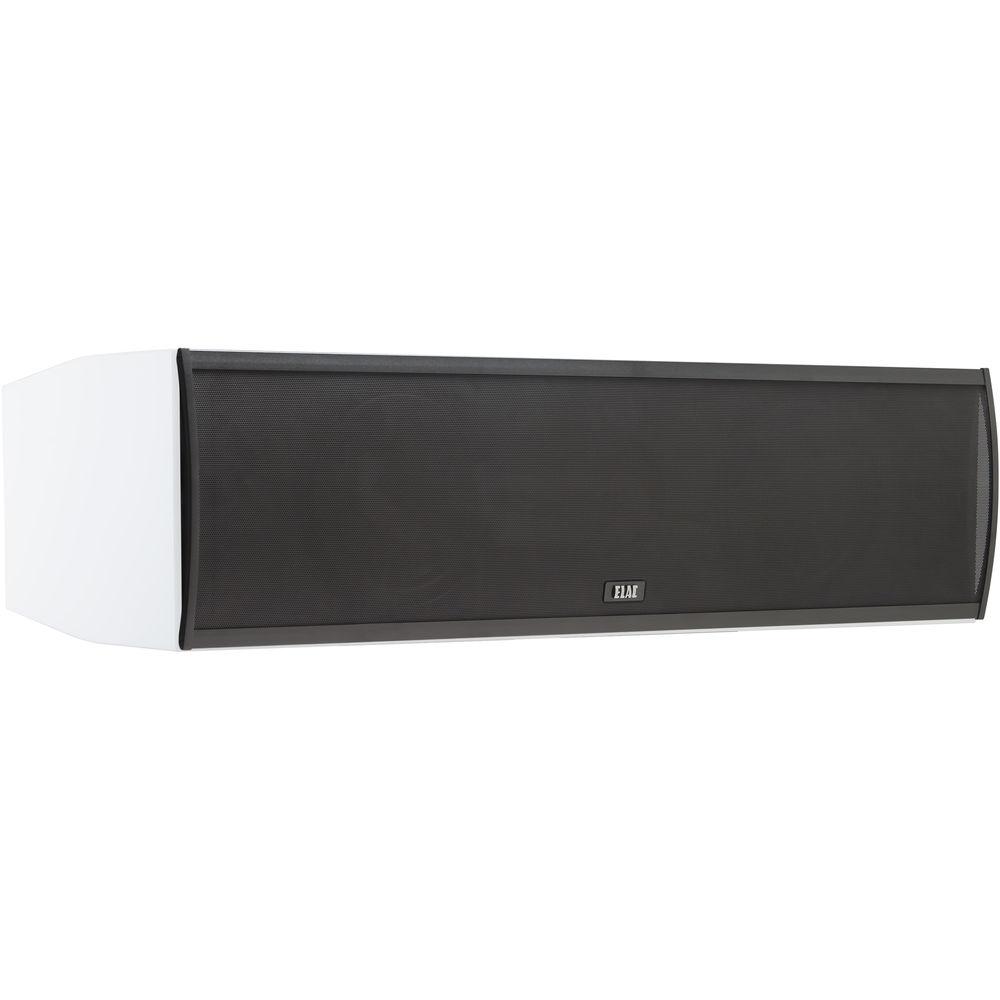

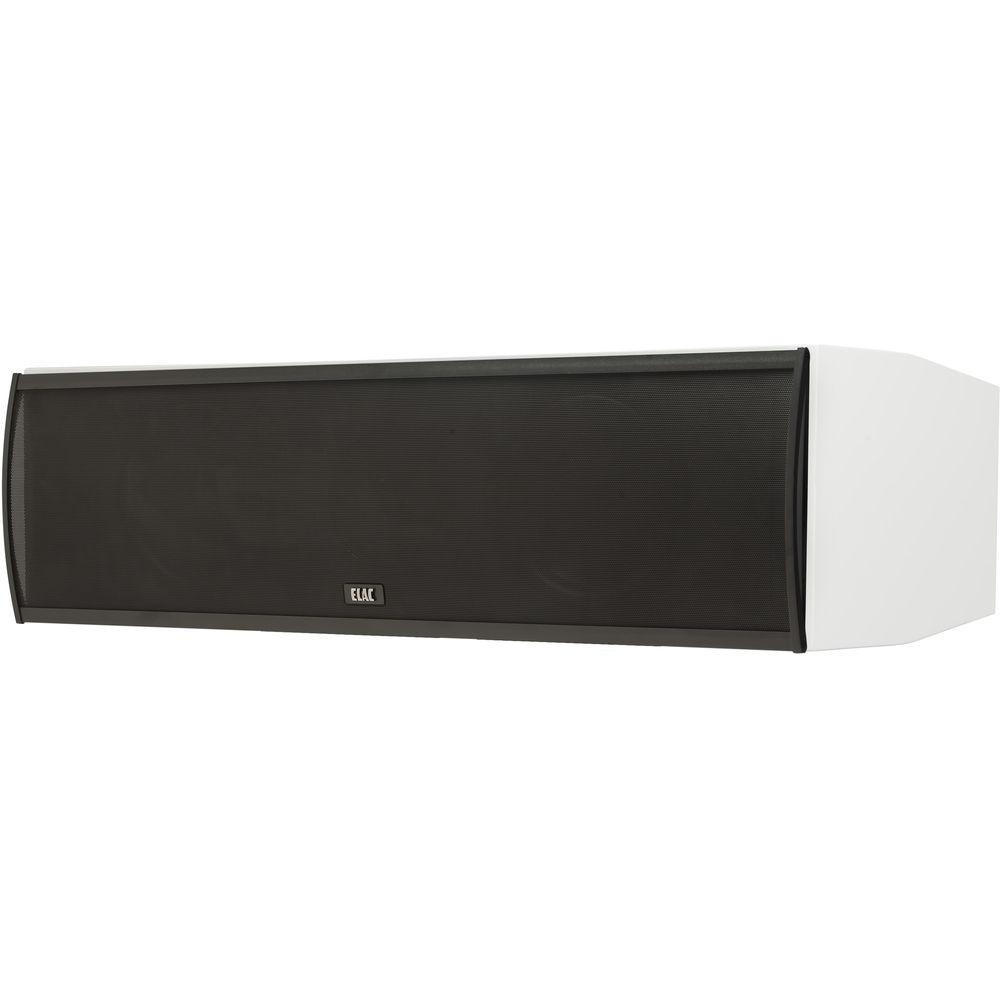

Product description Take advantage of surround sound media in your home theater speaker system with the Adante AC-61 3-Way Center Channel Speaker from ELAC. Whether it's a movie, TV show, or a concert on Blu-ray, having a dedicated center channel is essential for the optimal reproduction of dialogue and vocals in a surround sound audio mix.

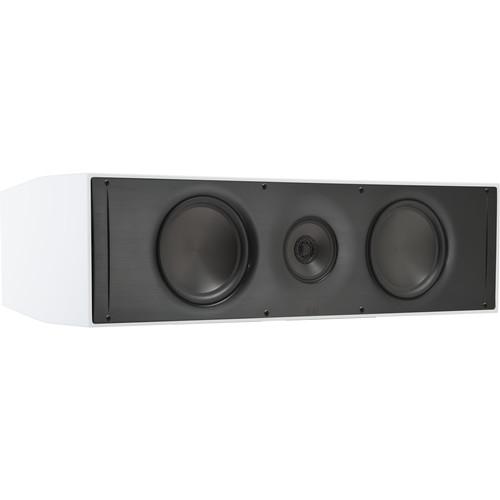

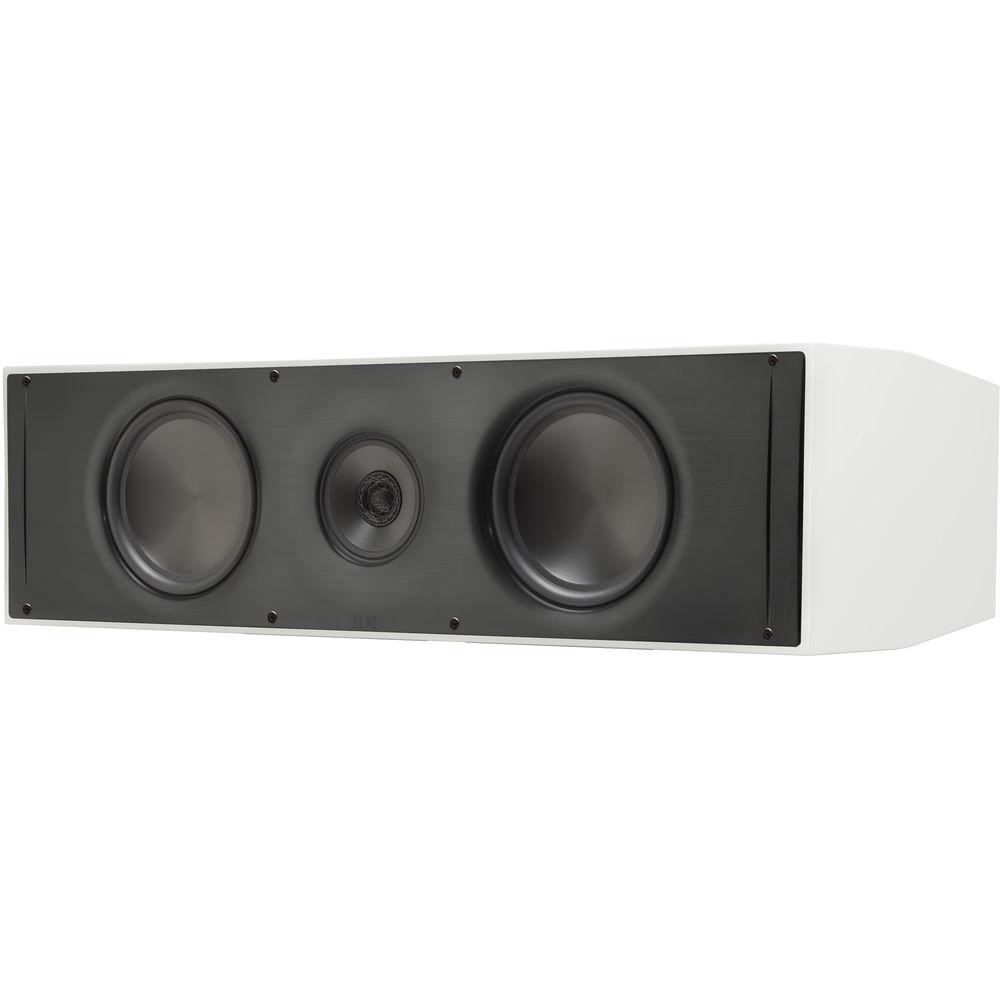

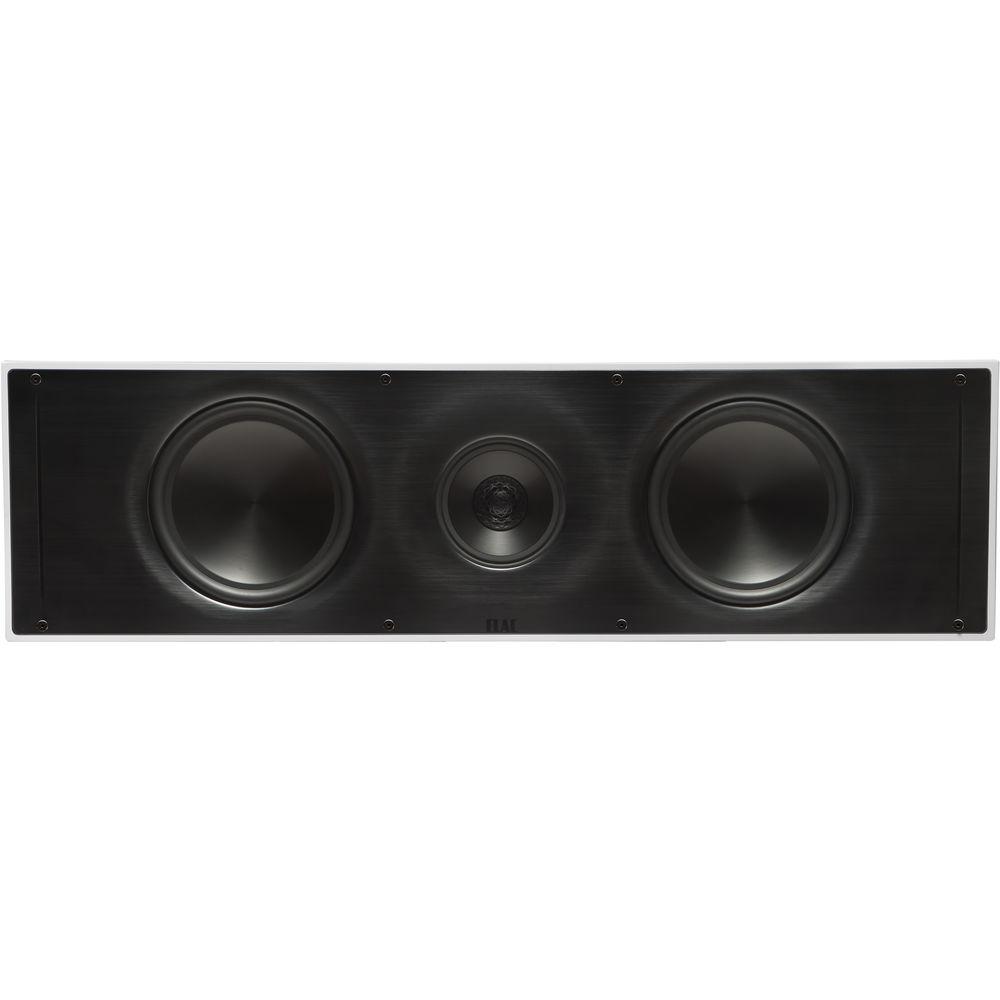

The duo of 8" passive radiators are matched by two 6.5" aluminum cone woofers, which are internally mounted behind the radiators, essentially providing each woofer with its own enclosure. Engineering the cabinet to keep the woofers inside is designed to drastically reduce vibration and provide you with distortion-free audio. The woofers are joined by a single 1" soft dome tweeter that is concentrically mounted to a single 5.25" aluminum cone midrange driver.
It connects to your home theater system through conventional speaker wire (not included), so you will need an amplifier or receiver to power the speaker properly. It is rated to accept between 50 to 160 watts per channel. In the Box ELAC Adante AC-61 3-Way Center Channel Speaker (Gloss White) Binding Post Straps Gloves Rubber Wedge Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC Adante AC-61 3-Way Center Channel Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersELAC AC-61 Specs | Speaker Type | 3-way, interport-coupled cavity | | Drivers | Woofer: 2 x 6.5" / 16.5 cm aluminum cone, internally mounted
Tweeter: 1 x 1" / 2.5 cm soft dome, concentrically mounted

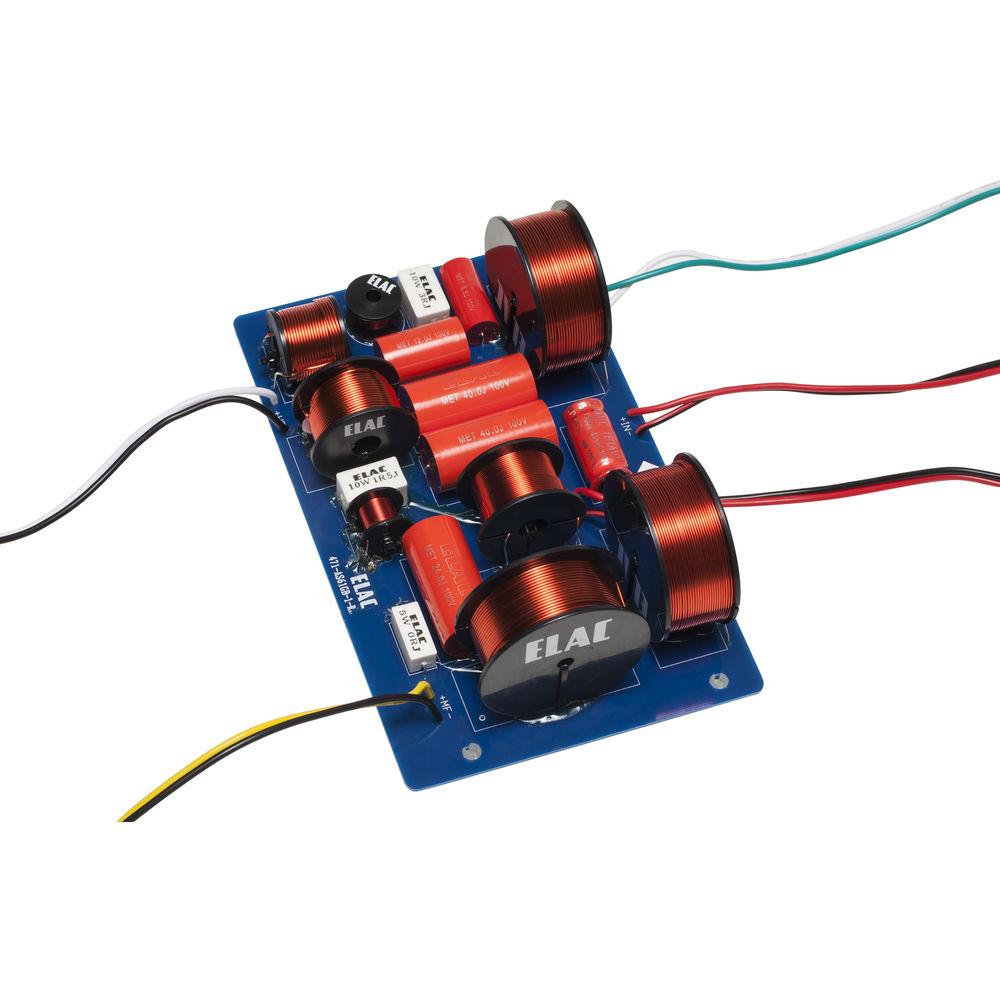

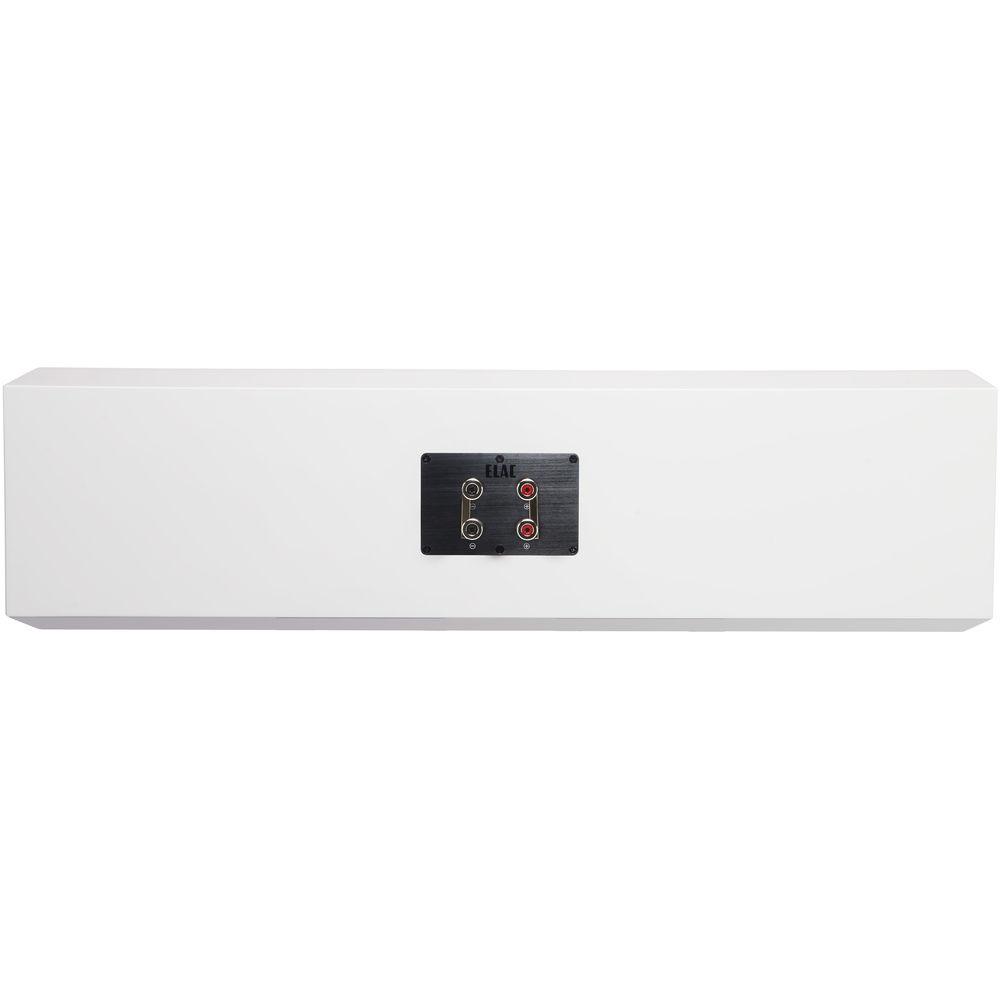

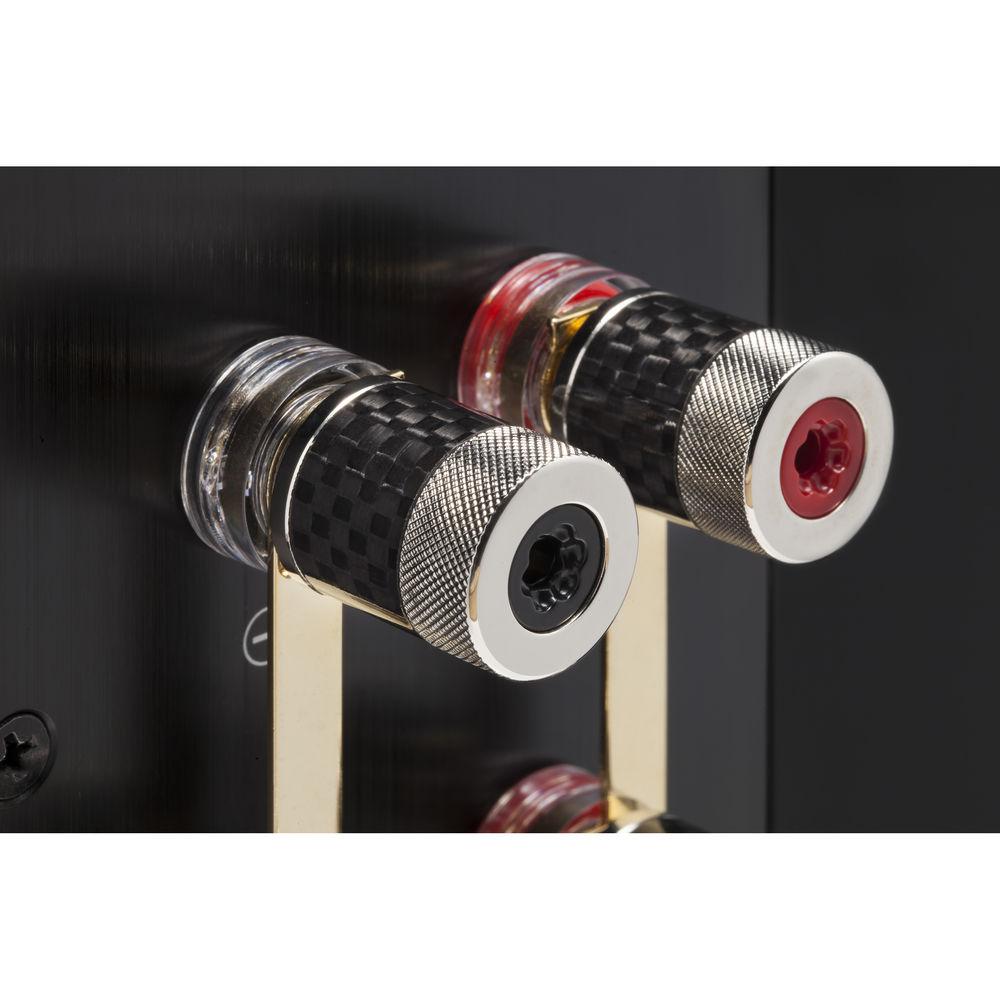

Midrange: 1 x 5.25 / 13.3 cm aluminum cone | | Radiator Dimensions | 2 x 8" / 20.3 cm aluminum cone passive radiators | | Crossover Frequency | 200 Hz / 2000 Hz | | Frequency Response | 40 Hz to 35 kHz | | Sensitivity | 86 dB at 2.83 V/1 m | | Recommended Amplifier Power | 50 to 160 WPC | | Peak Power | 160 WPC | | Nominal Impedance | 6 Ohms | | Binding Posts | Dual pair 5-way metal | | Dimensions (H x W x D) | 9.6 x 34.4 x 15.6" / 24.5 x 87.5 x 39.7 cm (with grille) | | Weight | 64.6 lb / 29.3 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
