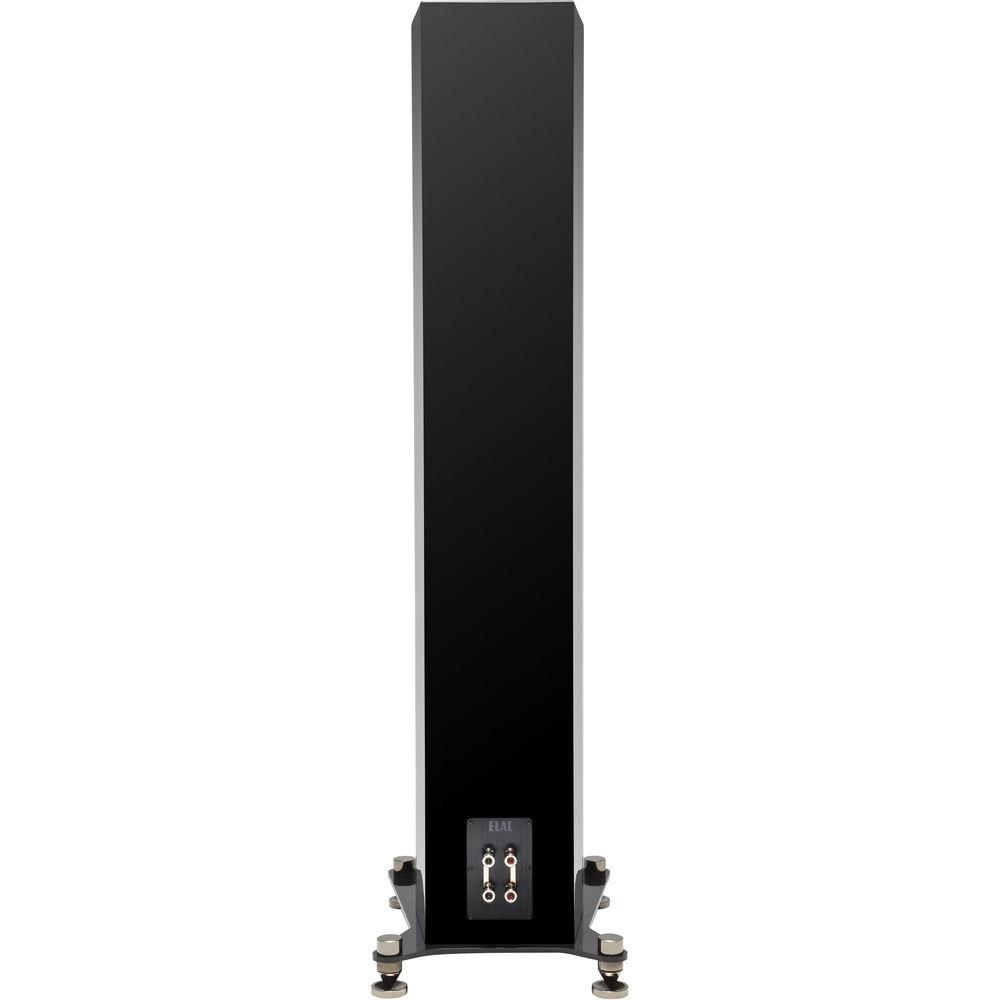

User Manual for ELAC Adante AF-61 6.5" 3-Way Floor-Standing Speaker Click to enlarge the picture
Contents of the user manual for the ELAC Adante AF-61 6.5" 3-Way Floor-Standing
- Product category: Floorstanding Speakers ELAC
- Brand: ELAC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ELAC Floorstanding Speakers
 |
User manual for the ELAC Adante AF-61 6.5" 3-Way Floor-Standing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ELAC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ELAC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ELAC product will considerably shorten its lifespan!
|

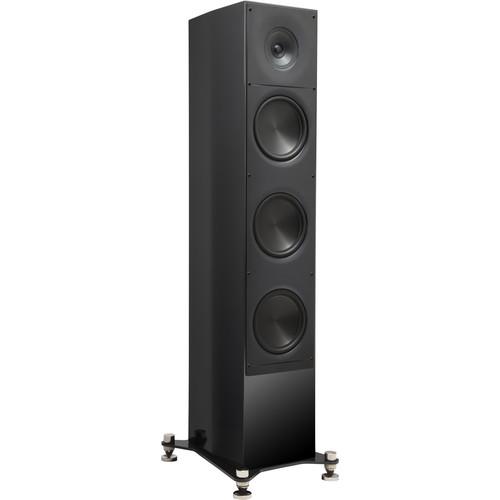

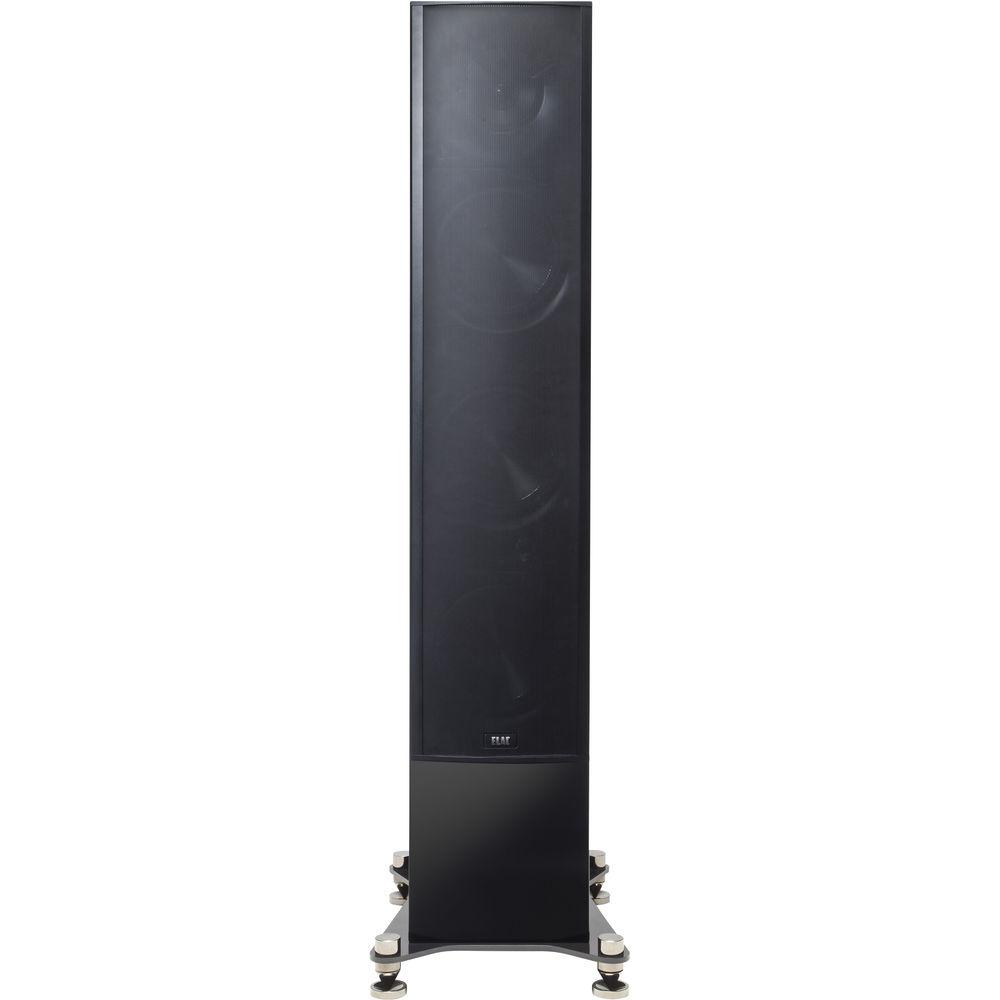

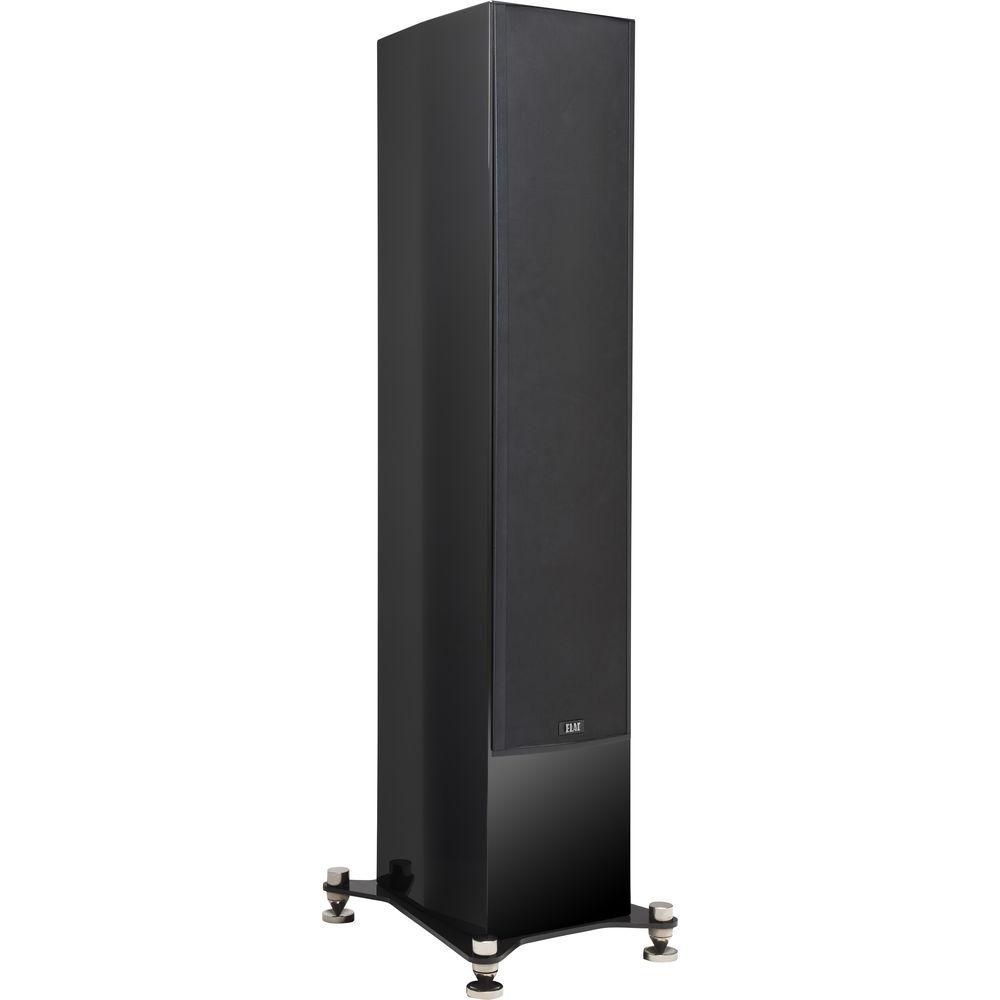

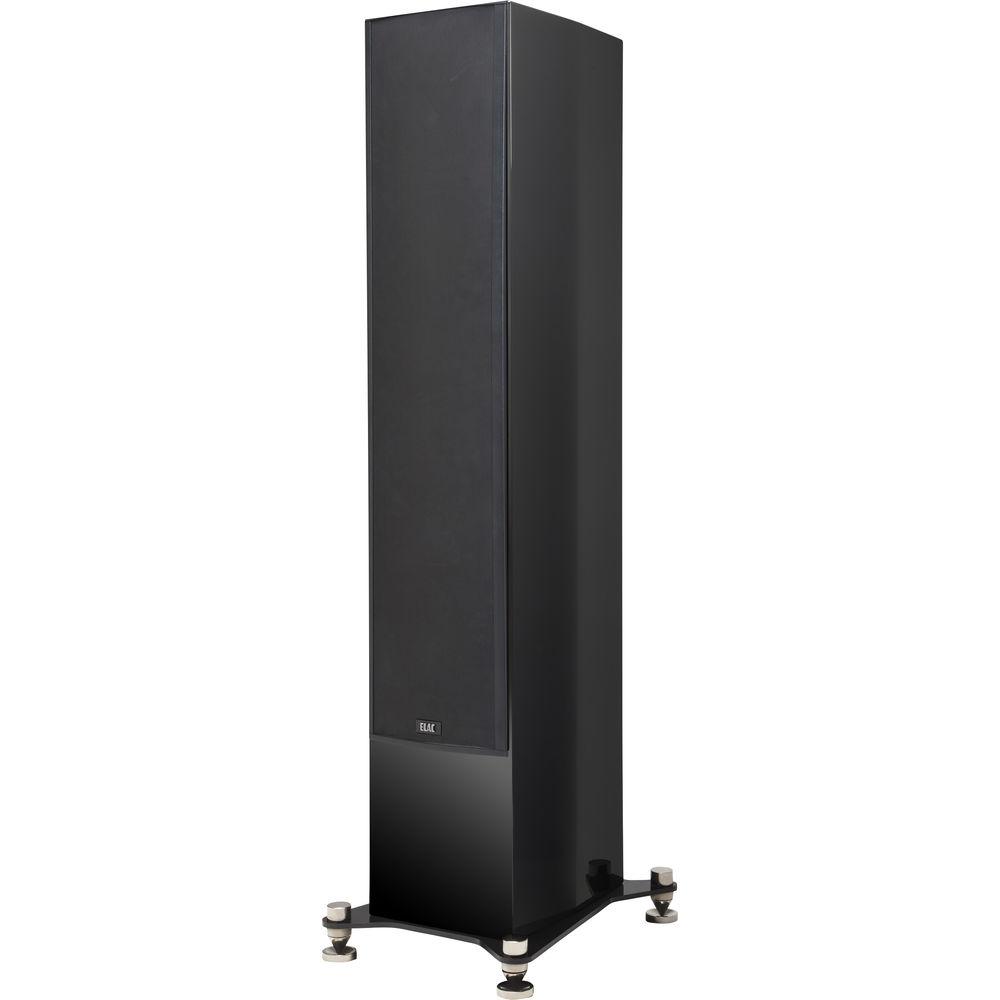

Product description Equipped with multiple dedicated drivers for high, mid, and low frequencies, the ELAC Adante AF-61 6.5" 3-Way Floor-Standing Speaker is well suited for 2-channel stereo or home theater installations. Low frequencies are enhanced with a trio of 8" aluminum cone passive radiators, and floor spikes that are designed to reduce vibration and ensure stable placement on a variety of flooring.

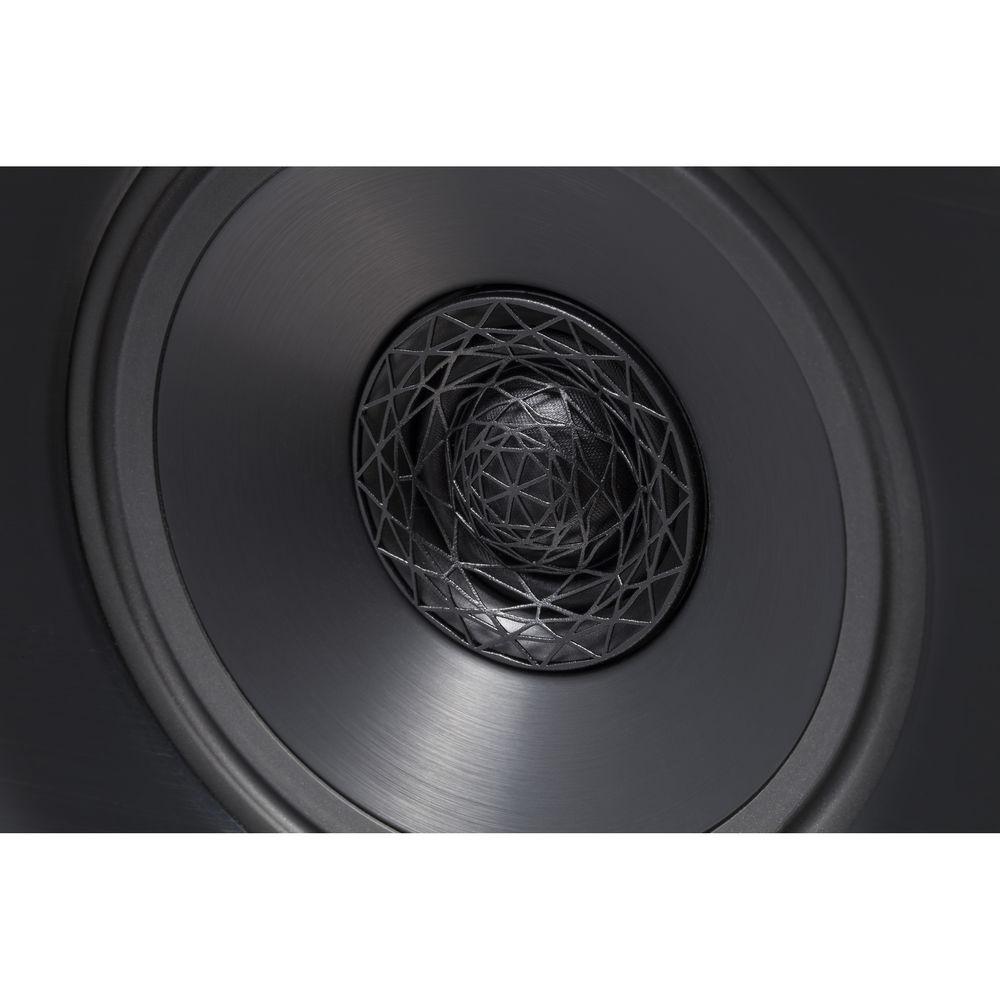

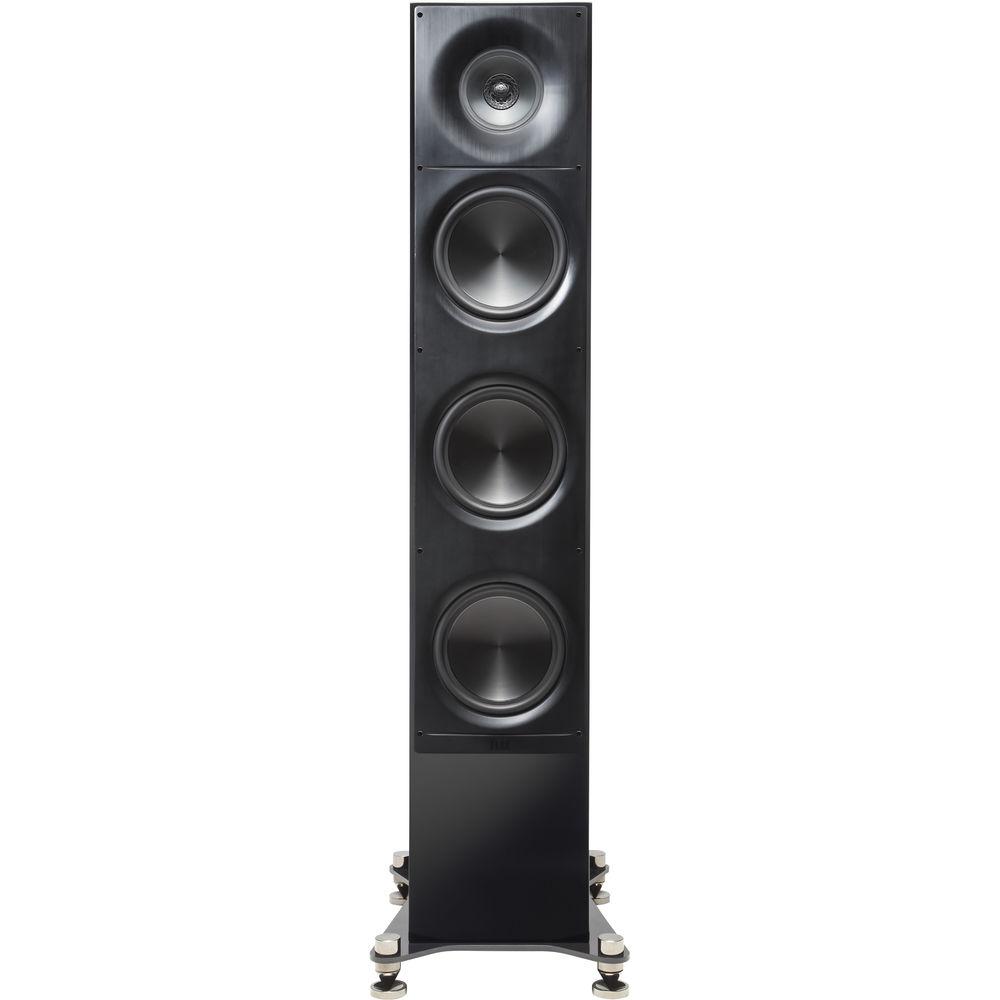

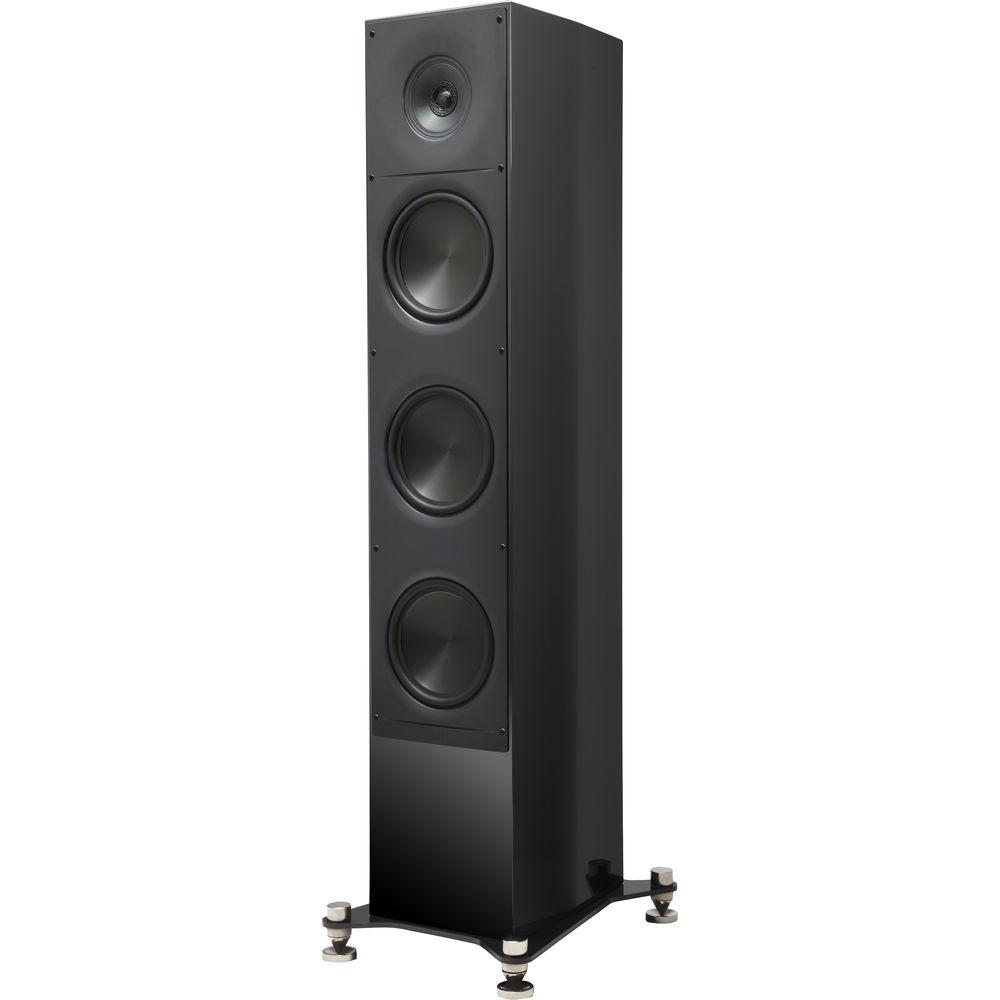

The trio of 8" passive radiators are matched by three 6.5" aluminum cone woofers, which are internally mounted behind the radiators, essentially providing each woofer with its own enclosure. Engineering the cabinet to keep the woofers inside is designed to drastically reduce vibration and provide you with distortion-free audio. The woofers are joined by a single 1" soft dome tweeter that is concentrically mounted to a single 5.25" aluminum cone midrange driver.
The AF-61 connects passively to your system through conventional speaker wire (not included), so you will need an amplifier or receiver to power the speaker properly. It is rated to accept between 50 to 160W per channel. In the Box ELAC Adante AF-61 6.5" 3-Way Floor-Standing Speaker (Gloss Black, Single) Binding Post Straps Gloves Outrigger Plate Spikes Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC Adante AF-61 6.5" 3-Way Floor-Standing Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersELAC AF-61 Specs | Speaker Type | 3-way, interport-coupled cavity | | Drivers | Woofer: 3 x 6.5" / 16.5 cm aluminum cone, internally mounted
Tweeter: 1 x 1" / 2.5 cm soft dome, concentrically mounted

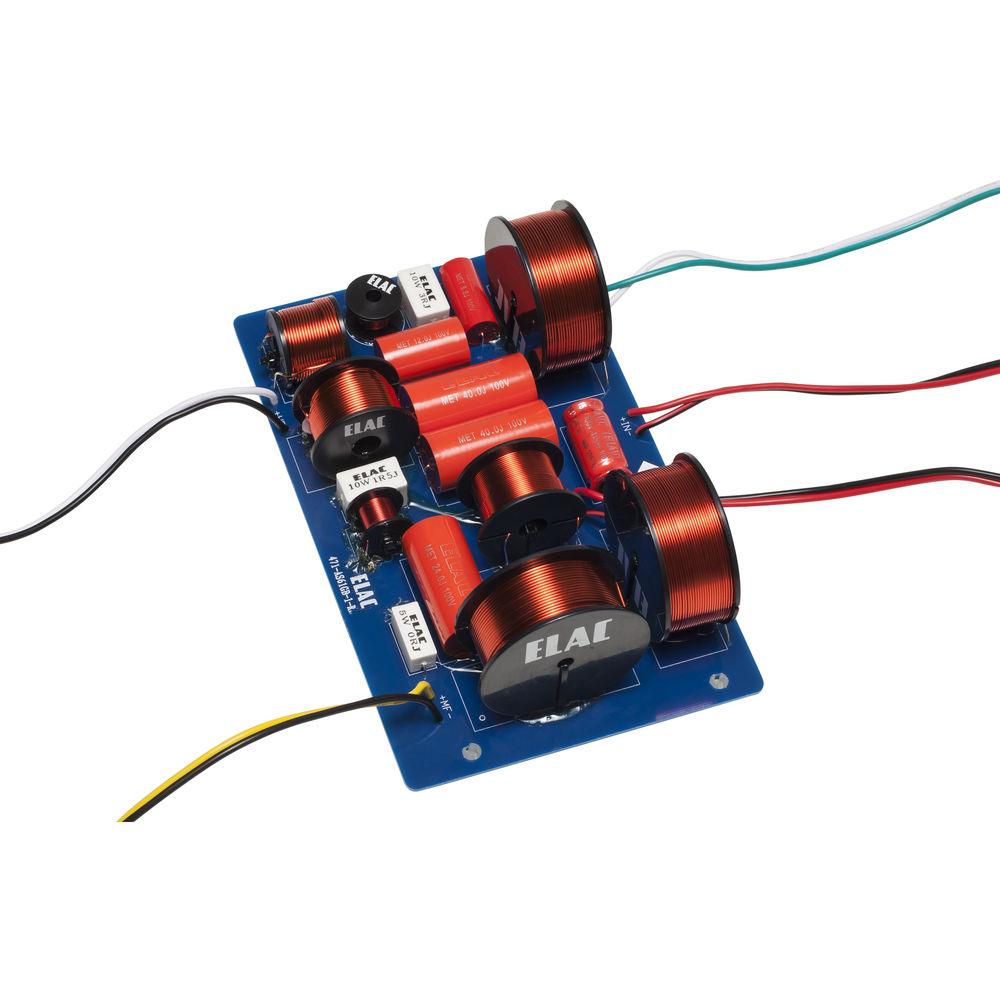

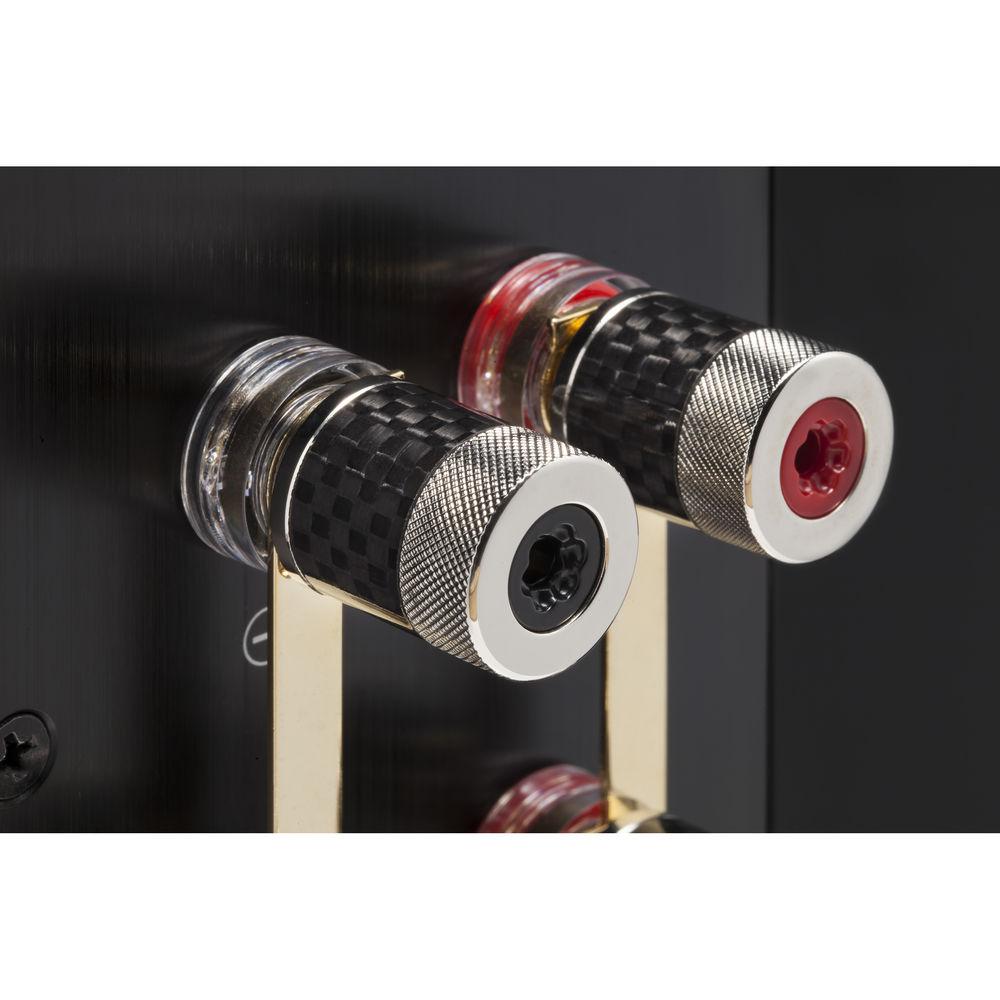

Midrange: 1 x 5.25 / 13.3 cm aluminum cone | | Radiator Dimensions | 3 x 8" / 20.3 cm aluminum cone passive radiators | | Crossover Frequency | 200 Hz / 2000 Hz | | Frequency Response | 39 Hz to 35 kHz | | Sensitivity | 87 dB at 2.83 V/1 m | | Recommended Amplifier Power | 50 to 160 WPC | | Peak Power | 160 WPC | | Nominal Impedance | 6 Ohms | | Binding Posts | Dual pair 5-way metal | | Dimensions (H x W x D) | 52.3 x 9.6 x 15.7" / 132.9 x 24.4 x 39.8 cm (with outrigger plate, spike, and grille) | | Weight | 101.0 lb / 45.8 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
