User Manual for ELAC Adante AS-61 6.5" 3-Way Bookshelf Speaker Click to enlarge the picture
Contents of the user manual for the ELAC Adante AS-61 6.5" 3-Way Bookshelf
- Product category: Bookshelf Speakers ELAC
- Brand: ELAC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ELAC Bookshelf Speakers
 |
User manual for the ELAC Adante AS-61 6.5" 3-Way Bookshelf contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ELAC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ELAC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ELAC product will considerably shorten its lifespan!
|

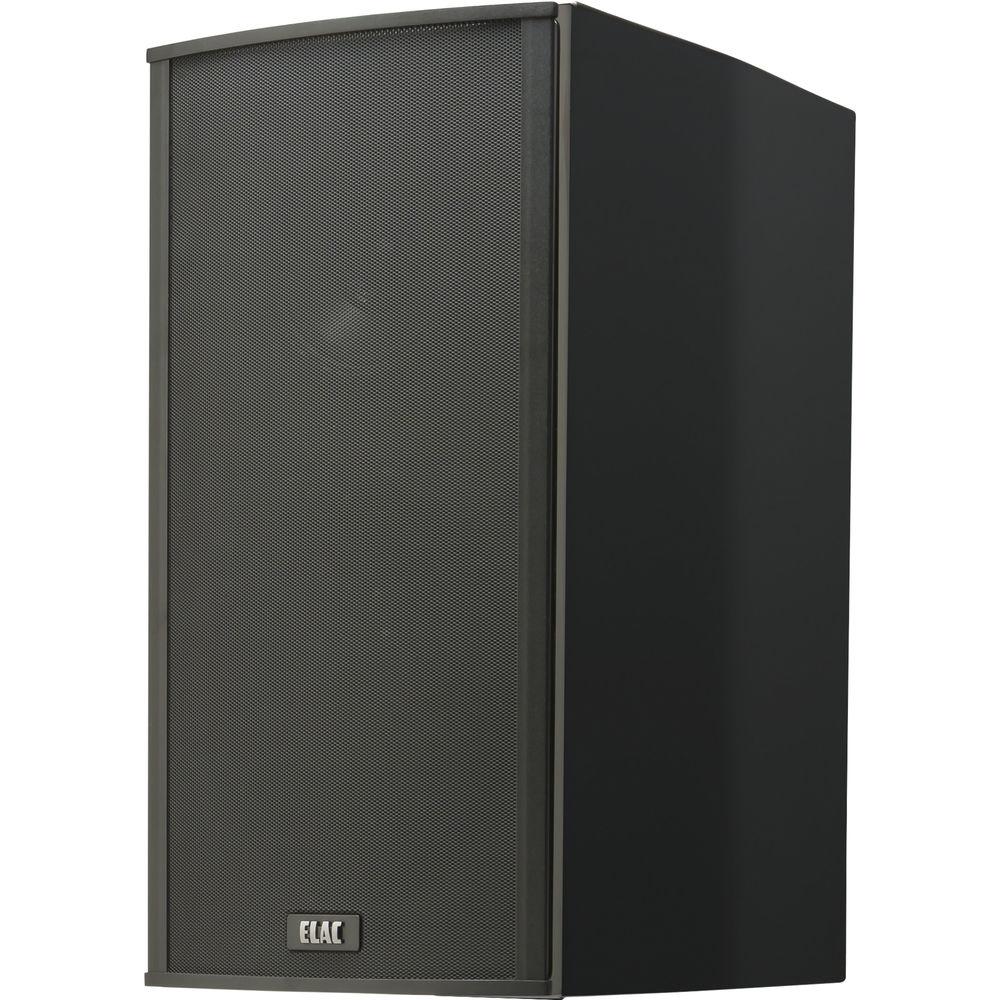

Product description Equipped with dedicated drivers for high, mid, and low frequencies, the ELAC Adante AS-61 6.5" 3-Way Bookshelf Speaker is well suited for 2-channel stereo or home theater installations.

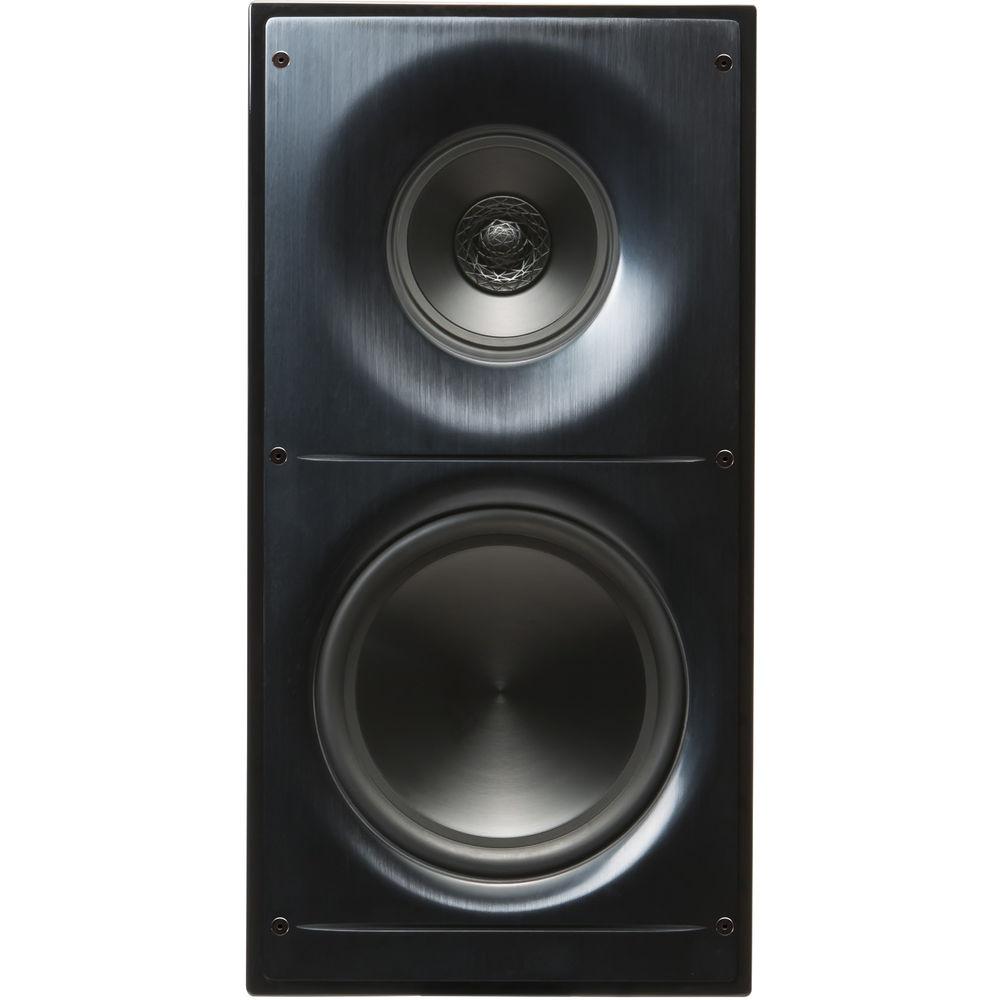

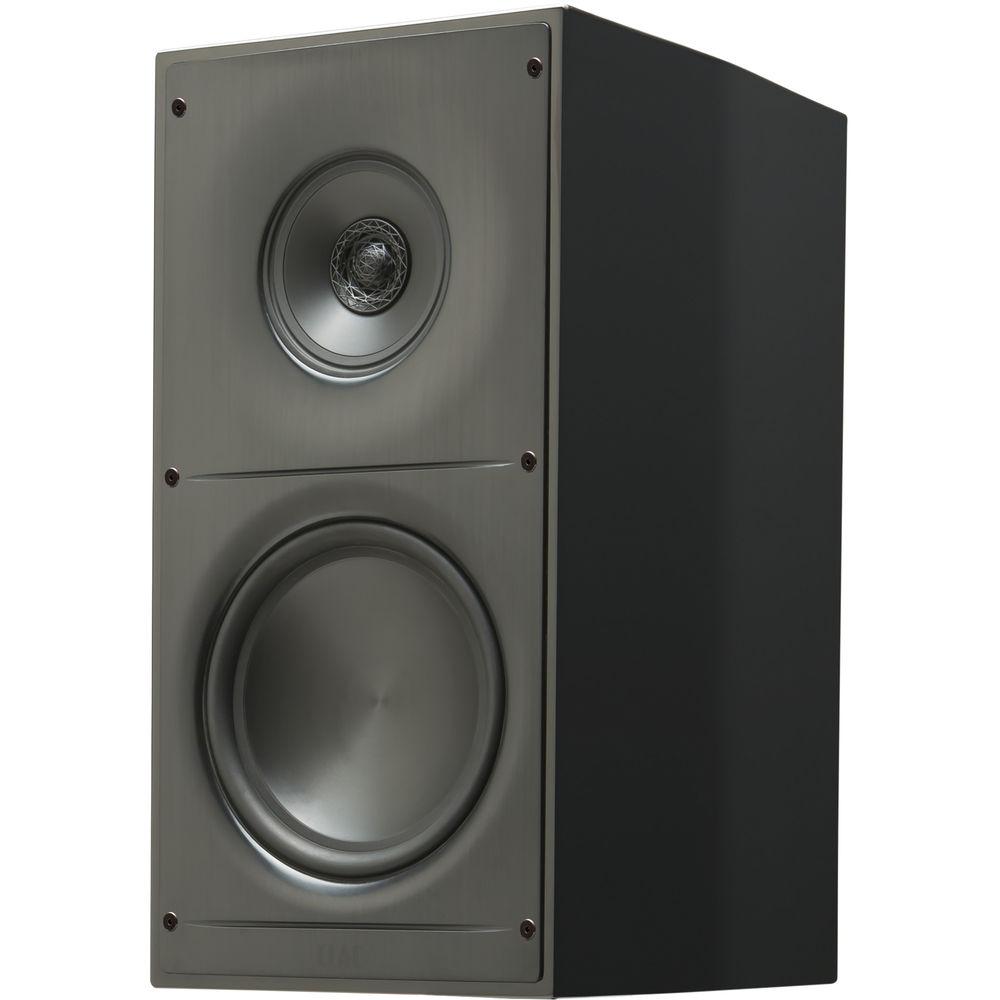

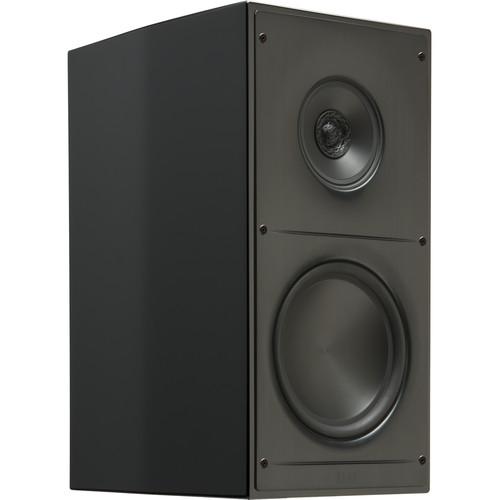

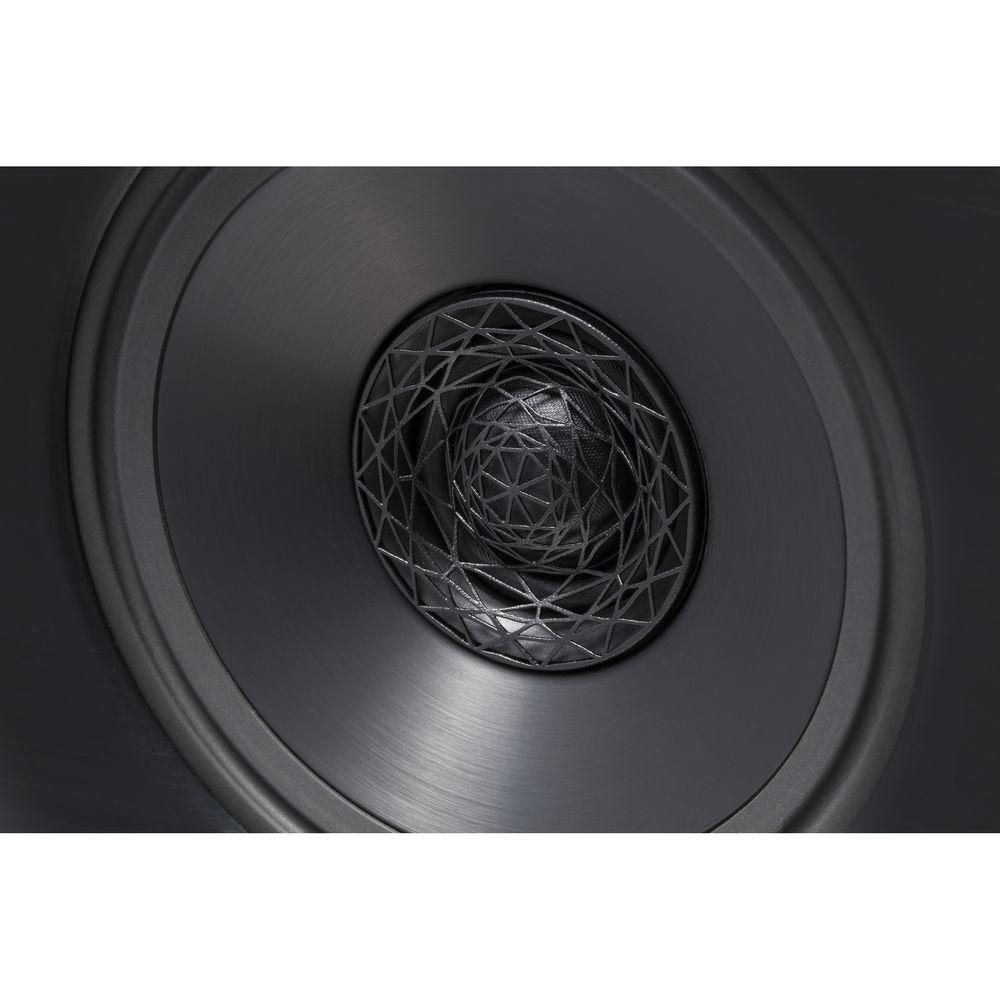

An 8" passive radiator is matched by a single 6.5" aluminum cone woofer, which is internally mounted behind the radiator, essentially providing the driver with its own enclosure. Engineering the cabinet to keep the driver inside is designed to drastically reduce vibration and provide you with distortion-free audio. The woofer is joined by a single 1" soft dome tweeter that is concentrically mounted to a single 5.25" aluminum cone midrange driver.
It connects passively to your system through conventional speaker wire (not included), so you will need an amplifier or receiver to power the speaker properly. It is rated to accept between 50 to 160W per channel. In the Box ELAC Adante AS-61 6.5" 3-Way Bookshelf Speaker (Gloss Black, Single) Binding Post Straps Gloves Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC Adante AS-61 6.5" 3-Way Bookshelf Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersELAC AS-61 Specs | Speaker Type | 3-way, interport-coupled cavity | | Drivers | Woofer: 1 x 6.5" / 16.5 cm aluminum cone, internally mounted
Tweeter: 1 x 1" / 2.5 cm soft dome, concentrically mounted

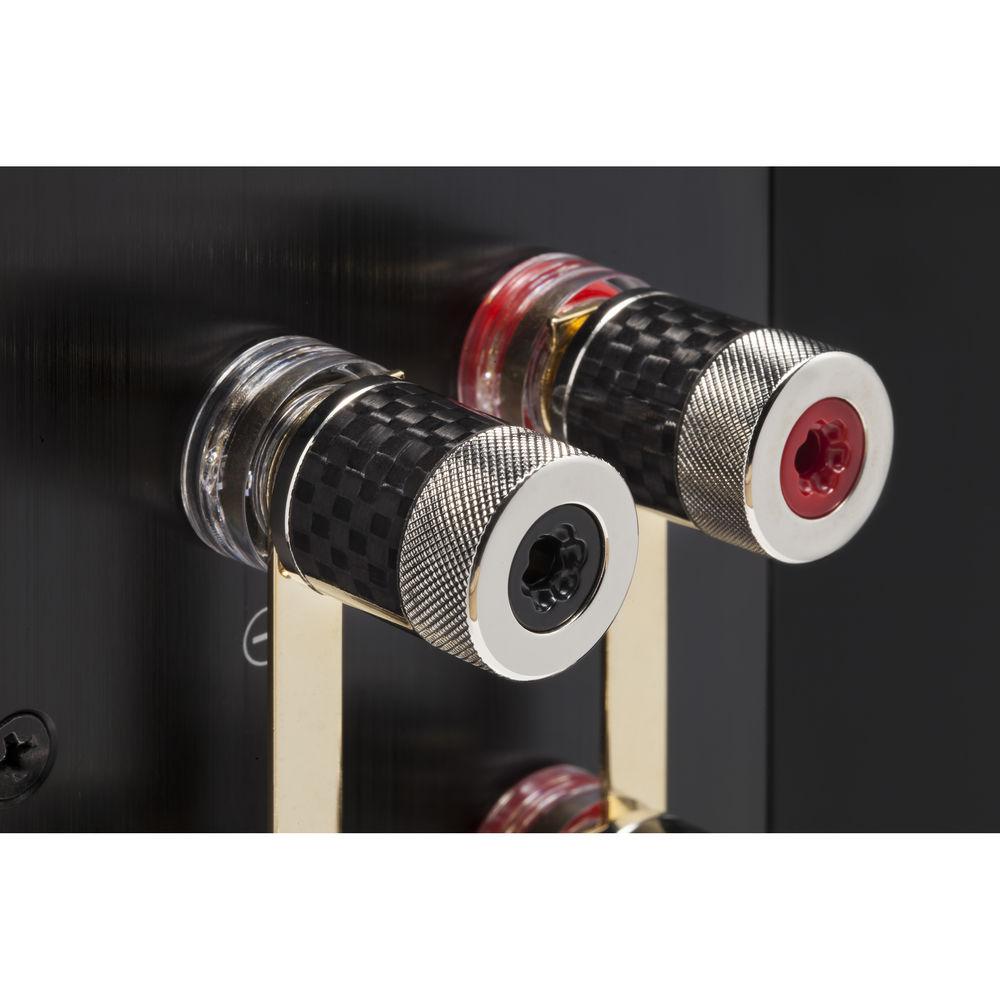

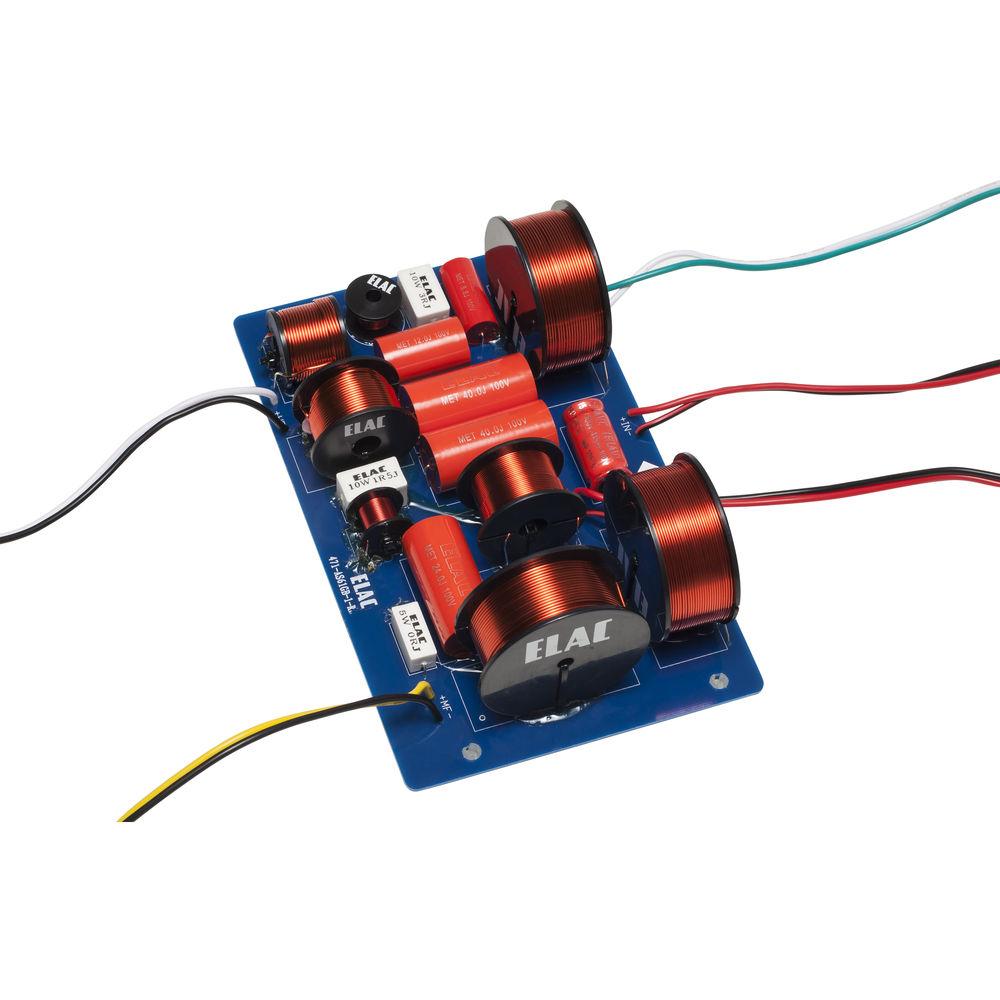

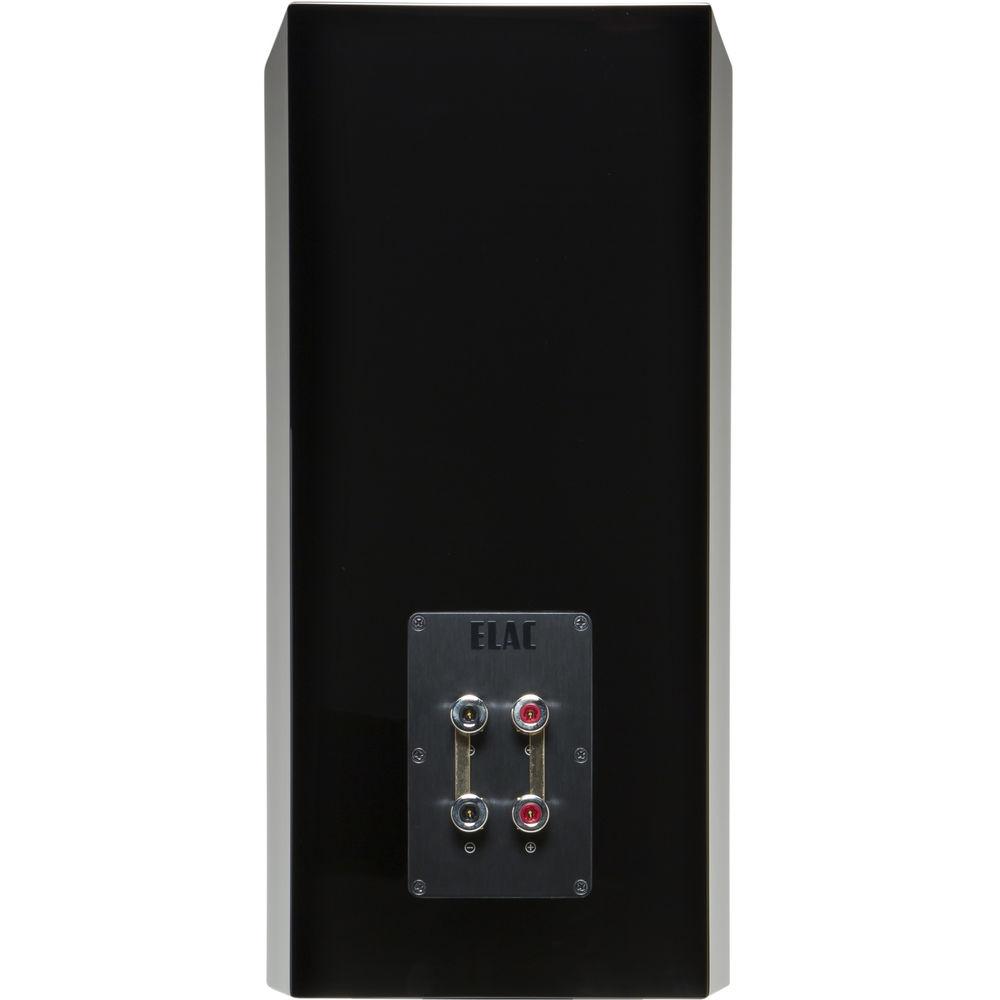

Midrange: 1 x 5.25 / 13.3 cm aluminum cone | | Radiator Dimensions | 1 x 8" / 20.3 cm aluminum cone passive radiator | | Crossover Frequency | 200 Hz / 2000 Hz | | Frequency Response | 41 Hz to 35 kHz | | Sensitivity | 85 dB at 2.83 V/1 m | | Recommended Amplifier Power | 50 to 160 W per channel | | Peak Power | 160 W per channel | | Nominal Impedance | 6 Ohms | | Binding Posts | Dual pair 5-way metal | | Dimensions (H x W x D) | 19.1 x 9.6 x 15.8" / 48.4 x 24.4 x 40.2 cm (with grille) | | Weight | 35.3 lb / 16.0 kg |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
