User Manual for ELAC Cinema 5 5.1-Channel Home Theater Speaker System Click to enlarge the picture
Contents of the user manual for the ELAC Cinema 5 5.1-Channel Home Theater
- Product category: Speaker Separates ELAC
- Brand: ELAC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ELAC Speaker Separates
 |
User manual for the ELAC Cinema 5 5.1-Channel Home Theater contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ELAC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ELAC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ELAC product will considerably shorten its lifespan!
|

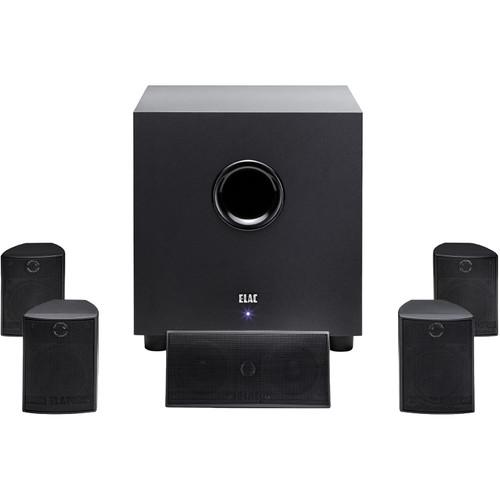

Product description Enjoy your movies in true surround sound with your favorite A/V receiver and the ELAC Cinema 5 5.1-Channel Home Theater Speaker System. The satellites and center speaker can accept up to 80W each to provide room-filling sound. The 80W RMS subwoofer uses a down-firing 8" driver to provide enhanced bass. - Drivers Designed for Precision

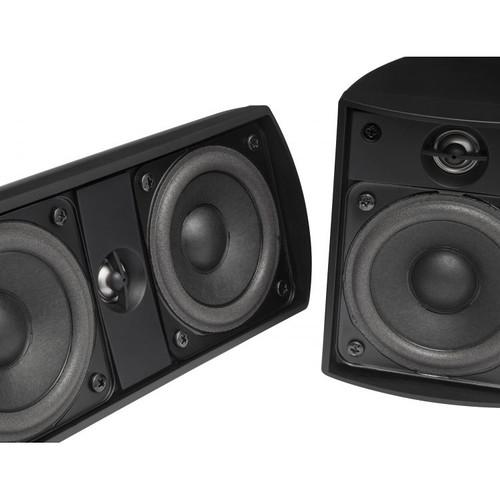

- Each satellite speaker features a half-inch neodymium magnet tweeter designed to reproduce crystalline, precise high frequencies. The 3" polypropylene midrange drivers are engineered to accurately replicate voices and instruments with full-frequency depth and realism
- Recessed Binding Posts

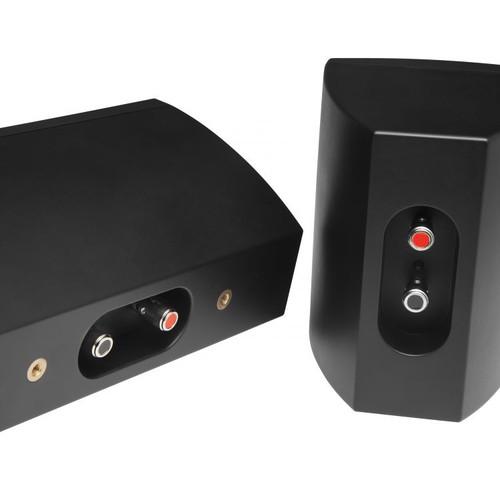

- Recessed binding posts allow you to place the satellite and center speakers nearly flush with your wall surface for a clean look.
- Powered Subwoofer

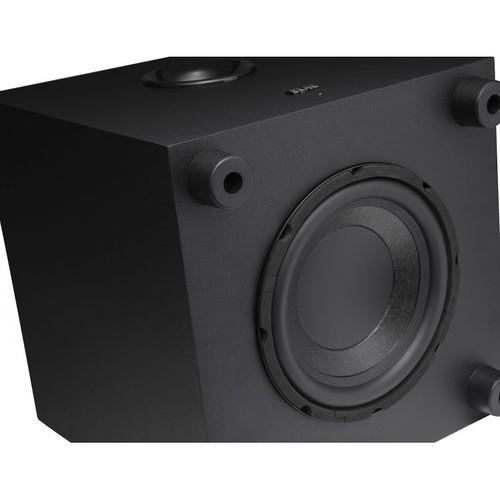

- The down-firing 8" subwoofer is designed to produce immersive, omnidirectional bass frequencies for realistic impact from music and soundtracks.
- Enhanced Control

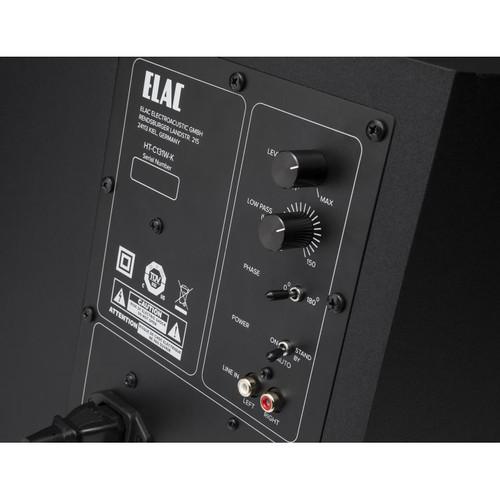

- Once the subwoofer is connected to your receiver, you can tune the bass crossover frequency control knob to suit your taste. You can also adjust the phase between 0 and 180° to help prevent unwanted acoustic interference with the woofers in the other speakers. Standby mode allows you to leave it powered up constantly, so you won't need to manually turn it on to use it.
UPC: 858552007035 In the Box ELAC Cinema 5 5.1-Channel Home Theater Speaker System Limited 3-Year Warranty Limited 3-Year Warranty Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC Cinema 5 5.1-Channel Home Theater Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersELAC HTC-131-K Specs | Driver Configuration | Front: 2-Way | | Power Handling | Subwoofer:
60 W (RMS)
100 W (Peak)
Front, Center:
80 W | | Frequency Response | Front, Center, Rear: 160 Hz to 20 kHz
Subwoofer: 40 Hz to 200 Hz | | Impedance | 8 Ohms | | Driver Type/Size | Center:
1 x 0.5" / 12.7 mm Tweeter
2 x 3" / 76.2 mm Woofer
Front:
1 x 0.5" / 12.7 mm Tweeter
1 x 3" / 76.2 mm Woofer
Subwoofer:
1 x 8" / 203.2 mm Woofer (Down-Firing) | | Connector Type | Front, Center: Binding Post
Subwoofer: RCA | | Enclosure Type | Subwoofer: Bass-Reflex | | AC Input Power | 115 VAC, 60 Hz | | Dimensions | Front, Side: 3.5 x 4.6 x 4.2" / 89.0 x 116.0 x 106.0 mm
Center: 7.7 x 3.5 x 4.2" / 196.0 x 89.0 x 106.0 mm
Subwoofer: 12.0 x 14.0 x 12.0" / 305.0 x 356.0 x 305.0 mm | | | | Package Weight | 35.7 lb | | Box Dimensions (LxWxH) | 22.0 x 16.0 x 16.0" |
