User Manual for ELAC Debut 2.0 B6.2 2-Way Bookshelf Speakers Click to enlarge the picture
Contents of the user manual for the ELAC Debut 2.0 B6.2 2-Way Bookshelf
- Product category: Bookshelf Speakers ELAC
- Brand: ELAC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ELAC Bookshelf Speakers
 |
User manual for the ELAC Debut 2.0 B6.2 2-Way Bookshelf contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ELAC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ELAC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ELAC product will considerably shorten its lifespan!
|

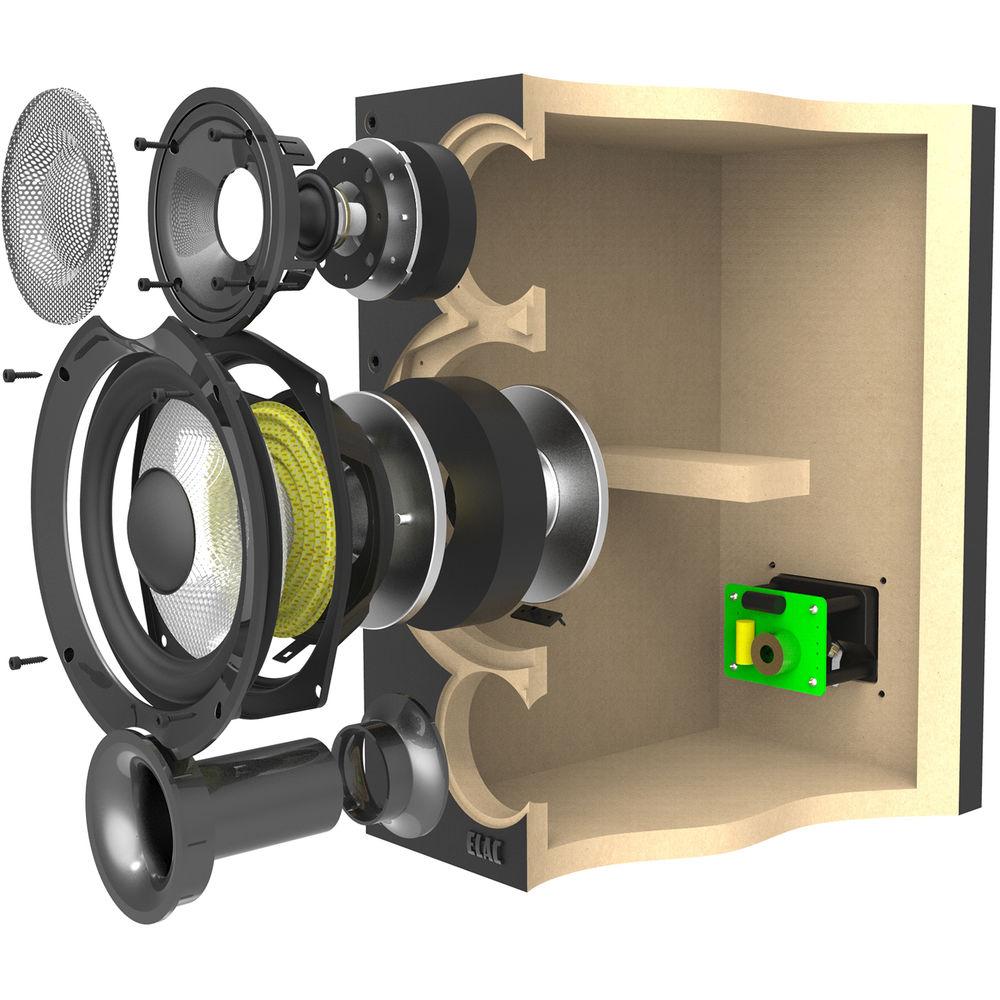

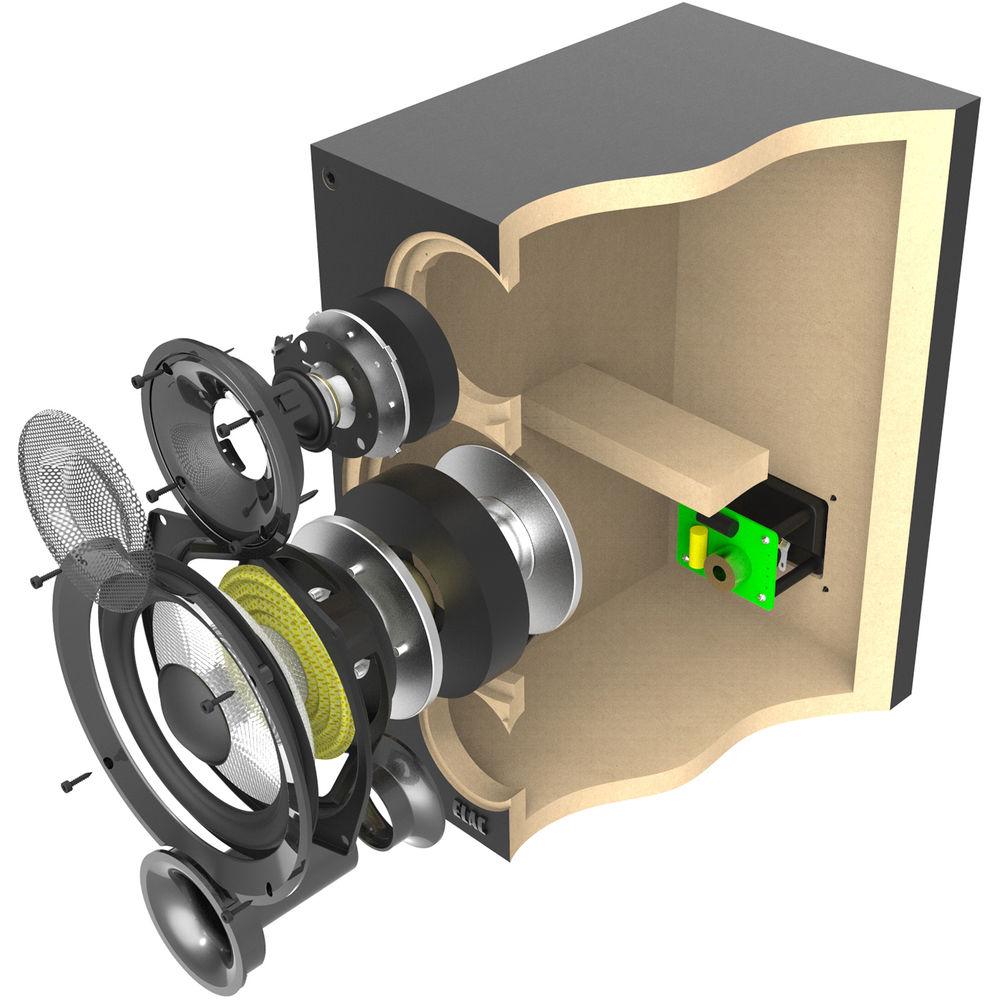

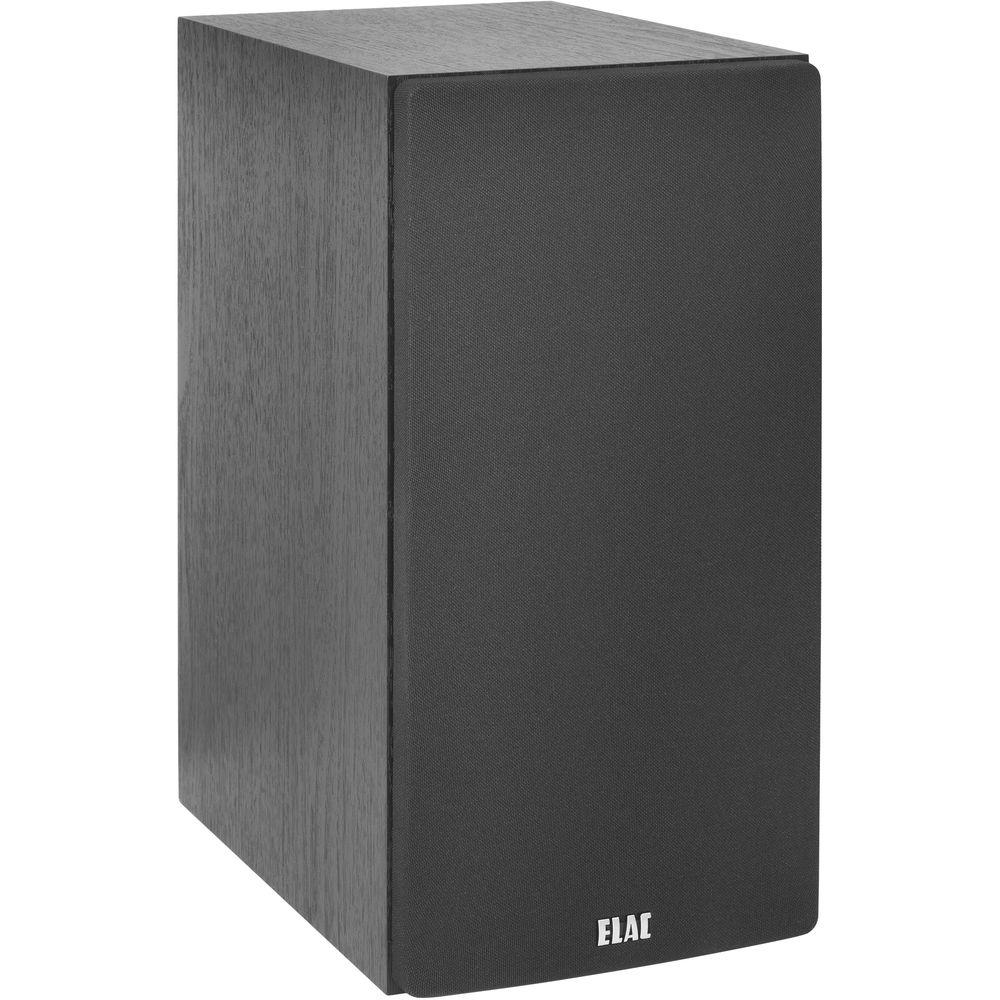

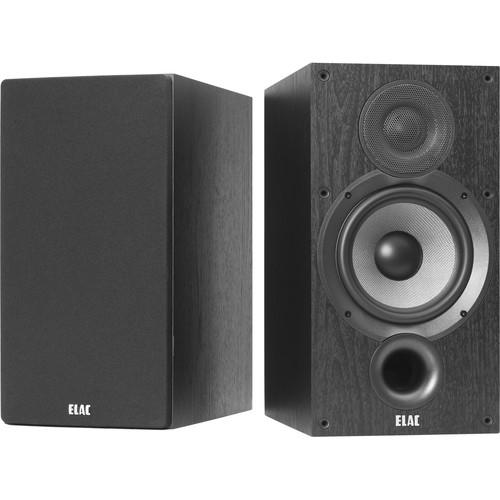

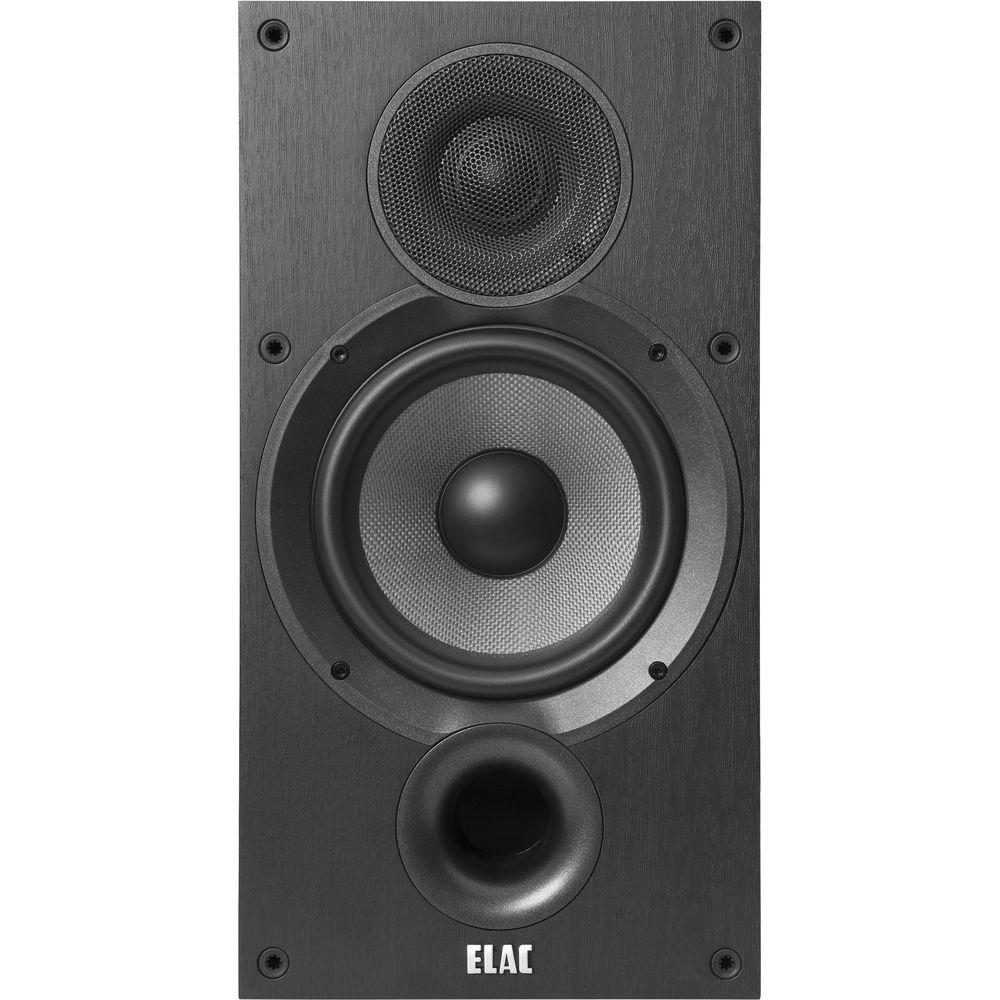

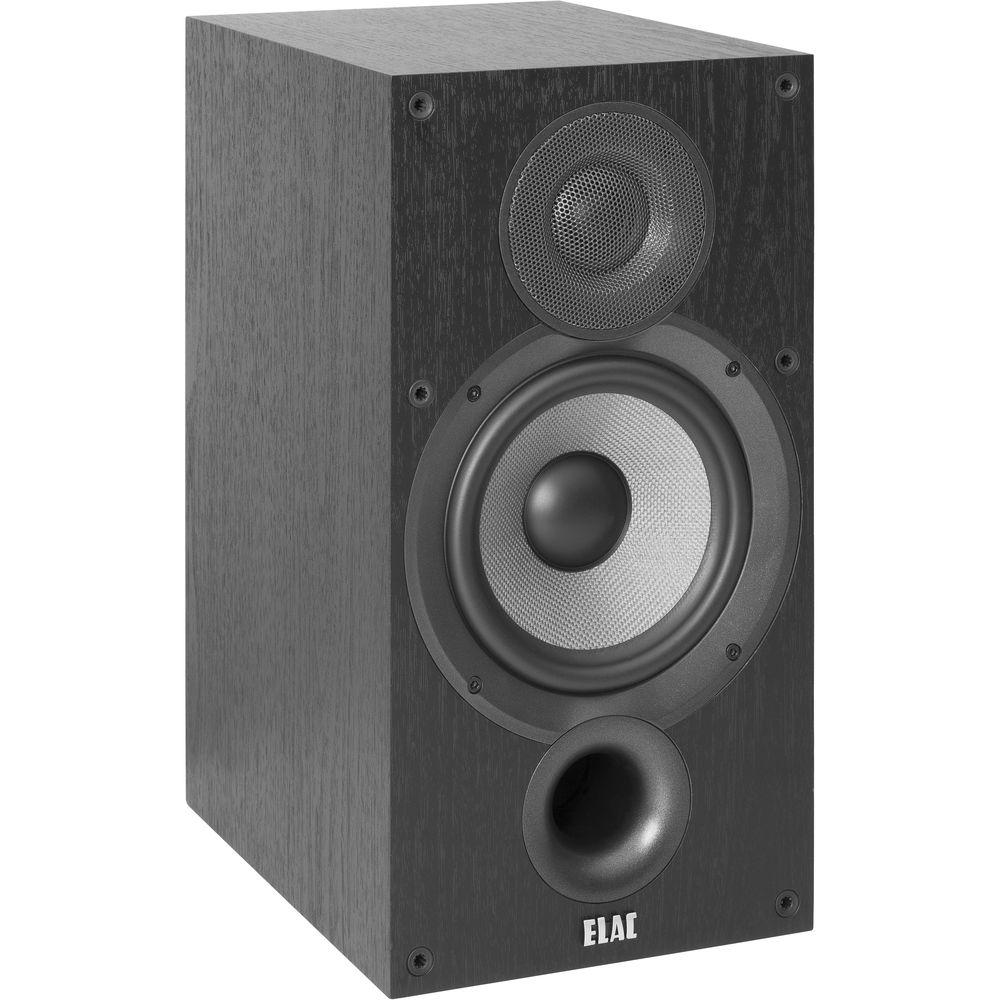

Product description Enjoy balanced stereo sound with your amplifier and this pair of ELAC Debut 2.0 B6.2 2-Way Bookshelf Speakers. They feature a 2-way design with a 1" cloth dome tweeter and a 6.5" woven aramid-fiber cone woofer. The speakers accept up to 120W of power from your amplifier, have a 44 Hz to 35 kHz frequency response, and were designed by Andrew Jones. - Tweeter with Wide-Dispersion Waveguide
- The tweeter features a wide-roll surround and brings response up to 35 kHz for enhanced high frequencies. The waveguide also helps improve directivity control and eliminate the diffraction modes common to speaker enclosures.
- Woven Aramid-Fiber Woofer
- The shape of the aramid fiber cone is designed to offer augmented stiffness and damping characteristics over polypropylene or paper cones, helping to achieve a smoother, extended low-frequency response. The woofer also features an oversized magnet and a vented pole piece.

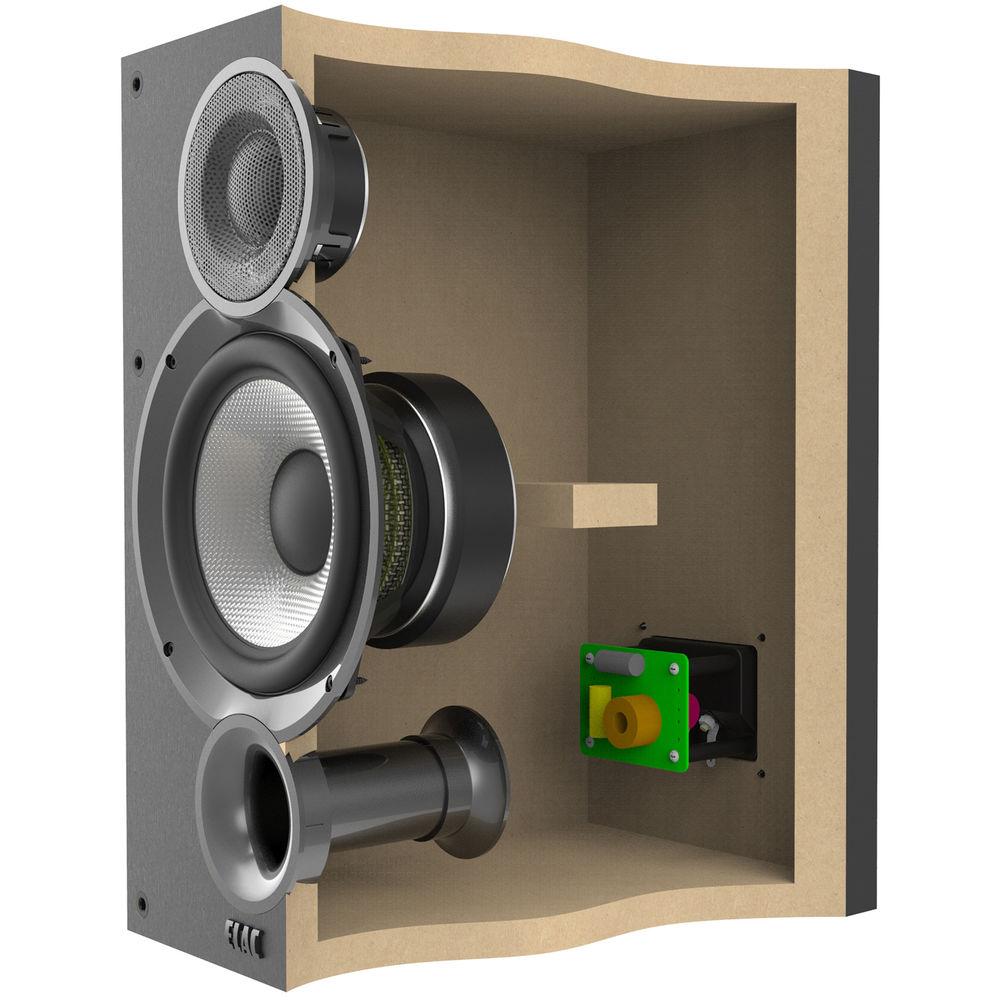

- Braced MDF Cabinets
- The cabinets are internally braced for enhanced stiffness and strength, reducing cabinet vibrations that cause unwanted coloration. Moving the bass port to the front of the cabinet means placement against walls or in bookshelves won't compromise performance.
UPC: 858552007080 In the Box ELAC Debut 2.0 B6.2 2-Way Bookshelf Speakers (Pair) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC Debut 2.0 B6.2 2-Way Bookshelf Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

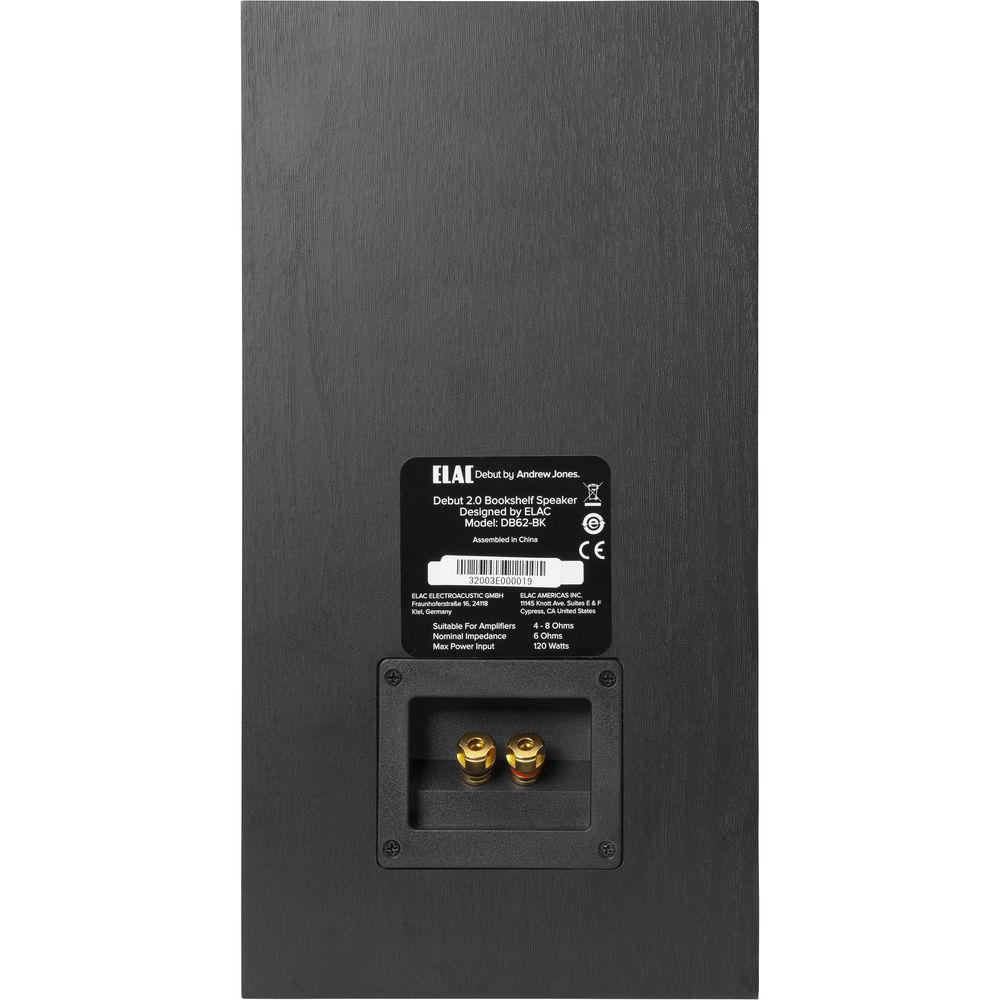

Technical parametersELAC DB62-BK Specs | Design | 2-way bass reflex | | Tweeter | 1x 1" / 2.54 cm cloth dome | | Woofer | 1x 6.5" / 16.51 cm woven aramid-fiber cone | | Ports | 1 x front-firing, dual-flared port | | Maximum Power Input Supported | 120 W | | Crossover Frequency | 2.2 kHz | | Frequency Response | 44 Hz to 35 kHz | | Nominal Impedance | 6 Ohms | | Sensitivity dB @ 2.83 V/1 m | 87 dB | | Connectors | 5-way binding post pair | | Magnetic Shielding | None | | Cabinet Construction | CARB2-rated MDF | | Finish | Black ash vinyl | | Dimensions (W x H x D) | 7.69 x 14.76 x 10.55" / 19.5 x 37.5 x 26.8 cm | | Weight | 16.3 lb / 7.4 kg per speaker | | | | Package Weight | 38.35 lb | | Box Dimensions (LxWxH) | 33.0 x 19.5 x 12.0" |
