User Manual for ELAC Debut 2.0 F5.2 Floorstanding 3-Way Speaker Click to enlarge the picture
Contents of the user manual for the ELAC Debut 2.0 F5.2 Floorstanding 3-Way
- Product category: Floorstanding Speakers ELAC
- Brand: ELAC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ELAC Floorstanding Speakers
 |
User manual for the ELAC Debut 2.0 F5.2 Floorstanding 3-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ELAC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ELAC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ELAC product will considerably shorten its lifespan!
|

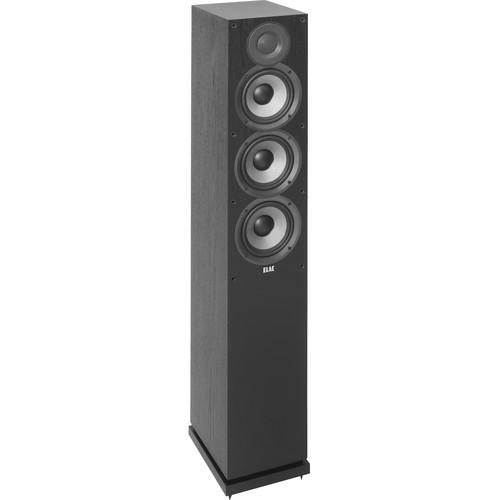

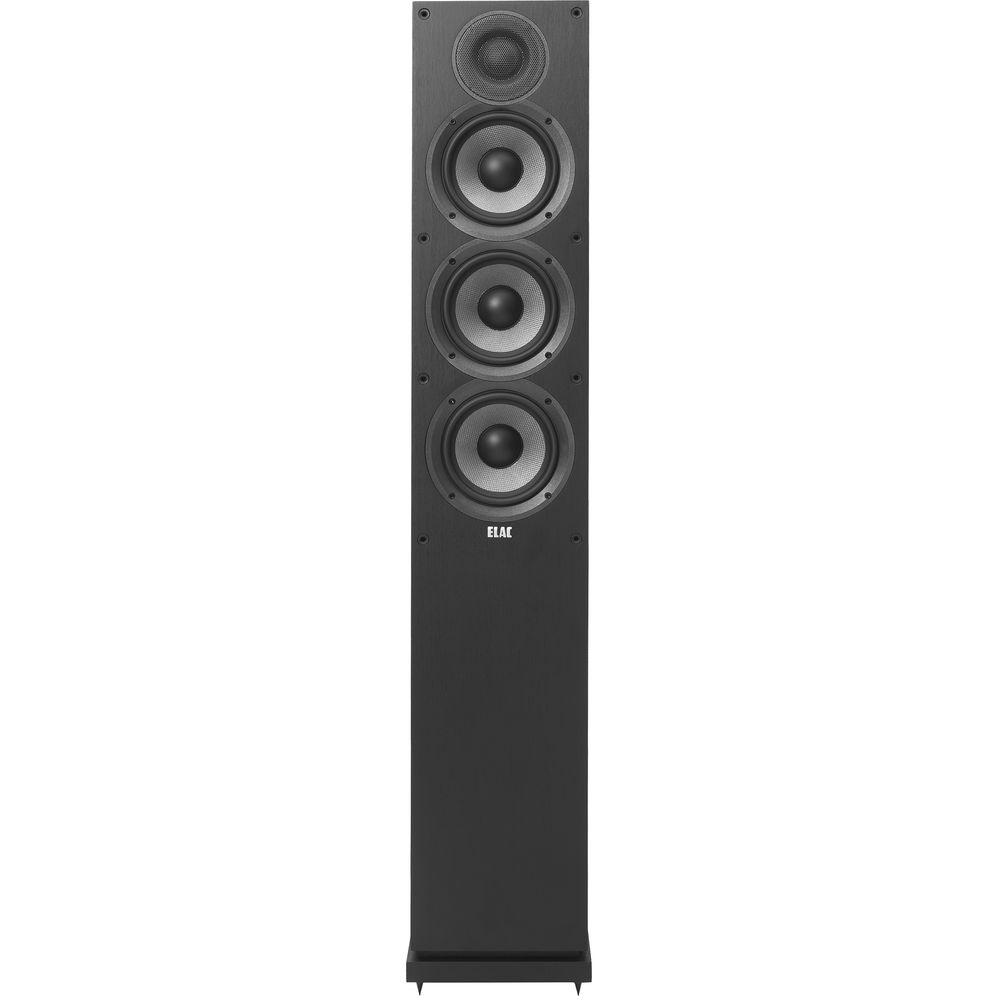

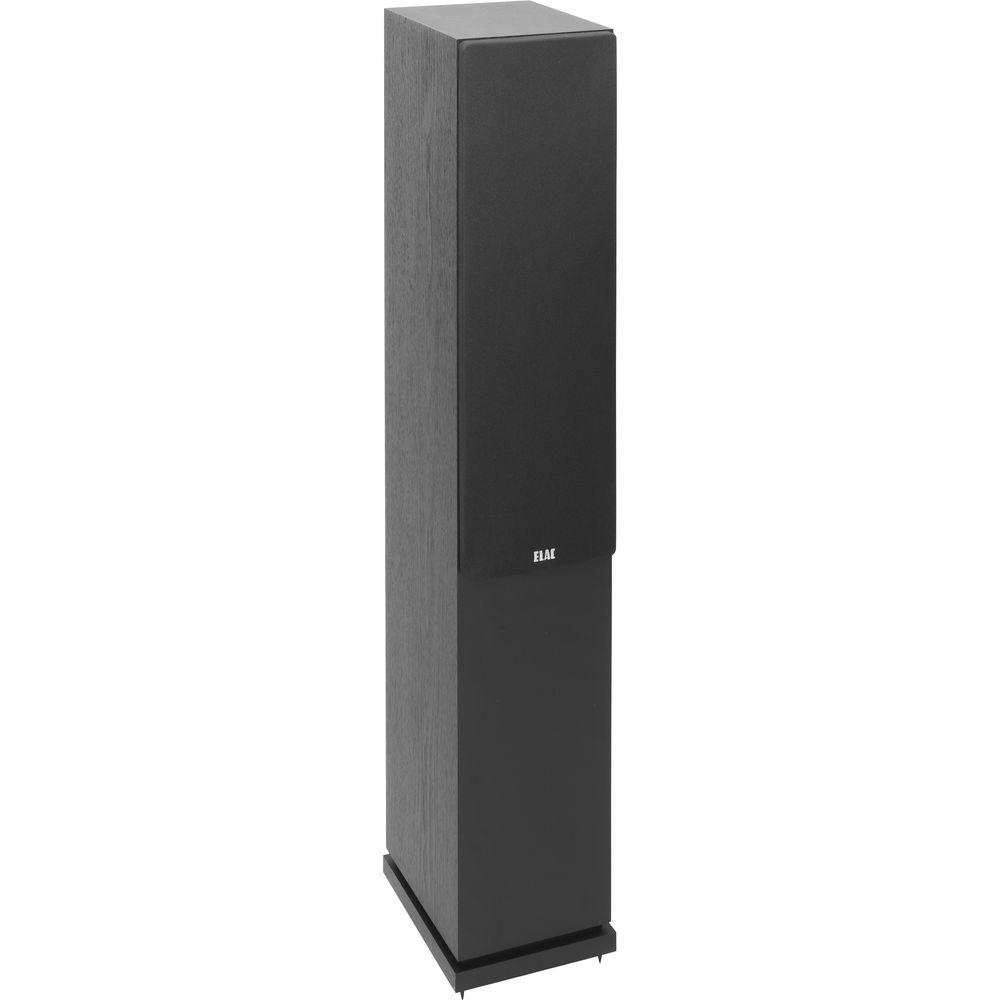

Product description Enjoy dynamic sound from your amplifier with the ELAC Debut 2.0 F5.2 Floorstanding Speaker. It features a three-way design with a 1" cloth dome tweeter, a 5.25" woven aramid-fiber cone mid-woofer, and two 5.25" woven aramid-fiber cone woofers. It accepts up to 140W of power from your amplifier and produces a 42 Hz to 35 kHz frequency response. The cabinet is made from MDF, and the speaker as a whole was designed by Andrew Jones. - Tweeter with Wide-Dispersion Waveguide
- The tweeter features a wide-roll surround and brings response up to 35 kHz for enhanced high frequencies. The waveguide also helps improve directivity control and eliminate the diffraction modes common to speaker enclosures.
- Woven Aramid-Fiber Woofers & Mid-Woofer
- The shape of the aramid fiber cone is designed to offer augmented stiffness and damping characteristics over polypropylene or paper cones, helping to achieve a smoother, extended low-frequency response. The woofers and mid-woofer also feature an oversized magnet and a vented pole piece.
- Braced MDF Cabinets
- The cabinets are internally braced for enhanced stiffness and strength, reducing cabinet vibrations that cause unwanted coloration.
UPC: 858552007110 In the Box ELAC Debut 2.0 F5.2 Floorstanding 3-Way Speaker (Single) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC Debut 2.0 F5.2 Floorstanding 3-Way Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersELAC DF52-BK Specs | Tweeter | 1x 1" / 2.54 cm cloth dome | | Midrange | 1x 5.25" / 13.34 cm woven aramid-fiber cone | | Woofers | 2x 5.25" / 13.34 cm woven aramid-fiber cones | | Ports | 3 x dual-flared rear-firing ports | | Recommended Amplifier Power | Up to 140 W | | Crossover Frequencies | 90 Hz, 2.2 kHz | | Frequency Response | 42 Hz to 35 kHz | | Nominal Impedance | 6 Ohms | | Sensitivity dB @ 2.83 V/1 m | 86 dB | | Connectors | 5-way binding post pair | | Magnetic Shielding | None | | Cabinet Construction | CARB2-rated MDF | | Finish | Black brushed vinyl | | Dimensions (W x H x D) | 7.09 x 40 x 9.21" / 18.01 x 101.6 x 23.39 cm | | Weight | 34.4 lb / 15.6 kg | | | | Package Weight | 44.6 lb | | Box Dimensions (LxWxH) | 44.5 x 16.5 x 12.3" |
