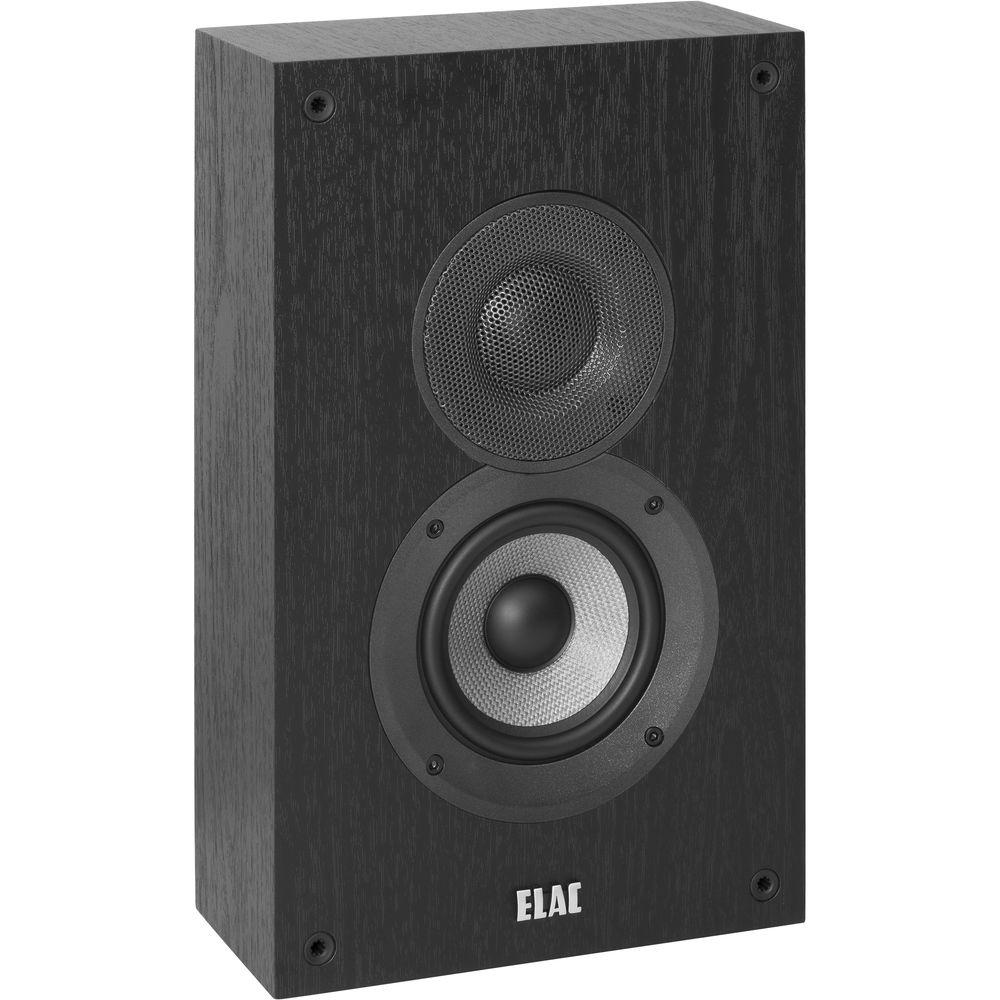

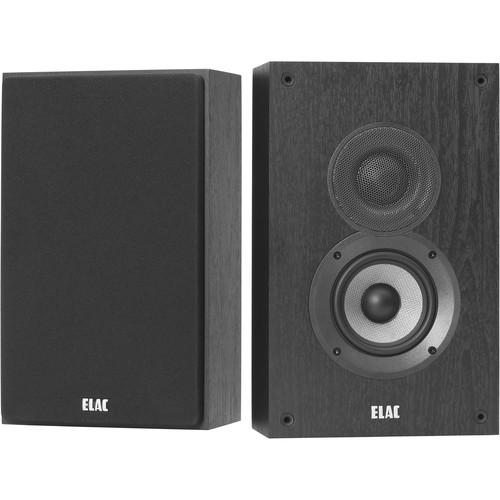

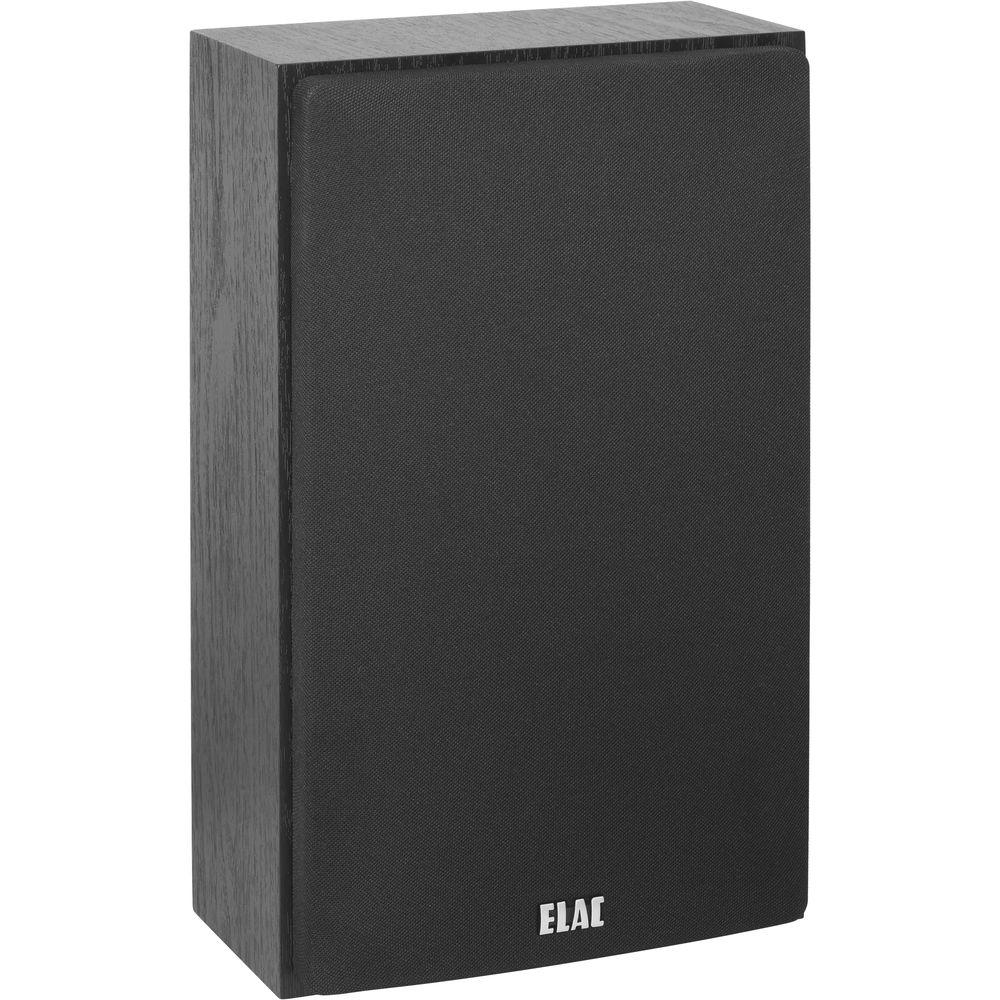

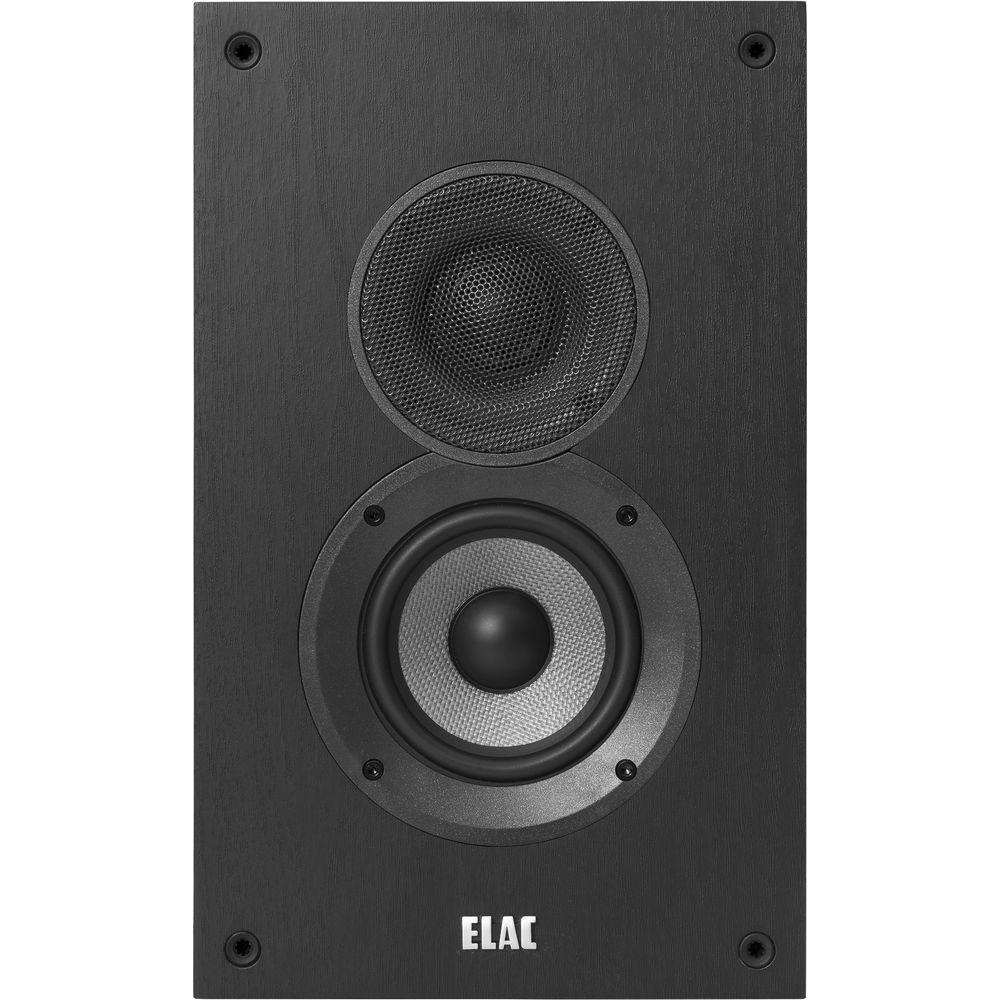

Product description Enjoy balanced stereo sound with your amplifier and this pair of ELAC Debut 2.0 OW4.2 2-Way On-Wall Speakers. They feature a 2-way design with a 1" cloth dome tweeter and a 4" woven aramid-fiber cone woofer. Thanks to their down-firing bass ports and included wall mounting brackets, these speakers are specifically designed to be wall-mounted. The OW4.2 speakers accept up to 80W of power from your amplifier, have a 70 Hz to 35 kHz frequency response, and were designed by Andrew Jones. Note: Wall mounting screws are required and sold separately. - Tweeter with Wide-Dispersion Waveguide
- The tweeter features a wide-roll surround and brings response up to 35 kHz for enhanced high frequencies. The waveguide also helps improve directivity control and eliminate the diffraction modes common to speaker enclosures.
- Woven Aramid-Fiber Woofer
- The shape of the aramid fiber cone is designed to offer augmented stiffness and damping characteristics over polypropylene or paper cones, helping to achieve a smoother, extended low-frequency response. The woofer also features an oversized magnet and a vented pole piece.
- Slim Cabinet Design for Easy Placement

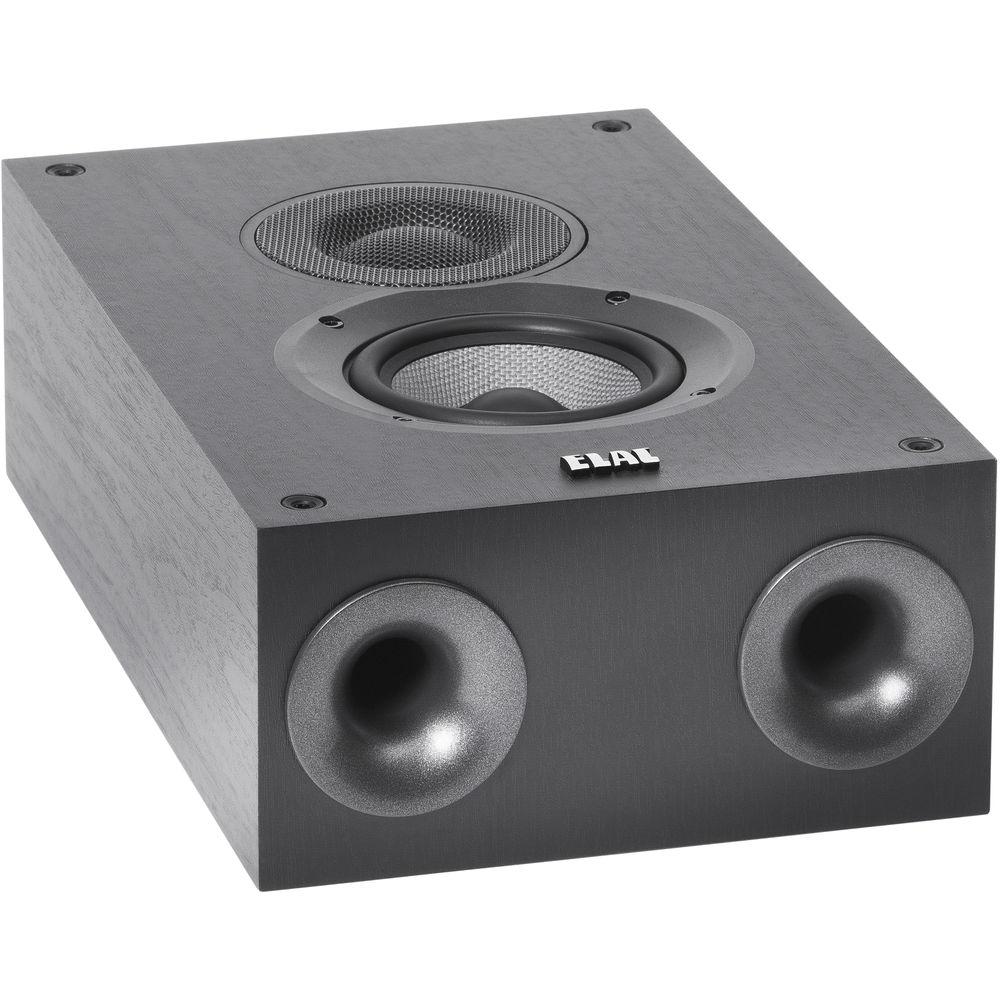

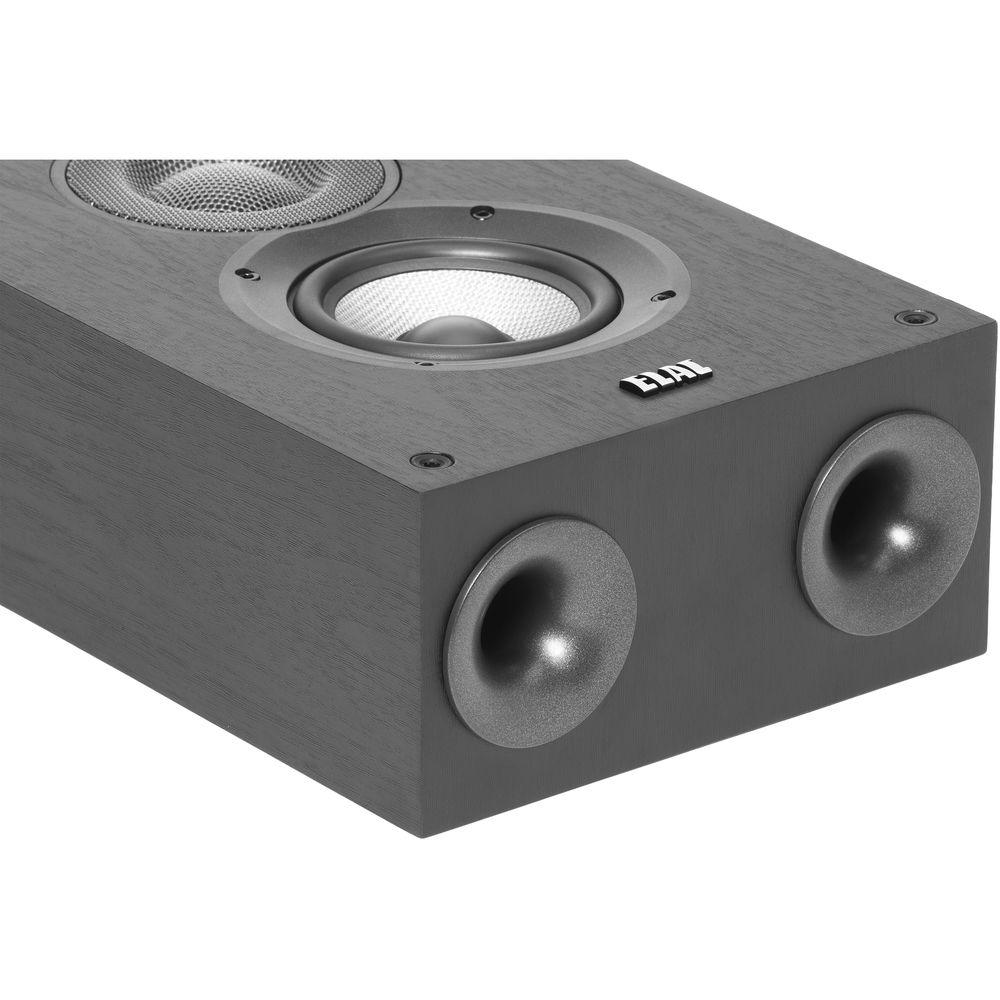

- The cabinets are designed for easy integration into your listening room thanks to their shallow depth of less than 4". Their bass-reflex design helps deliver full-frequency performance.
UPC: 858552007141 In the Box ELAC Debut 2.0 OW4.2 2-Way On-Wall Speakers (Pair) Wall Mounting Brackets Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC Debut 2.0 OW4.2 2-Way On-Wall Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

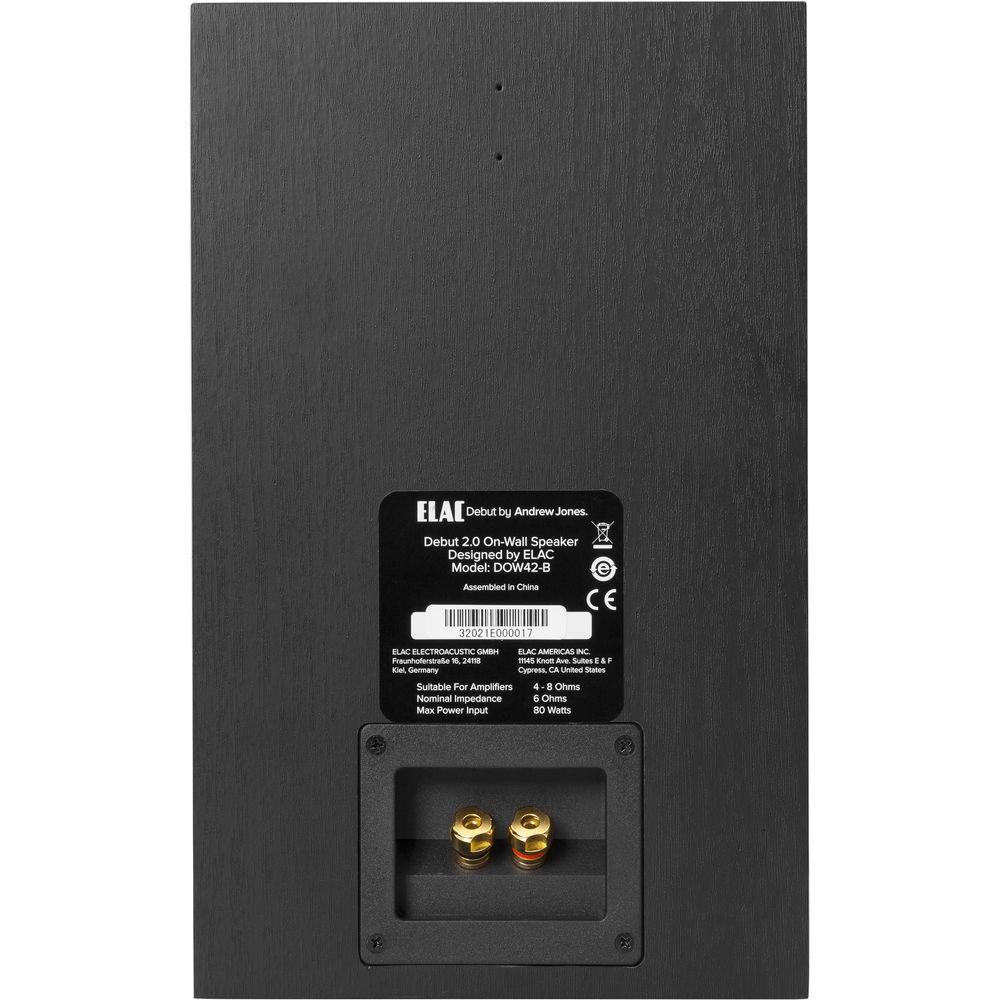

Technical parametersELAC Debut Specs | Design | 2-way bass reflex | | Tweeter | 1x 1" / 2.54 cm cloth dome | | Woofer | 1x 4" / 10.16 cm woven aramid-fiber cone | | Ports | Down-firing dual-flared port | | Maximum Power Input Supported | 80 W | | Crossover Frequency | 2.5 kHz | | Frequency Response | 70 Hz to 35 kHz | | Nominal Impedance | 6 Ohms | | Sensitivity dB @ 2.83 V/1 m | 87 dB | | Connectors | 5-way binding post pair | | Magnetic Shielding | None | | Cabinet Construction | CARB2-rated MDF | | Finish | Black ash vinyl | | Dimensions (W x H x D) | 7.87 x 12.76 x 3.94" / 19.99 x 32.41 x 10.01 cm | | Weight | 7.9 lb / 3.6 kg per speaker | | | | Package Weight | 20.2 lb | | Box Dimensions (LxWxH) | 17.5 x 17.3 x 12.4" |
