User Manual for ELAC Debut 2.0 SUB3010 10" 400W Subwoofer Click to enlarge the picture
Contents of the user manual for the ELAC Debut 2.0 SUB3010 10" 400W
- Product category: Subwoofers ELAC
- Brand: ELAC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ELAC Subwoofers
 |
User manual for the ELAC Debut 2.0 SUB3010 10" 400W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ELAC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ELAC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ELAC product will considerably shorten its lifespan!
|

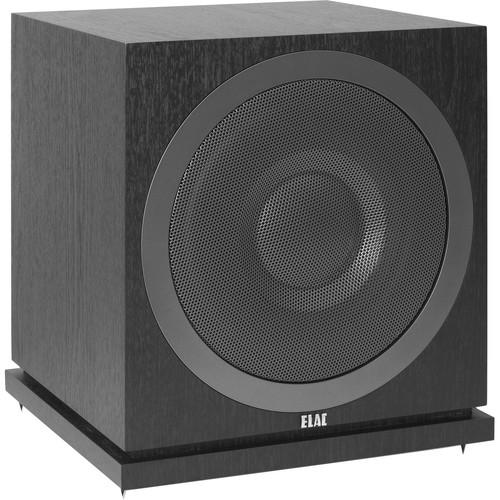

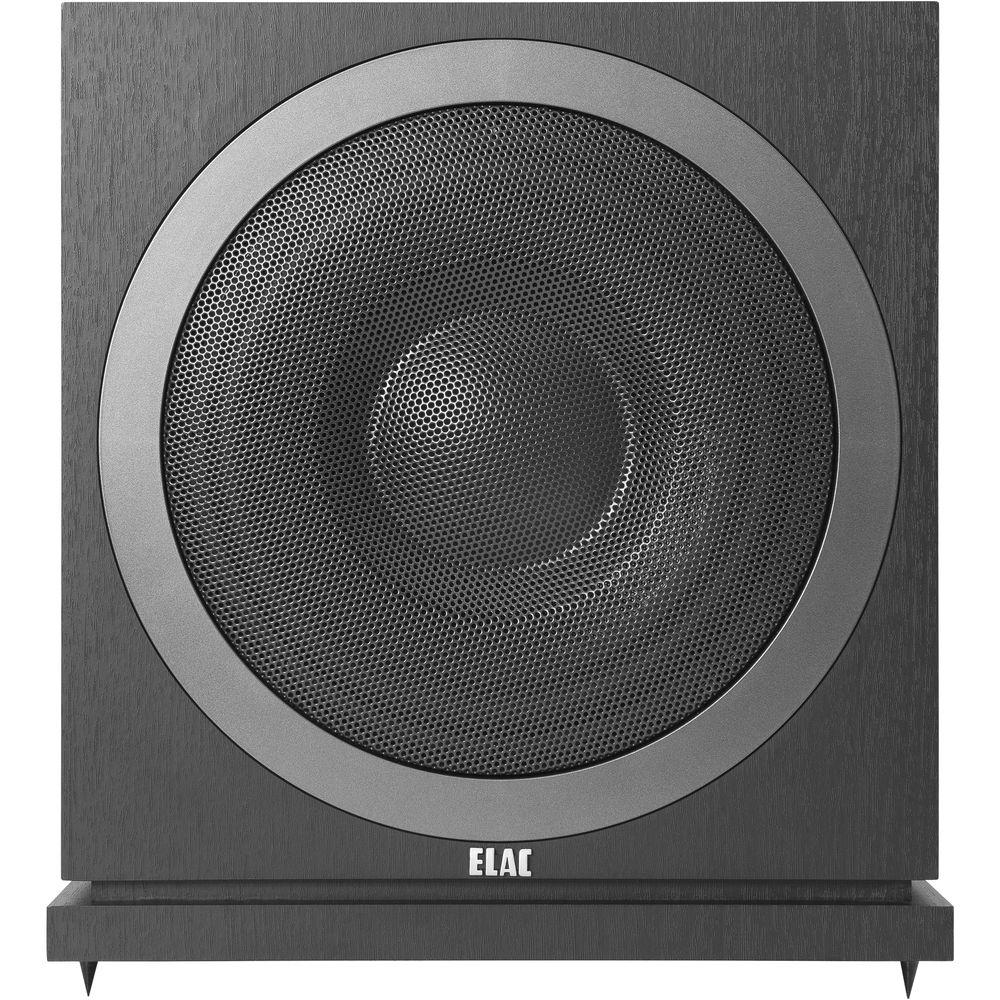

Product description Add enhanced bass to your movies and music with the ELAC Debut 2.0 SUB3010 10" 400W Subwoofer. This front-firing subwoofer features a 10" high-excursion doped paper cone woofer with a 10" high-excursion doped paper cone passive bass radiator and delivers up to 400W of peak power. With a frequency response of 28 to 150 Hz, the SUB3010 is equipped to handle a variety of listening material. The subwoofer is controllable with the ELAC SubEQ app for iOS and Android via Bluetooth 4.0 and was designed by Andrew Jones. Note: An iOS or Android device with Bluetooth 4.0 or higher is required for setup and operation. - Bluetooth Control

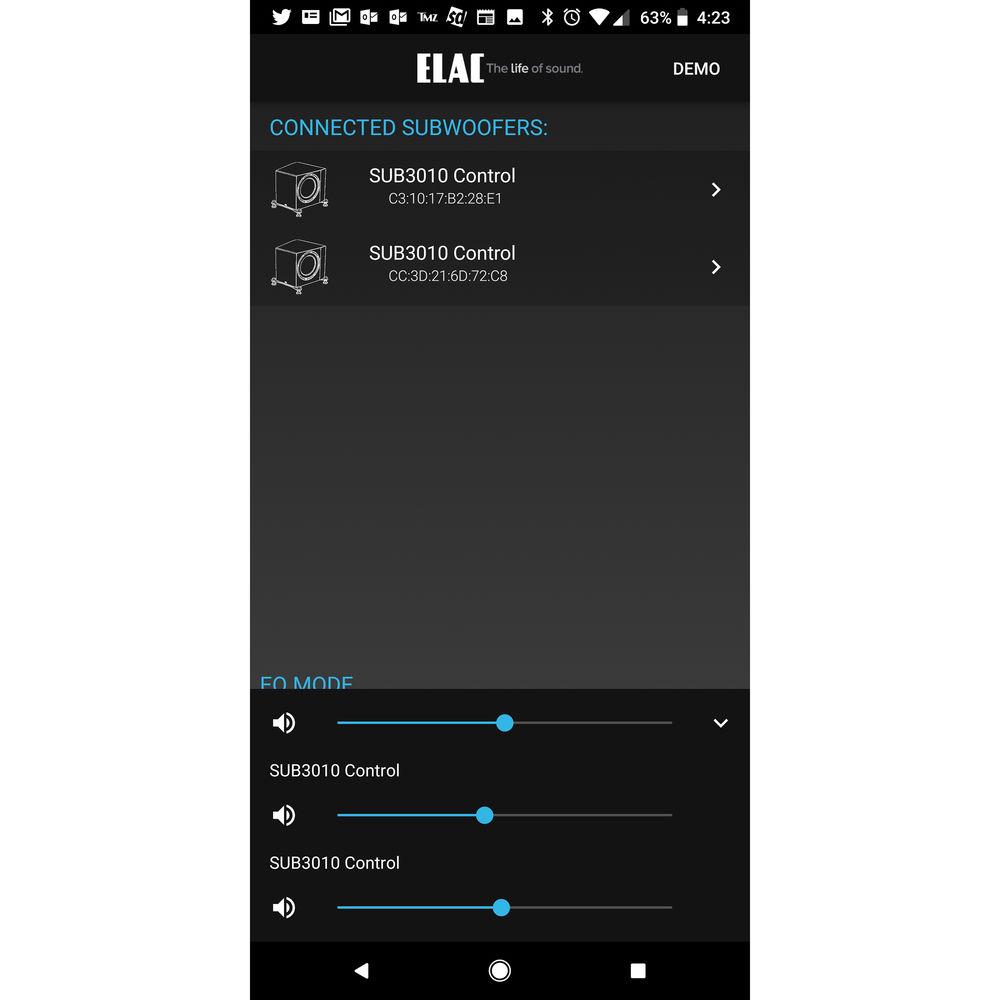

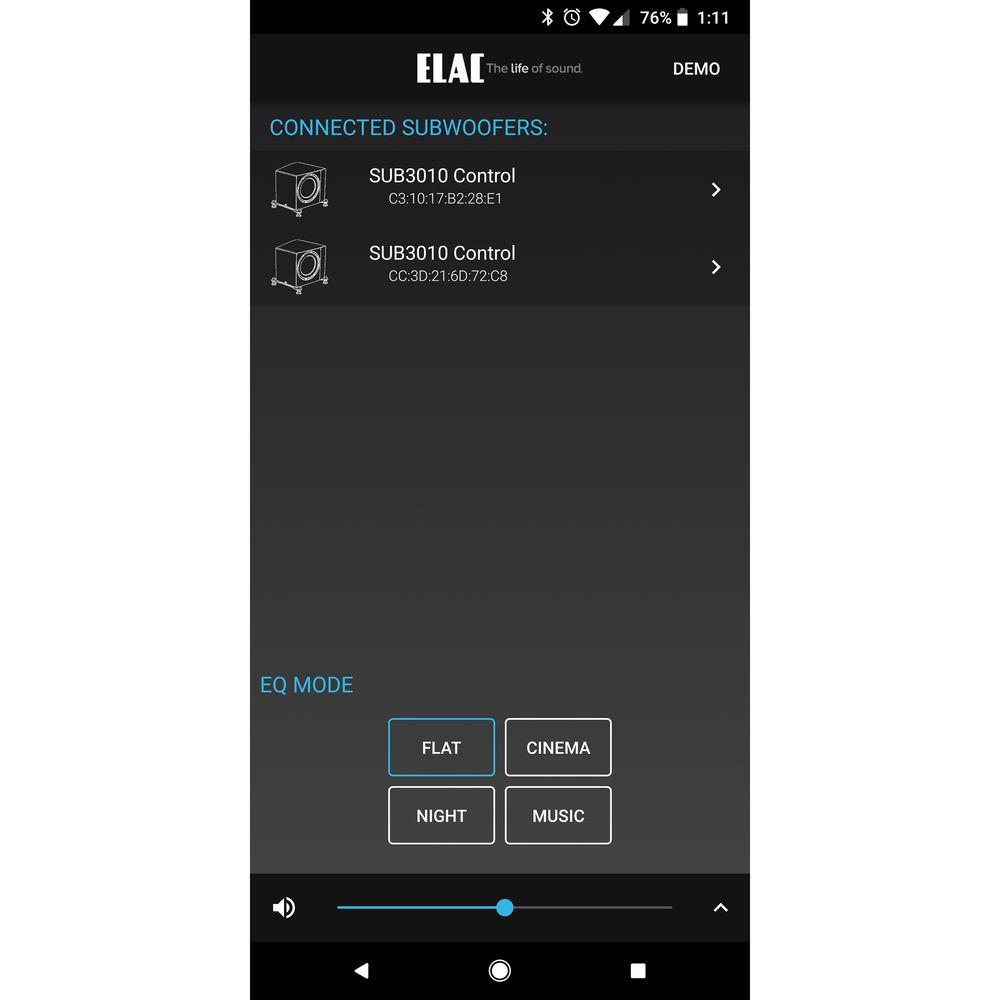

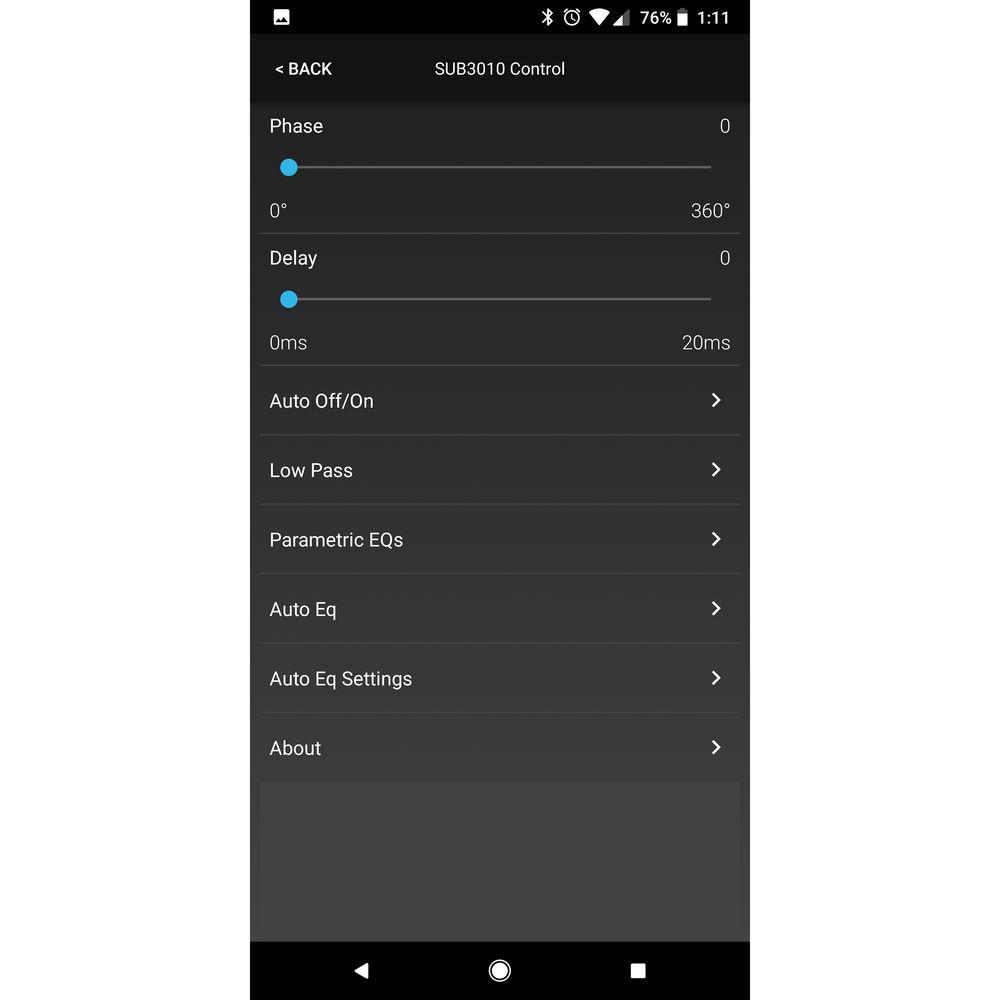

- Doing away with traditional analog controls, the SUB3010 incorporates a digital control system. Simply download the ELAC SubEQ app for your Bluetooth 4.0-equipped Android or iOS smartphone for complete control without necessitating access to the back of the subwoofer.
- Auto EQ

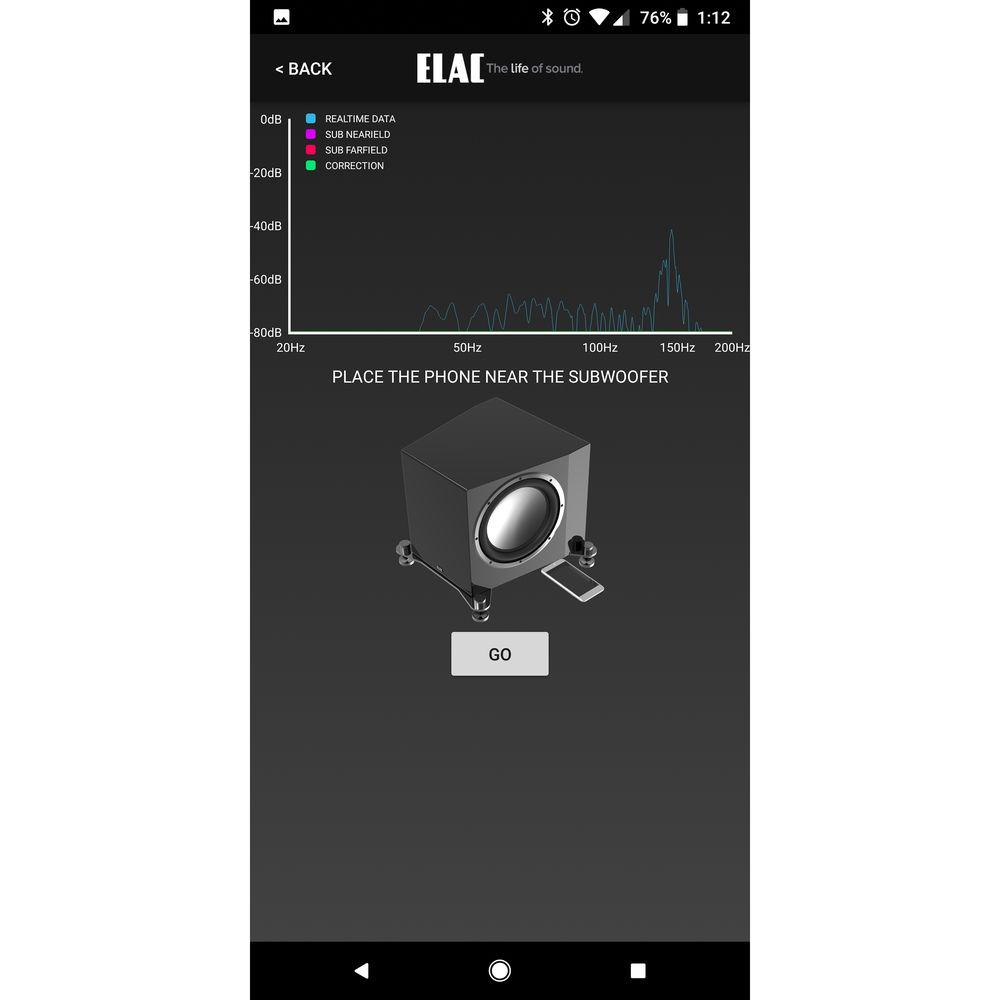

- Using the SubEQ app and your smartphone's microphone, the subwoofer will automatically adjust its EQ to your room's characteristics using eight parametric curves. Full manual EQ adjustments are available as well.
- 10" Driver with 10" Passive Bass Radiator
- The 10" long-throw driver is designed to produce the quality and quantity of bass needed to accurately reproduce demanding movie soundtracks and music. The 10" passive radiator is engineered to improve transient response and increase the efficiency of the system.
- BASH Amplifier
- The BASH amplifier is designed to track the input signal and adjust the available supply voltage to a traditional Class AB amplifier, helping to make the amplifier more efficient and provide the on-demand power needed for dynamic movies and music.
- Braced MDF Cabinet

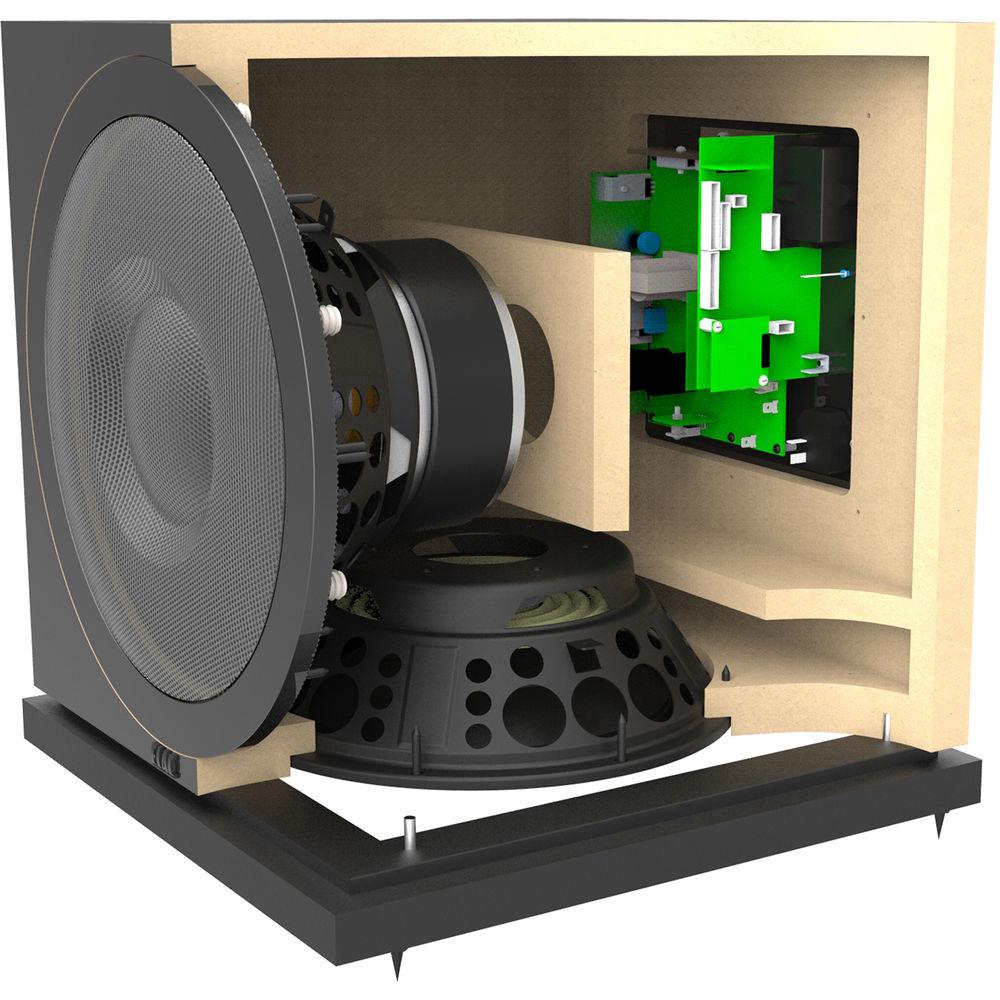

- The horizontal center brace is engineered to strengthen and stiffen the cabinet, helping to minimize unwanted vibrations that can discolor music or movie content.
- Auto Power On/Off

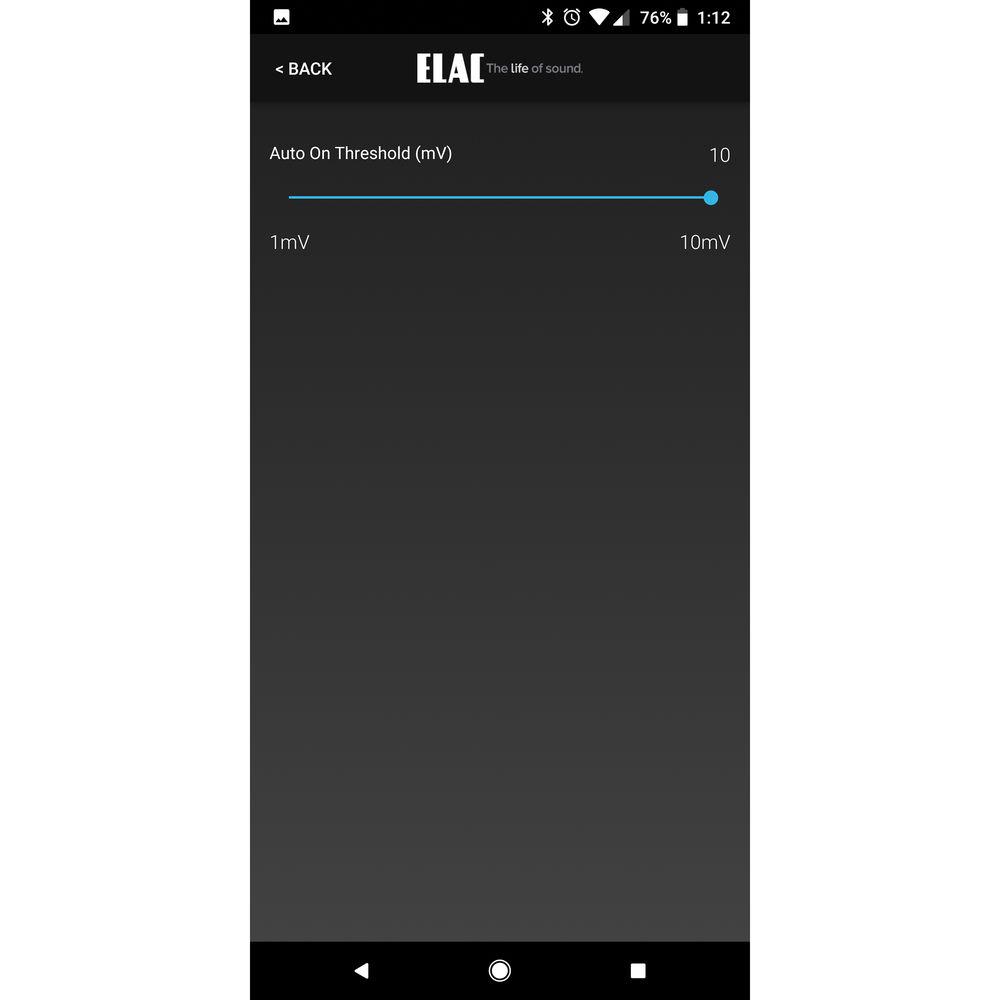

- The subwoofer will detect when an audio signal is being sent to the amplifier and power on. Also, to conserve energy, the subwoofer will power off after a long period of inactivity.
UPC: 858552007189 In the Box ELAC Debut 2.0 SUB3010 10" 400W Subwoofer AC Power Cable Limited 3-Year Warranty on Cabinet and Driver Limited 1-Year Warranty on Amplifier Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC Debut 2.0 SUB3010 10" 400W Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersELAC SUB3010 Specs | Driver | 10" / 25.4 cm high-excursion doped paper cone woofer | | Radiator | 10" / 25.4 cm high-excursion doped paper cone passive radiator | | Amplifier Type | BASH-Tracking | | Power Output | RMS: Up to 200 W

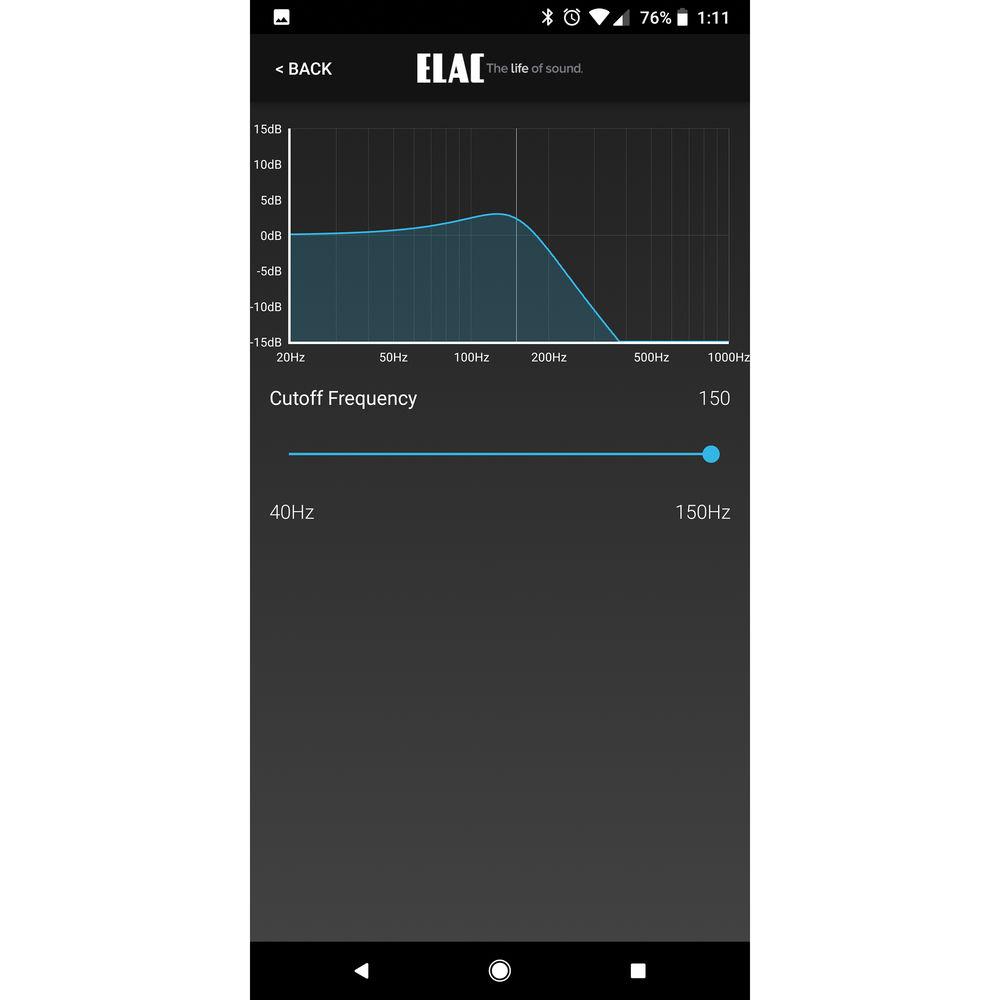

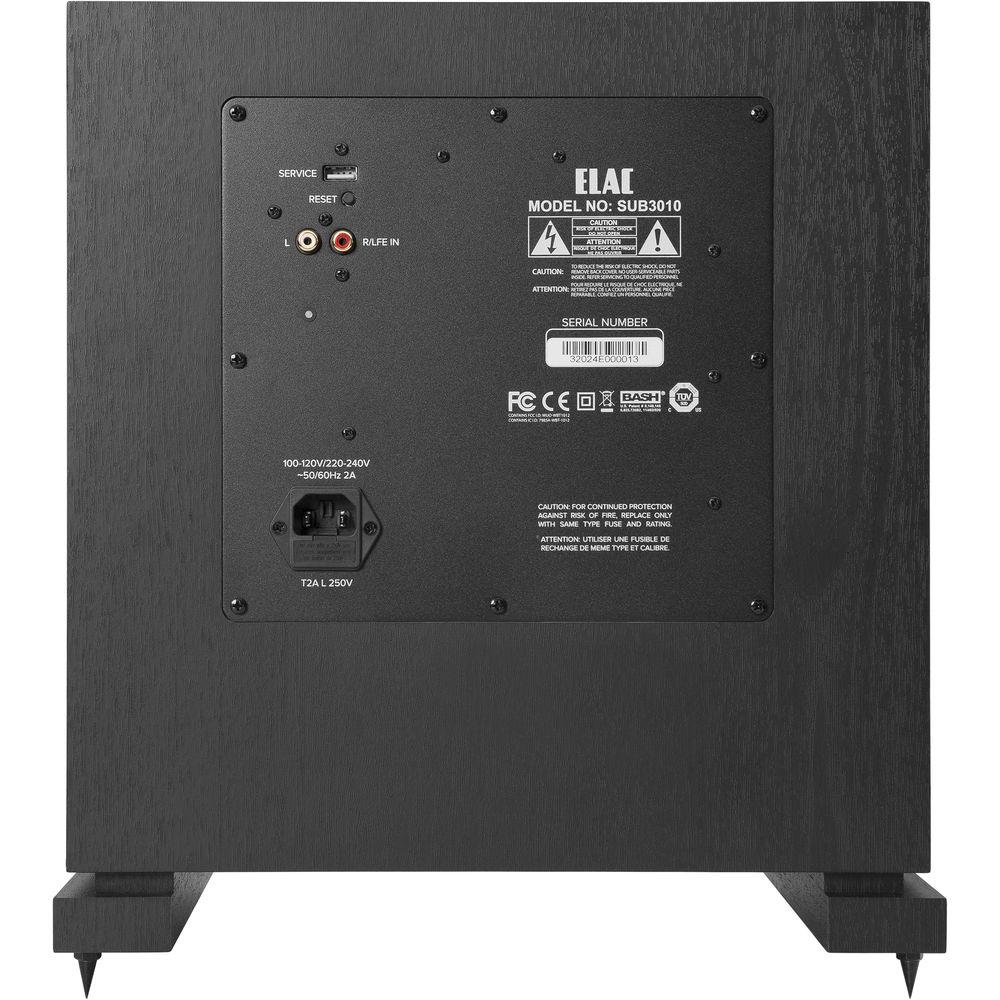

Peak: Up to 400 W | | Frequency Response | 28 to 150 Hz | | Crossover Frequency | 50 to 150 Hz, continuously adjustable | | Input | 2 x RCA (L,R/LFE)
1 x USB Type-A (firmware updates) | | Enclosure Material | CARB2-rated MDF | | Finish | Black ash vinyl | | Power Requirements | 100 to 240 VAC, 50/60 Hz, 2 A | | Standby Power Consumption | ≤1 W | | Dimensions (W x H x D) | 14.3 x 13.5 x 13.5" / 364 x 343 x 343 mm | | Weight | 32.1 lb / 14.6 kg | | | | Package Weight | 37.8 lb | | Box Dimensions (LxWxH) | 19.1 x 17.8 x 17.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
