User Manual for ELAC Debut 2.0 SUB3030 12" 1000W Subwoofer Click to enlarge the picture
Contents of the user manual for the ELAC Debut 2.0 SUB3030 12" 1000W
- Product category: Subwoofers ELAC
- Brand: ELAC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ELAC Subwoofers
 |
User manual for the ELAC Debut 2.0 SUB3030 12" 1000W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ELAC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ELAC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ELAC product will considerably shorten its lifespan!
|

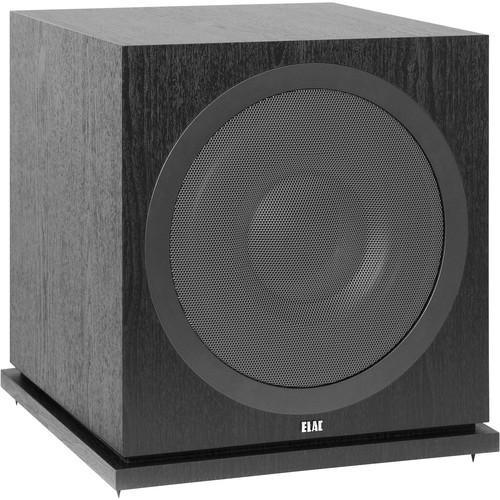

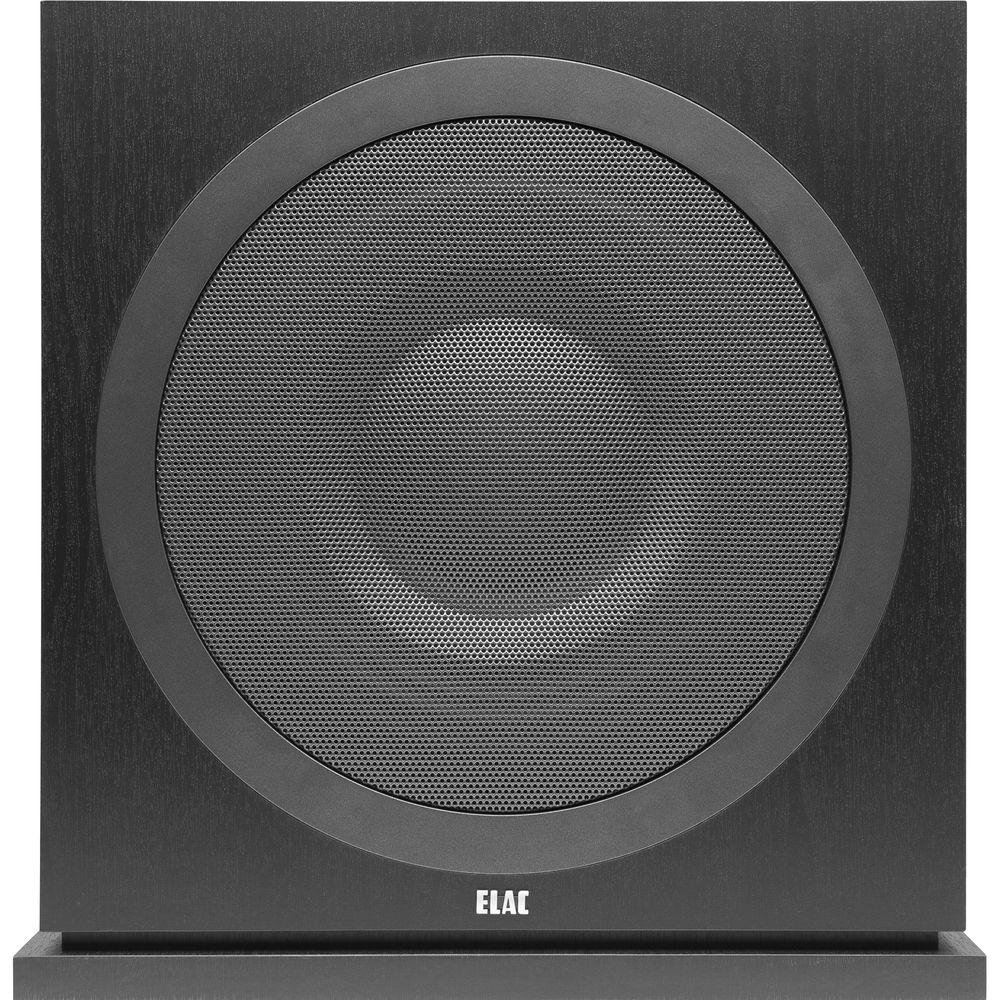

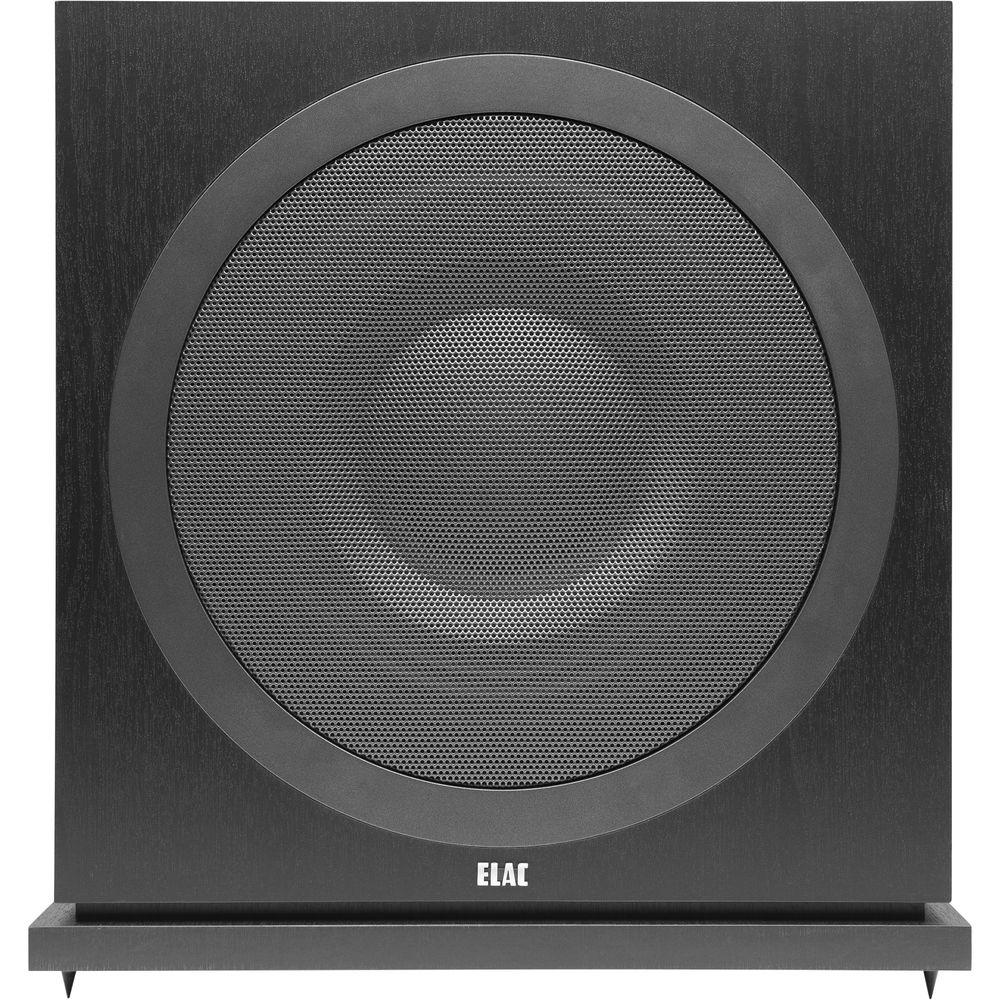

Product description Add enhanced bass to your movies and music with the ELAC Debut 2.0 SUB3030 12" 1000W Subwoofer. This subwoofer features a 12" high-excursion doped paper woofer with a 12" downward-facing passive radiator and delivers up to 500W of RMS power, or up to 1000W of peak power. With a frequency response of 25 to 150 Hz, the SUB3030 is equipped to handle a variety of listening material. Note: A smart device running Android or iOS with Bluetooth 4.0 LE is required to setup and operate the SUB3030. - BASH (Bridged Amplifier Switching Hybrid) Amplifier
- The BASH amplifier uses a Class D amplifier with power supply modulation to track the input signal, supplying only the necessary voltage to the Class AB amplifier as needed.
- Bluetooth Control
- Doing away with traditional analog controls, the SUB3030 incorporates an all-digital control system. Download the ELAC SubEQ app for your compatible Android or iOS device (with Bluetooth 4.0 LE) and you'll have complete control of multiple subwoofers at the same time.
- Auto EQ
- With the SubEQ app and your smartphone's microphone, the subwoofer can optimize room EQ automatically using eight parametric curves; full manual EQ is available as well.
- Long-Throw Driver
- The 12" long-throw driver is designed to accurately reproduce the quality and quantity and bass for both movie soundtracks and music. A 12" passive radiator helps enhance transient response and increase system efficiency.
- Braced MDF Cabinet
- The horizontal center brace is designed to strengthen and stiffen the cabinet, helping to minimize unwanted vibrations that can discolor music or movie content. It also helps to reproduce low frequencies precisely, without overhang or distortion.
- Auto Power On/Off
- The subwoofer will detect when an audio signal is being sent to the amplifier and will power on. Also, to conserve energy, the subwoofer will power off after a long period of inactivity.
UPC: 858552007356 In the Box ELAC Debut 2.0 SUB3030 12" 1000W Subwoofer Floor Spikes AC Power Cable Limited 3-Year Warranty on Cabinet and Driver Limited 1-Year Warranty on Amplifier Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC Debut 2.0 SUB3030 12" 1000W Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

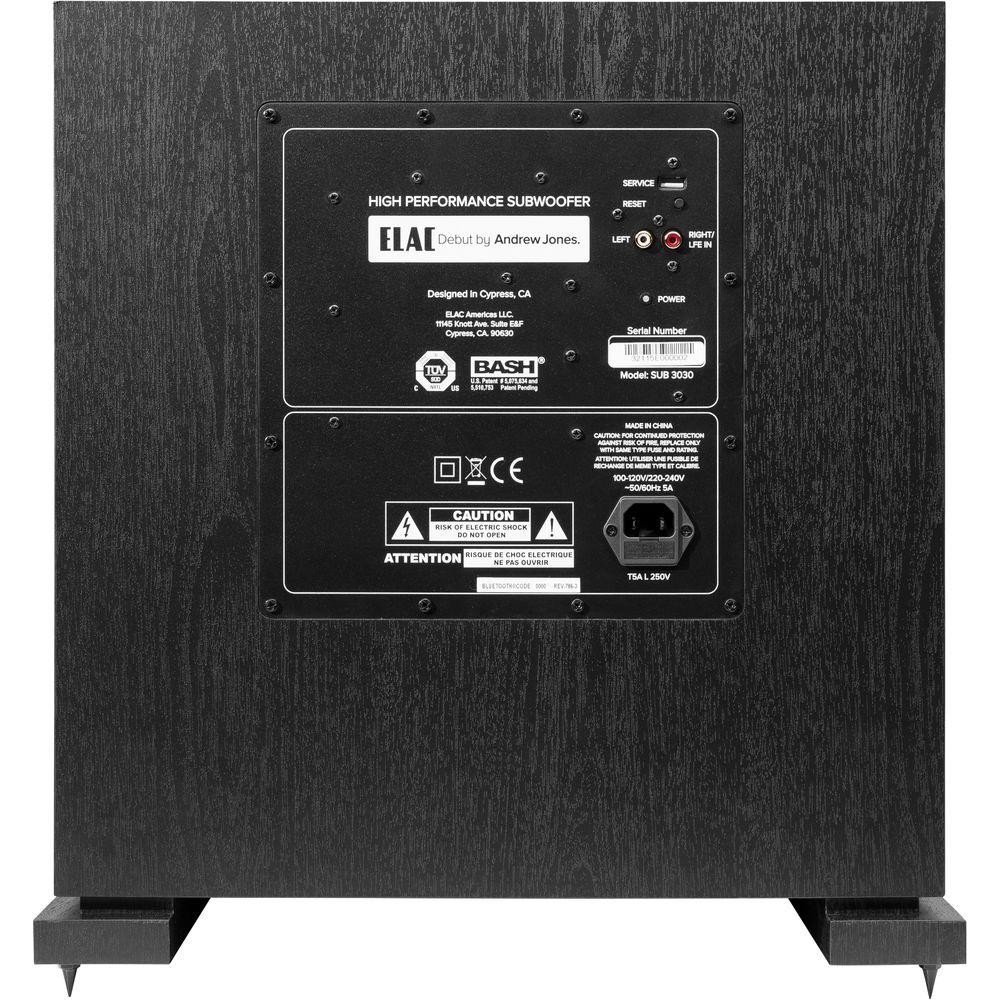

Technical parametersELAC SUB3030 Specs | Driver | 12" / 30.5 cm high-excursion doped paper cone woofer | | Radiator | 12" / 30.5 cm high-excursion doped paper cone | | Amplifier Type | BASH-Tracking | | Power Output | RMS: Up to 500 W
Peak: Up to 1000 W | | Frequency Response | 25 to 150 Hz | | Crossover Frequency | 50 to 150 Hz | | Bluetooth | Yes, for setup and control | | Input | 1 x stereo RCA LFE | | Other Connections | 1 x USB Type-A (firmware updates) | | Cabinet Construction | CARB2-rated MDF | | Finish | Black ash vinyl | | Power Requirements | 100 to 240 VAC, 50/60 Hz, 2 A | | Standby Power Consumption | ≤1 W | | Dimensions (W x H x D) | 18.19 x 17 x 17" / 46.19 x 43.18 x 43.18 cm | | Weight | 50.16 lb / 22.75 kg | | | | Package Weight | 58.12 lb | | Box Dimensions (LxWxH) | 23.0 x 22.0 x 22.0" |
