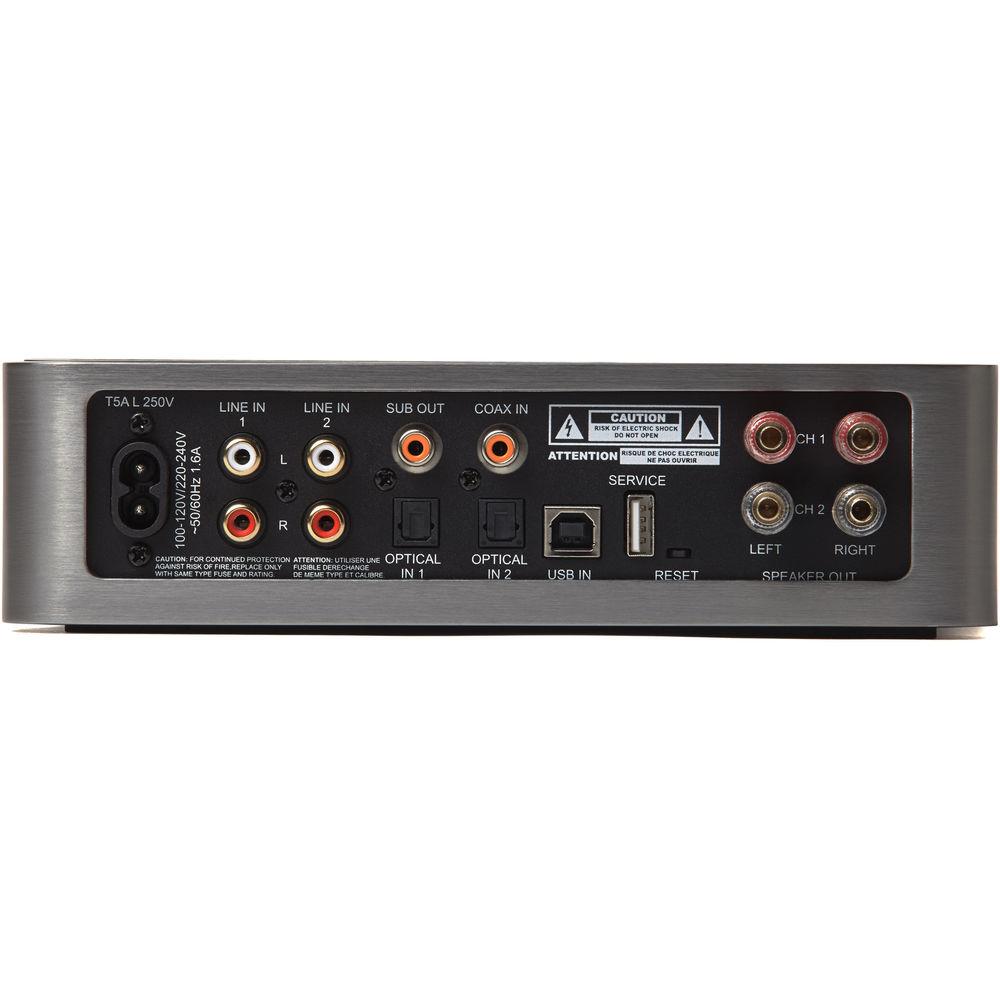

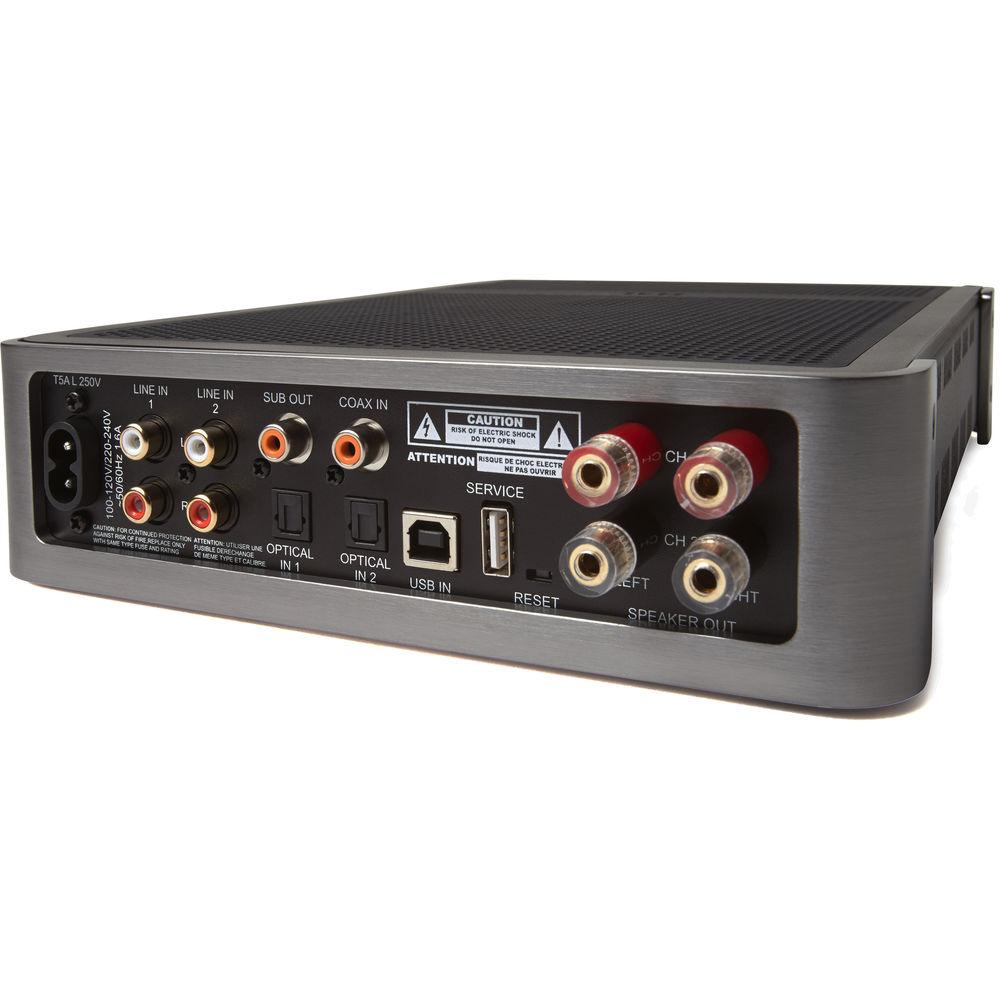

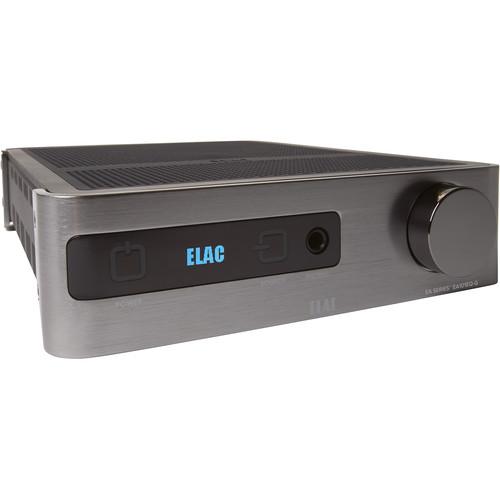

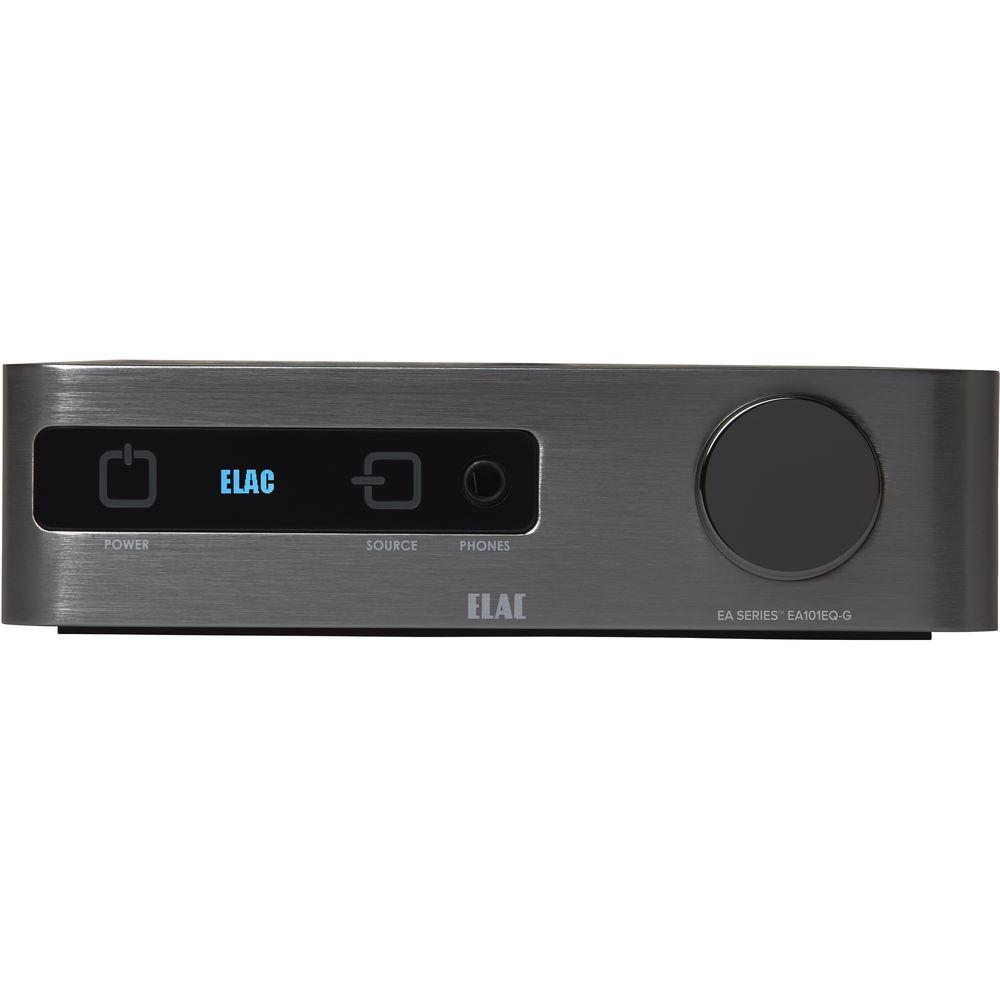

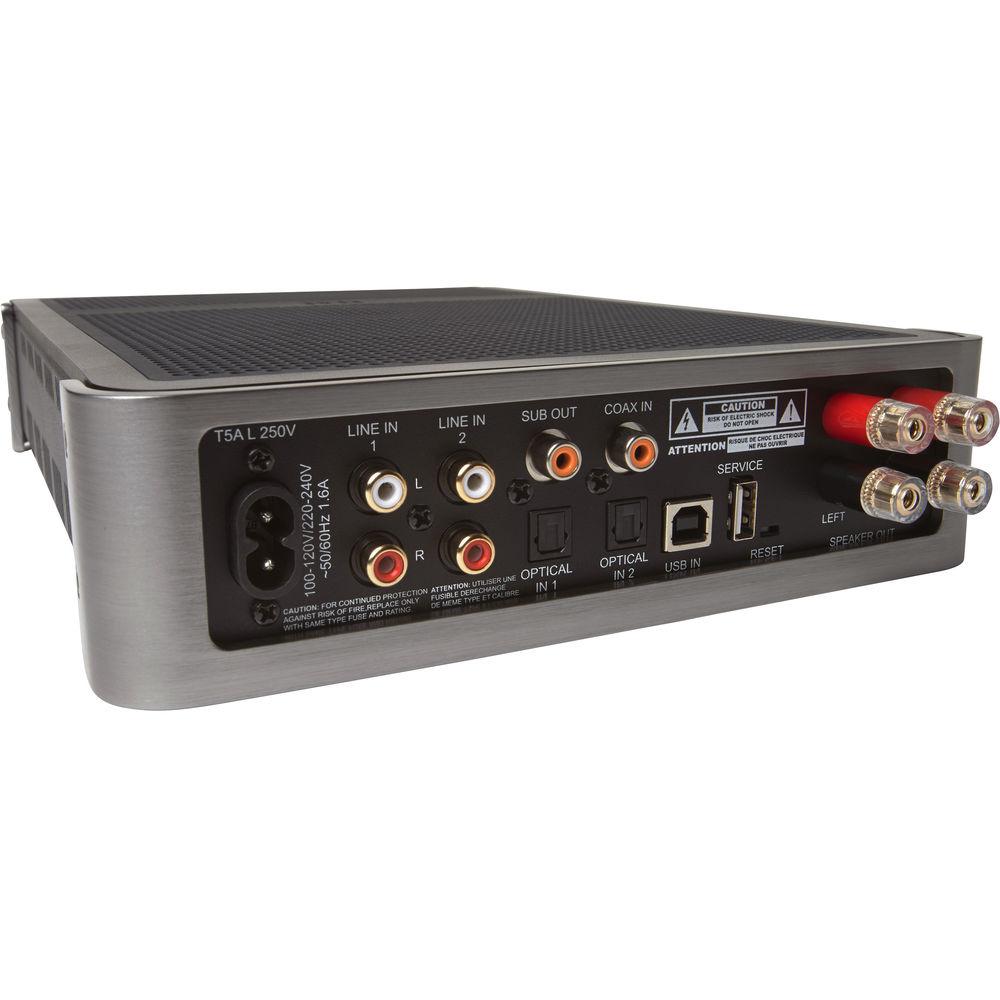

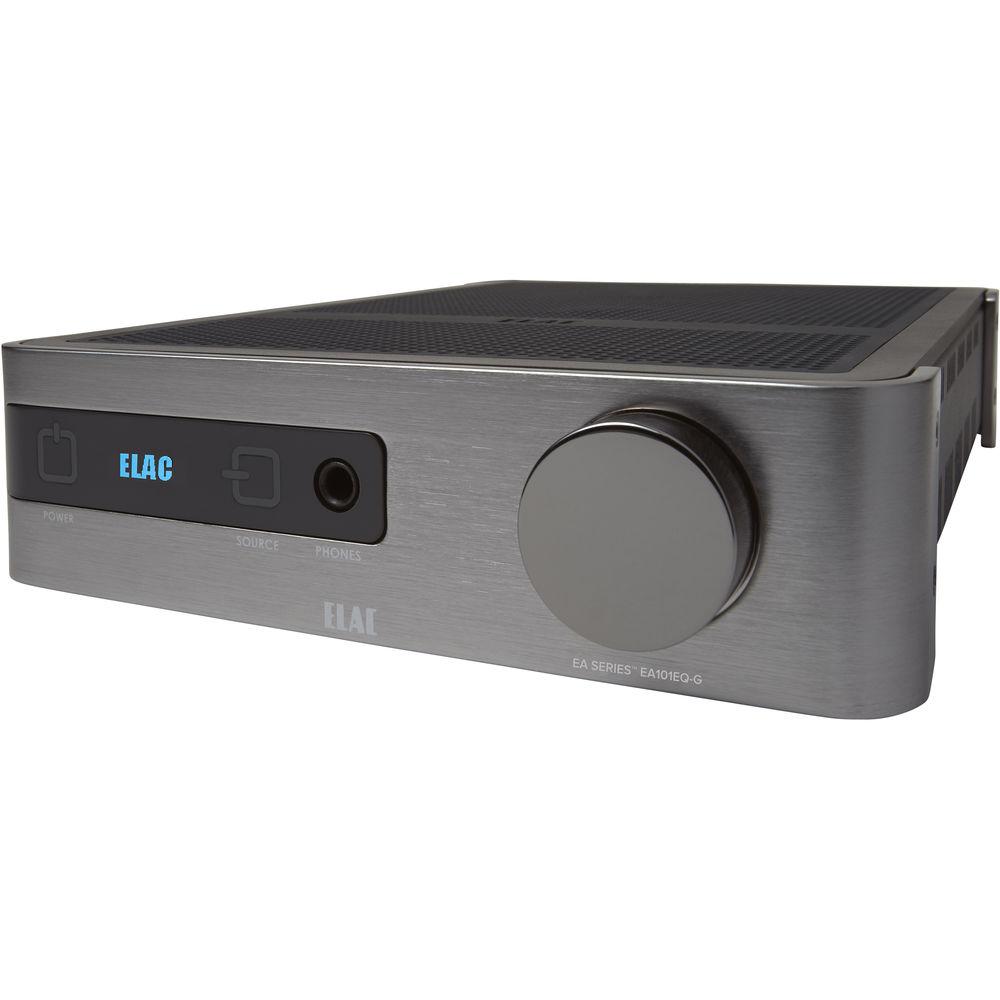

Product description Enjoy enhanced stereo sound with Dolby Digital decoding with the ELAC EA-Series EA101EQ-G Stereo 80W Home Theater Integrated Amplifier. It outputs up to 40W per channel at 8 Ohms and has a digital coaxial, USB Type-B, two optical, and two stereo RCA inputs. The amplifier also features a front-panel 1/4" headphone jack and is controllable either via the included IR remote control, your own IR remote control, or a free app for iOS and Android devices running Bluetooth 4.0 or higher. Note: A Bluetooth 4.0-equipped Android or iOS device is required for app functionality. - BASH Amplification
- The BASH Tracking Amplifier uses a modulated switched mode power supply allied to a conventional Class AB amplifier. Switching at more than 400,000 times per second, the supply tracks the incoming audio signal to ensure that the Class AB amplifier gets only the voltage necessary (with some headroom) to cope with modern dynamic movie and music content, in order to maximize the efficiency and potential of the amplifier.
- App-Control Flexibility
- The free app, available for both iOS and Android, allows you to fully control and set up your system.
- ABC (Auto Blend & Calibrate) Technology
- The companion app is designed to measure the near-field response of your main speakers and subwoofer, then pinpoint the subwoofer's optimal crossover frequency. Auto Blend is designed to help provide clean, articulate bass. Room Calibration is engineered to tailor your system for the flattest frequency response across the audio spectrum, optimized for your listening position and environment.
- Input Rename
- Rename each input to match your source. The revised name will appear in the app and on the amplifier's front panel display.
- Remote Learning
- Using the app, you can teach the amplifier to respond to your favorite IR remote control.
- Dolby Digital Decoding
- With built-in Dolby Digital decoding, the amplifier can sit at the heart of your entertainment system. Simply connect the audio output from your display to the amp.

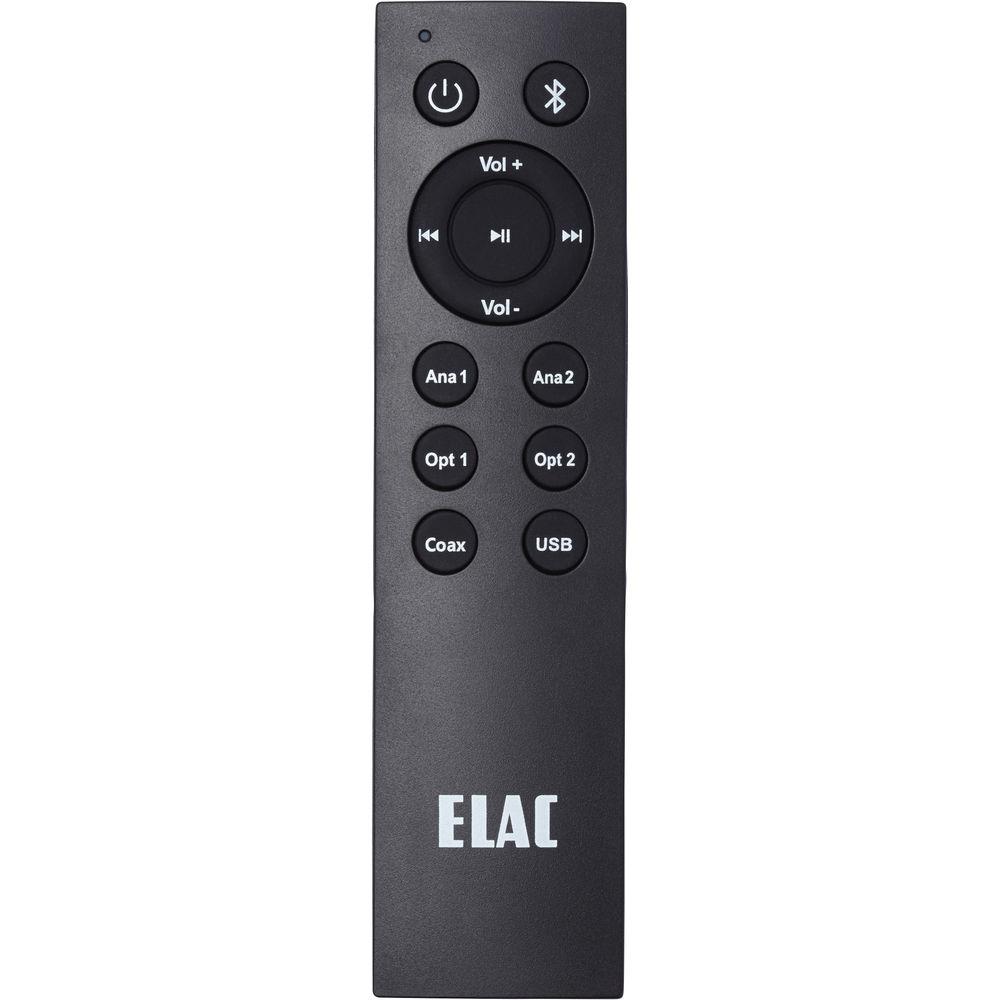

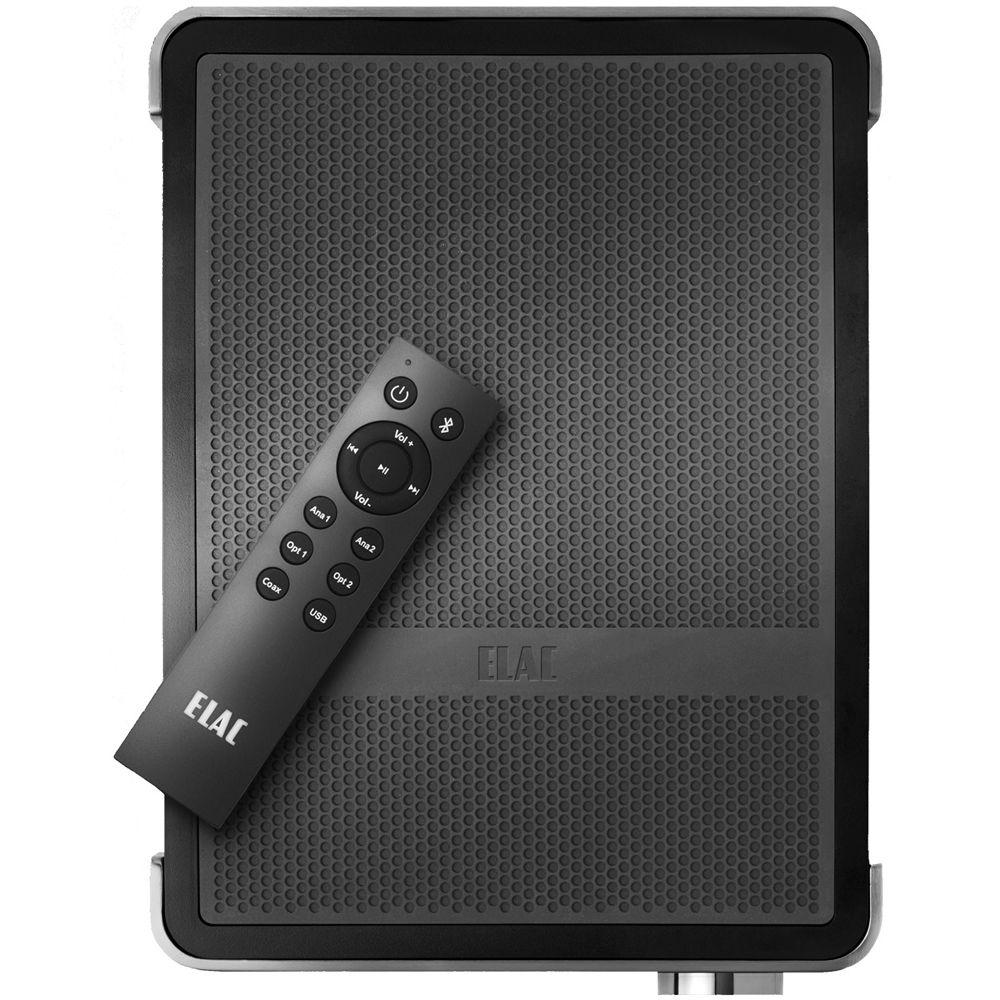

UPC: 853720006520 In the Box ELAC EA-Series EA101EQ-G Stereo 80W Home Theater Integrated Amplifier Remote Control 2 x AAA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC EA-Series EA101EQ-G Stereo 80W Home Theater Integrated Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersELAC EA101EQ-G Specs | | | Amplifier Type | BASH Digital Fidelity Tracking Amplifier | | Channels | 2 | | Continuous Power Output | 40 W per channel @ 8 Ohms, 1 kHz
80 W per channel @ 4 Ohms, 1 kHz
70 W per channel @ 2 Ohms, 1 kHz | | Signal-to-Noise Ratio | Full Power, Digital Input: 101 dB | | THD & Noise | 0.03% @ 8 Ohms, 40 W, 1 kHz
0.07% @ 4 Ohms, 70 W, 1 kHz | | Frequency Response | Broadband: 20 Hz to 40 kHz ±1.8 dB | | | | Bluetooth | Yes, with aptX | | Inputs | 2 x stereo RCA
2 x optical TOSLINK
1 x digital coaxial (192 kHz, 24-bit)
1 x USB Type-B (192 kHz, 24-bit asynchronous) | | Output | 1 x 1/4" (6.3 mm) headphone (front, 100 mW @ 16 Ohms) | | Speaker Connectors | 2 x binding post pairs | | Subwoofer Output | 1 x RCA | | Other Connectors | 1 x USB Type-A (service) | | | | Display | OEL | | Power Requirements | 100 to 240 VAC, 50/60 Hz, 1.6 A | | Power Consumption | Power Off, 120 VAC: 0.86 W
Auto Off, 120 VAC: 5.45 W | | Dimensions (W x H x D) | 8.375 x 2.125 x 11.625" (21.27 x 5.4 x 29.53 cm) | | Weight | 5 lb (2.27 kg) | | | | Package Weight | 8.2 lb | | Box Dimensions (LxWxH) | 14.5 x 13.0 x 6.5" |
