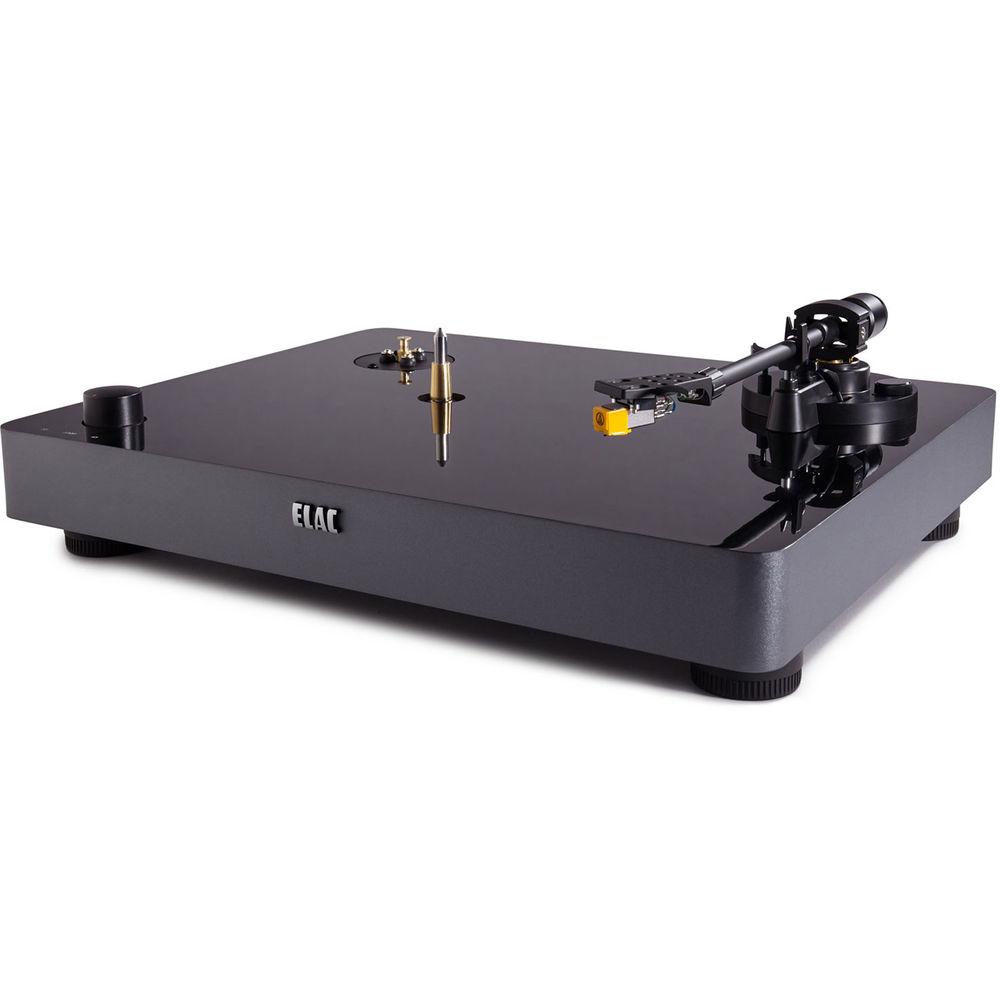

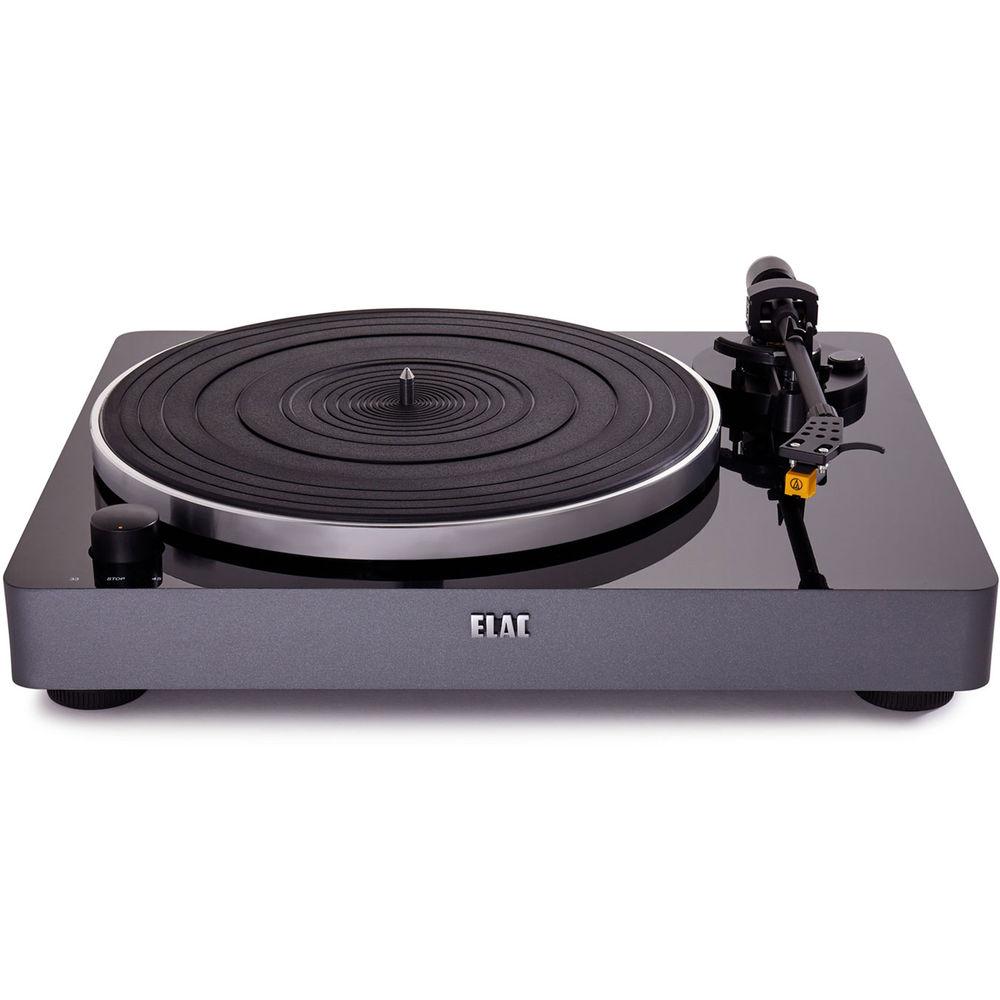

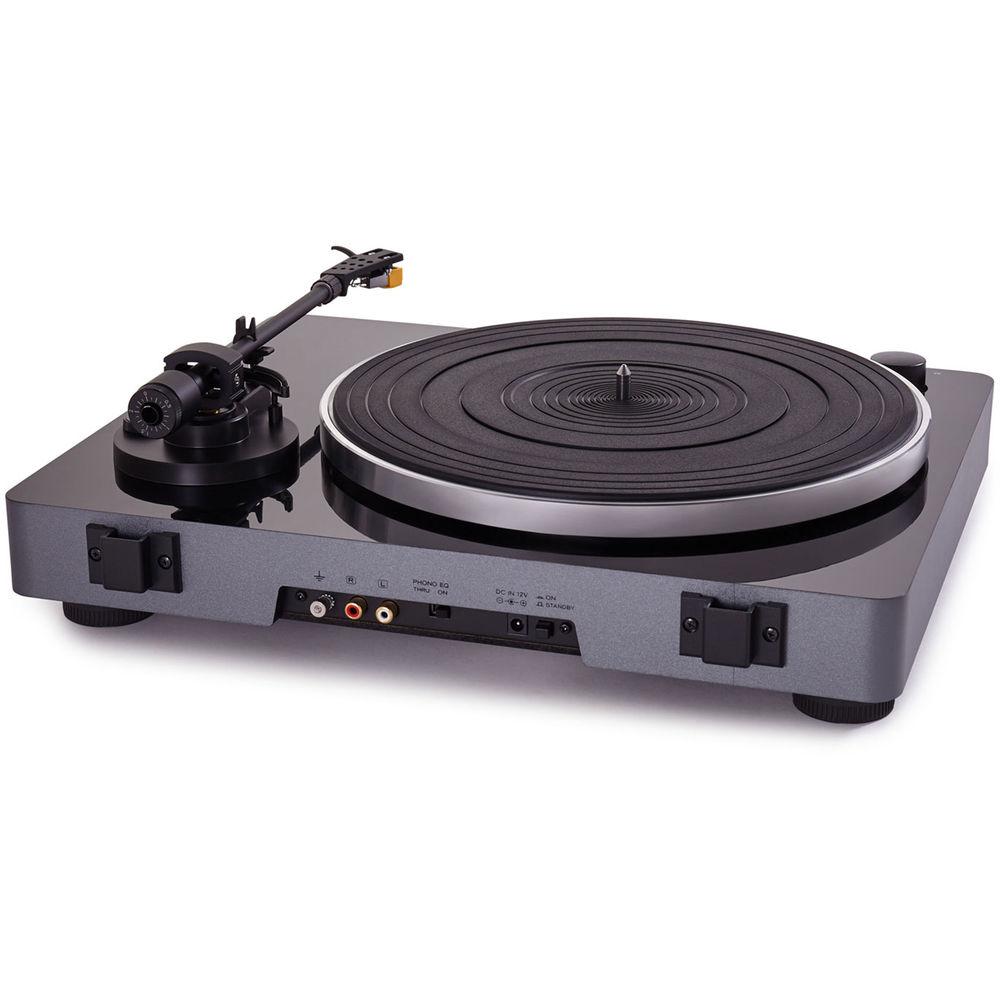

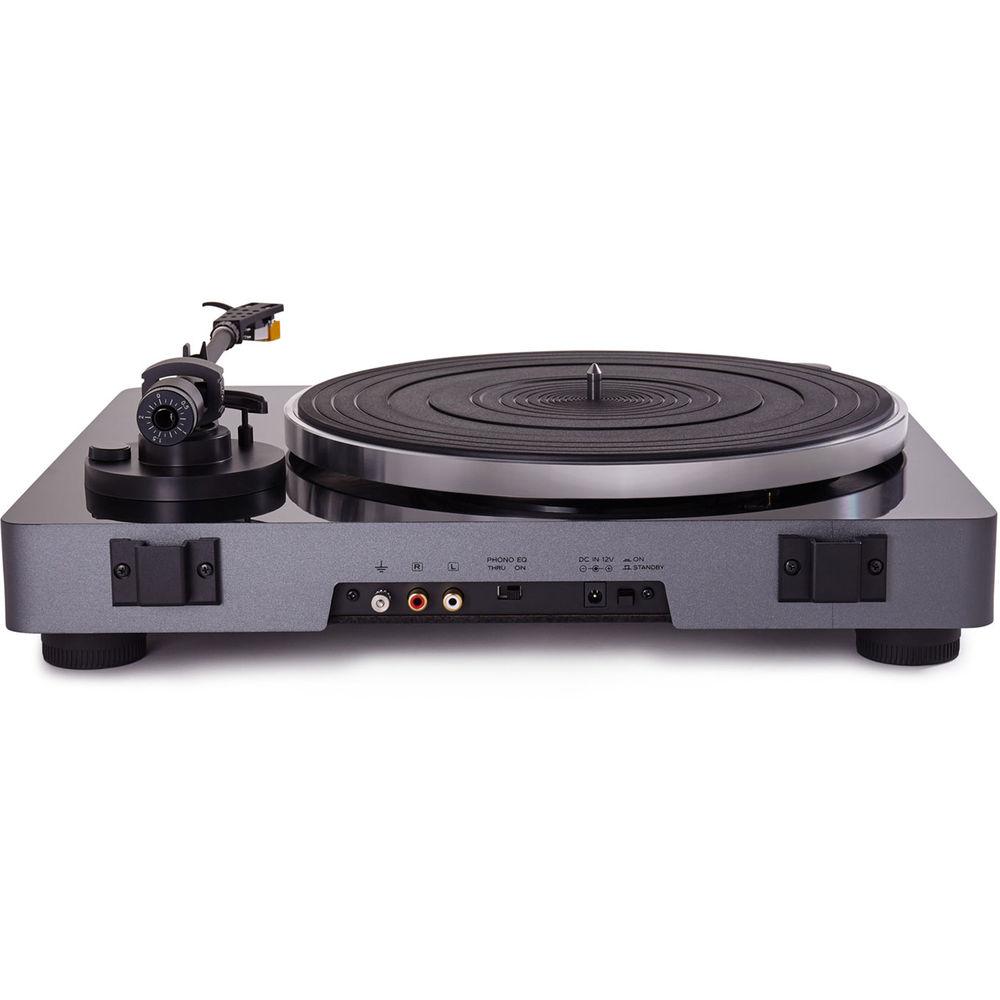

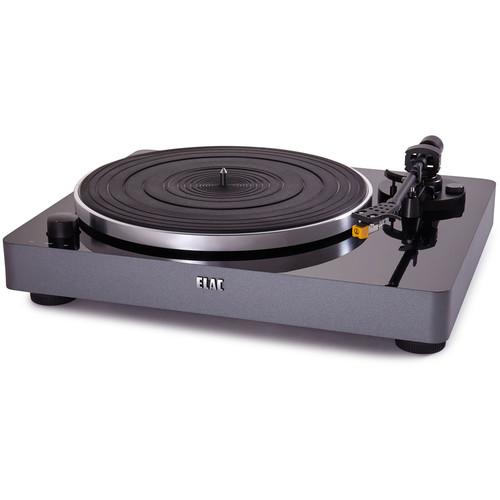

Product description The Miracord 50 Manual Turntable from ELAC features a built-in preamp and a pre-mounted Audio-Technica AT91 MM cartridge, so you can play your 33 1/3 and 45 rpm records out of the box with just a simple RCA connection to your existing audio system.
The Miracord 50 is a manual turntable, which means you place the needle onto the record by hand, giving you complete control of vinyl playback. The aluminum die-cast platter is spun via a belt-drive motor. The belt-drive motor, being isolated from the platter, helps to keep vibration through the tonearm at a minimum.

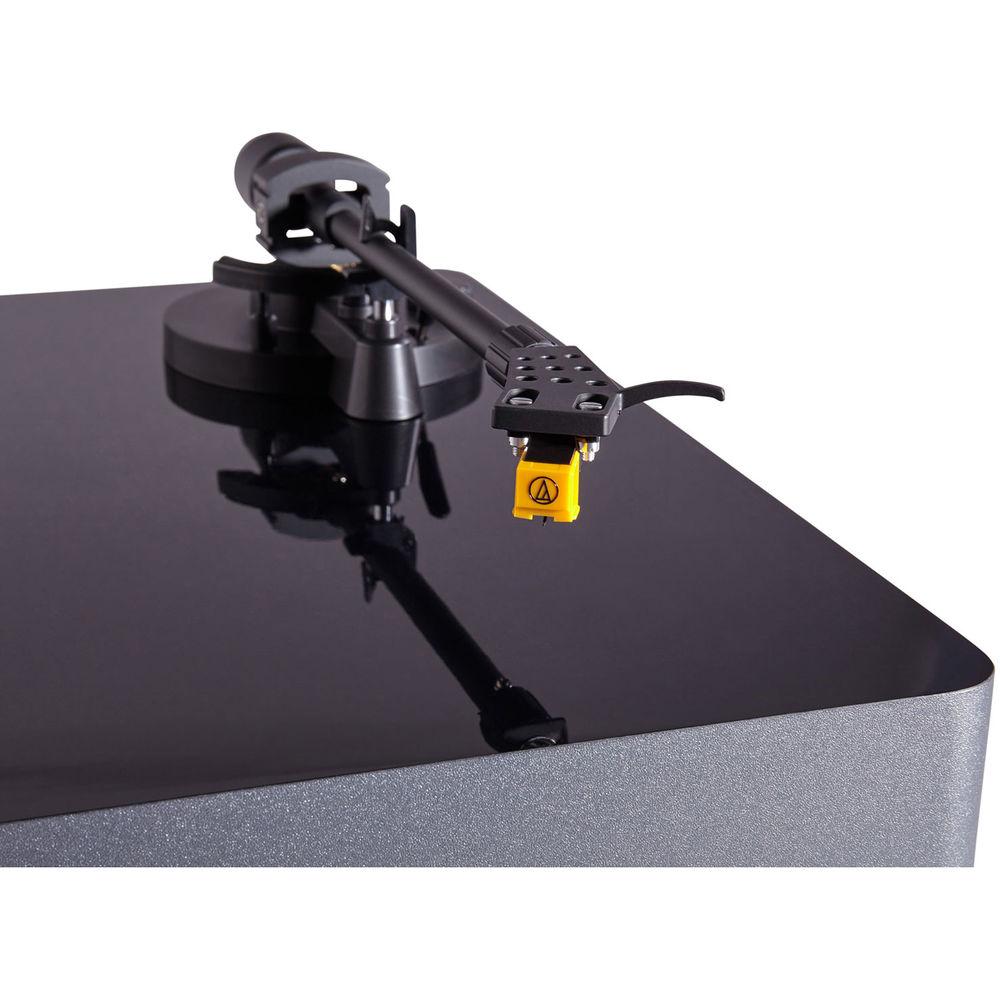

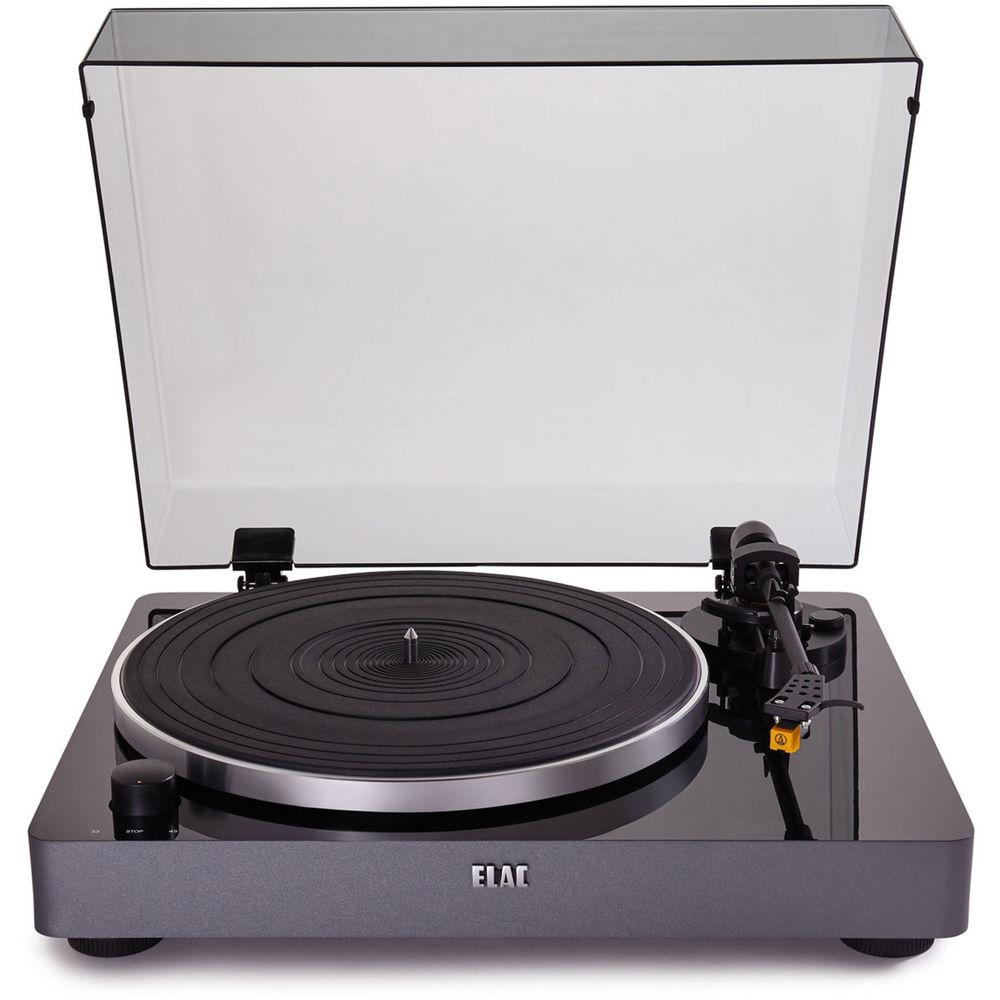

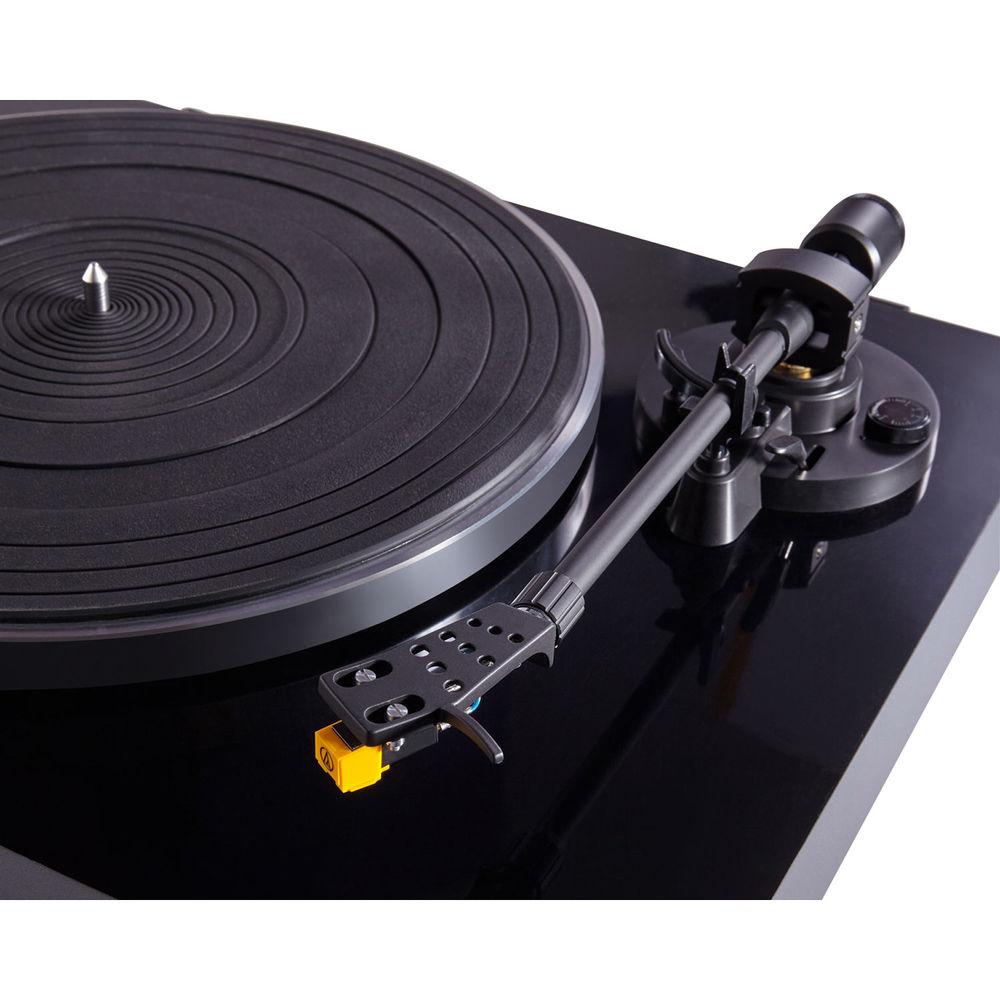

Speaking of tonearms, the Miracord 50 features an aluminum tube, static-balanced tonearm with anti-skate adjustment to help avoid skipping. At the end of the tonearm is an Audio-Technica AT91 moving magnet cartridge with a bonded diamond stylus. In order to keep the record player clean when not in use, ELAC has provided a removable dust cover. - Anti-Resonant Chassis
- ELAC has engineered the Miracord 50 to provide you with a stable, isolated chassis that is meant to minimize wow and flutter, and help prevent vibration and feedback from passing through the tonearm and affecting your music.
ELAC does this with a combination of technologies, such as the low-noise DC servo motor, the high-inertia aluminum platter, special rubber record mat, and rubber belt of the belt drive system. UPC: 858552007370 In the Box ELAC Miracord 50 Turntable Dust Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC Miracord 50 Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersELAC Miracord 50 Specs | | | Drive System | Belt drive | | Motor | DC motor | | Speeds | 33 1/3 and 45 | | Servo | Speed rotation and servo system | | Rotation Speed | Variation of ±1% | | Wow and Flutter | 0.1% | | Signal to Noise Rate | A-Weighted: -67 dB or higher
Unweighted: -60 dB or higher | | Turntable Platter | Material: Aluminum die-cast
Diameter: 11.8" / 300 mm | | | | Type | Aluminum tube, static-balanced | | Effective Arm Length | 8.8" / 223.6 mm | | Stylus Pressure Adjustment | Range: 0 to 4 g | | Cartridge Weight | Range: 3.5 to 6 g | | Overhang | 18.6 mm | | Offset Angle | 25° | | Bearing | Stainless steel | | | | Type | Audio-Technica AT91 moving magnet | | Stylus | Bonded diamond | | Mount | Half-inch | | Frequency Response | 20 Hz to 20 kHz | | Channel Separation | >18 dB | | Channel Balance | 2.5 dB | | Vertical Tracking Angle | 20° | | Stylus Pressure Adjustment | 2 g ± 0.5 g | | Cartridge Weight | 5 g ± 0.5 g | | Headshell | Weight: 11 g (including screws, nuts, and wires) | | | | Type | Moving Magnet (MM) | | Phono Output Level | 2.5 mV (1 kHz, 3.54 cm/s) | | Line Output | 140 mV (-17 dBV) | | Switch | Phono and Line | | Load Impedance | 47 kOhms | | | | Connector | RCA | | Voltage | 100 to 240 VAC / 50 to 60 Hz | | Power Consumption | 1.5 W (less than 0.5 W at standby) | | Dimensions (W × H × D) | 5.5 x 16.1 x 14.2" / 14.0 x 40.8 x 36.1 cm | | Weight | 12.1 lb / 5.5 kg | | | | Package Weight | 17.8 lb | | Box Dimensions (LxWxH) | 19.9 x 16.8 x 8.6" |
