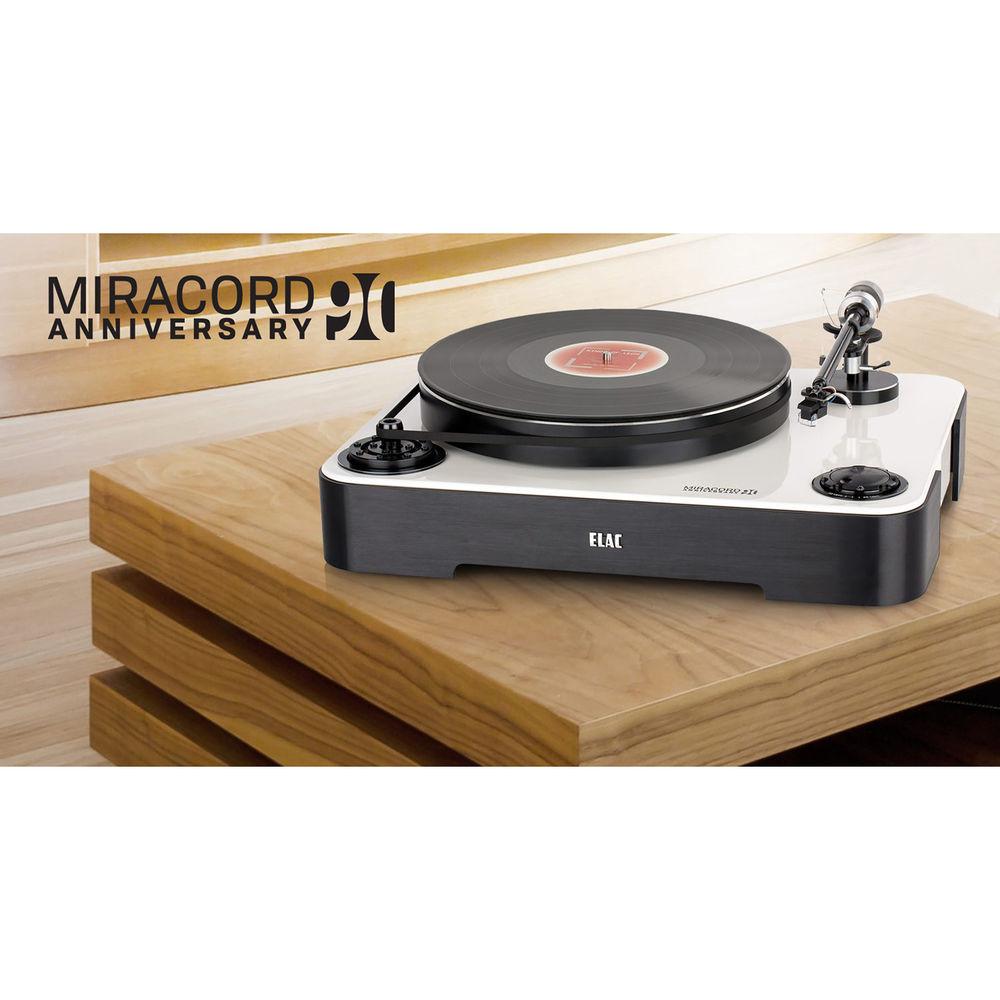

User Manual for ELAC Miracord 90th Anniversary Manual Turntable Click to enlarge the picture
Contents of the user manual for the ELAC Miracord 90th Anniversary Manual Turntable
- Product category: Turntables ELAC
- Brand: ELAC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ELAC Turntables
 |
User manual for the ELAC Miracord 90th Anniversary Manual Turntable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ELAC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ELAC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ELAC product will considerably shorten its lifespan!
|

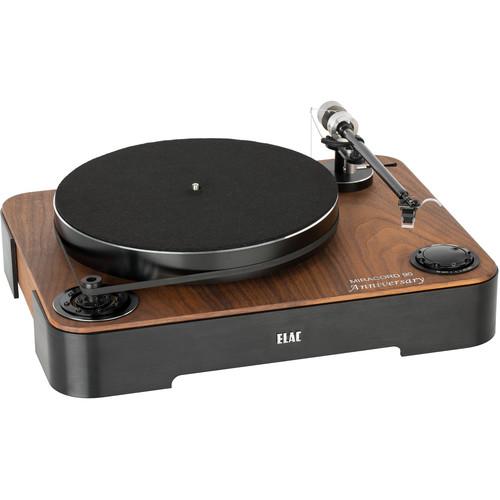

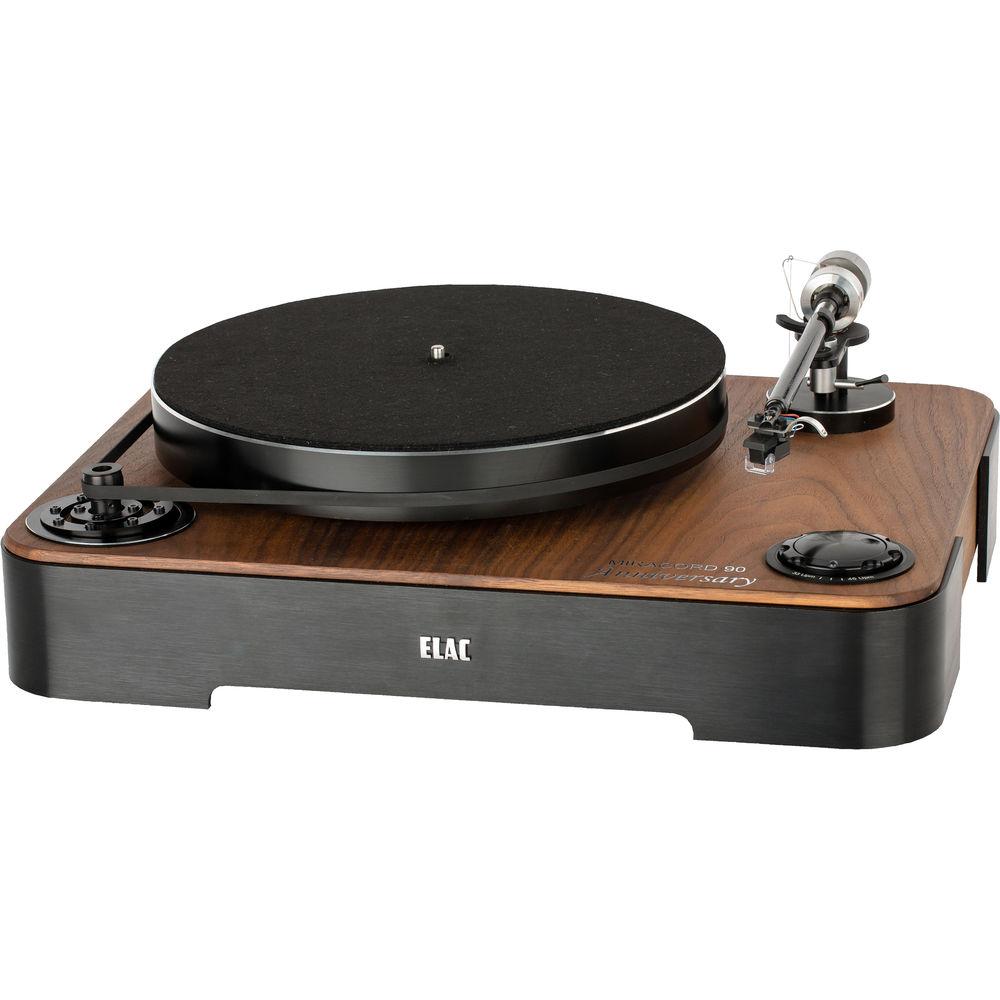

Product description The Miracord 90th Anniversary Manual Turntable from ELAC is engineered to produce clean and smooth hi-fi audio from your vinyl collection. In order to prevent unwanted vibrations and sound from reaching the cartridge, ELAC incorporates heavyweight materials and a design that isolates major components from one another. The tonearm's lightweight carbon fiber design and counterweight help to keep the tracking force low, while an anti-skate feature works to prevent skipping. A built-in dial provides manual adjustment to support both 33 and 45 rpm records, and audio is output via two gold-plated Neutrik RCA connectors. - Heavyweight MDF Chassis
- The main chassis of the Miracord is made from 12 lb of MDF, which rests on specially designed silicone feet that are meant to provide separation from the turntable and the surface you place it on.

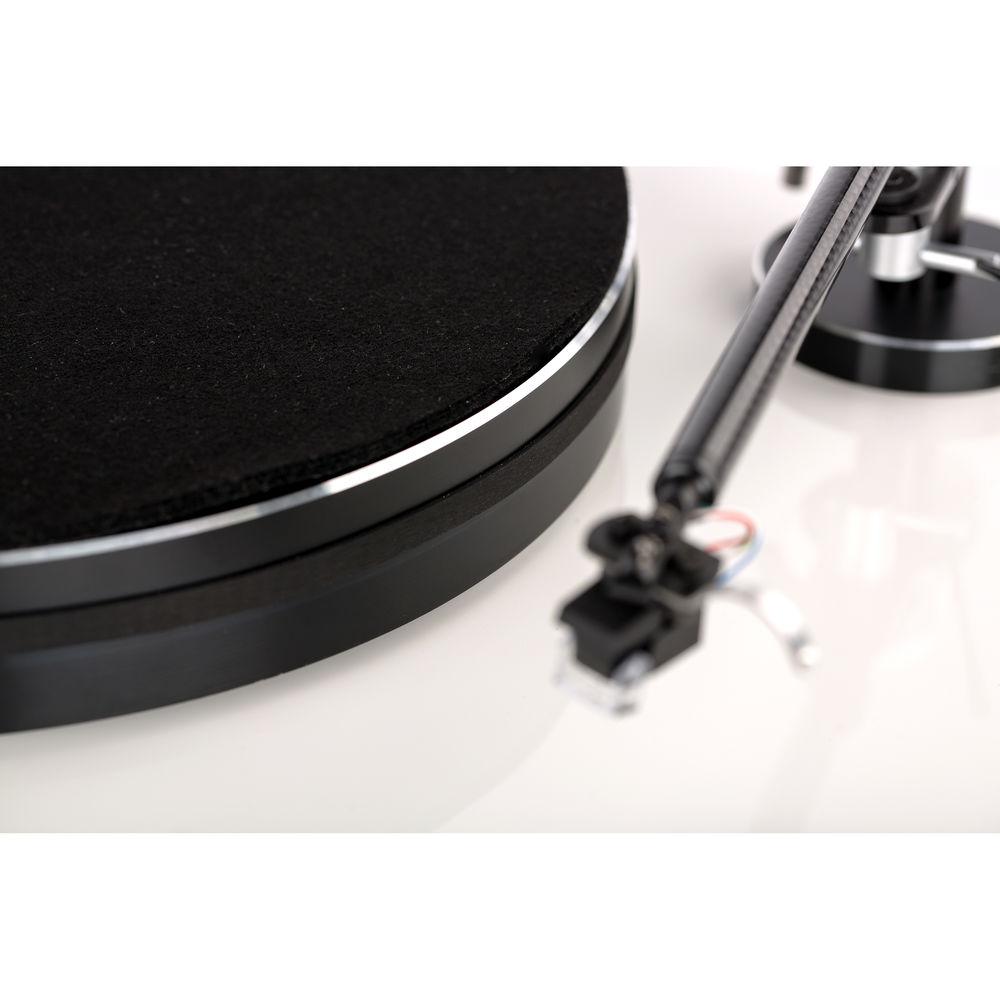

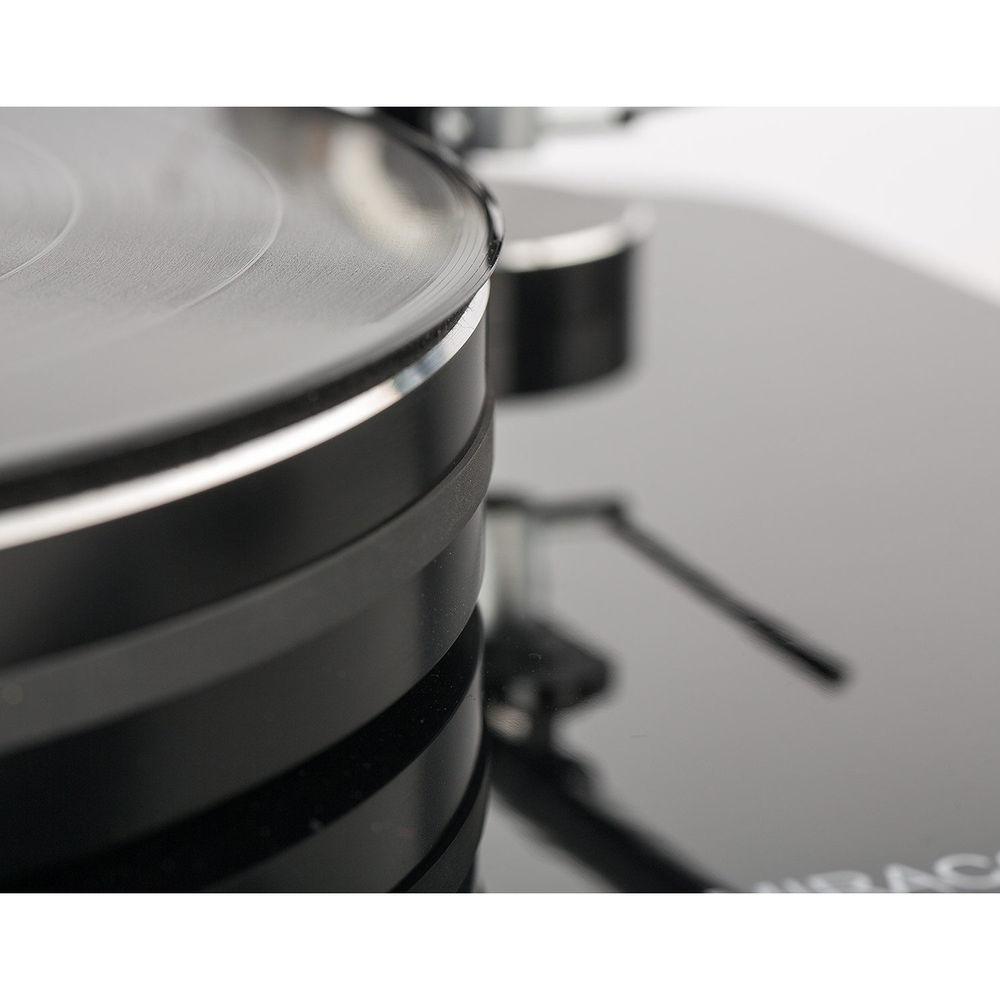

- Smooth Aluminum Platter
- The aluminum platter weighs almost 14 lb and sits on a sub-platter whose hardened steel axis rotates on an 8mm ruby ball for minimal friction. The axis is mounted using high-quality sintered bronze bearing bushings.
- Isolated Motor
- The motor is double-decoupled and is rubber dampened with suspension to isolate it from the chassis and tonearm, helping to prevent any unwanted noise from being output through your speakers.

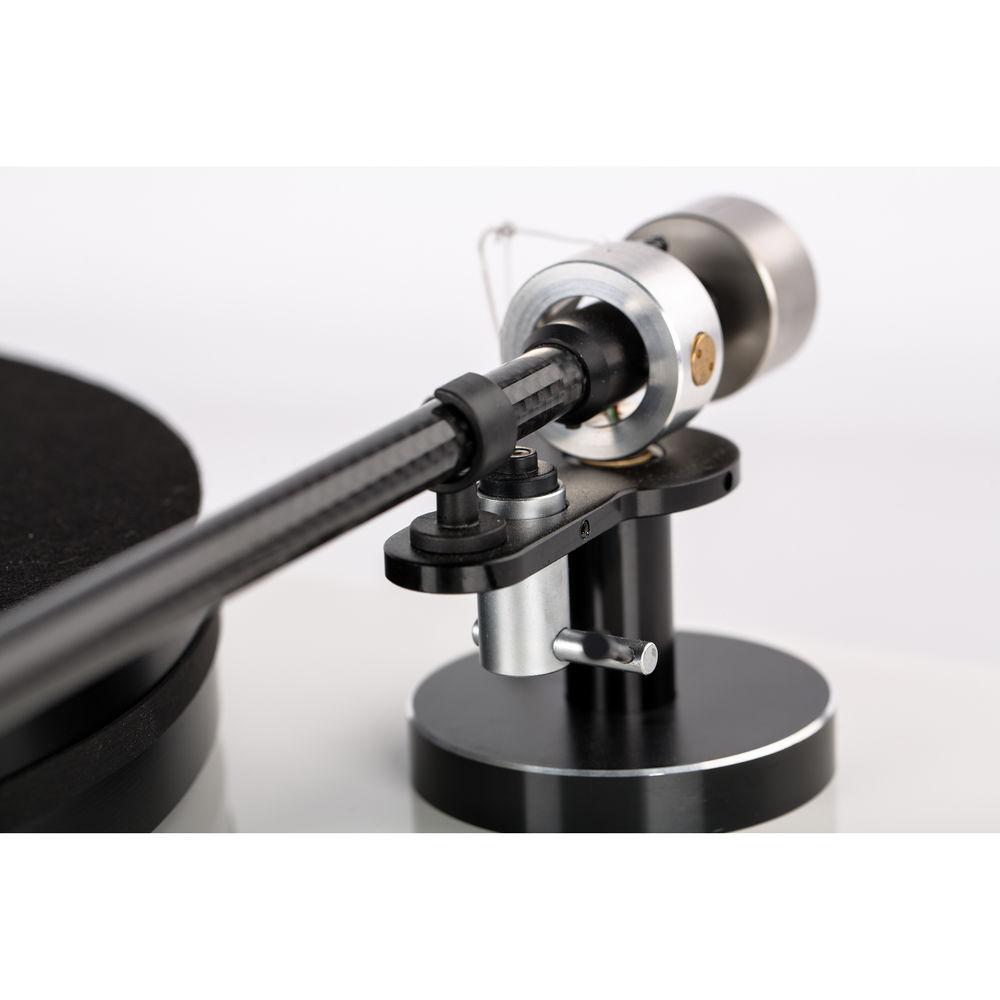

- Carbon-Fiber Tonearm
- With a lightweight carbon fiber construction, the tonearm produces minimal tracking force to help it operate smoothly with the drive mechanism.

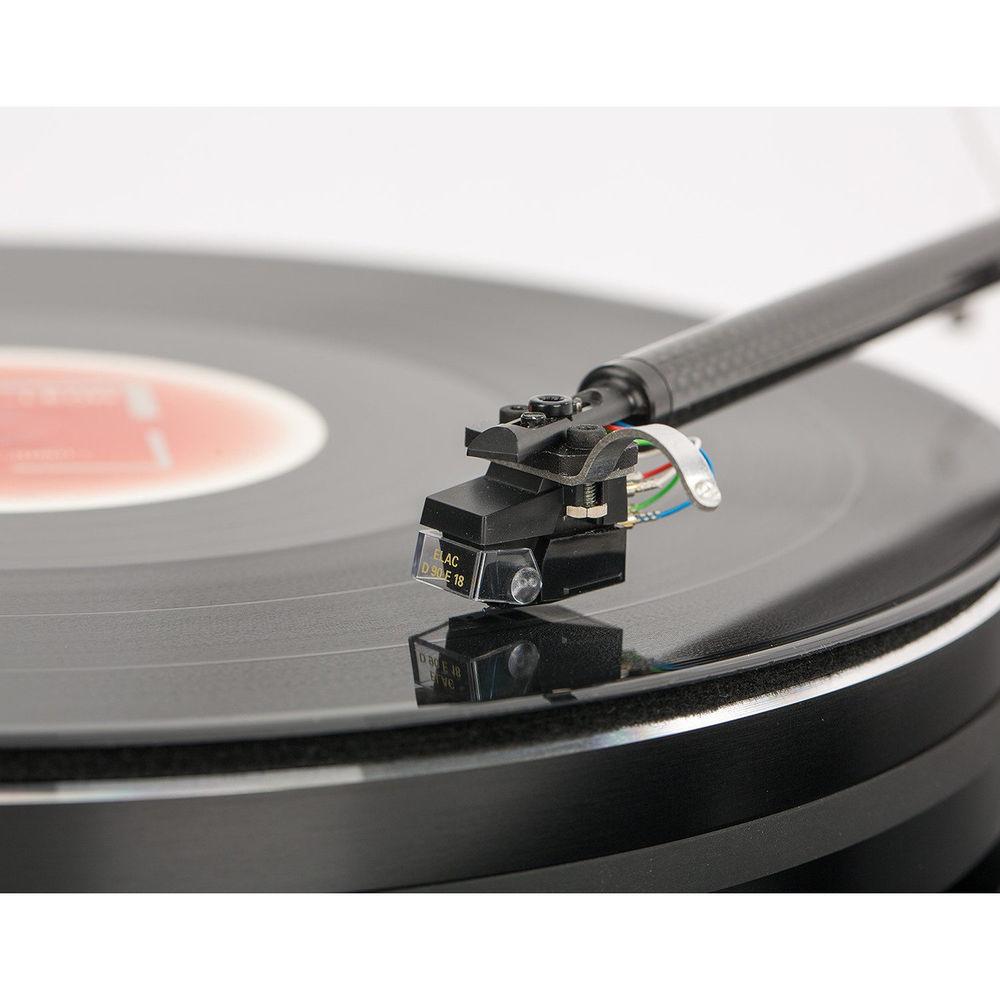

- High-Resolution Moving Magnet Cartridge
- Developed in cooperation with Audio-Technica, the cartridge features a MicroLine stylus and comes precision-mounted on the tonearm.
In the Box ELAC Miracord 90th Anniversary Manual Turntable (Black/Oiled Walnut) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC Miracord 90th Anniversary Manual Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersELAC Miracord 90th Anniversary Specs | | | Speeds | 33 and 45 rpm | | Cartridge | Custom moving magnet system | | Stylus | MicroLine | | Tone Arm | Carbon fiber | | Frequency Response | 20 Hz - 25 kHz | | Tracking Force | 14 +/-4 mN estimates 1.4 +/-0.4 g | | DC Resistance | 800 Ohms +/-20% | | Coil | 3.2 kOhms +/- 20% at 1 kHz | | Recommended Load | 47 kOhms | | Output Voltage | 2.2 - 4.9 mV | | Channel Separation | >25 dB | | Wow and Flutter | 0.05% / 0.05% (peak) | | Rumble Max | -68.0 dB (silent grove, DIN B wtd)

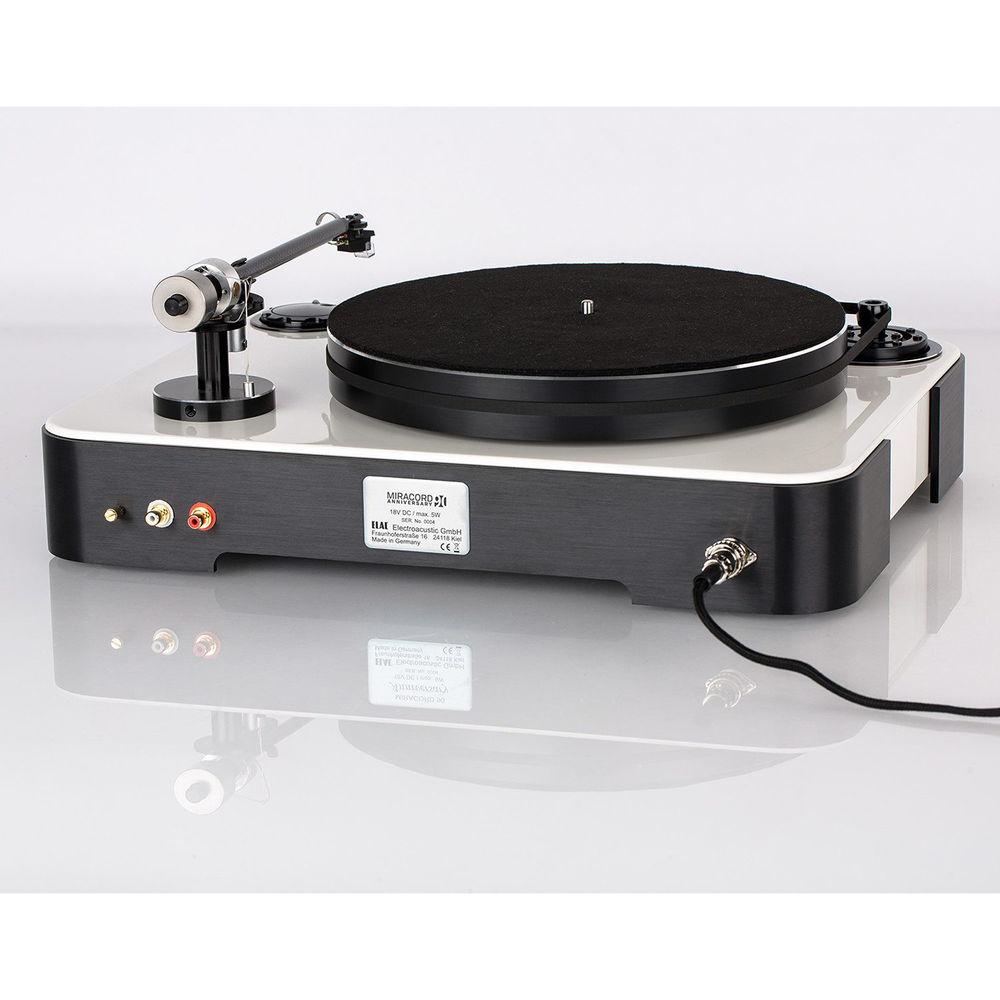

-68.5 dB (through bearing, DIN B wtd) | | Hum & Noise | -53.3 dB (unwtd. rel to 5 cm/sec) | | Pitch | +/-5% | | Connectors | 2 x gold-plated Neutrik RCA
1 x gold-plated ground connector | | | | Power Supply | 18 V, 18 W Lumberg connector | | Dimensions (WxHxD) | 18.5 x 6.7 x 14.2" / 47.0 x 17.0 x 36.1 cm | | Weight | 37.7 lb / 17.1 kg |
