User Manual for ELAC Uni-Fi BS U5 Slim 3-Way Bookshelf Speakers Click to enlarge the picture
Contents of the user manual for the ELAC Uni-Fi BS U5 Slim 3-Way
- Product category: Bookshelf Speakers ELAC
- Brand: ELAC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ELAC Bookshelf Speakers
 |
User manual for the ELAC Uni-Fi BS U5 Slim 3-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ELAC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ELAC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ELAC product will considerably shorten its lifespan!
|

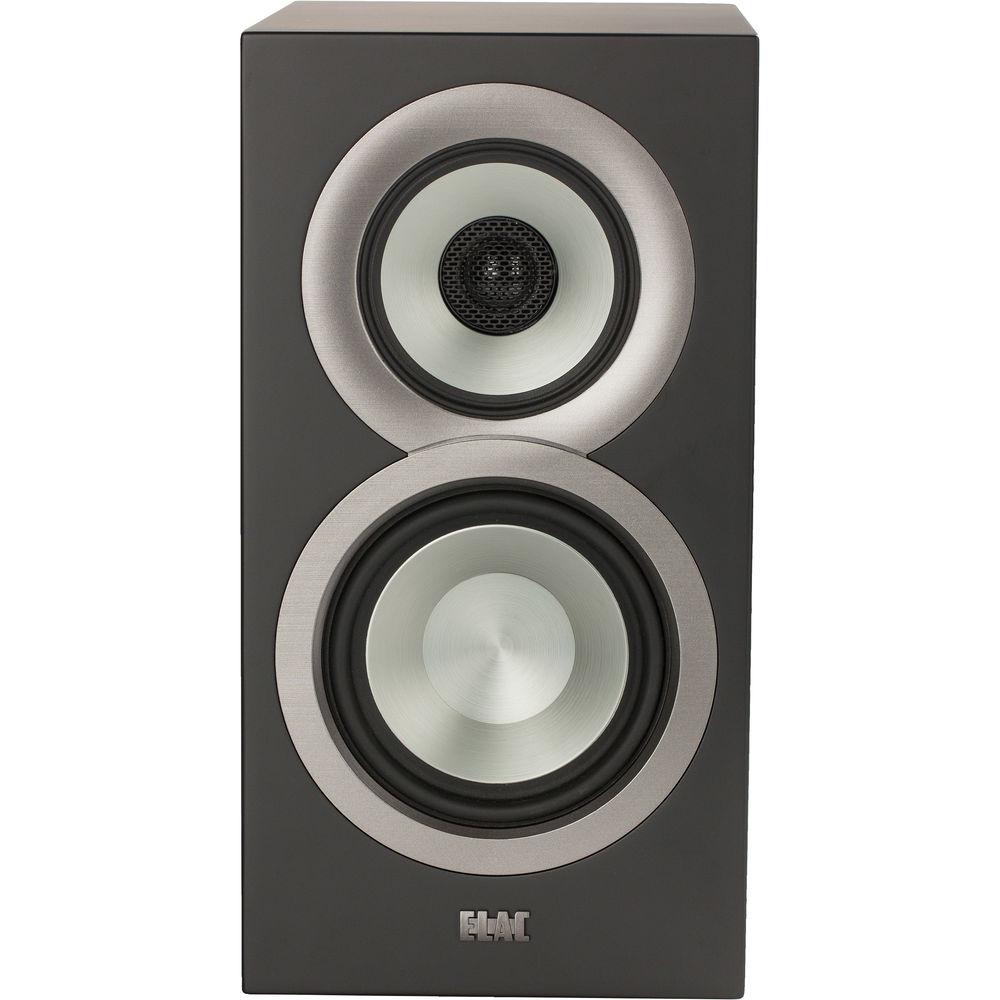

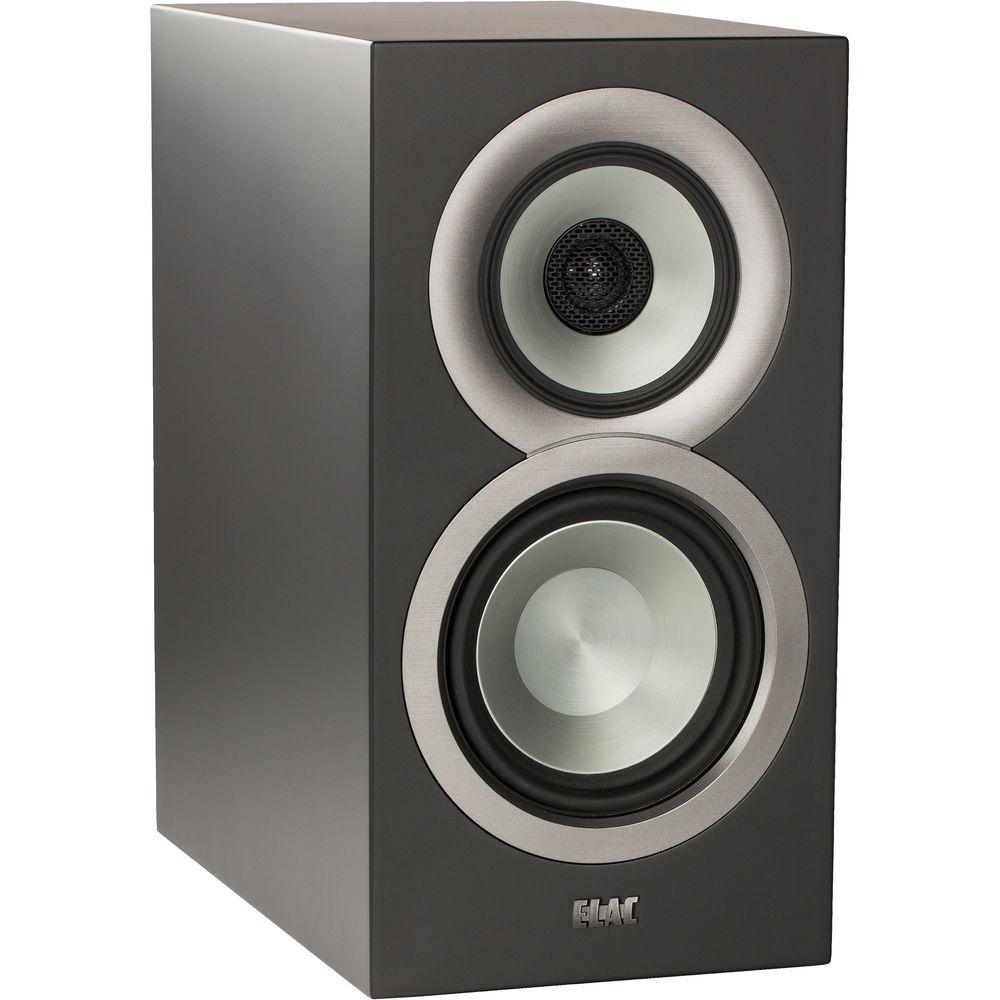

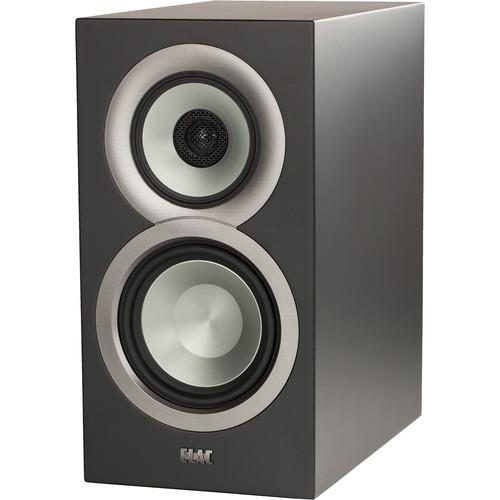

Product description Enjoy balanced stereo sound from this pair of satin black ELAC Uni-Fi BS U5 Slim 3-Way Bookshelf Speakers. They feature a 3-way design with a 1" soft-dome concentrically mounted tweeter, a 4" aluminum cone midrange, and a 5.25" aluminum cone woofer. The speakers accept 40 to 140W of power from your amplifier and have a 46 Hz to 25 kHz frequency response. - Concentric Driver
- Positioning the 1" soft-dome tweeter concentrically within the 4" aluminum midrange voice coil helps achieves a uniform directivity pattern for flat frequency response, enhanced power handling, and augmented imaging for both on- and off-axis listening positions.
- Three-Way Design
- The three-way design assigns dedicated drivers to high, midrange, and bass frequencies, allowing each to be optimized for the frequency range for which its design and material composition have been engineered. At the same time, a three-way speaker complement allows for a more straightforward crossover and cabinet design.
- MDF Cabinet
- With its MDF outer walls, each BS U5 has been engineered to maintain the same internal volume, resulting in sonic characteristics virtually indistinguishable from the originals. The cabinets incorporate internal bracing to add stiffness and strength to the cabinet's outer walls. This bracing is designed to reduce cabinet vibration, which causes unwanted coloration to the sound.
- Three-Way Crossover
- The three-way crossover is designed to provide seamless transition between the drivers.
- Aluminum Woofer
- Through the use of aluminum, resonances that affect the linearity of paper cones can be placed beyond the driver's operating frequency range. A magnet with a vented pole piece helps increase power handling to help in the accurate reproduction of bass frequencies that are clean and clear.

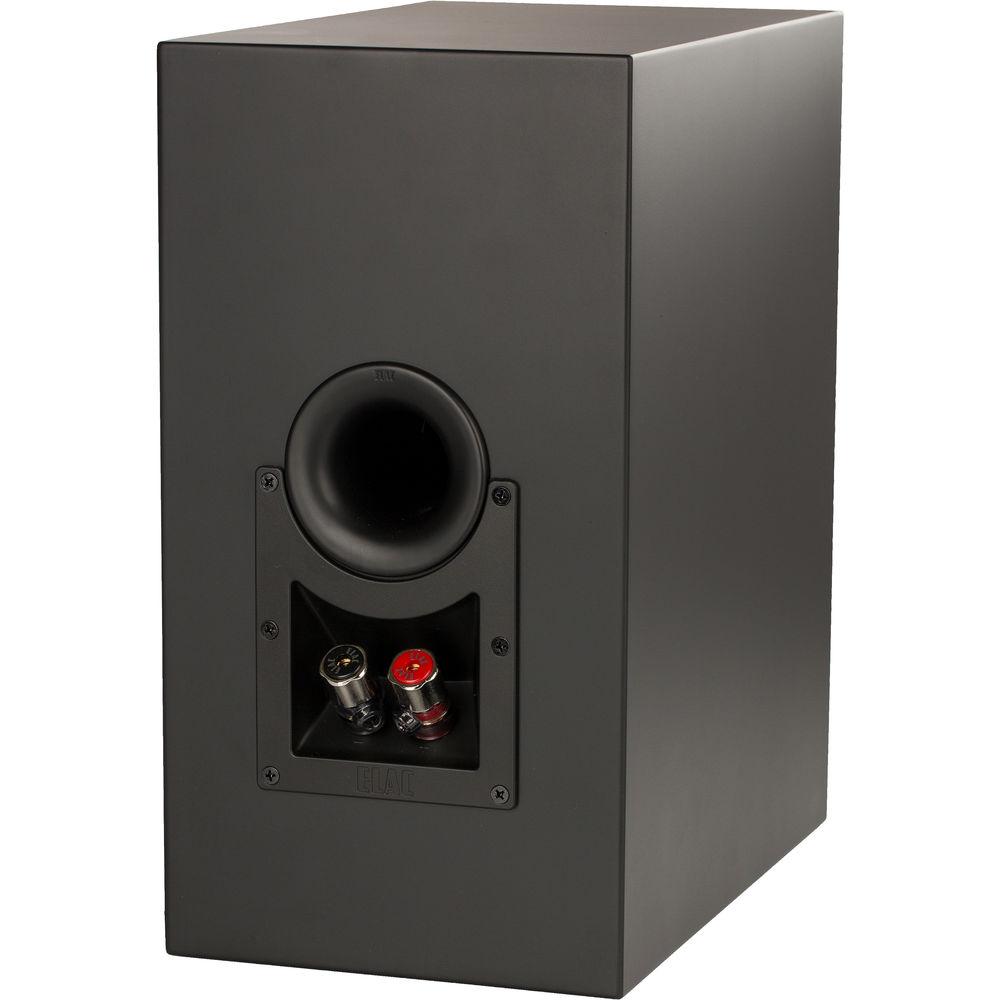

- Flexible Connectivity
- The binding post terminals provide flexibility of speaker wire connections and help ensure optimal electron transfer from speaker cables to the speaker itself.
- Magnetically Attached Fabric Grilles
- When the protective grille is removed, magnets hidden beneath the surface of the cabinet keep the front panel free of attachment holes for a clean appearance.
UPC: 853720006476 In the Box ELAC Uni-Fi BS U5 Slim 3-Way Bookshelf Speakers (Satin Black, Pair) 2 x Magnetic Fabric Grilles Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC Uni-Fi BS U5 Slim 3-Way Bookshelf Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersELAC BS U5 Specs | Speaker Design | 3-way, bass reflex | | Tweeter | 1x 1" (25.4 mm) soft-dome, concentrically mounted | | Midrange Driver | 1x 4" (101.6 mm) aluminum cone | | Woofer | 1x 5.25" (133.35 mm) aluminum cone | | Recommended Amplifier Power | 40 to 140 W | | Peak Power | 140 W | | Impedance | Nominal: 4 Ohms
Minimum: 3.4 Ohms | | Frequency Response | 46 Hz to 25 kHz | | Crossover Frequency | 270, 2700 Hz | | Sensitivity | 85 dB @ 2.83 v/m | | Connectors | 1 x 5-way binding post pair per speaker | | Magnetic Shielding | None | | Dimensions (W x H x D) | Each Speaker: 7 x 13.35 x 11.54" (178 x 339 x 293 mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 39.13 lb | | Box Dimensions (LxWxH) | 34.0 x 17.5 x 11.0" |
