User Manual for ELAC Uni-Fi CC U5 Slim Three-Way Center Channel Speaker Click to enlarge the picture
Contents of the user manual for the ELAC Uni-Fi CC U5 Slim Three-Way
- Product category: Center Channel Speakers ELAC
- Brand: ELAC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ELAC Center Channel Speakers
 |
User manual for the ELAC Uni-Fi CC U5 Slim Three-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ELAC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ELAC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ELAC product will considerably shorten its lifespan!
|

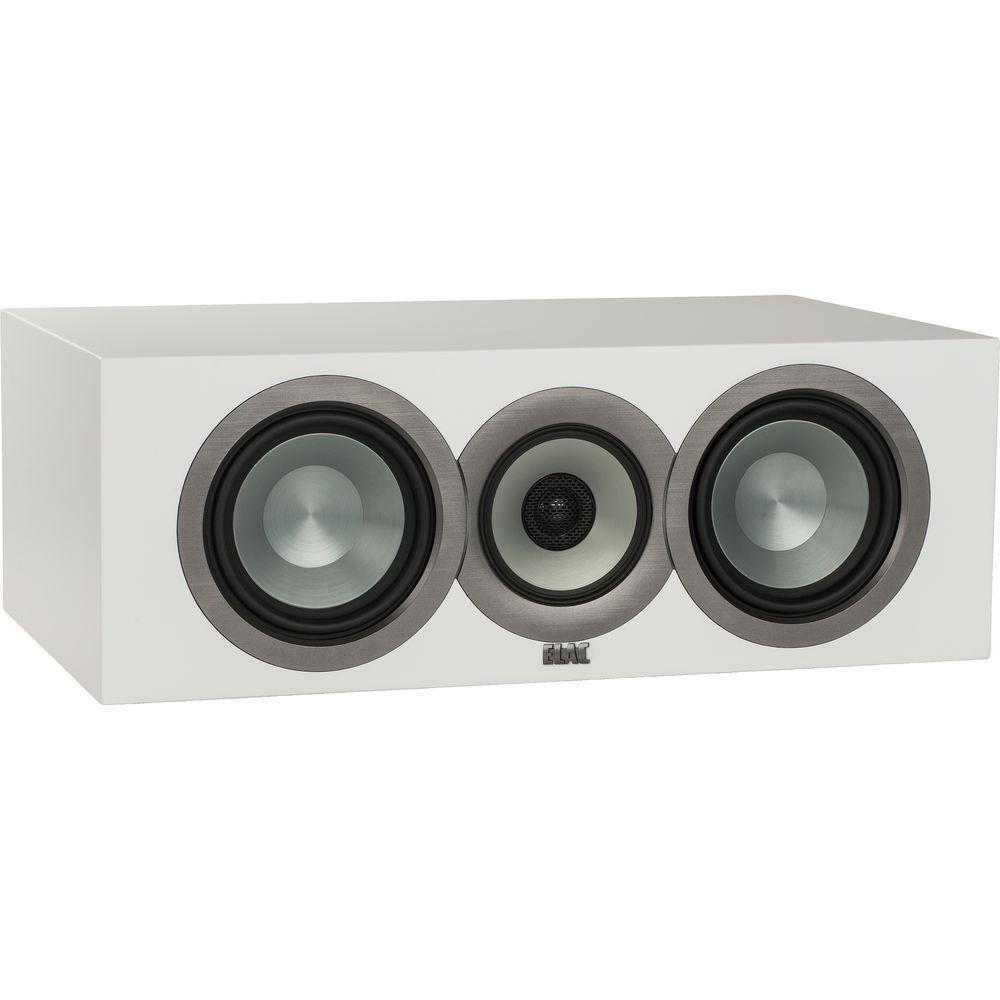

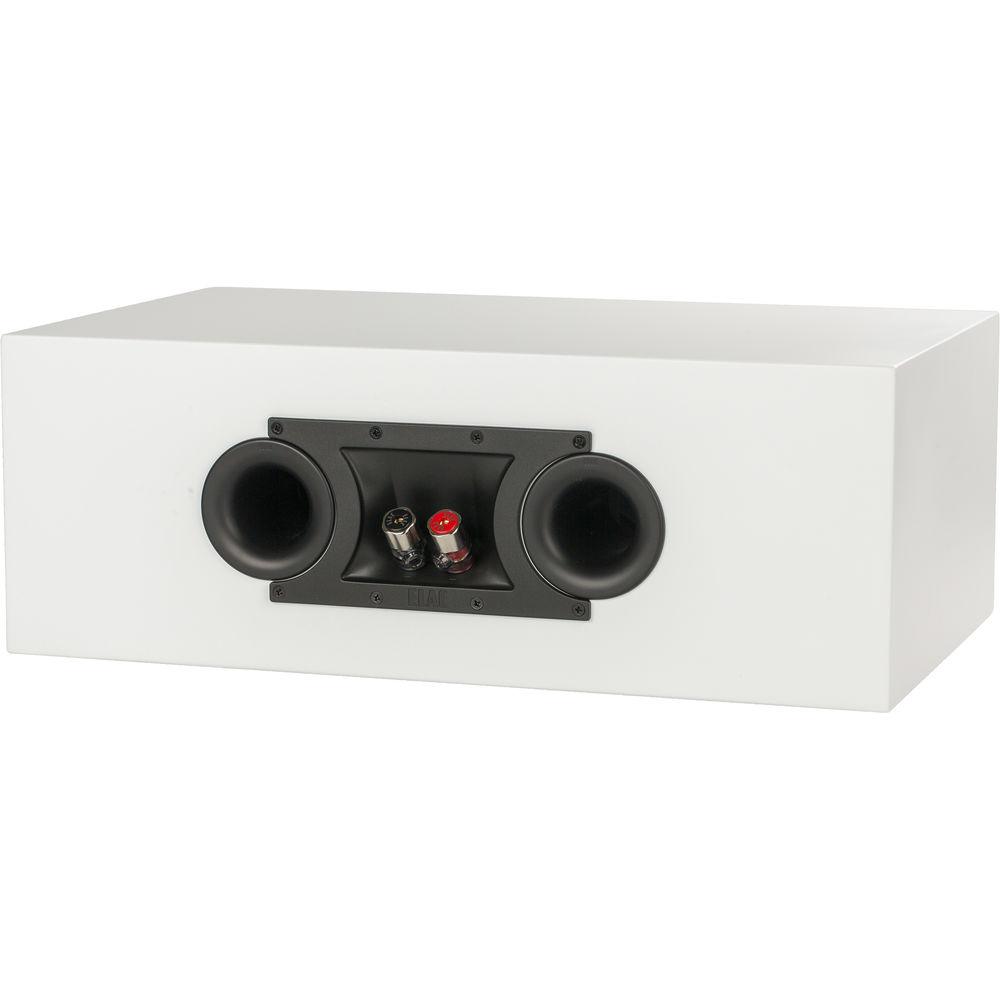

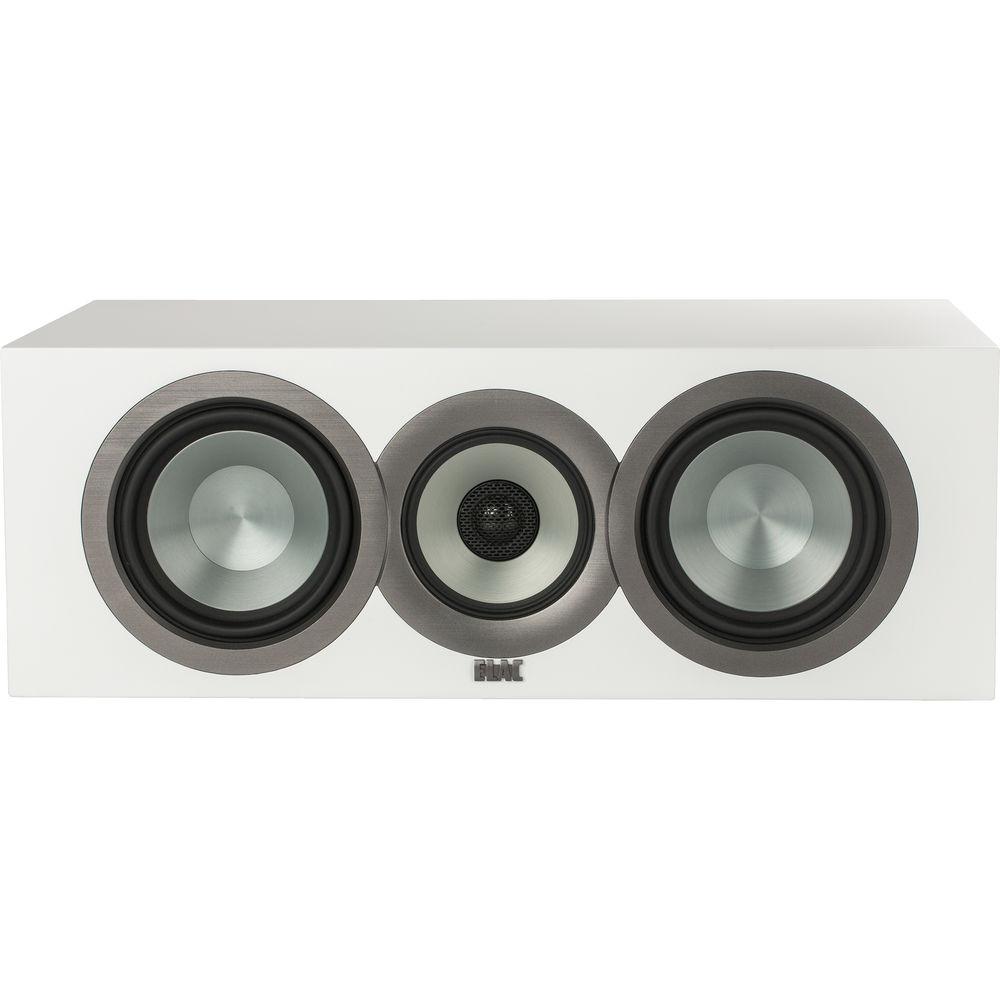

Product description Enhance the dialogue of your favorite movies and TV shows with the white ELAC Uni-Fi CC U5 Slim Three-Way Center Channel Speaker. When paired with your amplifier or receiver, it will produce only the dialogue, while the rest of your speakers create the ambient sound effects. Its recommended amplifier power is 40 to 140W and features a 48 Hz to 25 kHz frequency response. The speaker consists of a 1" concentrically mounted soft-dome tweeter, a 4" aluminum cone midrange driver, and two 5.25" aluminum cone woofers, plus two rear-mounted bass ports for enhanced low-frequency reproduction. UPC: 853720006452 In the Box ELAC Uni-Fi CC U5 Slim Three-Way Center Channel Speaker (White) Magnetic Fabric Grille Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC Uni-Fi CC U5 Slim Three-Way Center Channel Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersELAC CC U5 Specs | Tweeter | 1x 1" (2.54 cm) soft dome, concentrically mounted | | Midrange Driver | 1x 4" (10.16 cm) aluminum cone | | Woofers | 2x 5.25" (13.34 cm) aluminum cones | | Ports | 2 x rear-firing ports | | Recommended Amplifier Power | 40 to 140 W | | Peak Power | 140 W | | Crossover | Midrange-to-Tweeter: 2.7 kHz
Midrange-to-Woofer: 270 Hz | | Frequency Response | 48 Hz to 25 kHz | | Nominal Impedance | 4 Ohms | | Minimum Impedance | 3.4 Ohms | | Sensitivity | 85 dB @ 2.83 V/m | | Connectors | 5-way binding post pair | | Magnetic Shielding | None | | Grille | Magnetic fabric grille | | Dimensions (W x H x D) | 19.61 x 7 x 11.54" (498 x 178 x 293 mm) | | Weight | Not specified by manufacturer |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
