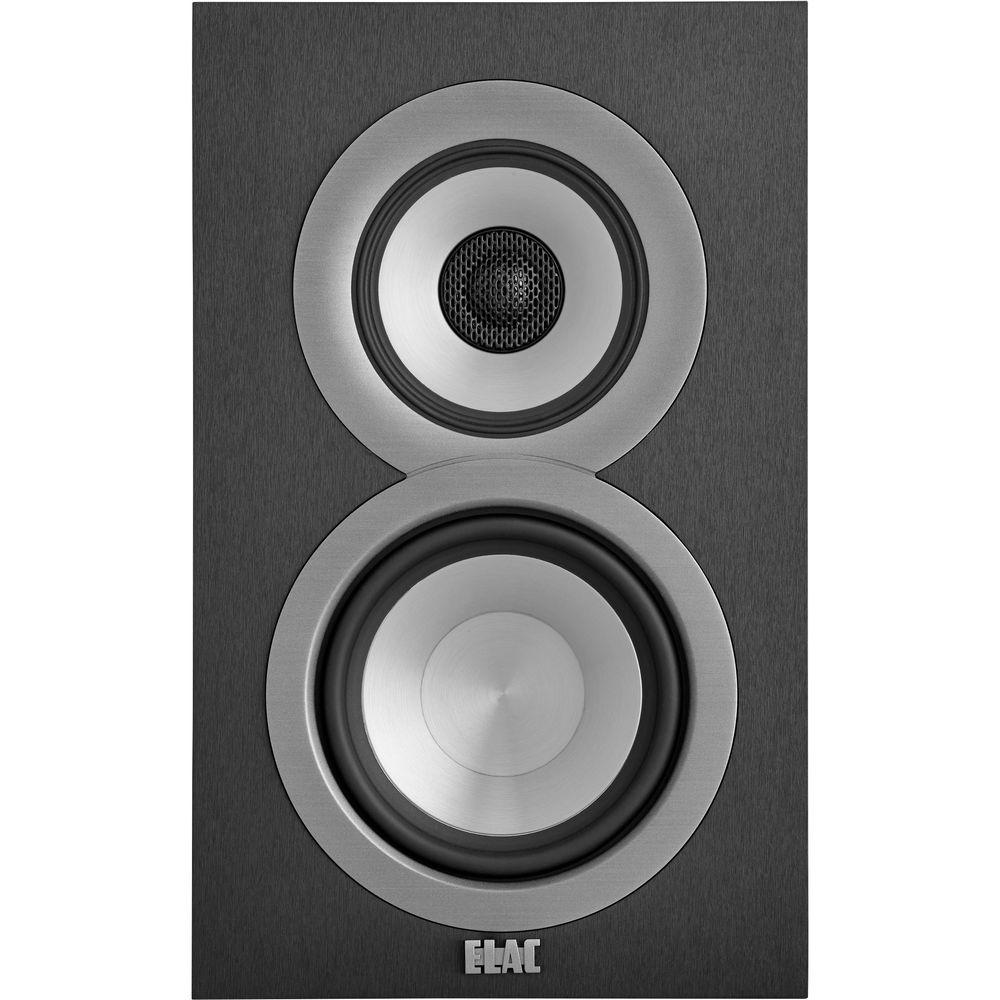

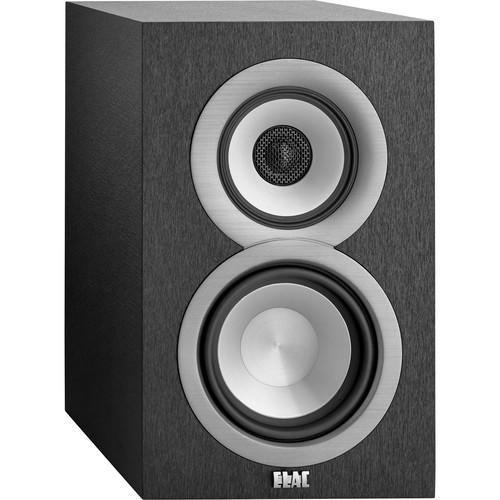

Product description Enjoy balanced stereo sound with your amplifier and this pair of ELAC Uni-Fi UB5 3-Way Bookshelf Speakers. They feature a 3-way design with a 1" soft dome tweeter concentrically mounted to a 4" aluminum cone midrange driver, and a 5.25" aluminum cone woofer. The speakers accept 40 to 140W of power from your amplifier, have a 46 Hz to 25 kHz frequency response, and were designed by Andrew Jones. - Concentric Tweeter and Midrange
- Positioning the 1" soft-dome tweeter and aluminum 4" midrange cone concentrically helps achieve a uniform directivity pattern for flat frequency response and enhanced imaging for both on- and off-axis listening positions.
- Aluminum Woofers
- With aluminum, resonances that affect the linearity of paper cones can be placed beyond the driver's operating frequency range. An extended-size magnet with a vented pole piece is designed to increase power handling for accurate reproduction of bass frequencies that are clean and clear.
- Three-Way Crossover
- The three-way crossover is designed to ensure smooth transition between the drivers.
- Braced MDF Cabinet
- The internal bracing is designed to add stiffness and strength to the cabinet's MDF outer walls, helping to reduce cabinet vibration that causes unwanted coloration.

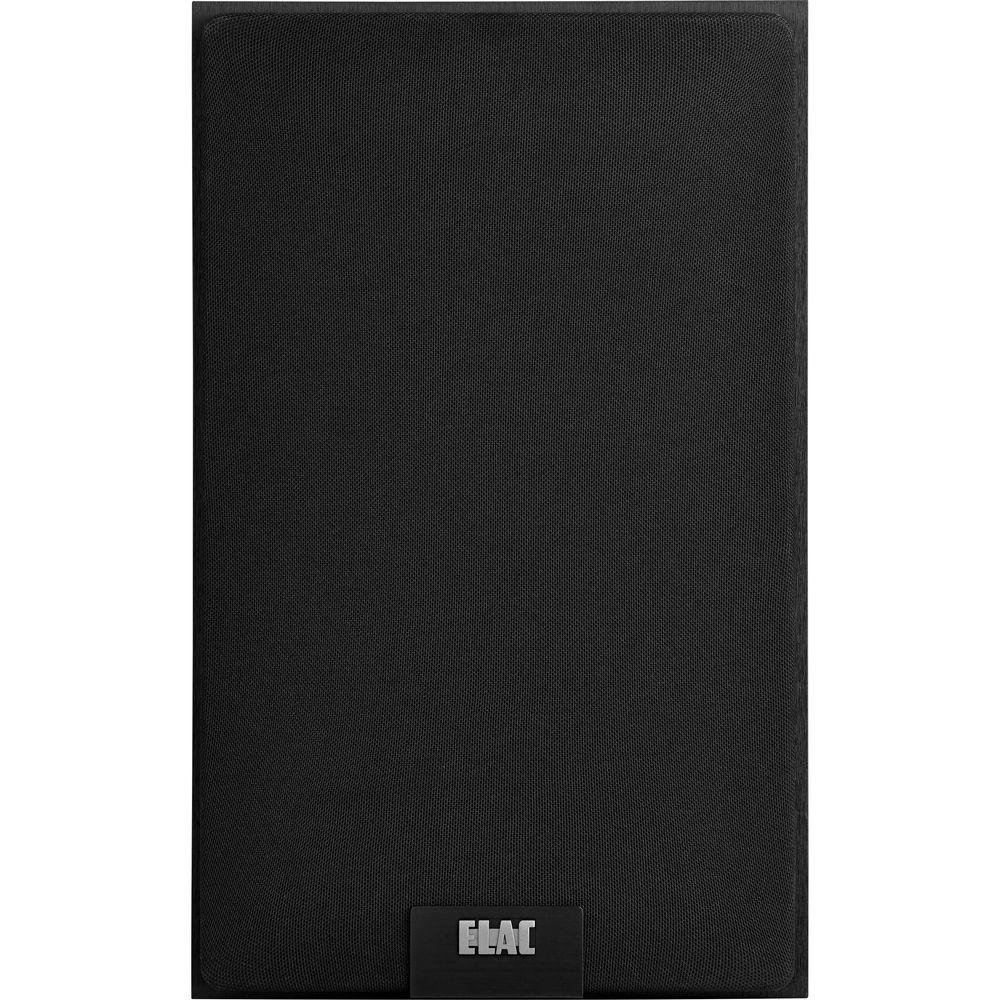

- Magnetically Attached Grille
- When the protective grille is removed, hidden magnets beneath the surface of the cabinet keep the front panel free of attachment holes for a clean appearance.
UPC: 853720006100 In the Box ELAC Uni-Fi UB5 3-Way Bookshelf Speakers (Pair) 2 x Magnetic Fabric Grilles Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC Uni-Fi UB5 3-Way Bookshelf Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

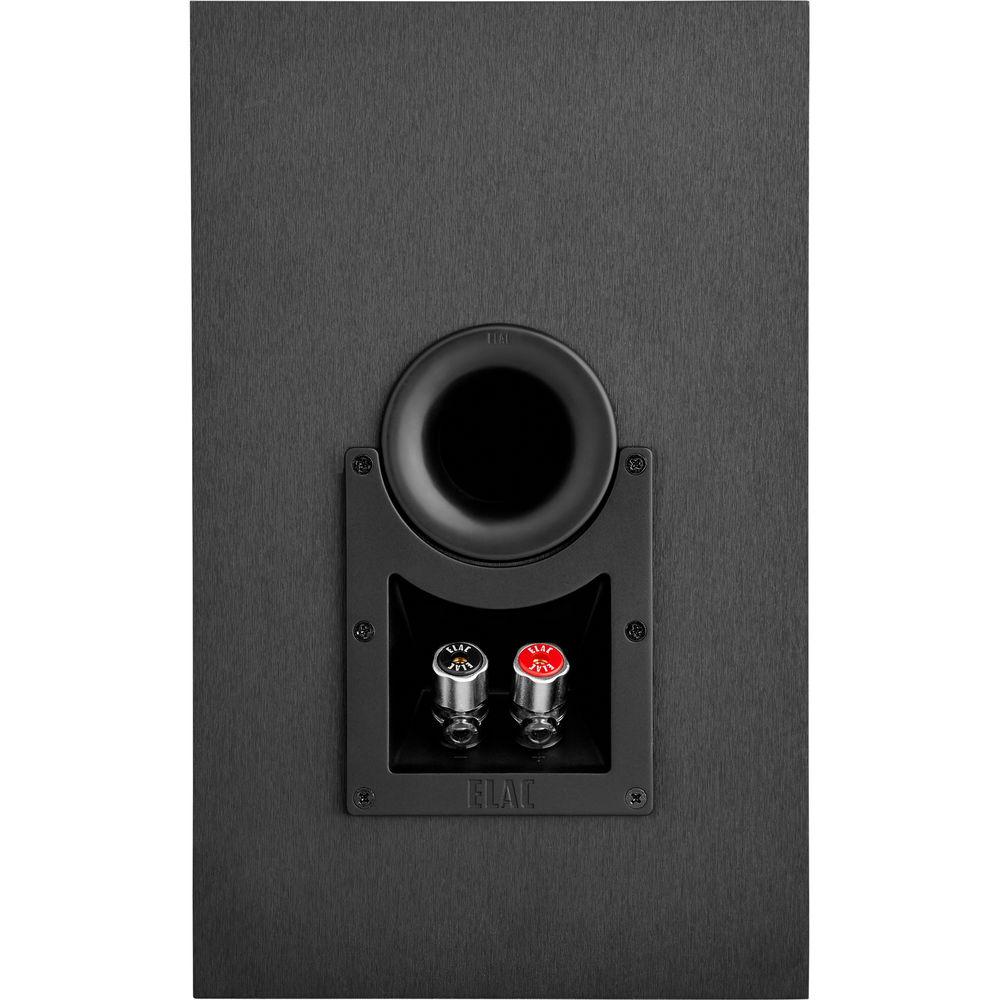

Technical parametersELAC UB5 Specs | Tweeter | 1x 1" (2.54 cm) soft dome, concentrically mounted to midrange | | Midrange | 1x 4" (10.16 cm) aluminum cone | | Woofer | 1x 5.25" (13.34 cm) aluminum cone | | Ports | 1 x rear-firing dual-flared port | | Recommended Amplifier Power | 40 to 140 W | | Peak Power | 140 W | | Crossover Frequencies | 270 Hz, 2.7 kHz | | Frequency Response | 46 Hz to 25 kHz | | Nominal Impedance | 4 Ohms | | Minimum Impedance | 3.4 Ohms | | Sensitivity | 85 dB @ 2.83 V/m | | Connectors | 5-way binding post pair | | Magnetic Shielding | None | | Cabinet Construction | CARB2-rated MDF-braced | | Finish | Black brushed vinyl | | Grille | Magnetic fabric grille | | Dimensions (W x H x D) | 7.87 x 12.75 x 10.75" (200 x 324 x 273 mm) | | Weight | 16.5 lb (7.48 kg) per speaker | | | | Package Weight | 37.85 lb | | Box Dimensions (LxWxH) | 32.5 x 17.0 x 12.0" |
