User Manual for ELAC Uni-Fi UC5 Three-Way Center Channel Speaker Click to enlarge the picture
Contents of the user manual for the ELAC Uni-Fi UC5 Three-Way Center Channel
- Product category: Center Channel Speakers ELAC
- Brand: ELAC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ELAC Center Channel Speakers
 |
User manual for the ELAC Uni-Fi UC5 Three-Way Center Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ELAC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ELAC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ELAC product will considerably shorten its lifespan!
|

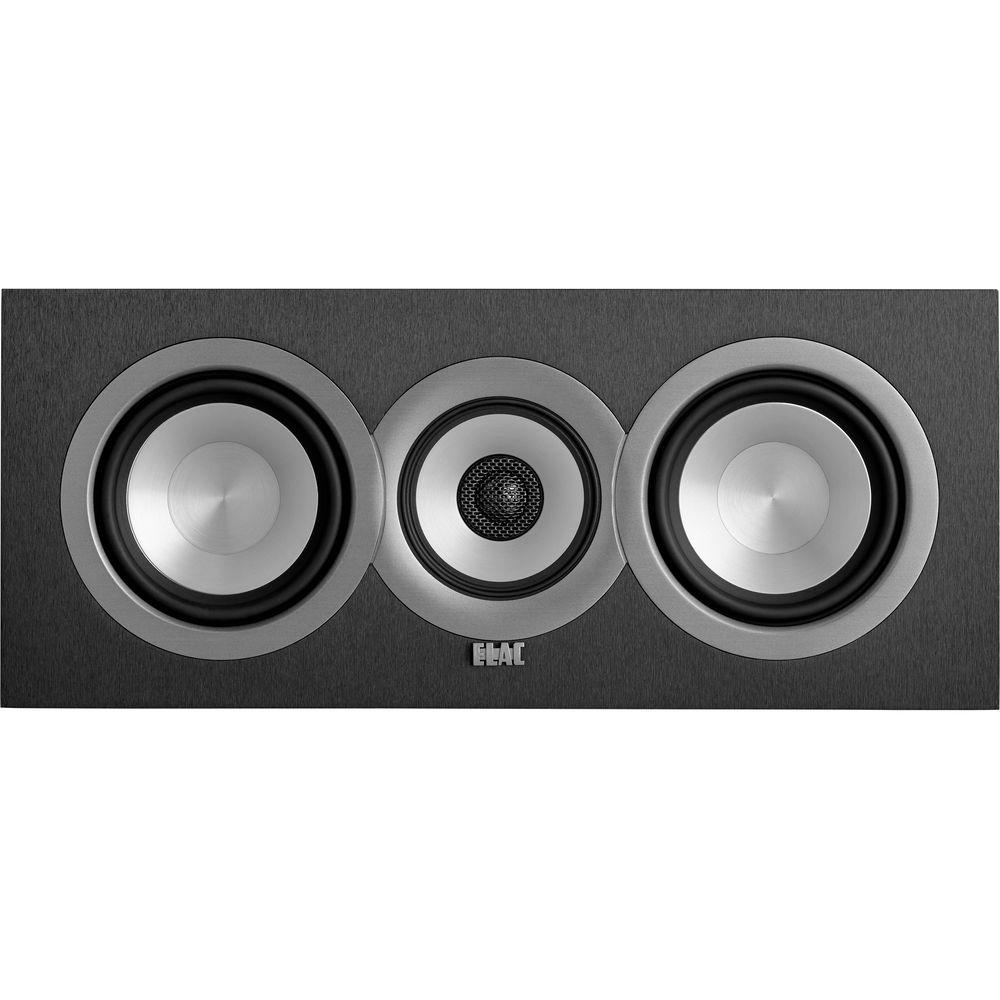

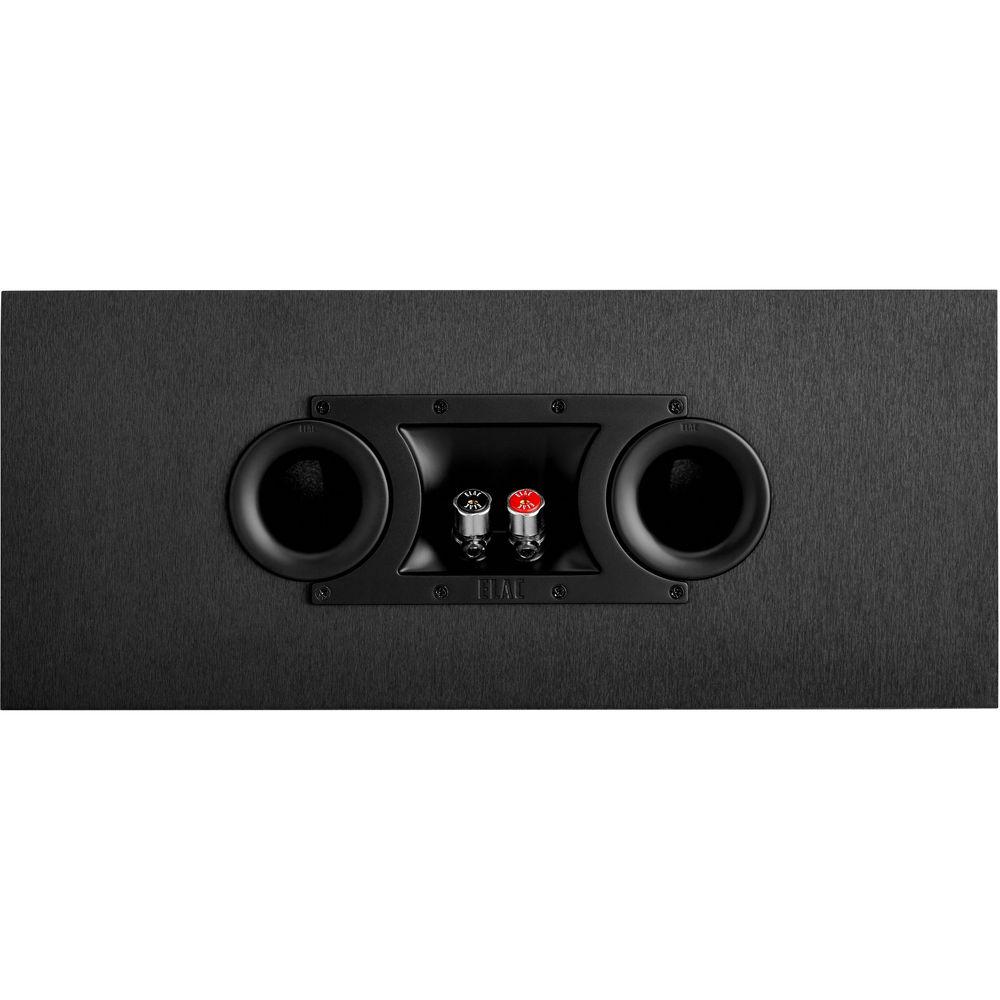

Product description Enhance the dialogue of your favorite movies and TV shows with the ELAC Uni-Fi UC5 Three-Way Center Channel Speaker. When paired with your amplifier or receiver, it will produce only the dialogue, while the rest of your speakers create the ambient sound effects. Its recommended amplifier power is 40 to 140W and features a 48 Hz to 25 kHz frequency response. The speaker consists of a 1" cloth dome tweeter concentrically mounted to a 4" aluminum cone midrange, plus two 5.25" aluminum cone woofers. It also features two rear-mounted, dual-flared bass ports for enhanced low-frequency reproduction. - Concentric Tweeter and Midrange
- Positioning the 1" soft-dome tweeter and aluminum 4" midrange cone concentrically helps achieve a uniform directivity pattern for flat frequency response and enhanced imaging for both on- and off-axis listening positions.
- Aluminum Woofers
- With aluminum, resonances that affect the linearity of paper cones can be placed beyond the driver's operating frequency range. An extended-size magnet with a vented pole piece is designed to increase power handling for accurate reproduction of bass frequencies that are clean and clear.
- Three-Way Crossover
- The three-way crossover is designed to ensure smooth transition between the drivers.
- Braced MDF Cabinet
- The internal bracing is designed to add stiffness and strength to the cabinet's MDF outer walls, helping to reduce cabinet vibration that causes unwanted coloration.

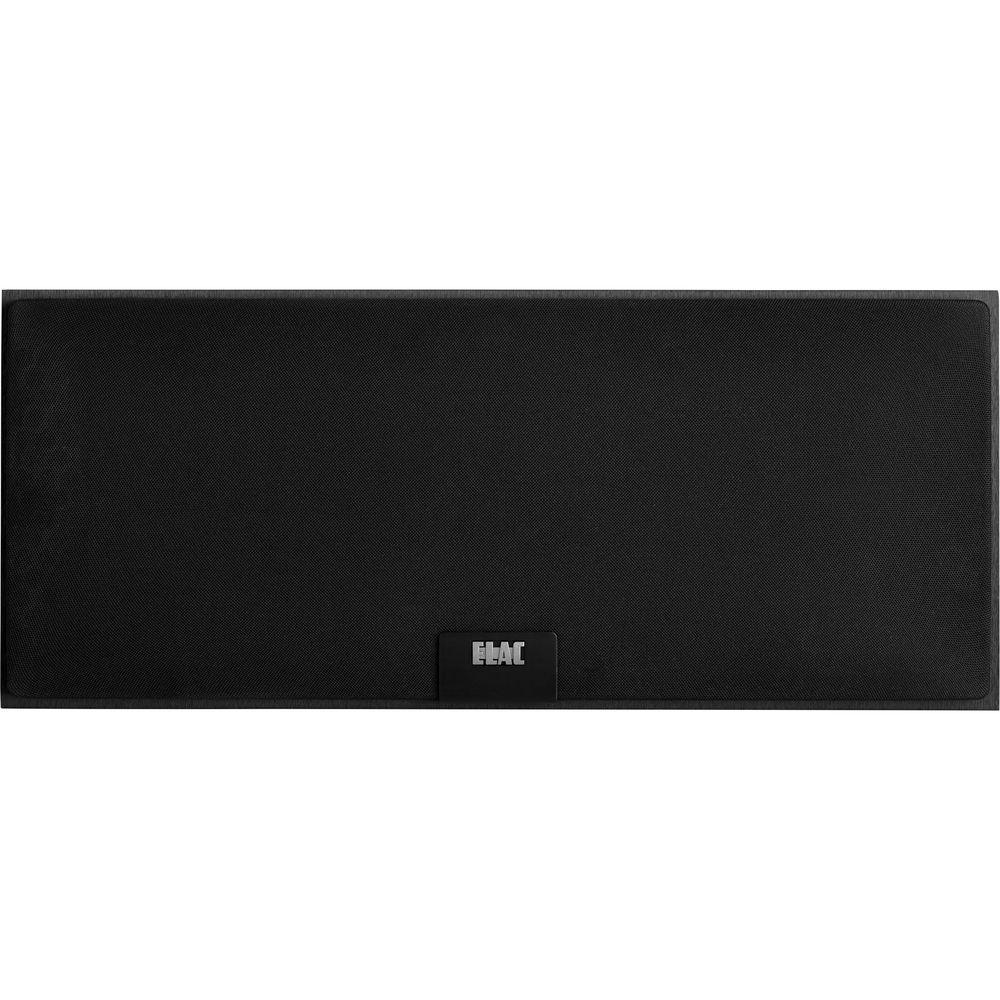

- Magnetically Attached Grille
- When the protective grille is removed, hidden magnets beneath the surface of the cabinet keep the front panel free of attachment holes for a clean appearance.
UPC: 853720006117 In the Box ELAC Uni-Fi UC5 Three-Way Center Channel Speaker Magnetic Fabric Grille Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC Uni-Fi UC5 Three-Way Center Channel Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersELAC UC5 Specs | Tweeter | 1x 1" (2.54 cm) soft dome, concentrically mounted to the midrange driver | | Midrange | 1x 4" (10.16 cm) aluminum cone | | Woofers | 2x 5.25" (13.34 cm) aluminum cones | | Ports | 2 x rear-firing dual-flared ports | | Recommended Amplifier Power | 40 to 140 W | | Peak Power | 140 W | | Crossover Frequencies | 270 Hz, 2.7 kHz | | Frequency Response | 48 Hz to 25 kHz | | Nominal Impedance | 4 Ohms | | Minimum Impedance | 3.4 Ohms | | Sensitivity | 85 dB @ 2.83 V/m | | Connectors | 5-way binding post pair | | Magnetic Shielding | None | | Cabinet Construction | CARB2-rated MDF | | Grille | Magnetic fabric grille | | Finish | Black brushed vinyl | | Dimensions (W x H x D) | 18.75 x 7.87 x 10.75" (476 x 200 x 273 mm) | | Weight | 23.3 lb (10.57 kg) | | | | Package Weight | 27.25 lb | | Box Dimensions (LxWxH) | 22.5 x 17.0 x 12.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
