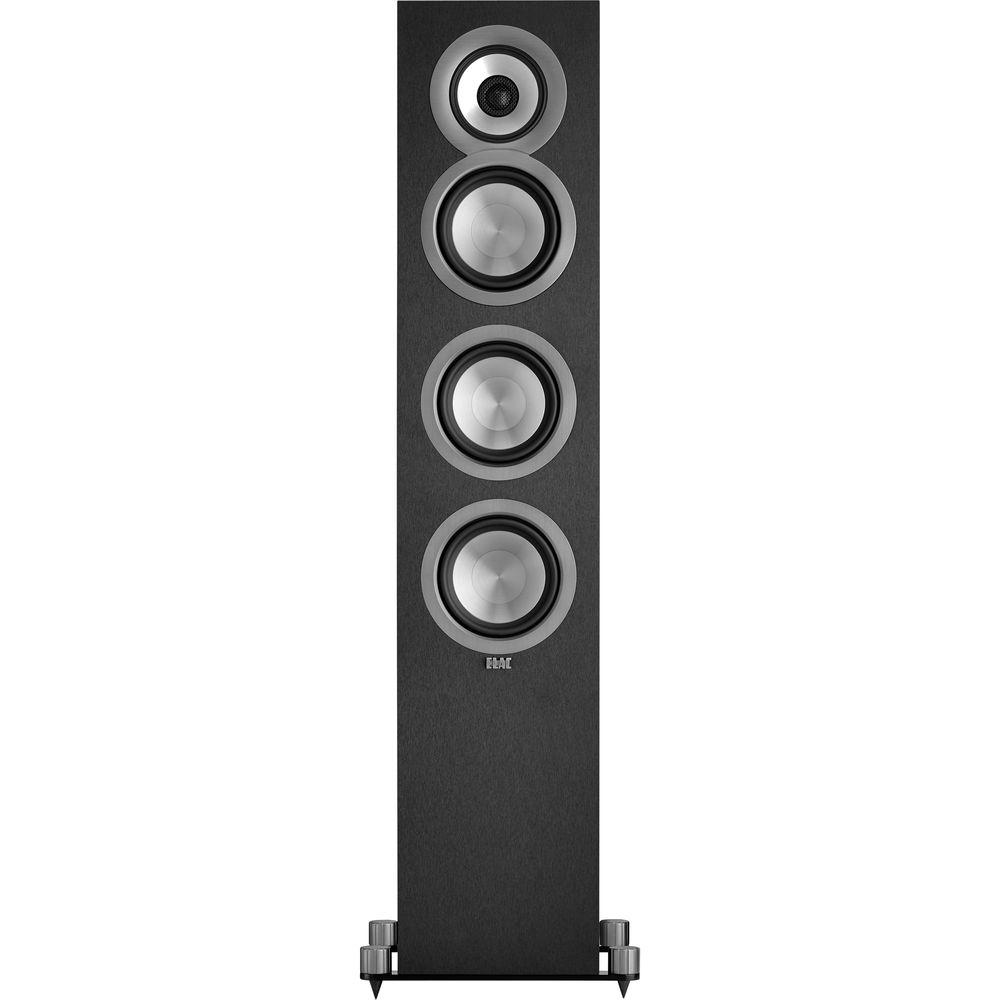

Product description Enjoy dynamic sound from your amplifier with the ELAC Uni-Fi UF5 3-Way Floorstanding Speaker. It features a three-way design with a 1" cloth dome tweeter concentrically mounted to a 4" aluminum cone midrange, plus three 5.25" aluminum cone woofers. It accepts 40 to 140W of power from your amplifier and produces a 42 Hz to 25 kHz frequency response. The cabinet is made from MDF, and the speaker as a whole was designed by Andrew Jones. - Concentric Tweeter and Midrange
- Positioning the 1" soft-dome tweeter and aluminum 4" midrange cone concentrically helps achieve a uniform directivity pattern for flat frequency response and enhanced imaging for both on- and off-axis listening positions.
- Aluminum Woofers

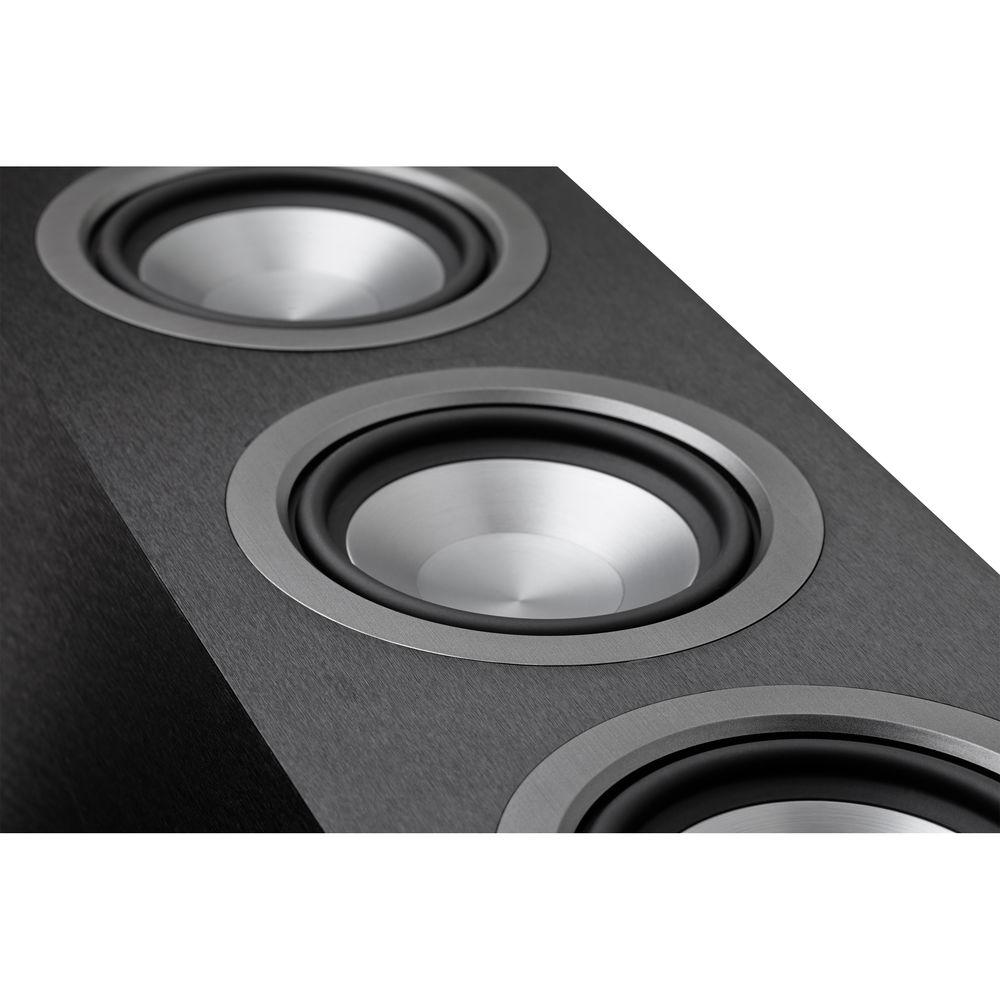

- With aluminum, resonances that affect the linearity of paper cones can be placed beyond the driver's operating frequency range. An extended-size magnet with a vented pole piece is designed to increase power handling for accurate reproduction of bass frequencies that are clean and clear.
- Three-Way Crossover
- The three-way crossover is designed to ensure smooth transition between the drivers.
- Braced MDF Cabinet
- The internal bracing is designed to add stiffness and strength to the cabinet's MDF outer walls, helping to reduce cabinet vibration that causes unwanted coloration.

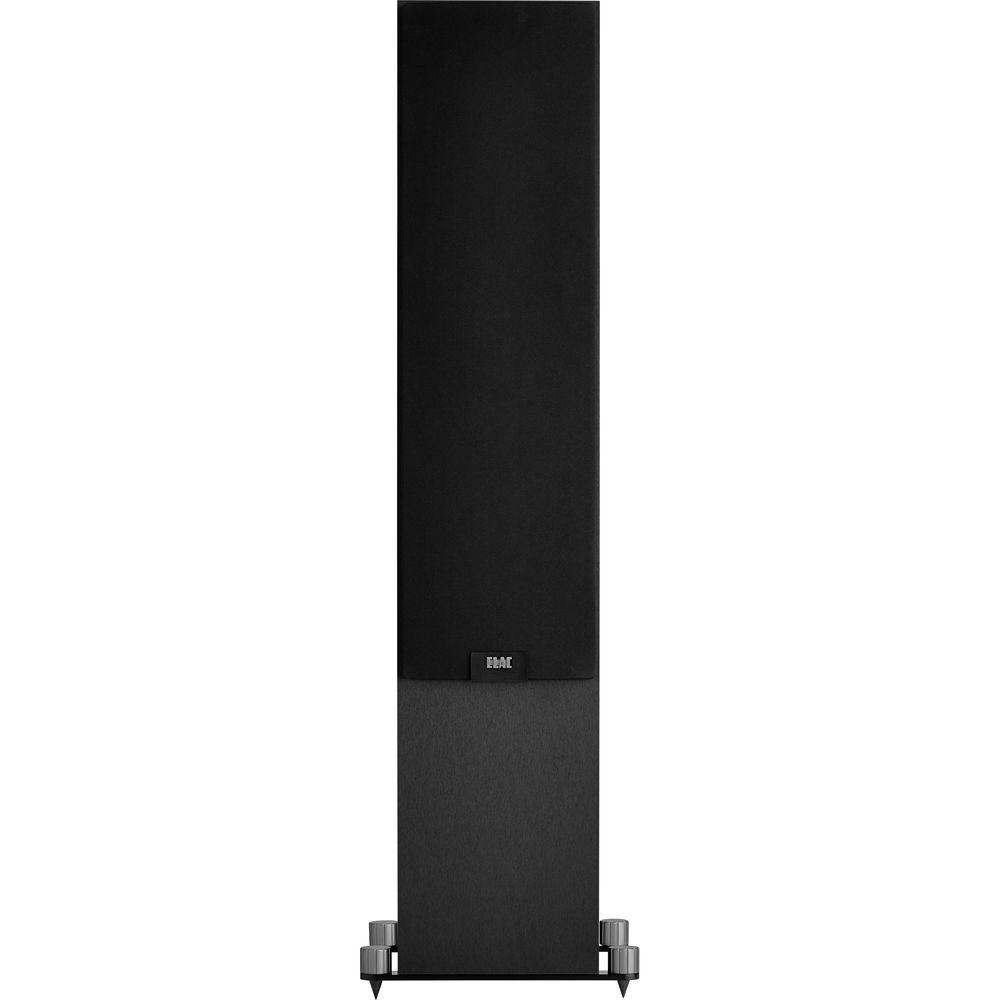

- Magnetically Attached Grille
- When the protective grille is removed, hidden magnets beneath the surface of the cabinet keep the front panel free of attachment holes for a clean appearance.
- Outrigger Base Design

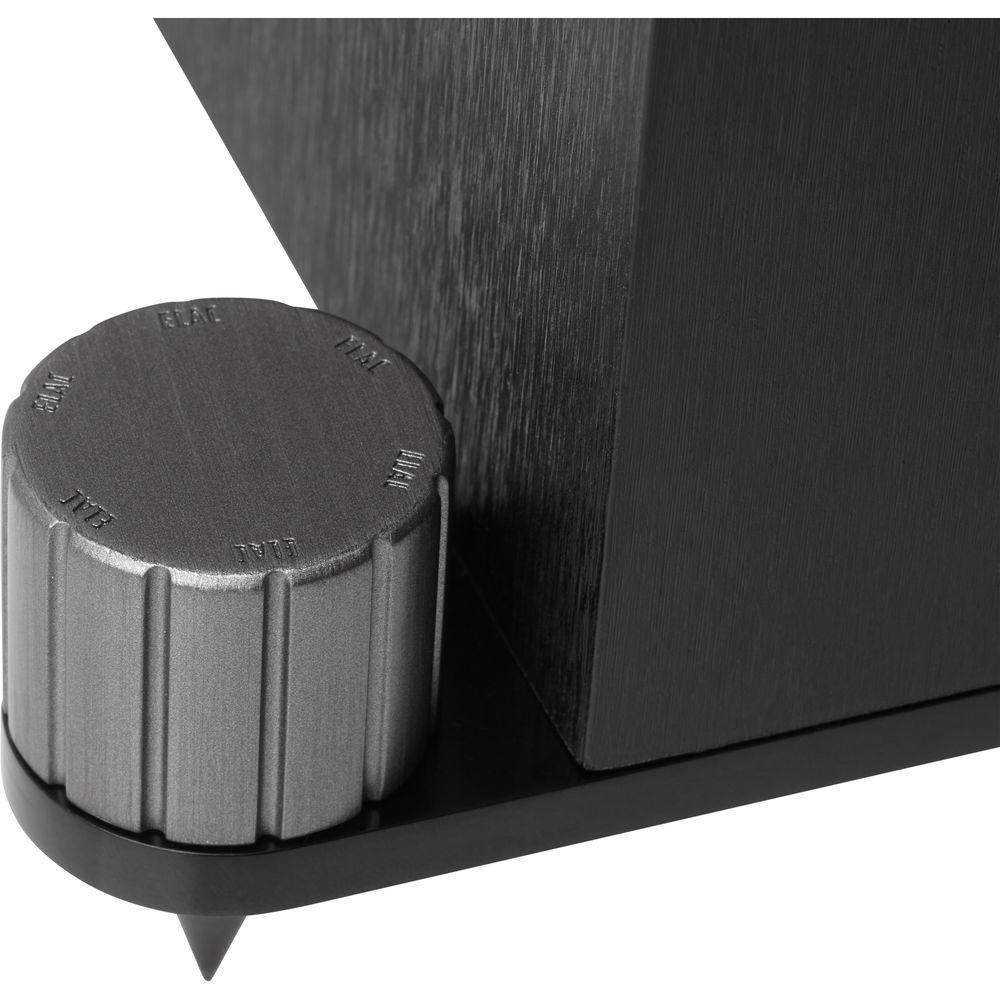

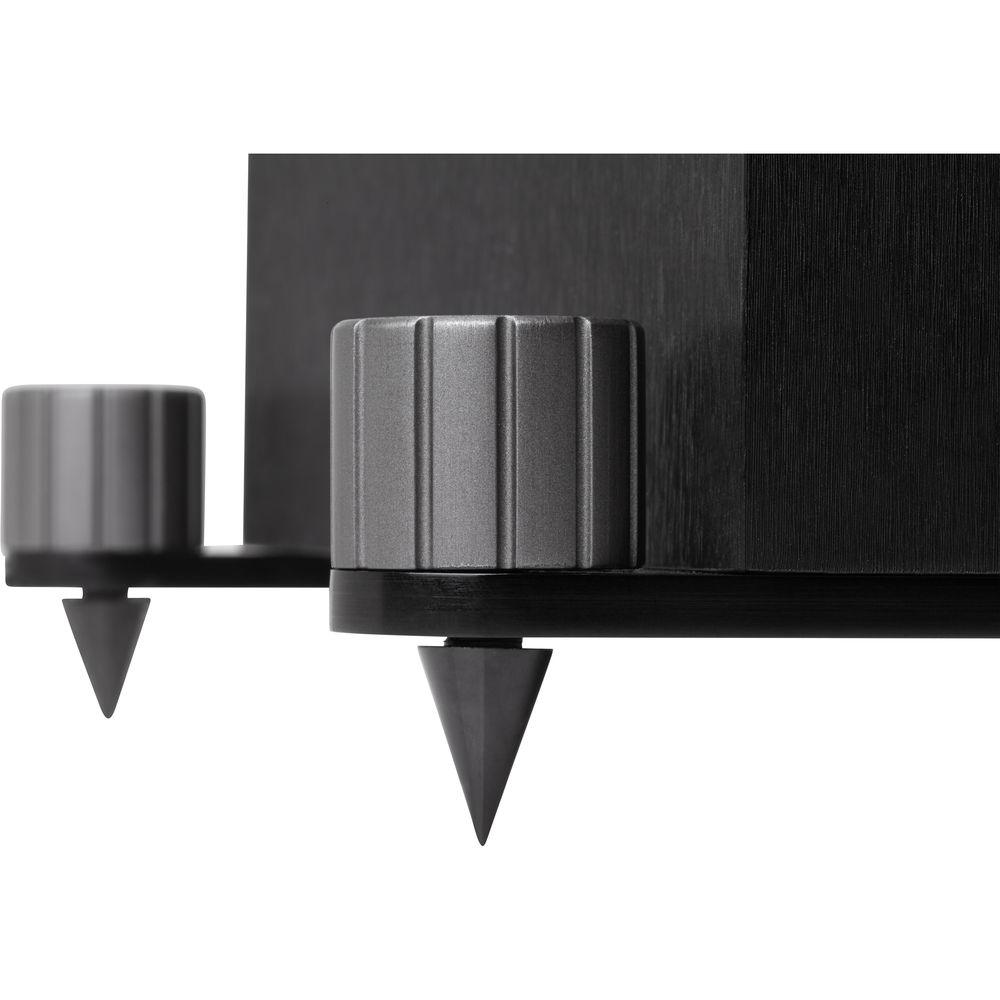

- The outrigger base design for the UF5 provides a larger, more stable footprint and allows for enhanced coupling of the speaker cabinet to the floor.
UPC: 853720006124 In the Box ELAC Uni-Fi UF5 3-Way Floorstanding Speaker (Single) Fabric Grille Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ELAC Uni-Fi UF5 3-Way Floorstanding Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

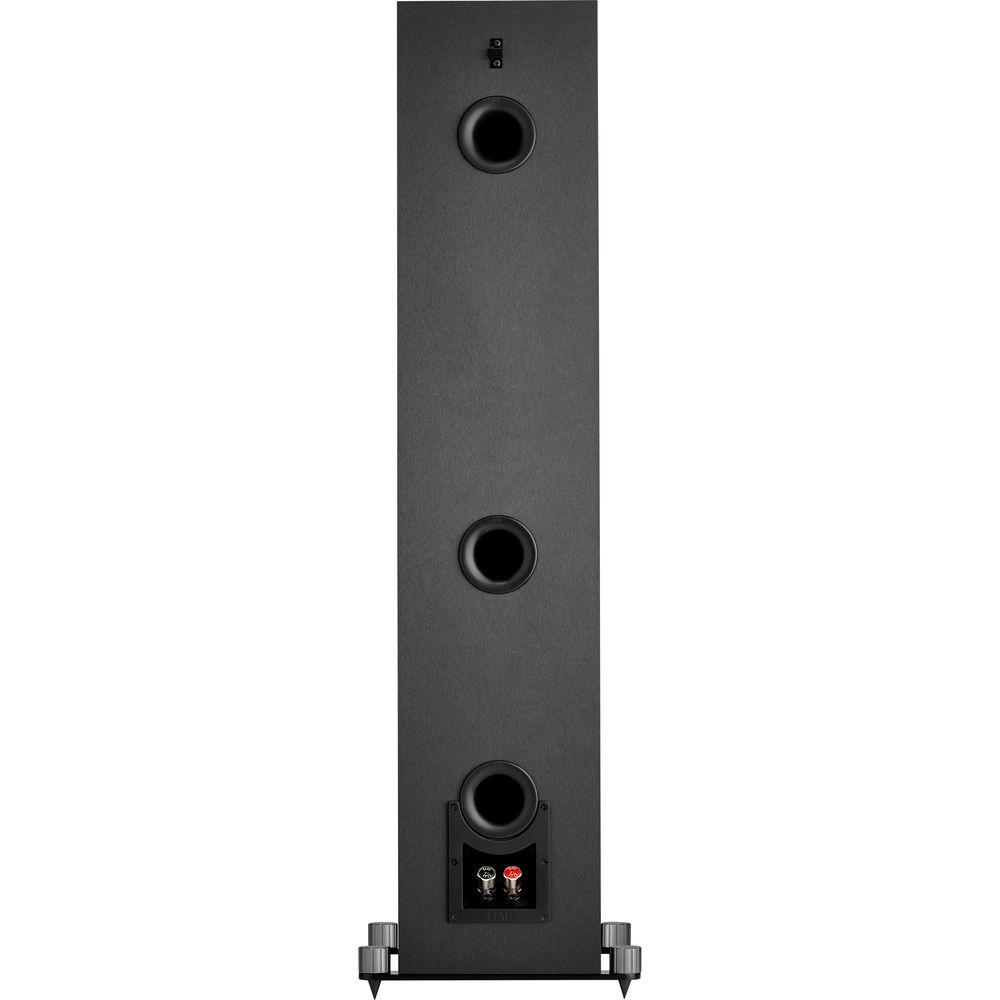

Technical parametersELAC UF5 Specs | Tweeter | 1 x 1" (2.54 cm) soft dome | | Midrange | 1 x 4" (10.16 cm) aluminum cone | | Woofers | 3 x 5.25" (13.34 cm) aluminum cones | | Ports | 3 x dual-flared rear-firing ports | | Recommended Amplifier Power | 40 to 140 W | | Maximum Power Handling | 140 W | | Crossover Frequencies | 270 Hz, 2.7 kHz | | Frequency Response | 42 Hz to 25 kHz | | Nominal Impedance | 4 Ohms | | Minimum Impedance | 3.4 Ohms | | Sensitivity | 85 dB @ 2.83 V/m | | Connectors | 5-way binding post pair | | Magnetic Shielding | None | | Cabinet Construction | CARB2-rated MDF | | Finish | Black brushed vinyl | | Grille | Removable fabric grille | | Dimensions (W x H x D) | 7.87 x 38 x 10.7" (200 x 965 x 273 mm) without feet | | Weight | 39.6 lb (18 kg) | | | | Package Weight | 51.0 lb | | Box Dimensions (LxWxH) | 42.0 x 16.5 x 12.0" |
