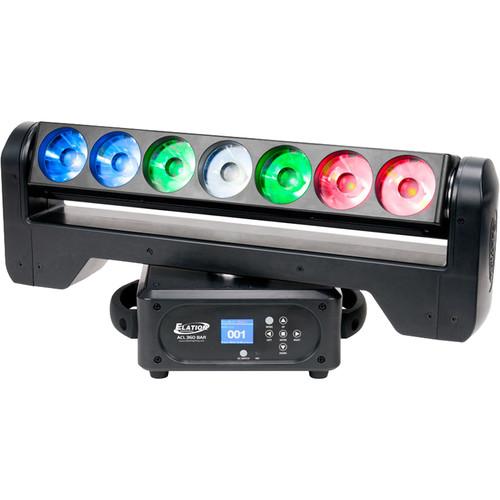

Product description The ACL 360 Bar from Elation Professional is an RGBW quad-LED intelligent light-bar fixture which features seven individual 15W RGBW four-in-one LEDs. Each RGBW LED is equipped with an advanced collimator optic lens designed to produce a homogenized laser-like 4° color-changing beam, combining to product a 31° beam angle. Fast and precise 16-bit continuous resolution movement, 360° pan and tilt rotation, strobe, selectable dimming curve effects, and individual pixel control make this a versatile moving-head effect luminaire.

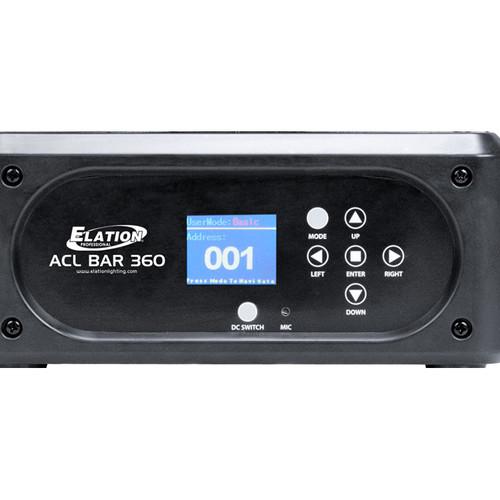

The ACL 360 incorporates a six-button control panel and a full-color 180°-reversible menu display. It features RJ45 Ethernet as well as three & five-pin XLR connectors, and it supports RDM (Remote Device Management) and Art-Net protocols. Flicker-free operation makes the unit suitable for TV broadcast and film. Three DMX channel modes (16, 18, and 41-channel modes) enable you to control varying levels of features.
The fixture features a powerCON input and an internal auto-switching power supply. It is compatible with 100 - 240 VAC outlets and has a maximum power consumption of 135W. The ACL 360 can be mounted either upright or inverted (180°) using the included Omega bracket (clamps sold separately). - Advanced collimator lenses
- High-speed, precise 16-bit continuous 360° pan and tilt rotation
- Strobe, selectable dimming curves effects, and individual pixel control
- Supports RDM (Remote Device Management) and Art-Net protocol
- Flicker-free operation for TV and film
- Full-color, 180°-reversible LCD menu display
In the Box Elation Professional ACL 360 Bar Quad-LED Fixture 2 x Omega Brackets powerCON Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional ACL 360 Bar Quad-LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional ACL 360 BAR Specs | Lamp | 7 x 15 W RGBW 4-in-1 LEDs | | Average Lamp Life | 100,000 h | | Color | RGBW | | Beam Angle | Per LED: 4°
Total: 31° | | Photometric Data | 31° Full On:
44,440 Lux (4,128 fc) @ 3.3' (1m)
25,260 Lux (2,347 fc) @ 6.6' (2m)
15,430 Lux (1,433 fc) @ 9.8' (3m)
10,960 Lux (1,018 fc) @ 13.1' (4m)

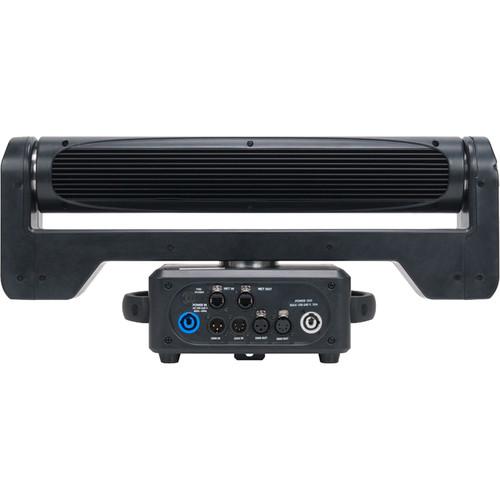

8,081 Lux (751 fc) @ 16.4' (5m) | | DMX Connectors | 1 x 3-pin XLR male, DMX in
1 x 3-pin XLR female, DMX out
1 x 5-pin XLR male, DMX in
1 x 5-pin XLR female, DMX out
1 x Ethernet RJ45, Art-Net in
1 x Ethernet RJ45, Art-Net out | | DMX Channels | 16, 18, & 41-channel modes | | Movement Resolution | 8-bit
16-bit | | Effects | Individual pixel control
Strobe
Selectable dimming curves | | Pan & Tilt | 360° | | IP Rating | IP30 | | Power Connection Type | 1 x powerCON, power in
1 x powerCON, power out | | Operating Temperature | 5 to 113°F (-15 to 45°C) | | Power Supply | 100 - 240 VAC, 50 / 60 Hz, auto-switching | | Power Consumption | 135 W max. | | Rigging Points | Installation Options:
Upright
Inverted (180°) | | Approvals | CE | | Dimensions | 22.6 x 7.2 x 10.2" (575 x 184 x 258 mm) | | Weight | 22 lb (10 kg) |
