Product description The ACL 360 Matrix from Elation Professional is an RGBW quad-LED intelligent light fixture which features 25 individual 15W 4-in-1 LEDs. Each set of four LEDs is equipped with an advanced collimator optic lens designed to produce a homogenized, laser-like, 14° color-changing beam. High-speed and precise 16-bit continuous 360° pan and tilt rotation, strobe, selectable dimming curve effects, and individual pixel control make this a versatile moving-head effect luminaire.

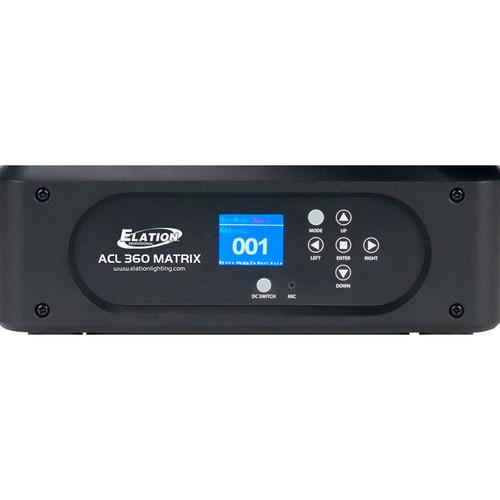

The ACL 360 incorporates a six-button control panel and a full-color 180°-reversible menu display. It features RJ45 as well as three & five-pin XLR connectors and supports RDM (Remote Device Management) and Art-Net protocols. Flicker-free operation makes the unit suitable for TV broadcast and film. Three DMX channel modes (16, 18, and 118 channels) enable you to control varying levels of features.

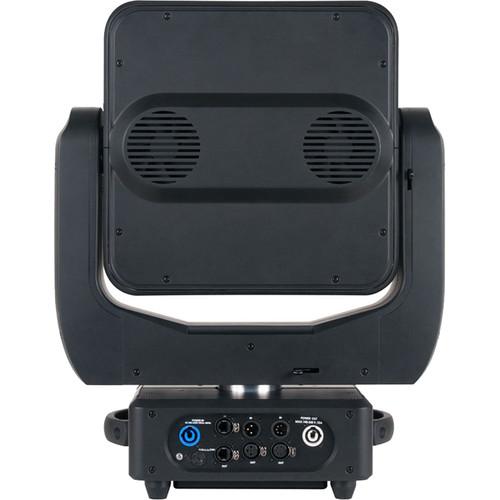

The fixture features a powerCON input and an internal auto-switching power supply. It is compatible with 100 - 240 VAC outlets and has a maximum power consumption of 425W. The ACL 360 can be mounted either upright or inverted (180°) using the included Omega brackets (clamps sold separately). - High-speed, precise 16-bit continuous 360° pan and tilt rotation
- Individual pixel control, strobe, and selectable dimming curves effects
- RDM (Remote Device Management) and Art-Net support
- Flicker-free operation for TV and film
- Full-color, 180°-reversible LCD menu display
In the Box Elation Professional ACL 360 Matrix Quad-LED Moving Head Effect Fixture 2 x Omega Brackets powerCON Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional ACL 360 Matrix Quad-LED Moving Head Effect Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional ACL 360 Matrix Specs | Lamp | 25 x 15 W, 4-in-1 LEDs | | Color | RGBW | | Average Lamp Life | 100,000 hr. | | Beam Angle | 14° | | Photometric Data | 14° Full On:
77,344 lux (7,185 fc) @ 3.3' (1m)
70,370 lux (6,537 fc) @ 6.6' (2m)
54,413 lux (5,055 fc) @ 9.8' (3m)
40,505 lux (3,763 fc) @ 13.1' (4m)
29,722 lux (2,761 fc) @ 16.4' (5m) | | DMX Connectors | 1 x 3-pin XLR male, DMX in
1 x 3-pin XLR female, DMX out
1 x 5-pin XLR male, DMX in
1 x 5-pin XLR female, DMX out
1 x Ethernet RJ45, Art-Net in
1 x Ethernet RJ45, Art-Net out | | DMX Channels | 16, 18, & 118-channel modes | | Movement Resolution | 8-bit
16-bit | | Effects | Individual pixel control
Strobe
Selectable dimming curves | | Pan & Tilt | 360° | | IP Rating | IP30 | | Power Connection Type | 1 x powerCON, power in
1 x powerCON, power out | | Operating Temperature | 5 to 113°F (-15 to 45°C) | | Power Supply | 100 - 240 VAC, 50 / 60 Hz, auto-switching | | Power Consumption | 425 W max. | | Rigging Points | Flat surface
Inverted (180°), clamps not included | | Approvals | CE | | Dimensions | 19.0 x 13.8 x 23.0" (481 x 350 x 583 mm) | | Weight | 42 lb (19 kg) |
