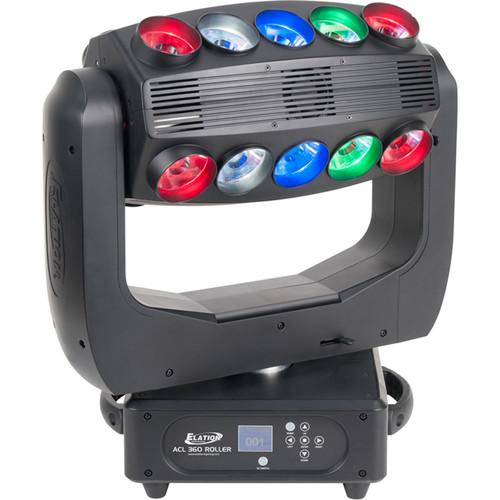

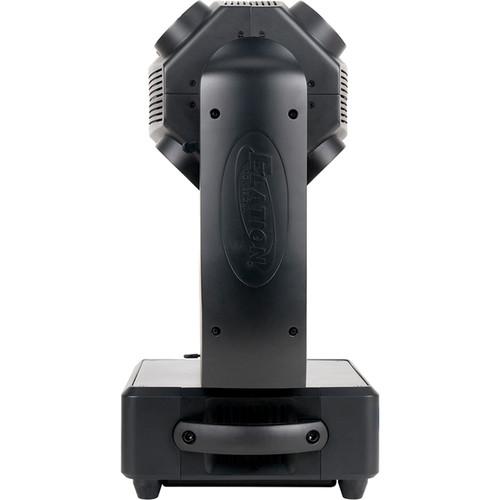

Product description The ACL 360 Roller from Elation Professional is a moving head effect luminaire with twenty 15W RGBW 4-in-1 LEDs positioned equally on four individual arrays attached together. It features an advanced collimator optic lens that produces a 4° laser-like homogenized color changing beam from each LED. When combined, the beams from the LEDs on each bar produce a 21° beam angle. The fixture features fast and precise16-bit continuous 360° pan and tilt motion, full individual pixel control, strobe, and selectable dimming curve effects.The ACL 360 Roller has three DMX channel modes (17, 19, and 95 channels) and supports RDM (Remote Device Management), Kling-NET, and Art-NET. Connections include both 3-pin and 5-pin XLR in/out for DMX, powerCON in/out for power linking, and RJ45 Ethernet in/out for Art-Net and Kling-Net. The fixture also has a six-button control panel and full-color 180°-reversible menu display. It is powered via a multi-voltage universal auto switching power supply (100-240 VAC) and consumes a maximum of 280W. It ships with Omega brackets and a powerCON cable. - Moving head effect luminaire
- Advanced collimator optic lens
- Twenty pixel-controlled 15W RGBW 4-in-1 LEDs
- 4° laser-like homogenized color changing beams
- Fast and precise 16-bit continuous 360° pan/tilt
- Strobe and selectable dimming curve effects
- XLR 3-pin and 5-pin for DMX inputs and outputs
- RDM, Kling-Net, and Art-Net (DMX over Ethernet)
- Flicker-free operation for broadcast TV and film
In the Box Elation Professional ACL 360 Roller - RGBW LED Moving Head Effect Fixture 2 x Omega Brackets PowerCON Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional ACL 360 Roller - RGBW LED Moving Head Effect Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional ACL 360 Roller Specs | Light Source | 20 x 15 W RGBW 4-in-1 LEDs (red, green, blue, white)
| | Life Expectancy | 100,000 hour average LED Life | | Beam and Field Angle | Beam: 4° per LED / 21° combined
Field: 26° | | Photometrics | At 3.3' (1 m)
Beam Diameter: 1.2' (0.37 m)
Field Diameter: 1.6' (0.48 m)
Illuminance (Full On): 3,496 fc (37,630 lux)At 9.8' (3 m)
Beam Diameter: 3.5' (1.08 m)
Field Diameter: 4.5' (1.36 m)
Illuminance (Full On): 1,044 fc (11,240 lux)
At 16.4' (5 m):
Beam Diameter: 5.9' (1.79 m)
Field Diameter: 7.3' (2.24 m)
Illuminance (Full On): 480 fc (5,172 lux) | | Pan/Tilt | Pan/Tilt: 360° continuous
Movement Resolution: 8-bit or 16-bit | | Effects | Individual pixel control

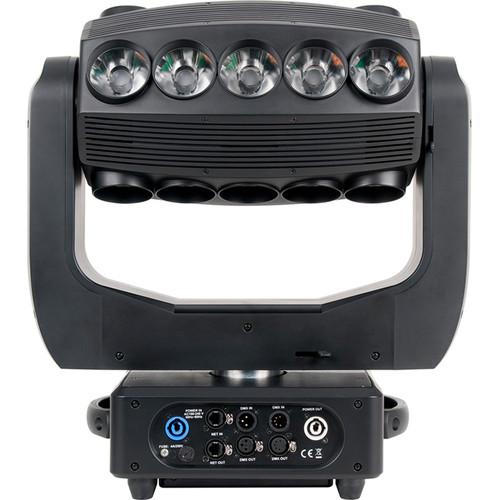

Electronic strobe and selectable dimming curves | | Protocols | DMX512, RDM, Art-Net, Kling-Net | | Connections | XLR 3-Pin DMX Input
XLR 3-Pin DMX Output
XLR 5-Pin DMX Input
XLR 5-Pin DMX Output
RJ45 Ethernet Input (Art-Net / Kling-Net)
RJ45 Ethernet Output (Art-Net / Kling-Net)
PowerCON Input
PowerCON Output | | DMX Channel Modes | 3 x Modes: 17, 19, 95 channels | | Display/Controls | 6-button touch control panel
Full-color 180°-reversible LCD menu display | | Input Voltage | 100 to 240 VAC, 50/60 Hz | | Maximum Power Consumption | 280 W | | Power Linking | 110 VAC: 4 x units maximum
240 VAC: 10 x units maximum | | Thermal | 5 to 113°F (-15 to 45°C) | | Fuse | 4 A, 250 V | | Approvals and Ratings | CE, IP30 | | Dimensions (L x W x H) | 18.9 x 10.2 x 21.3" (480.7 x 260.0 x 541.0 mm) | | Weight | 44.0 lb (20.0 kg) |
