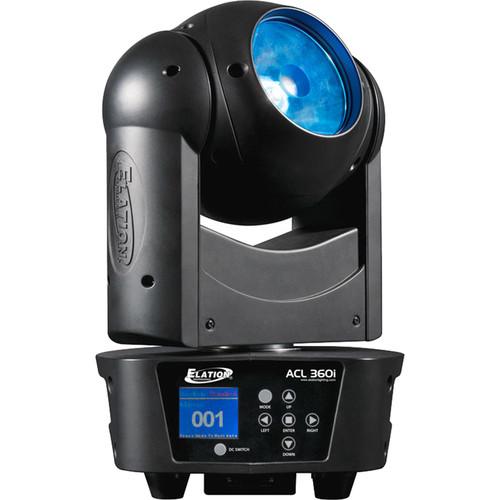

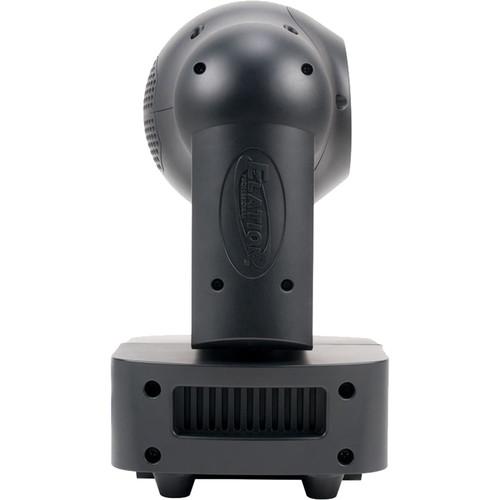

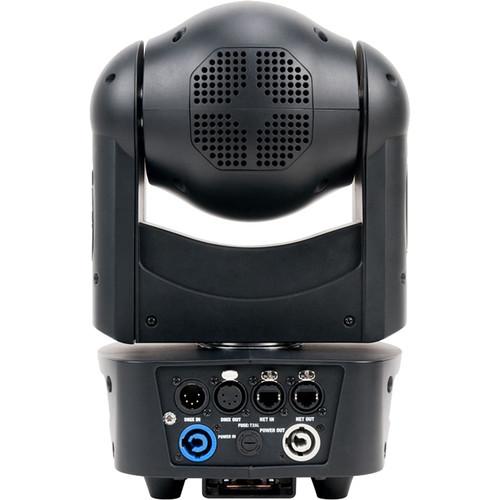

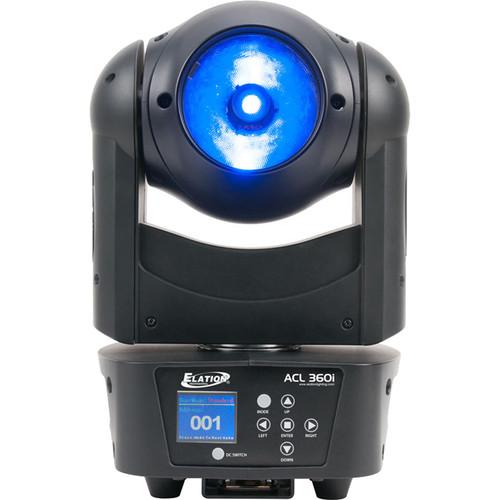

Product description The ACL 360i from Elation Professional is a single-beam moving effect luminaire powered by one 60W RGBW 4-in-1 LED. It features a laser-like homogenized 4° color-changing beam, 16-bit 360° continuous pan and tilt rotation, selectable dimming curve effects, and 10° and 45° frost lens options. The ACL 360's 5-pin XLR and RJ45 Ethernet input and output connectors allow for communication via DMX, RDM (Remote Device Management), Kling-Net, or Art-Net protocols. PowerCON connectors facilitate power linking of up to 15 units at 110 VAC and 31 units at 240 VAC. The 6-button full-color 180° reversible menu display provides easy access to the device's settings. A powerCON cable and Omega bracket are included with the fixture. -
- 16-bit continuous pan and tilt rotation
- Strobe and selectable dimming curve effects
- Supports RDM, Kling-Net, and Art-Net (DMX Over Ethernet) protocol
- Flicker-free operation for broadcast TV and film

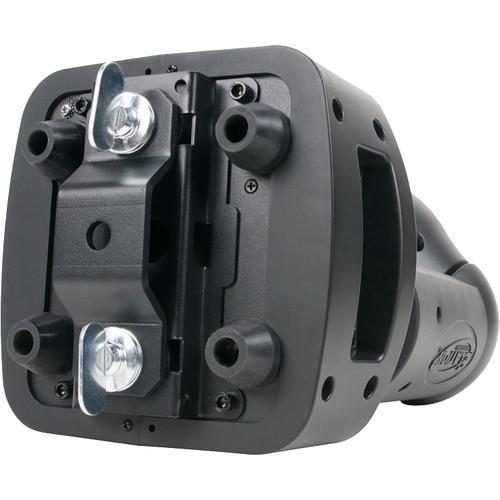

UPC: 837874019247 In the Box Elation Professional ACL 360i RGBW Single-Beam Moving Head 10° Frost Lens 45° Frost Lens Omega Bracket powerCON Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional ACL 360i RGBW Single-Beam Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional ACL 360i Specs | Light Source | 1 x 60 W RGBW LED | | Life Expectancy | 100,000 hours | | Beam Angle | 4° | | Field Angle | 10° | | Illuminance | 4° Beam (FULL ON):
30,601 lux / 2,843 fc @ 6.6' (2 m)
12,955 lux / 1,204 fc @ 9.8' (3 m)
7,687 lux / 714 fc @ 13.1' (4 m)
5,112 lux / 475 fc @ 16.4' (5 m) | | Effects | Strobe, Color Macros, Color Presets, Dimmer Curves | | Protocols | RDM (Remote Device Management) | | DMX Channel Modes | (16/18/20) (17/15) | | Control Panel | 6-button touch control panel | | Menu Display | Full color 180° reversible LCD menu display | | Movement Resolution | 8-bit / 16-bit | | Operating Position | Any (360°) | | DMX Connectors | Input: XLR 5-pin
Output: XLR 5-pin | | RJ45 Connector | Input: RJ45 Ethernet
Output: RJ45 Ethernet | | Approvals | CE | | Ratings | IP30 | | Power Connectors | Input: powerCON
Output: powerCON | | Power Supply | 100 to 240 VAC; 50/60 Hz | | Power Linking | 110 VAC: 15 units maximum
240 VAC: 31 units maximum | | Power Consumption | 110 W maximum | | Temperature | 5 to 113°F (-15 to 45°C) | | Dimensions | 8.7 x 7.3 x 13.0" (22.2 x 18.6 x 33.0 cm) | | Weight | 12 lb (5.2 kg) | | | | Package Weight | 16.975 lb | | Box Dimensions (LxWxH) | 15.5 x 15.2 x 9.6" |
