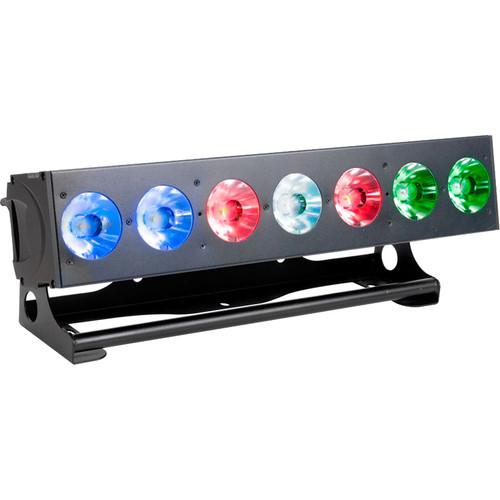

User Manual for Elation Professional ACL BAR Quad-LED Fixture Click to enlarge the picture
Contents of the user manual for the Elation Professional ACL BAR Quad-LED Fixture
- Product category: Stage & Studio Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional Stage & Studio
|
User manual for the Elation Professional ACL BAR Quad-LED Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The ACL BAR from Elation Professional is an RGBW quad-LED light-bar fixture which features seven individual 15W four-in-one LEDs. Each RGBW LED is equipped with an advanced collimator optic lens designed to produce a homogenized laser-like 4° color-changing beam. Strobe, selectable dimming curve effects, and individual pixel control make this a versatile bar luminaire.
The ACL BAR incorporates a four-button control panel and a full-color 180°-reversible LCD menu display. It features RJ45 ports as well as three- & five-pin XLR connectors, and supports DMX512, RDM (Remote Device Management), Art-Net, and Kling-Net protocols. Flicker-free operation makes the unit suitable for TV and film broadcast. Ten DMX channel modes (1CH:04, 2CH:04, 6, 8, 10, 12, 27, 30, 32, and 35 channels) enable you to control varying levels of features. The first two channel modes indicate that there are two different four-channel modes.
The fixture features a powerCON input and an internal auto-switching power supply. It is compatible with 100-240 VAC outlets and has a maximum power consumption of 135W. The ACL Bar can be mounted in any position using mounting clamps (sold separately) and ships with a glare shield and frost filter. - Advanced collimator lenses
- Strobe, selectable dimming curves effects, and individual pixel control
- Supports DMX512, RDM (Remote Device Management), Art-Net, and Kling-Net protocols
- Flicker-free operation for TV and film
- Four-button control panel
- Full-color, 180°-reversible LCD menu display
- Glare shield and frost filter included
In the Box Elation Professional ACL BAR Quad-LED Fixture Frost Filter Glare Shield PowerCON Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional ACL BAR Quad-LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Bar Specs | LEDs | 7 x 15 W 4-in-1 (RGBW) LEDs (red, green, blue, white) | | LED Life Expectancy | Average: 100,000 hours | | Beam Angle | Individual LED: 4°
Bar: 31° | | Field Angle | 33° | | Photometric Data | 31° (Full On):
43,380 lux (4,030 fc) @ 3.3' (1 m)
19,330 lux (1,796 fc) @ 6.6' (2 m)
12,180 lux (1,132 fc) @ 9.8' (3 m)
8,575 lux (797 fc) @ 13.1' (4 m)
6,247 lux (580 fc) @ 16.4' (5 m) | | DMX Connectors | 1 x 3-pin XLR male, DMX in
1 x 3-pin XLR female, DMX out
1 x 5-pin XLR male, DMX in
1 x 5-pin XLR female, DMX out
1 x Ethernet RJ45, Art-Net/Kling-Net in
1 x Ethernet RJ45, Art-Net/Kling-Net out | | DMX Channel Modes | 10 x Modes: 1CH:04*, 2CH:04*, 4, 5, 8, 9, 11, 28, 29, 31, & 35 channels
*Two types of four-channel modes | | Protocols | DMX512, Art-Net, Kling-Net, and RDM (Remote Device Management) | | Display/Controls | Full-color, 180°-reversible LCD menu with four-button control panel | | Effects | Individual pixel control
Strobe
Selectable dimming curves | | Power Connection Type | 1 x powerCON, power in
1 x powerCON, power out | | Power Supply | 100-240 VAC, 50 / 60 Hz, auto-switching | | Power Consumption | 135 W max. | | IP Rating | IP30 | | Rigging | Clamps (not included) | | Operating Temperature | 5 to 113°F (-15 to 45°C) | | Working Position | Any (360°) | | Approvals | CE | | Dimensions | 21.6 x 9.5 x 6.8" (550.0 x 241.2 x 172.5 mm) | | Weight | 15 lb (6.8 kg) |
