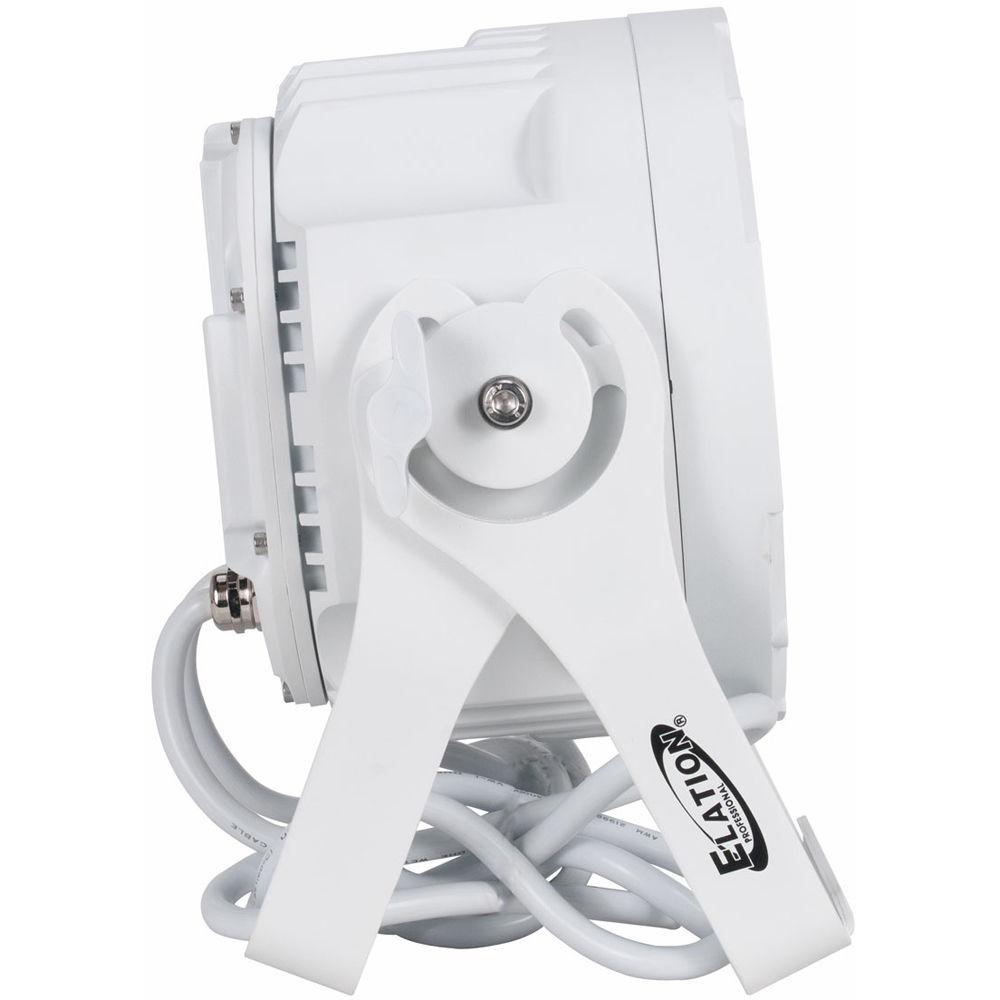

Product description The IP65 rated Elation Professional ACL PAR 200 IPWH is a versatile outdoor PAR luminaire with a specially added white, marine-grade exterior coating and hardwired (bare-wire) IP-rated power/data combo in/out cables attached, making it well suited for permanent marine/coastal environment installations.

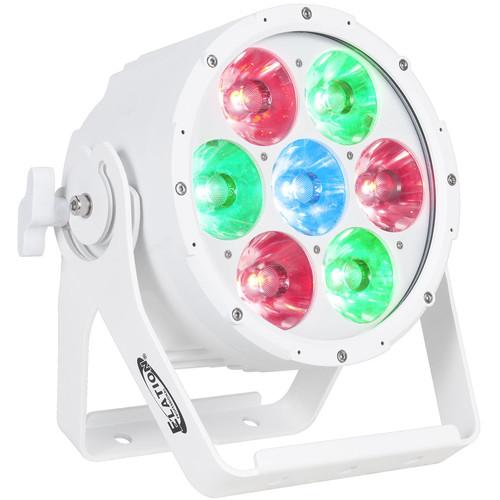

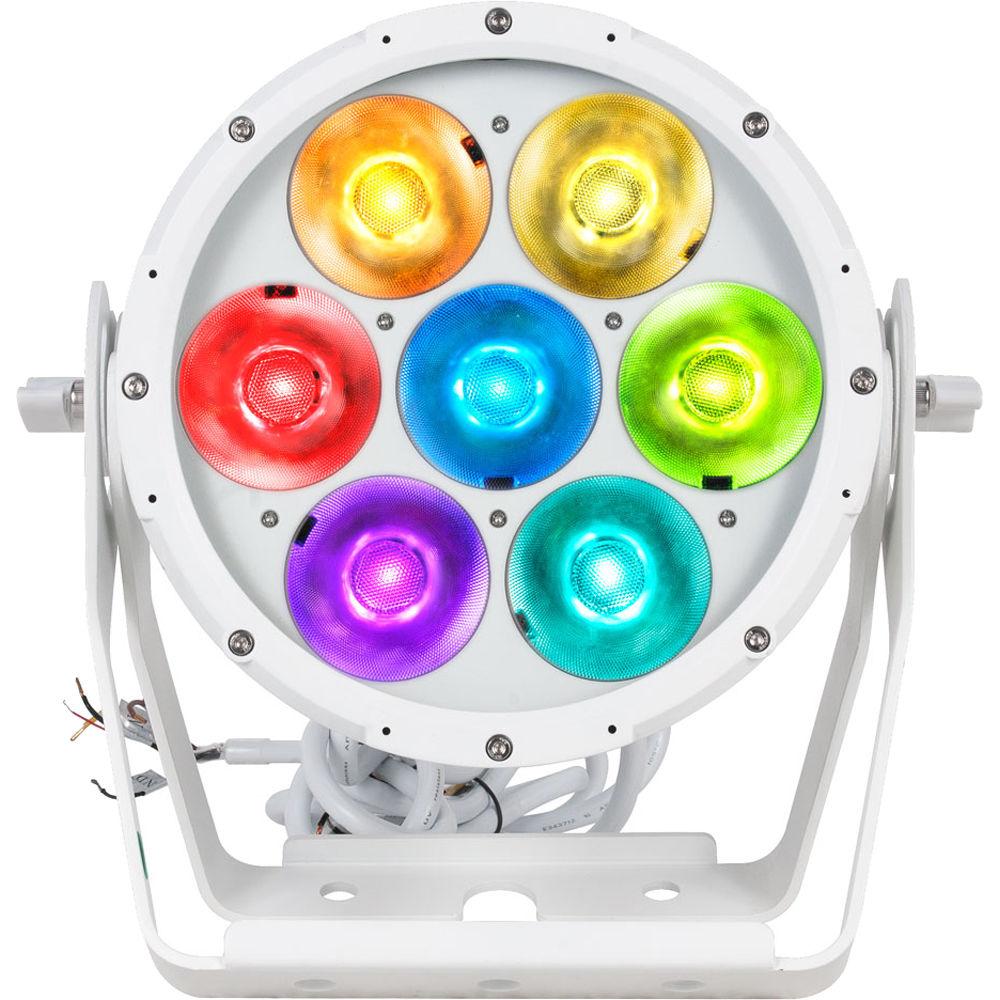

The fixture utilizes seven individual 15W RGBW 4-in-1 LEDs with advanced collimator optic lenses, which produce a laser-like homogenized 4° color-changing beam from each lens and combine to produce an overall 11° beam angle. Additional features include full individual pixel control, strobe, selectable dimming curve effects, four touch control pads, and an LCD menu display. The ACL PAR 200 IPWH can be controlled via DMX or RDM (Remote Device Management) support, while the multi-voltage universal auto-switching power supply (100-240v) offers a maximum power consumption of 110W. -
- IP65 outdoor-rated par luminaire
- Special white marine-grade exterior coating
- Hardwired (bare-wire) IP-rated power/data combo in/out cables attached
- Advanced collimator lens
- Seven pixel-controlled RGBW 4-in1 LEDs
- Laser-like homogenized 4° color-changing beams
- Strobe and selectable dimming curves
- Flicker-free operation for broadcast TV and Film
UPC: 837874007541 In the Box Elation Professional ACL Par 200 IPWH (RGBW, Marine-Grade White Coating) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional ACL Par 200 IPWH in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional ACL Par 200 IPWH Specs | Source | 7 RGBW 4-in-1 LEDs, 15 W
Lamp Life: 100,000 Hours | | Effects | Individual Pixel Control
Strobe and Selectable Dimming Curves | | Color | Red, Green, Blue, White | | Control and Connectors | DMX Channel Modes: 11 (4[1], 4[2], 6, 8, 10, 12, 27, 28, 30, 32 or 35 channels)
RDM (Remote Device Management)
4 Touch Control Pads
LCD Menu Display

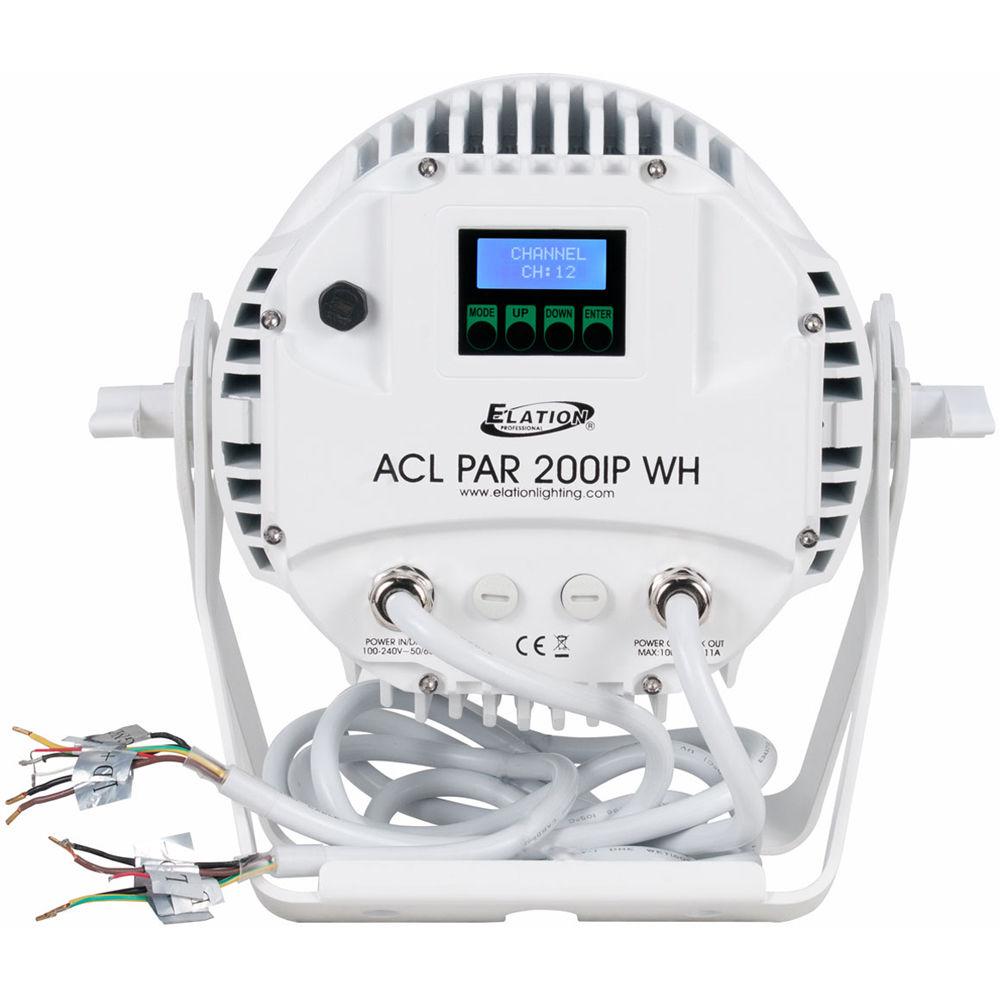

Hardwired (Bare-Wire) IP-Rated Power/Data Combo In/Out Cables Attached
With Wired Digital Communication Network | | Protocols | DMX, RDM | | Power | 100 to 240 VAC, 50/60 Hz
Power Consumption: 110W Max
Power Linking:
110 V: 9 Units
240 V: 21 Units | | Operating Temperature | -15 to 45°C (5 to 113°F) | | IP Rating | IP65 | | Rating | CE | | Dimensions (L x W x H) | 12.3 x 6.9 x 11.8" / 31.3 x 17.4 x 30 cm | | Weight | 14 lb / 6.4 kg |
