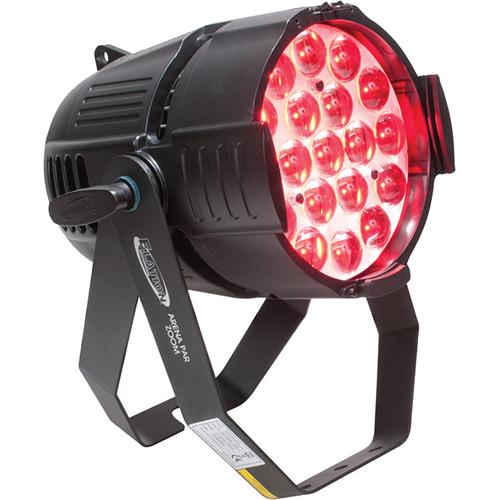

Product description The Arena Par Zoom from Elation Professional is a lighting effect fixture. It features 19 OSRAM QUAD color LEDs, rated at 10W each. The Arena Par Zoom has a 10° to 60° motorized zoom, and selectable dimming curves and color temperature. The Arena Par Zoom also features strobe and variable strobe macros, 3 DMX channel modes, and a 4-button control panel with an LCD menu display. This fixture can be used either as a Master/Slave unit or as a standalone unit. You can power-link up to 4 Arena Par Zoom fixtures at 120V, or up to 8 fixtures at 230V. The Arena Par Zoom features a yoke assembly which can be used either as a floor stand bracket or to secure a mounting clamp for truss mounting. The control data input is made via 3-pin and 5-pin DMX connectors. This unit includes a power cable. - 1000W Comparable lumens output
- Selectable dimming curves and color temperature
- Strobe and Variable Strobe macros
- 4 Button control panel and LCD menu display
- Integrated dual rigging yoke
- Flicker free operation for TV and film
UPC: 837874017021 In the Box Elation Professional Arena Par Zoom Power Cable Limited 2-Year Warranty User Manual PDF 2.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Arena Par Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Arena PAR ZOOM Specs | Lamp | 19 x 10 W OSRAM QUAD LEDs | | Lamp Life | Approximately 50,000 hours | | Motorized Zoom | 10° to 60° | | Photometric Data | 12,600 lux @ 9.8' (3 m), 10° minimum zoom
900 lux @ 9.8' (3 m), 60° maximum zoom | | Color | Red, green, blue, and white | | Color Temperature | Selectable 3200 - 7200 K | | Dimmer | 0-100% | | Connectors | 1 x 3-pin XLR, DMX input
1 x 3-pin XLR, DMX output
1 x 5-pin XLR, DMX input
1 x 5-pin XLR, DMX output
1 x PowerCON, power input
1 x PowerCON, power output | | Controls and Indicators | 1 x Mode button
1 x Up button
1 x Down button
1 x Enter button
1 x LCD menu display
1 x Power indicator, red
1 x DMX indicator, green | | DMX Channels | 5, 6, or 10 | | Approvals | CE approved, IP20 rated | | Rigging Points | Dual yoke
Hole Diameter: 0.47" (1.2 cm)
Working Position: Any (360°) | | Operating Temperature | -4 to 104°F (-20 to 40°C) | | Power | 100-240 VAC, 50/60 Hz | | Maximum Power Consumption | 220 W | | Dimensions (L x W x H) | 12.8 x 10.9 x 14.5" (32.4 x 27.6 x 36.8 cm) | | Weight | 15.9 lb (7.2 kg) | | | | Package Weight | 19.7 lb | | Box Dimensions (LxWxH) | 19.0 x 14.2 x 14.0" |
