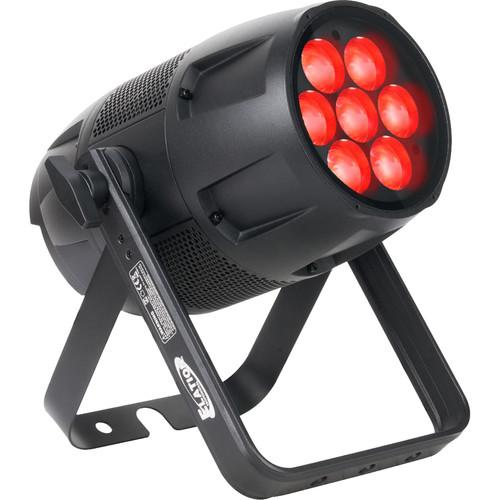

User Manual for Elation Professional Arena Zoom Q7IP Click to enlarge the picture
Contents of the user manual for the Elation Professional Arena Zoom Q7IP
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
|
User manual for the Elation Professional Arena Zoom Q7IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The Elation Professional Arena Zoom Q7IP is a professional par fixture with an IP65 outdoor rating, well suited for special events and concerts as well as TV and film production. The fixture features seven 30W Osram quad-color (RGBW) LEDs, smooth color mixing, 7° to 40° motorized zoom, and 38 color macros and variable speed macro effects. The fixture also offers selectable dimming curve effects, RGB-white balance calibration, variable 3200-10,000K color temperatures, adjustable LED refresh rate, and gamma brightness, for flicker free operation for TV and film. The Q7IP can be controlled by DMX and remote device management (RDM) protocol support.
The rear panel includes IP rated 5-pin DMX input and output, as well as powerCON TRUE1 power input and output. A four-button 180° reversible OLED menu control display allows for fast and easy programming, while the integrated dual rigging yoke/floor stand allows the unit to be implemented in a variety of configurations. The durable die-cast house can withstand the rigors of on-the-road wear and tear. The universal power supply features auto switching (100 to 240V) for use anywhere in the world. The Elation Professional Arena Zoom Q7IP can power link multiple fixtures and ships with a powerCON TRUE1 cord. -
- IP65 outdoor-rated par wash luminaire
- 7 x 30W Osram quad-color RGBW LEDs
- Motorized Zoom: 7° to 40°
- 38 color macros and variable speed macro effects
- Variable 3,200-10,000K color temperatures
- Selectable dimming curve effects
- Adjustable LED refresh rate and gamma brightness
- Dual rigging yoke / floor stand
- Durable die-cast housing
UPC: 837874004861 In the Box Elation Professional Arena Zoom Q7IP powerCON TRUE 1 Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Arena Zoom Q7IP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Arena Zoom Q7IP Specs | Light Source | 7 x 30 W Osram quad-color RGBW LEDs | | LED Life Expectancy | 30,000 hour average LED life | | Motorized Zoom | 7° to 40° | | Macros | 38 color macros and variable speed macro effects | | Color Temperature | Variable 3200 to 10,000K | | Dimming | Selectable dimming curve effects | | Color | Red, green, blue, white (RGBW) | | Control and Connectors | 3 DMX Channel Modes: 3 modes (3, 6, 8 channels)
Multiple DMX Channel Modes: 5 modes (12 total channels)
Adjustable Refresh Rate: 600 to 28,800 Hz
Adjustable Gamma Brightness: 2.0, 2.2, 2.4, 2.8
OLED Menu Control Display: 4 buttons, 180° reversible
DMX and RDM protocol support
IP rated 5-pin DMX in/out
powerCON TRUE1Power in/out | | Electrical and Environmental | Power Input: 100 to 240 VAC, 50/60 Hz
Max Power Consumption: 250 W
14 to 113°F / -10 to 45°C
| | Approvals and Ratings | CE / IP65 | | Dimensions (L x W x H) | 12.4 x 9.6 x 7.8" / 315.0 x 243.8 x 198.1 mm | | Weight | 19.0 lb / 8.6 kg |
