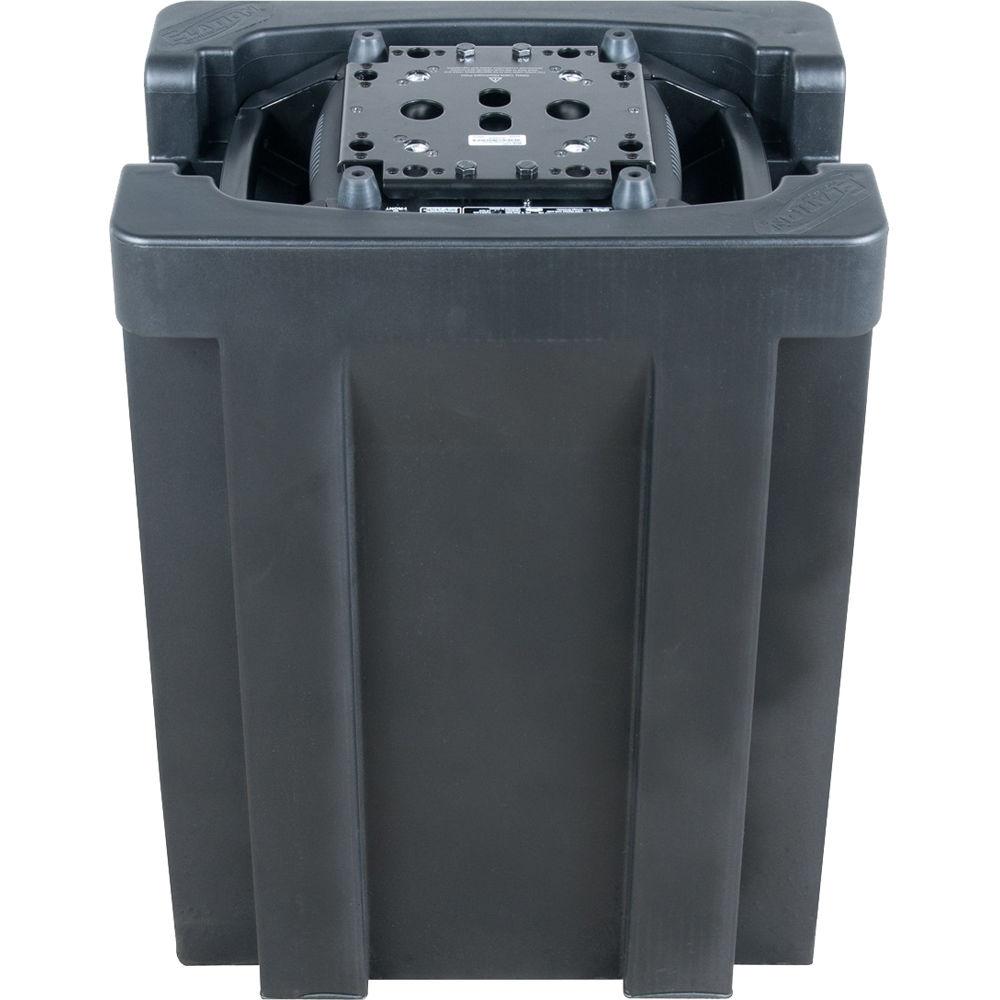

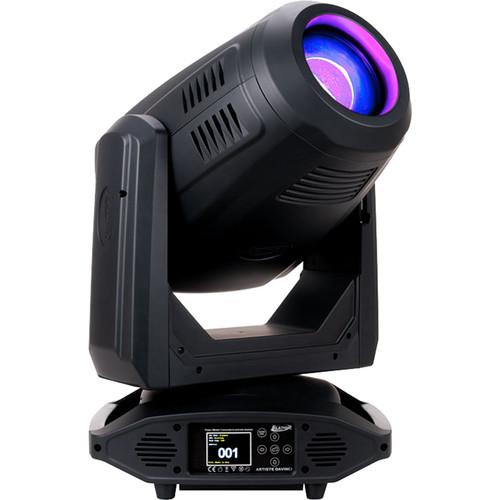

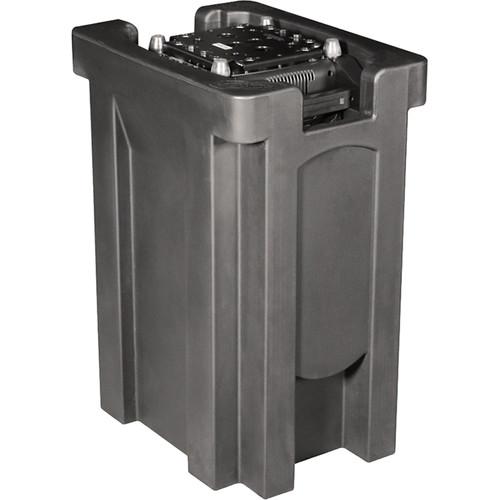

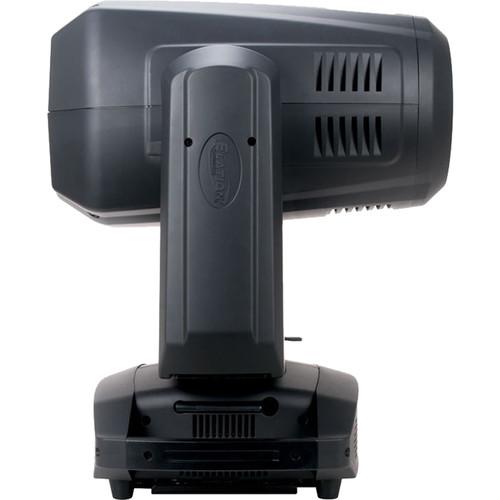

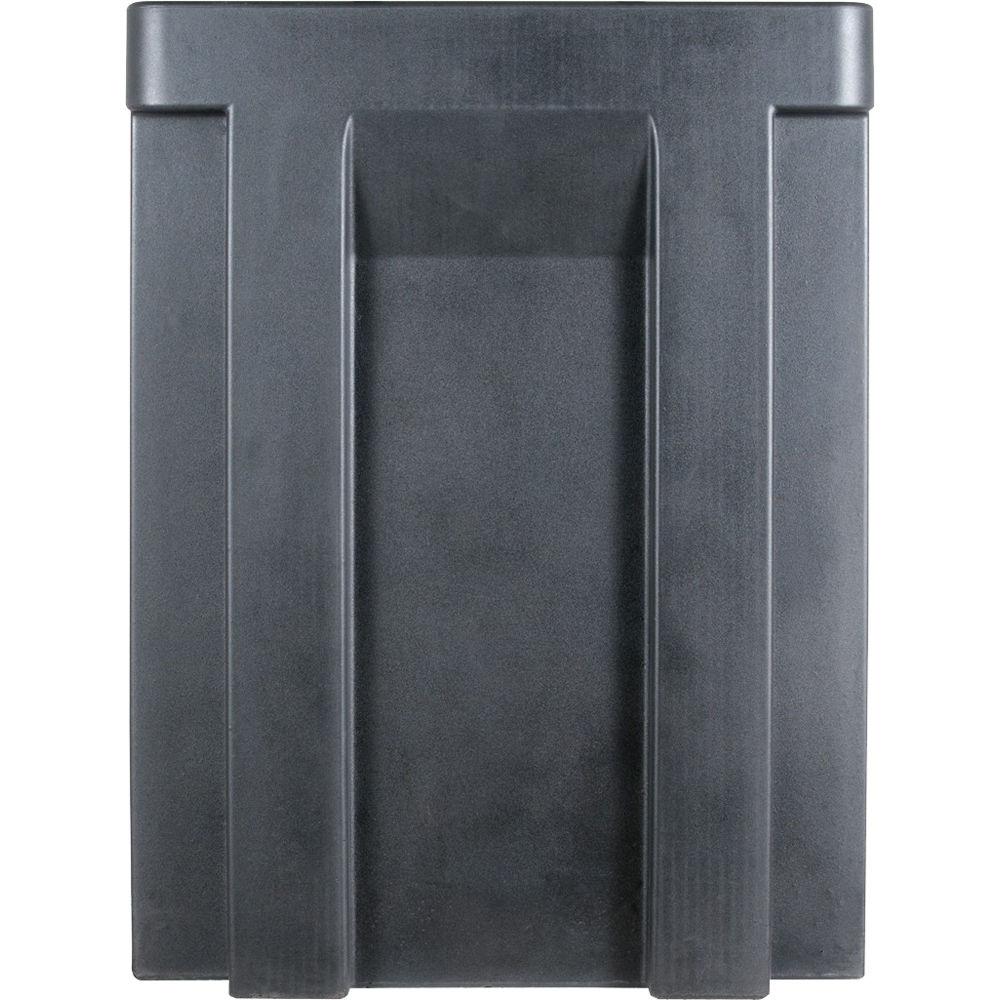

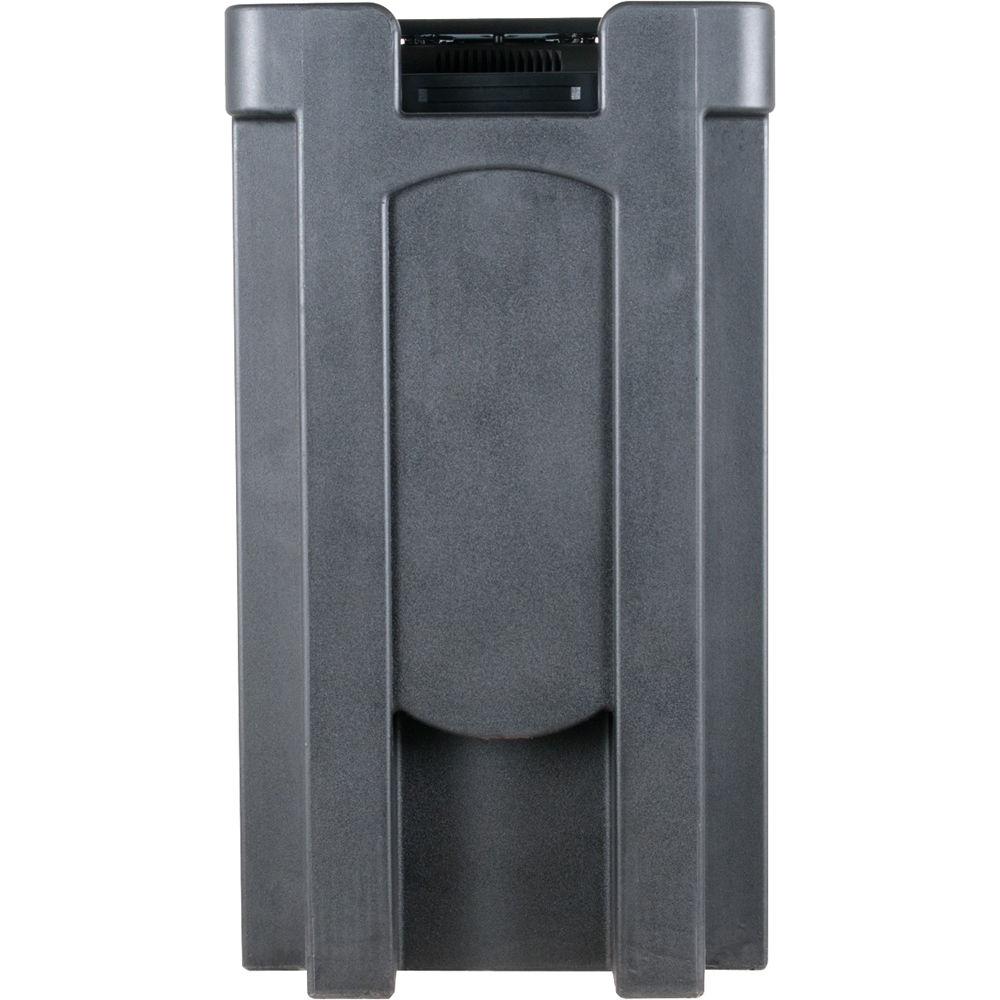

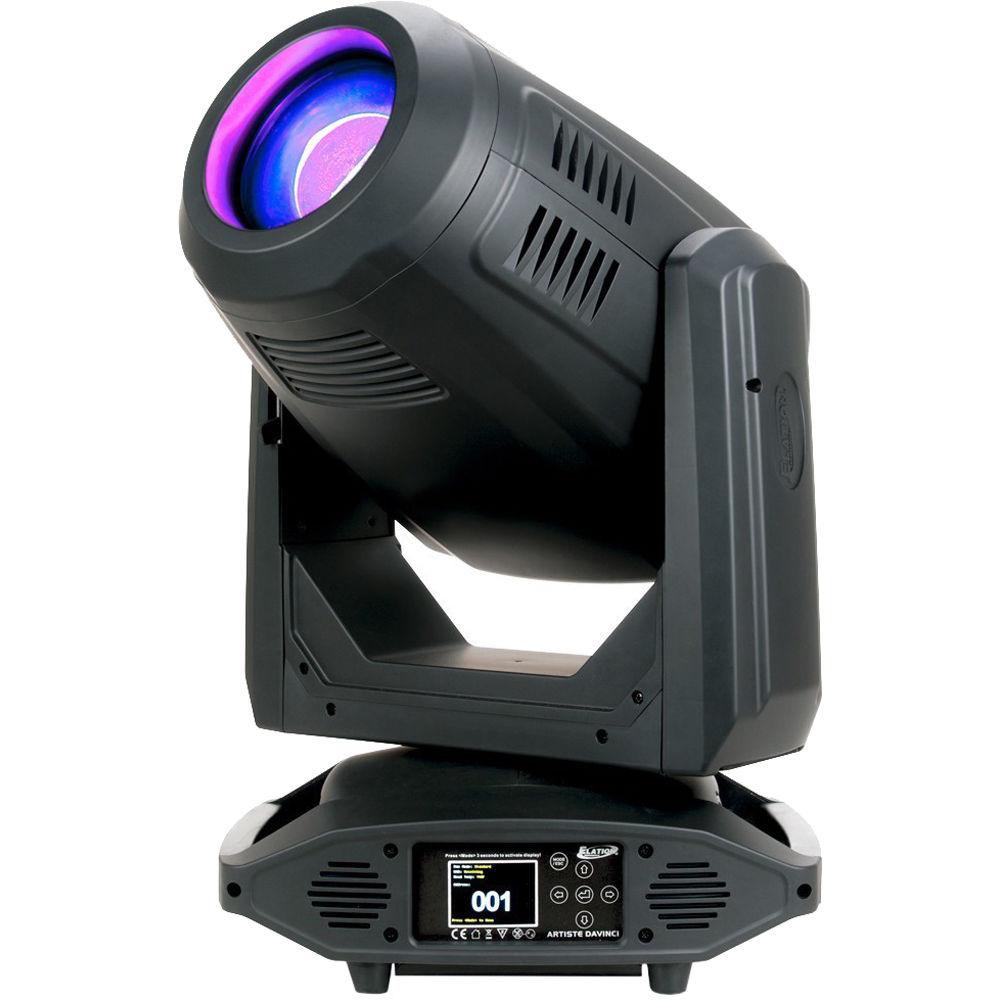

Product description The black Elation Professional Artiste DaVinci FIL is a professional moving head LED fixture well suited for special events and concerts, as well as TV and film production. The Artiste DaVinci FIL fixture ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam Inlay) insert. This foam insert easily fits into any optional custom-sized flight case and provides enhanced impact protection during transport.
The fixture features a 270W cool-white LED engine with advanced optics delivering over 12,000 total lumens. The unit's color wheel has 7 dichroic colors including CTB and violet, and its gobo wheel has 6 rotating and 9 static stamped metal interchangeable glass gobos. Additionally, the instrument features 3-facet and linear rotating prisms, a frost filter, full 360° bidirectional animation wheel, motorized iris, focus and autofocus, and variable dimming curve modes.

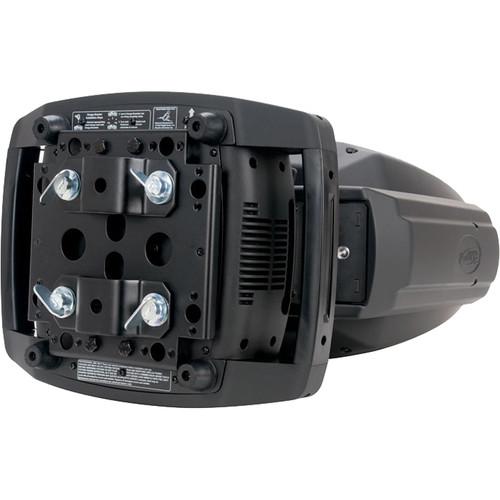

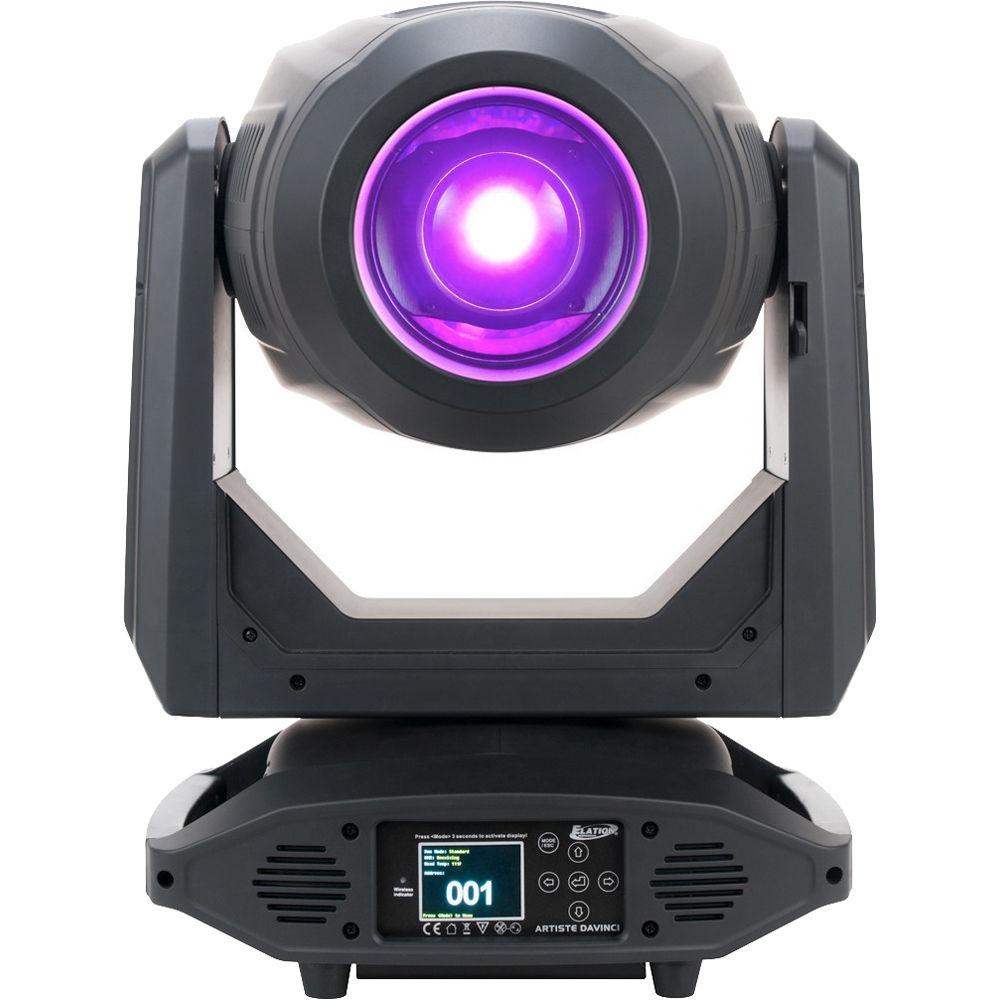

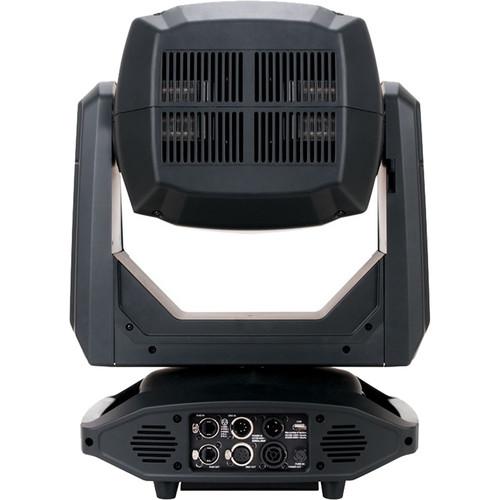

The Artiste DaVinci FIL can be controlled by DMX, remote device management (RDM), Art-NET, and sACN protocol support. The rear panel offers a variety of input and output connections including 5-pin DIN, RJ45 etherCON, powerCON TRUE1, as well as Elation's E-FLY internal wireless DMX transceiver. There is a 6-button control panel and full color 180° reversible menu display. The Elation Professional Artiste DaVinci FIL ships with mounting bracket and a power cord. -
- 270W cool-white 12,000 lumen LED spot luminaire
- FIL Insert: Includes custom-fitted polyurethane foam (foam inlay) insert
- Insert easily fits into any optional custom-sized flight case (not included)
- Provides enhanced impact protection during transport
- Motorized zoom: 6° to 48°
- Full CMY color mixing and linear CTO color correction
- Dichroic colors: 7 including CTB and Violet
- Gobos: 6 rotating and 9 static stamped (interchangeable)
- 3-facet and linear rotating prisms and frost filter
- Full 360° bidirectional animation wheel
- High-speed electronic shutter and strobe
- Motorized iris, focus, and autofocus
- Variable dimming curve modes
- DMX, RDM, Art-NET, and sACN protocol support
- Elation's E-FLY internal wireless DMX transceiver
- Low heat, quiet operation, hibernation mode
- Adjustable LED refresh rate frequency and gamma
- Flicker-free operation for broadcast TV and film
UPC: 837874008395 In the Box Elation Professional Artiste DaVinci FIL Moving Head Fixture (Black) Mounting Brackets FIL Insert (Foam Inlay) powerCON TRUE1 Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Artiste DaVinci FIL Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Artiste DaVinci FIL Specs | Light Source | 270 W Cool-White LED
Average LED Life: 50,000 Hours | | Photometric Data | Measurement at 16.4' / 5.0 m (full on)
6° Zoom (Min): 23,560 Lux 2189 FC
48° Zoom (Max): 1049 Lux 97 FC | | Effects | Zoom from 6° to 48°
3-Facet and Linear Rotating Prisms and Prism Macros
Full 360° Bidirectional Rotating Animation Wheel
Frost Filter Hybrid Wash Effect
Motorized Zoom, Iris, Focus, and Autofocus
High-Speed Electronic Shutter and Strobe
Variable 16-Bit Dimming Curve Modes
Adjustable LED Refresh Rate Frequency and Gamma Brightness | | Color | 7 Dichroic Colors + CTB
Full CMY Color Mixing
Linear CTO Color Correction | | Gobos | 2 Gobo Wheels
6 Interchangeable Rotating / Indexing Gobos
9 Interchangeable Static Stamped Metal Gobos | | Control and Connectors | DMX Channel Modes: 3 (40 Total Channels)
RDM (Remote Device Management)
Touch Control Panel: 6 buttons
LCD Menu Display: Full Color 180° Reversible
Adjustable Movement: 8-/16-Bit Resolution
Elation's E-FLY Internal Wireless DMX Transceiver
DMX In/Out: 2 x 5-Pin DIN Connectors
etherCON In/Out: RJ45 (Art-NET, sACN)
Power In/Out: powerCON TRUE1 | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Maximum 470 W | | Operating Temperature | 14 to 113°F / -10 to 45°C | | Approvals | CE | | Ratings | IP20 | | Dimensions (L x W x H) | 16.4 x 11.2 x 25.4" / 41.6 x 28.4 x 64.5 cm | | Weight | 56.0 lb / 25.4 kg |
