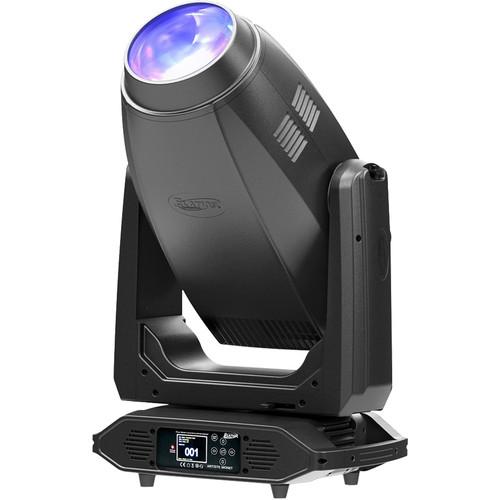

User Manual for Elation Professional Artiste Monet - Moving Head LED Fixture Click to enlarge the picture
Contents of the user manual for the Elation Professional Artiste Monet - Moving
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
|
User manual for the Elation Professional Artiste Monet - Moving contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The black Elation Professional Artiste Monet is an extremely bright fully featured LED profile fixture offering remarkable projection quality and a wide color mixing array through its variable SpectraColor engine, well-suited for special events and concerts as well as TV and film production. The fixture features a 950W bright-white LED engine with advanced optics delivering over 45,000 total lumens. The unit's color wheel has six dichroic colors including a High CRI Filter and UV. The dual gobo wheels offer seven rotating/indexing interchangeable glass gobos and seven interchangeable static glass gobos.
Additionally, the instrument features a motorized zoom with variable dispersion from 6 to 50°, four rotating full blackout framing blades, a 360° bidirectional animation wheel, and a four-facet linear rotating prism. Additionally, the Monet includes two variable frost filters (light and wash), a motorized iris with variable pulse effects, and an assortment of macros for internal color, framing, prism, and frost. What's more, the fixture provides variable 16-bit dimming curve modes, high-speed electronic shutter & strobe, and an adjustable LED refresh rate and gamma brightness for flicker-free operation for TV and film.
The Artiste Monet can be controlled by DMX, remote device management (RDM), Art-NET, and sACN protocol support. The rear panel offers a variety of input and output connections including 5-pin DIN, RJ45 etherCON, and powerCON TRUE1. There is a 6-button control panel and full color 180° reversible menu display. The Elation Professional Artiste Monet ships with mounting brackets and a power cord. -
- High efficiency 950W 6000K white LED Engine
- Up to 45,000 total lumen fixture output
- SpectraColor CMYRGB array and variable linear CTO
- Six-position color wheel, high CRI, UV filter
- Complete FX system featuring rotating and fixed gobos, animation, iris, dual prism, dual frost
- Full blackout framing system with 360° continuous index and rotation of shapes
- Wide zoom range from 6 to 50° / large 160mm front aperture
In the Box Elation Professional Artiste Monet - Moving Head LED Fixture (Black) Set of Mounting Brackets powerCON TRUE1 Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Artiste Monet - Moving Head LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Artiste Monet Specs | Light Source | LED Engine: 950 W 6000K Bright White
Average LED Life: 30,000 hours | | Photometric Data | Total Output Lumen: 45,000
CRI 70+ (82+ with HCRI filter) | | Effects | Motorized Zoom: 6 to 50° (large 6.3" / 160.0 mm front lens)
4 x rotating full blackout framing blade
360° continuous framing index and rotation
Full 360° bidirectional animation wheel
4-facet and linear rotating prisms
2 x variable frost filter (light and wash)
Internal color, framing, prism, and frost macros
Motorized iris with variable pulse effects
Variable 16-bit dimming curve modes
High-speed electronic shutter and strobe
Adjustable LED refresh rate and gamma brightness | | Color | SpectraColor CMY + RGB Color Mixing Array
6 x Dichroic Color Including High CRI Filter and UV
Linear CTO Color Correction | | Gobos | 2 x Gobo Wheel
7 x Rotating / Indexing Interchangeable Glass Gobo
7 x Interchangeable Static Glass Gobo | | Control and Connectors | DMX Channel Modes: 2
Pan, Tilt, and Dimming Control: 16-Bit
Presets: Motorized Focus and Auto-Focus
DMX, RDM, Art-NET, sACN Protocol Support
Control Panel: Six-Button Touch
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (power save)
5-pin XLR DMX In/Out
RJ45 etherCON In/Out
Power In/Out: powerCON TRUE1
USB Connection (Firmware Ipdates)
With Wired Digital Communication Network | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Maximum 1300 W | | Approvals | CE, cETLus | | Ratings | IP20 | | Dimensions (L x W x H) | 18.5 x 11.1 x 31.5" / 471.0 x 281.0 x 799.0 mm | | Weight | 94.7 lb / 43.0 kg |
