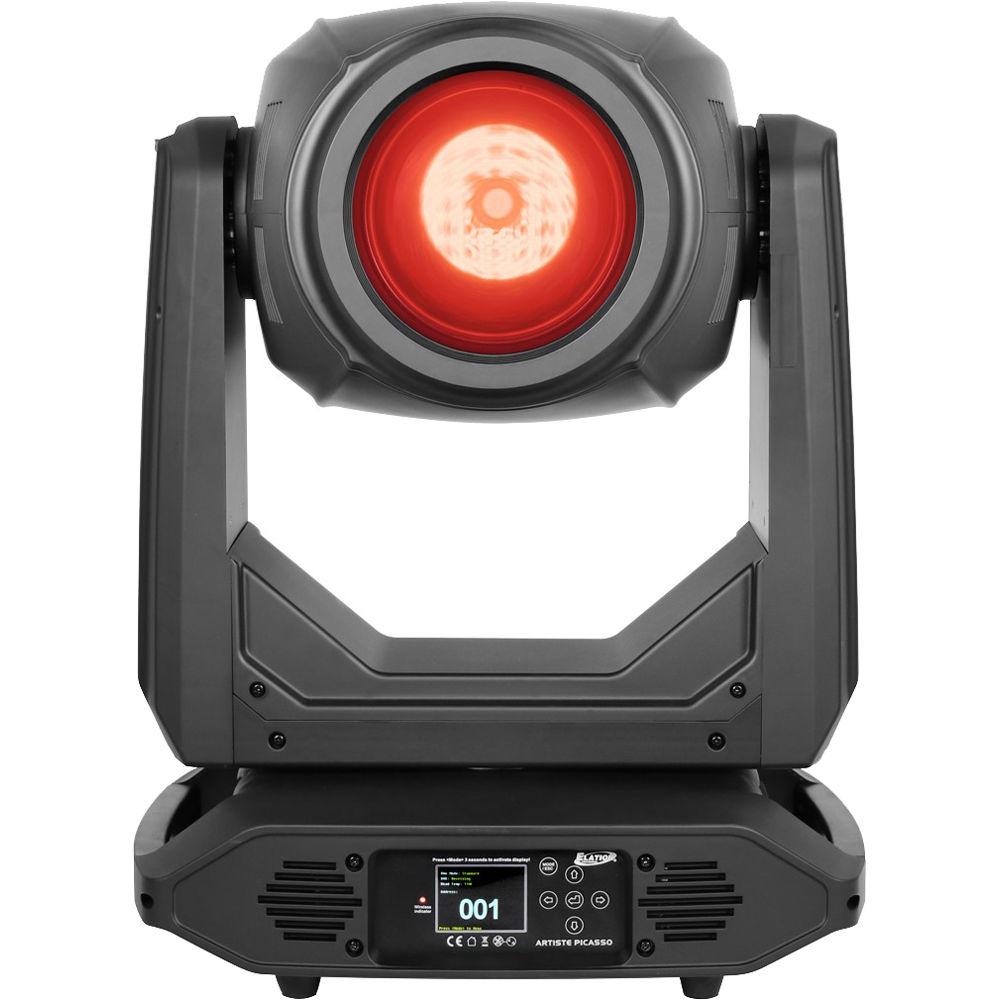

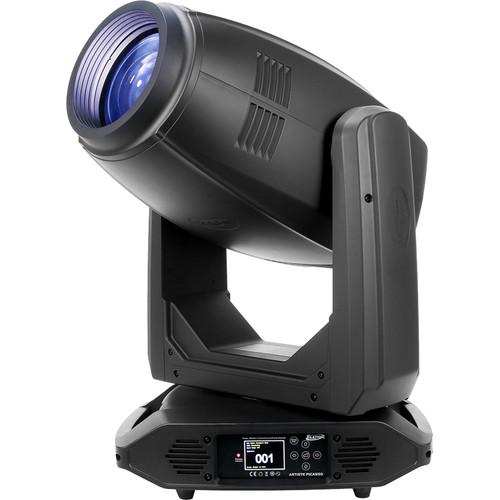

Product description The black Elation Professional Artiste Picasso is a full-featured, professional, theatrical-grade moving head LED fixture, well-suited for special events and concerts, as well as for TV and film production. The fixture features a 620W cool-white LED engine with advanced optics delivering over 20,000 total lumens. The unit's color wheel has 6 dichroic colors including a High 87 CRI filter, and its gobo wheel has 7 rotating/indexing glass gobos that are interchangeable, and 7 interchangeable, static-stamped metal gobos.
Additionally, the instrument features a 4-blade framing beam shaping system with ±45° individual blade rotation, full 360° bidirectional animation wheel, 4-facet and linear rotating prisms, two frost filters, internal color, framing, prism, and frost macros, motorized iris with variable pulse effects, motorized focus and auto-focus feature, 16-bit pan, tilt, and dimming control, variable dimming curve modes, high speed electronic shutter and strobe, adjustable LED refresh rate, and gamma brightness for flicker-free operation for TV and film.

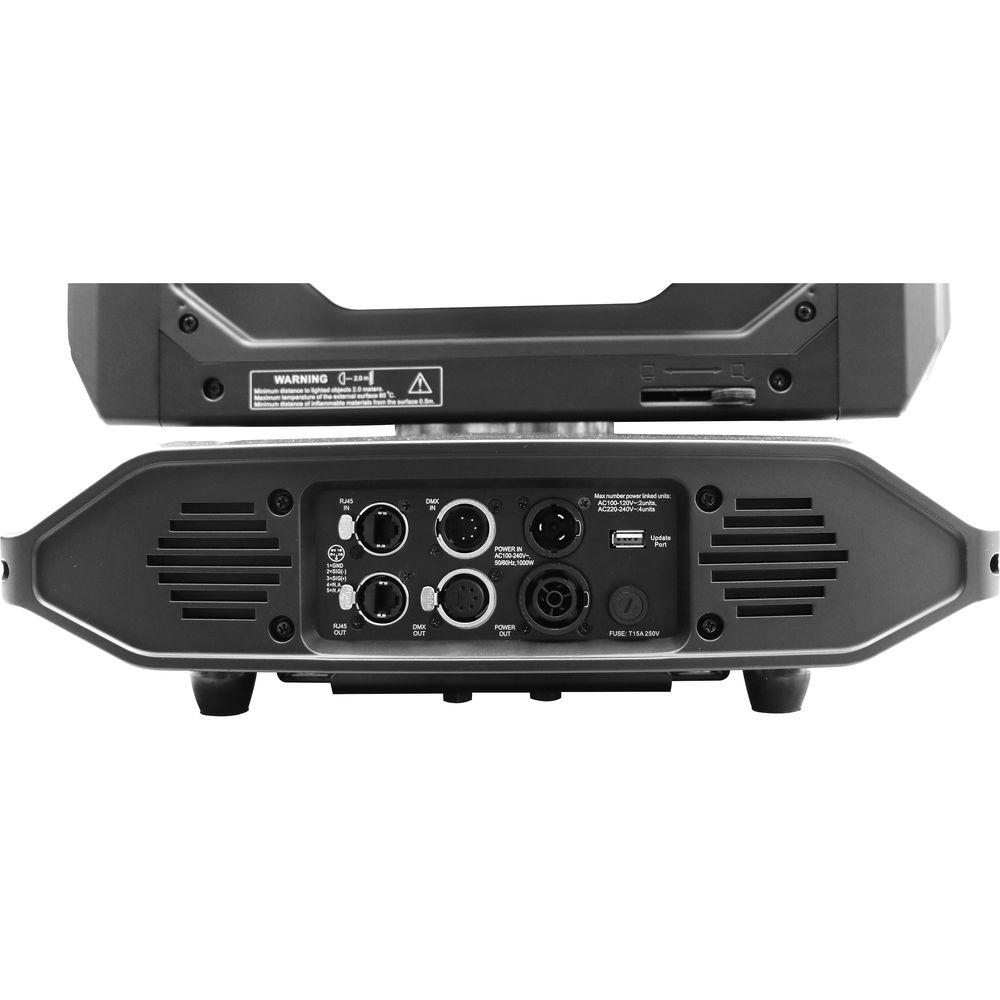

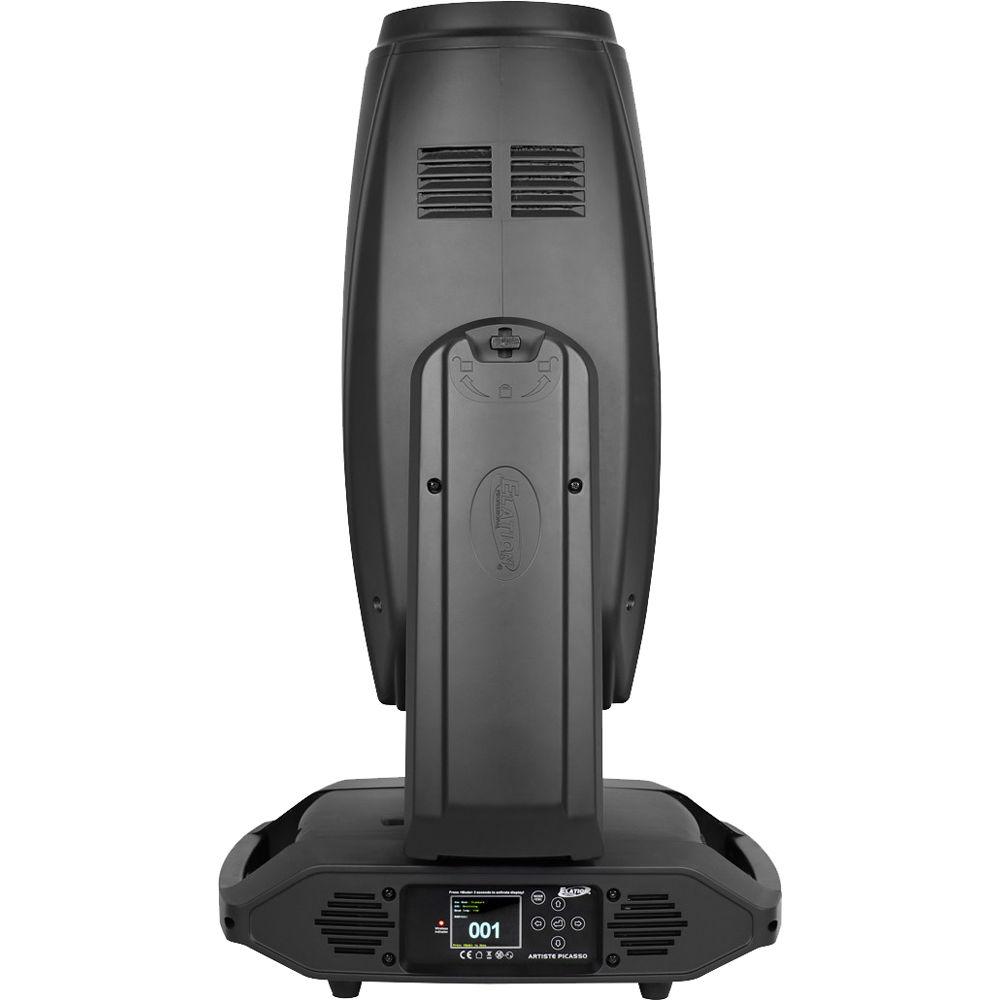

The Artiste Picasso can be controlled by DMX, remote device management (RDM), Art-NET, and sACN protocol support, as well as Elation's E-FLY internal wireless DMX transceiver technology. The rear panel offers a variety of input and output connections including 5-pin DIN, RJ45 etherCON, and powerCON TRUE1. There is a 6-button control panel and full color 180° reversible menu display. The Elation Professional Artiste Picasso ships with two mounting brackets and a power cord. -
- 620W 6800K cool white LED engine
- Total Lumens: 20,000+
- Motorized Zoom: 7° to 55°
- Full CMY color mixing system and linear CTO color correction
- 6 dichroic colors including a high 87 CRI filter
- 7 rotating/indexing glass and 7 static-stamped metal interchangeable gobos

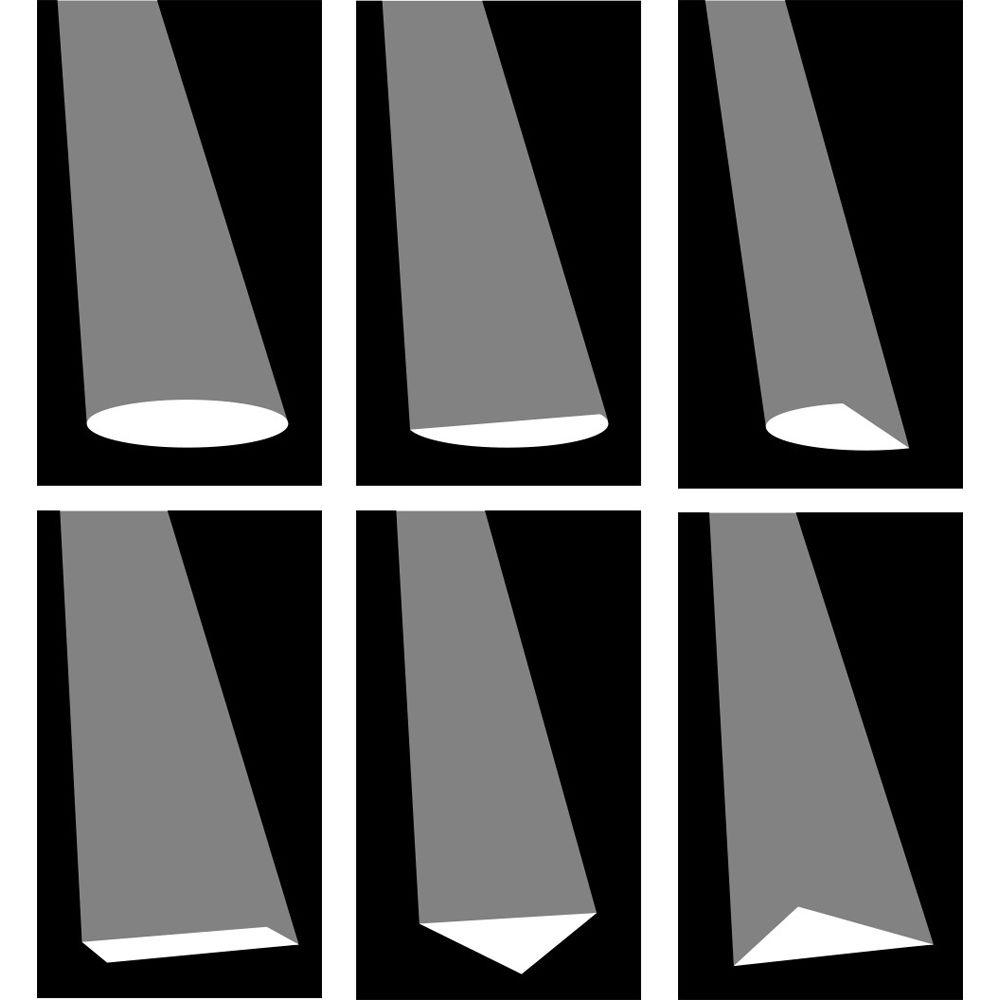

- 4-blade framing beam shaping system with individual blade rotation
- Full 360° bidirectional animation wheel
- 4-facet and linear rotating prisms and 2 frost filters
- Internal color, framing, prism, and frost macros
- Motorized iris with variable pulse effects
- Motorized focus and auto-focus feature
- 16-bit pan, tilt, and dimming control
- Variable dimming curve modes
- High-speed electronic shutter and strobe
- Adjustable LED refresh rate frequency and gamma
- Flicker-free operation for broadcast TV and film
- Silent fan mode
- DMX, RDM, Art-NET, and sACN protocol support
- Elation's E-FLY internal wireless DMX transceiver
- Low heat, quiet operation, hibernation mode (power save)
UPC: 837874005813 In the Box Elation Professional Artiste Picasso Moving Head Fixture (Black) Mounting Brackets powerCON TRUE1 Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Artiste Picasso Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Artiste Picasso Specs | Light Source | 620 W 6800K cool white LED engine
30,000-hour average LED life | | Photometric Data | Total Lumens: 20,000+
Measurement at 16.4' / 5 m (full on)
Minimum Zoom: 54,238 lux, 5039 fc
Maximum Zoom: 1471 lux, 137 fc | | Effects | Motorized Zoom: 7° to 55°
4-blade framing beam shaping system with individual blade rotation
Full 360° bidirectional animation wheel
4-facet and linear rotating prisms
2 frost filters
Internal color, framing, prism, and frost macros
Motorized iris with variable pulse effects
Variable 16-bit dimming curve modes
High-speed electronic shutter and strobe
Adjustable LED refresh rate frequency and gamma | | Color | Full CMY color mixing system
Linear CTO color correction
6 dichroic colors including high 87 CRI filter | | Gobos | 2 gobo wheels
7 rotating / indexing interchangeable glass gobos
7 interchangeable static-stamped metal gobos | | Control and Connectors | 2 DMX channel modes (36 / 62 channels)
16-bit pan, tilt, and dimming control
Motorized focus and 5-15 m auto-focus presets
DMX, RDM, Art-NET, and sACN protocol support
Elation's E-FLY internal wireless DMX transceiver
6-button touch control panel
Full color 180° reversible LCD menu display
8- / 16-bit resolution adjustable movement
Elation's E-FLY internal wireless DMX transceiver
Hibernation mode (power save)
5-pin DMX in/out
RJ45 etherCON in/out
powerCON TRUE1 Power in | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Maximum 900 W | | Operating Temperature | 14 to 113°F / -10 to 45°C | | Approvals | CE, cETLus | | Ratings | IP20 | | Dimensions (L x W x H) | 18.0 x 21.5 x 29.8" / 457.2 x 546.1 x 756.9 mm | | Weight | 84.0 lb / 38.1 kg |
