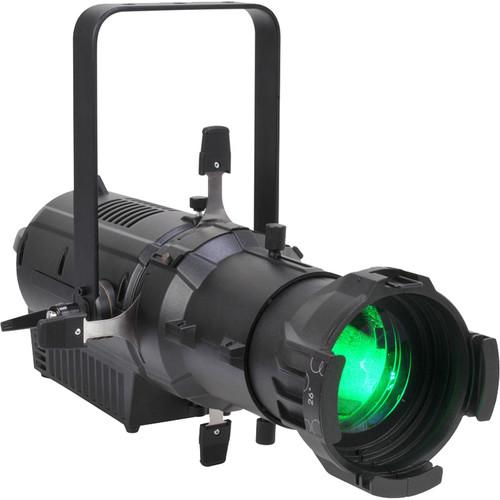

User Manual for Elation Professional Colour 5 Profile Ellipsoidal Click to enlarge the picture
Contents of the user manual for the Elation Professional Colour 5 Profile Ellipsoidal
- Product category: Stage & Studio Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional Stage & Studio
|
User manual for the Elation Professional Colour 5 Profile Ellipsoidal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The Colour 5 Profile from Elation is an ellipsoidal with a 180W RGBAM (red, green, blue, amber, mint) LED engine and 19, 26, 36, and 50° interchangeable lens options (lenses available separately). Offering flicker-free operation and a CRI rating of 94+, the fixture is well suited for theater, TV, and studio applications. It uses a four-flag shutter system with manual focus and controls electronic strobe, dimming, and dimming curves via DMX.
Other features of the Colour 5 Profile include adjustable refresh frequency and gamma brightness, 5-pin DMX and powerCON in/out connectors, a four-button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto-switching power supply. - Delivers 4100 lumens with 26° lens (available separately)
- Accepts B-size metal and HT transparency gobos (gobos and gobo holder available separately)
- Flicker-free operation for TV and film
UPC: 837874018400 In the Box Elation Professional Colour 5 Profile Ellipsoidal powerCON Cable 5-Pin DMX Cable Safety Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Colour 5 Profile Ellipsoidal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Colour 5 Profile Specs | Source | 180 W RGBAM (red/green/blue/amber/mint) LED engine | | Lamp Life | 50,000 hours, average | | Compatible Gobos | B-size metal and HT transparency gobos (gobos and holder available separately) | | CRI | 94+ | | Brightness | 4100 lumens (with 26° lens) | | Effects | Electronic strobe and dimming
Variable dimming curve modes | | DMX Channel Modes | 5, 6, 8, 13, and 19 | | Refresh Rate | 900-1500, 25,000 Hz | | Gamma Adjustment | 2.0, 2.2, 2.4, and 2.8 | | Control | 4-button control panel, LED menu display | | Connectors | 5-pin DMX in/out
powerCON in/out | | Cooling | Quiet fan | | Power Requirements | 100-240 VAC - 50/60 Hz | | Power Consumption | 225 W, maximum | | Power Linking | 4 units maximum at 120 V, 8 units maximum at 240 V | | Operating Temperature | 14 to 113°F / -10 to 45°C | | Approvals and Ratings | CE, cETLus, and IP20 | | Dimensions | 24.3 x 12.2 x 15.7" / 61.8 x 31.0 x 39.8 cm
Fully Extended: 26.6 x 12.2 x 15.7" / 67.4 x 31.0 x 39.8 cm | | Weight | 21 lb / 9.5 kg | | | | Package Weight | 23.25 lb | | Box Dimensions (LxWxH) | 22.3 x 15.6 x 13.5" |
