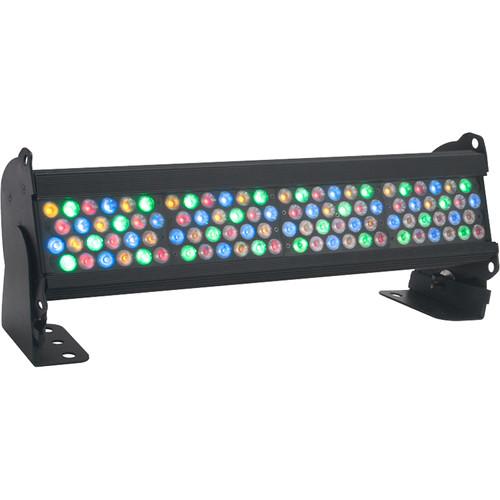

User Manual for Elation Professional Colour Chorus 24 Light Bar Click to enlarge the picture
Contents of the user manual for the Elation Professional Colour Chorus 24 Light
- Product category: Stage & Studio Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional Stage & Studio
|
User manual for the Elation Professional Colour Chorus 24 Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The Colour Chorus 24 from Elation Professional is a 2'-long RGBA (red, green, blue, & amber) light bar featuring 96 individual 3W LEDs: 24 LEDs per color. The fixture offers individual hue, saturation, and intensity control; LED group control; variable dimming curve modes; and strobe & chase effects.
The Colour Chorus 24 incorporates a four-button touch-control panel and an LCD menu display. It supports three & five-pin DMX connectivity, Art-Net & Kling-Net protocols, and RDM (Remote Device Management) control. Flicker-free operation makes the unit suitable for TV and film broadcast. Multiple DMX channel modes enable you to control varying levels of features.
The fixture features a powerCON input and an internal auto-switching power supply. It is compatible with 110-250 VAC outlets and has a maximum power consumption of 200W. The Colour Chorus 24 can be mounted in any position using the integrated rigging brackets (clamps sold separately). - Individual hue, saturation, and intensity control
- Variable dimming curve modes
- Supports RDM (Remote Device Management), Art-Net, and Kling-Net protocols
- Flicker-free operation for TV and film
- Multiple DMX channel modes
- Four-button touch control panel
- Multiple-unit power linking
- Rugged die-cast aluminum exterior
UPC: 837874018271 In the Box Elation Professional Colour Chorus 24 Light Bar (96 LEDs) PowerCON Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Colour Chorus 24 Light Bar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Colour Chorus 24 Specs | Lamp | 96 x 3 W (RGBA) LEDs (red, green, blue, amber) | | LED Life Expectancy | Average: 100,000 hours | | Photometric Data | 19,000 lux (1,765 fc) @ 3.3' (1 m) 46° full-on | | DMX Connectors | 1 x 3-pin XLR male, DMX in
1 x 3-pin XLR female, DMX out
1 x 5-pin XLR male, DMX in
1 x 5-pin XLR female, DMX out
1 x Ethernet RJ45, Art-Net / Kling-Net in
1 x Ethernet RJ45, Art-Net / Kling-Net out | | Protocols | DMX512, Art-Net, Kling-Net, and RDM (Remote Device Management) | | Effects | Strobe and chase
Variable dimming curves
Individual hue, saturation, and intensity control | | Power Connection Type | 1 x powerCON, power in
1 x powerCON, power out | | Power Cord Daisy Chain | Yes | | Power Supply | 110-250 VAC, 50 / 60 Hz | | Power Consumption | 200 W max. | | Display/Controls | LCD menu display with four-button control panel | | IP Rating | IP30 | | Exterior | Rugged die-cast aluminum | | Operating Temperature | 5 to 113°F (-15 to 45°C) | | Rigging Points | Integrated rigging brackets | | Working Position | Any (360°) | | Approvals | CE
cETLus | | Dimensions | 23.8 x 7.6 x 7.6" (604.0 x 194.1 x 192.5 mm) | | Weight | 23 lb (10.4 kg) | | | | Package Weight | 30.1 lb | | Box Dimensions (LxWxH) | 27.9 x 11.9 x 11.7" |
