User Manual for Elation Professional Colour Pendant RGBW LED Wash Luminaire Click to enlarge the picture
Contents of the user manual for the Elation Professional Colour Pendant RGBW LED
- Product category: Stage & Studio Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional Stage & Studio
 |
User manual for the Elation Professional Colour Pendant RGBW LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

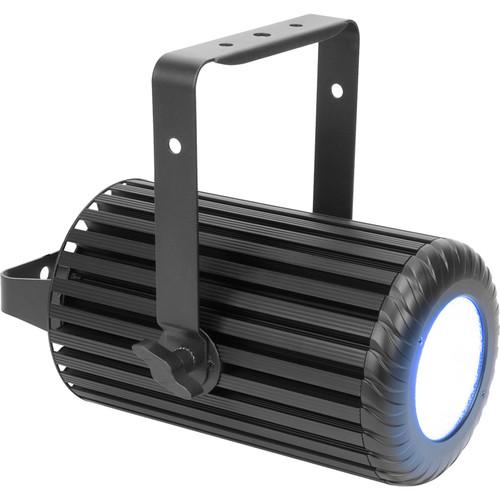

Product description The Colour Pendant from Elation Professional is an RGBW wash luminaire with (36) 3W LEDs. It produces a 41° beam angle & a 66° field angle, and offers strobe, selectable dimming curves, and color macro effects.

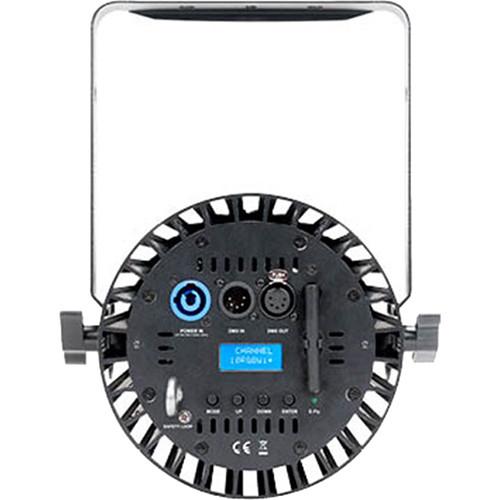

The Colour Pendant incorporates a four-button control panel and an LCD menu display. It features five-pin XLR connectors and supports RDM (Remote Device Management). Flicker-free operation makes the unit suitable for TV and film broadcast. Eleven DMX channel modes (1, 3, 4(x2), 5(x2), 6(x2), 7, 8, and 10 channels) enable you to control varying levels of features.

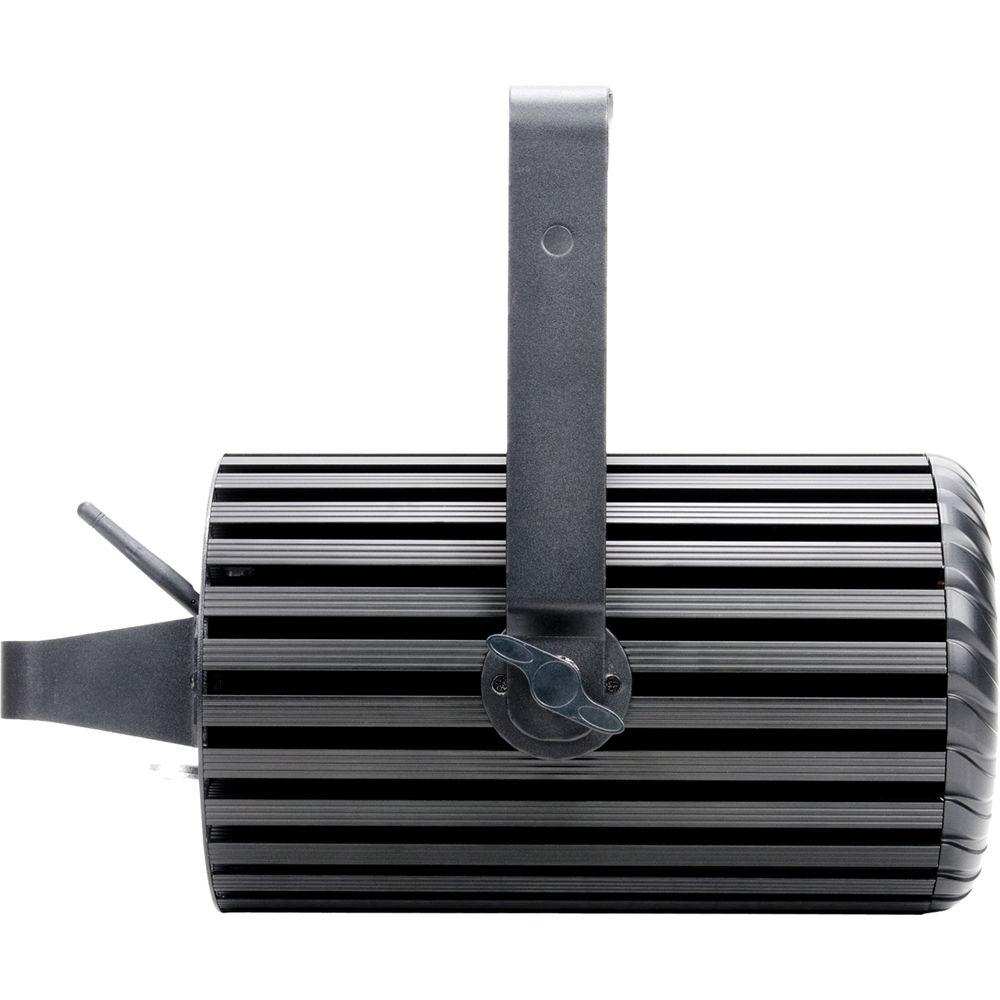

The fixture features a powerCON input and an internal auto-switching power supply. It is compatible with 100-240 VAC outlets and has a maximum power consumption of 110W. The Pendant can be mounted in any position using the integrated yoke & pendant mounting brackets (clamps sold separately). - Fully blended color transformations
- Supports RDM (Remote Device Management) protocol
- Adjustable frequency settings for flicker-free operation for TV and film
- Four-button control panel
- Convection-cooled, silent operation
- Removable pendant and yoke mounting brackets
- Internal E-Fly extended range wireless DMX transceiver
UPC: 837874018516 In the Box Elation Professional Colour Pendant RGBW LED Wash Luminaire PowerCON Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Colour Pendant RGBW LED Wash Luminaire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Colour Pendant Specs | Lamp | 36 x 3 W (RGBW) LEDs (red, green, blue, white) | | Average Lamp Life | 100,000 h | | Beam Angle | 41° | | Field Angle | 66° | | Photometric Data | 3,650 lux (339 fc) @ 3.3' (1 m), 41° full on
1,020 lux (95 fc) @ 6.6' (2 m), 41° full on
458 lux (43 fc) @ 9.8' (3 m), 41° full on
255 lux (24 fc) @ 13.1' (4 m), 41° full on
164 lux (15 fc) @ 16.4' (5 m), 41° full on | | DMX Connectors | 1 x 5-pin XLR male, DMX in
1 x 5-pin XLR female, DMX out | | DMX Channel Modes | 11 x Modes: 1, 3, 4(x2), 5(x2), 6(x2), 7, 8, and 10 channels | | Frequencies | 1200, 2400, 4800, and 9600 Hz | | Protocols | DMX512 and RDM (Remote Device Management) | | Wireless Control | E-Fly internal extended range wireless DMX transceiver | | Display/Controls | 4-button control panel and LCD menu display | | Effects | Strobe and color macros
Dimming (0 - 100%)
Selectable dimming curves | | Power Connection Type | 1 x powerCON input | | Power Supply | 100-240 VAC, 50 / 60 Hz, auto-switching | | Power Consumption | 110 W max. | | Cooling | Convection | | IP Rating | IP20 | | Operating Temperature | -14 to 113°F (-10 to 45°C) | | Rigging Points | Integrated yoke & pendant mounting brackets | | Working Position | Any (360°) | | Approvals | CE and cETLus | | Dimensions | 14.7 x 9.9 x 12.0" (374.0 x 252.5 x 308.8 mm) | | Weight | 14 lb (6.4 kg) | | | | Box Dimensions (LxWxH) | 18.0 x 11.0 x 8.25" |
