User Manual for Elation Professional CUEPIX 5x5 Panel Click to enlarge the picture
Contents of the user manual for the Elation Professional CUEPIX 5x5 Panel
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional CUEPIX 5x5 Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

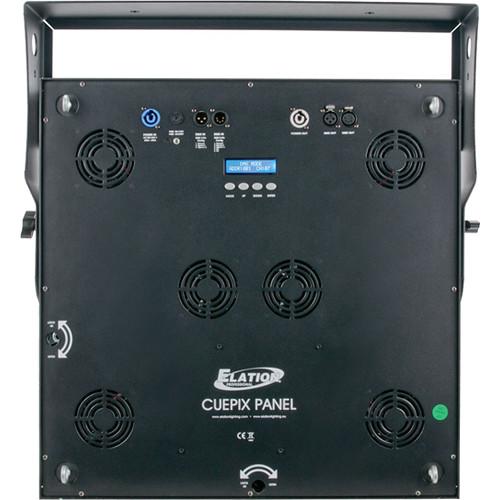

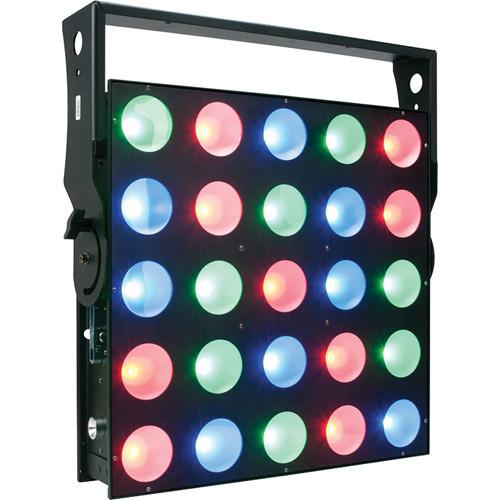

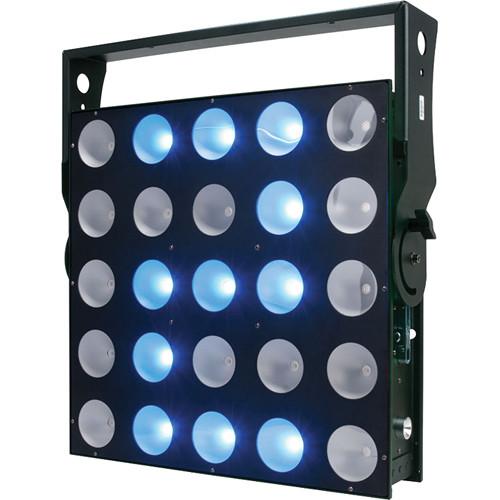

Product description The CUEPIX 5x5 Panel from Elation Professional has 25 3-in-1 RGB COB 30W LEDs and a 60° beam angle. This panel features Remote Device Management (RDM) and individual control of each COB module. It provides variable and selectable dimming curves, strobe and zone chase effects, and flicker free operation for TV and film. The CUEPIX panel has an LCD menu display with a 4 button control panel. The control data input is made via 3-pin and 5-pin DMX connectors. The CUEPIX panel includes a powerCON cable. It has integrated rigging points, and an optional rigging bracket is available (sold separately). - 25 High power, long life 3-in-1 RGB COB LEDs
- Color mixing and individual control of each COB module
- 0-100% Dimming of each COB module
- Strobe and Zone Chase effects
- Remote Device Management (RDM)
- Flicker free operation for TV and film
- Standalone operation with Master/Slave function

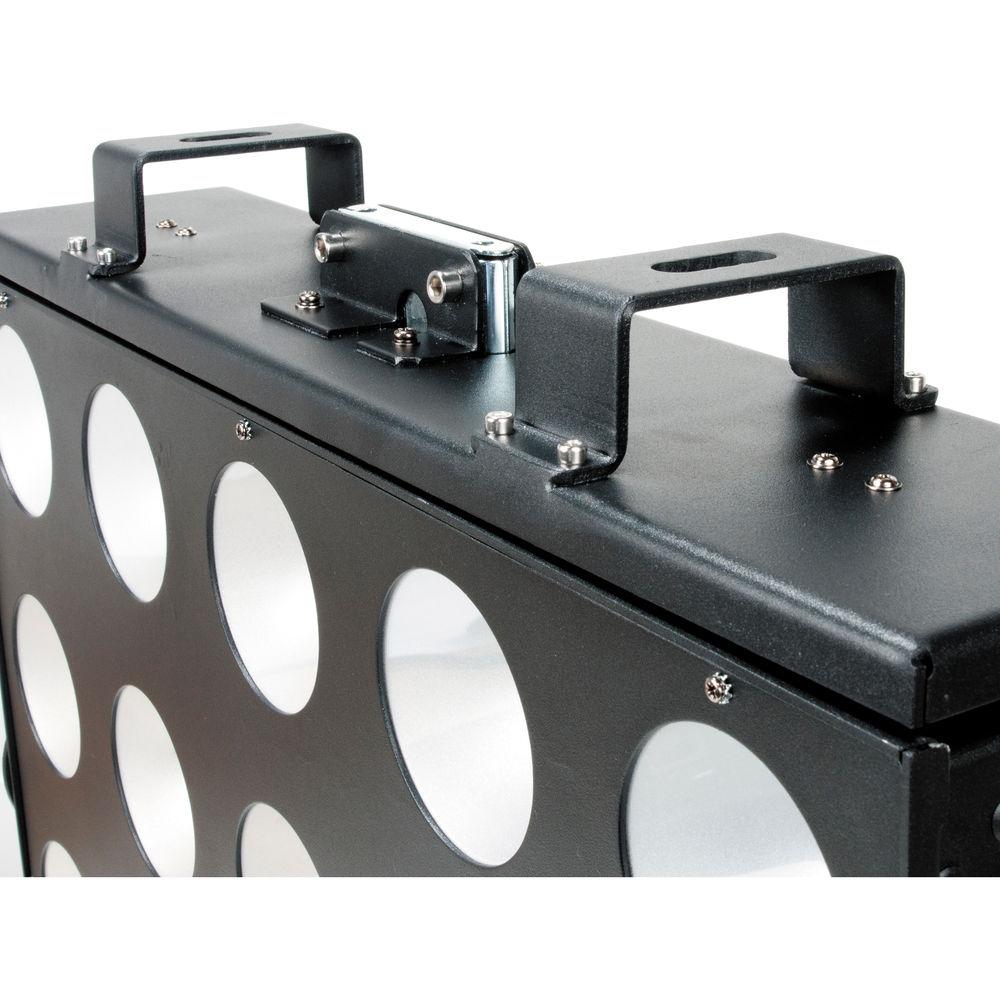

- Integrated rigging points and optional rigging bracket (sold separately)
- CE approved and IP20 rated
UPC: 837874016659 In the Box Elation Professional CUEPIX 5x5 Panel (30W) PowerCON Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional CUEPIX 5x5 Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional CUEPIX PANEL Specs | Lamp | 25 x 30 W 3-in-1 RGB COB LEDs | | Lamp Life | 100,000 hours average | | Beam Angle | 60° Beam
80° Field | | Photometric Data | 15,490 Max LUX (1439 fc) @ 6.6' (2 m) (full on)
3310 Max LUX (307 fc) @ 6.6' (2 m) (red LEDs)
3720 Max LUX (346 fc) @ 6.6' (2 m) (green LEDs)
5870 Max LUX (545 fc) @ 6.6' (2 m) (blue LEDs) | | Color | 3-in-1 RGB | | DMX Channels | 3, 6, 7, 75, and 79 | | Connectors | 1 x 3-pin XLR male, DMX input
1 x 3-pin XLR female, DMX output
1 x 5-pin XLR male, DMX input
1 x 5-pin XLR female, DMX output
1 x PowerCON, power input
1 x PowerCON, power output | | Controls | 1 x Enter button
1 x Down button
1 x Up button
1 x Mode/Esc button | | Indicators | LCD menu control display | | Dimming | 0-100% of each COB module | | Power Connection Type | PowerCon cable (included) | | Power Supply | 100 - 240 VAC, 50/60 Hz | | Maximum Power Consumption | 750 W | | Operating Temperature | -14° to 113°F (-10° to 45°C) | | Dimensions (L x W x H) | 24.8 x 5.1 x 25.6" (63.0 x 13.0 x 65.0 cm) | | Weight | 36.4 lb (16.5 kg) | | | | Package Weight | 40.0 lb | | Box Dimensions (LxWxH) | 29.75 x 27.25 x 8.75" |
