User Manual for Elation Professional CUEPIX Batten 10x 30W 3-in-1 RGB COB LEDs Click to enlarge the picture
Contents of the user manual for the Elation Professional CUEPIX Batten 10x 30W
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
|
User manual for the Elation Professional CUEPIX Batten 10x 30W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

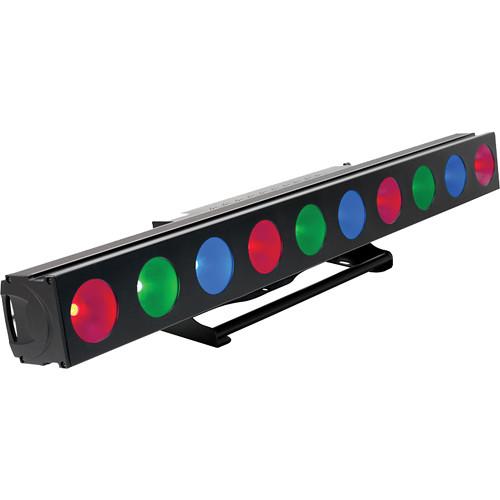

Product description The CUEPIX Batten from Elation Professional features ten 30W 3-in-1 RGB COB (chip on board) LEDs with 100,000 hour (average) LED life. It can be used as a lighting fixture in several environments for applications such as live stage, theater, broadcast TV, films, DJ setups, and more. The CUEPIX Batten also features 82° beam and 106° field angles. There are individual controls of each COB module, variable dimming curve modes, and a strobe with chase effects. Other built-in features include ArtNet, KlingNet, and RDM (remote device management) protocol support; 3-pin and 5-pin DMX in/out connectors; powerCON in and out connectors; and RJ45 in and out connectors. The LCD menu display of the CUEPIX Batten has a 4-button control panel The CUEPIX Batten is built with a rugged die-cast aluminum exterior, which also has an integrated rigging bracket. This lighting fixture has multiple-unit power linking and provides flicker-free operation for TV and film. UPC: 837874017960 In the Box Elation Professional CUEPIX Batten 10x 30W 3-in-1 RGB COB LEDs powerCON Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional CUEPIX Batten 10x 30W 3-in-1 RGB COB LEDs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional CUEPIX Batten Specs | LED Source | 10x 30 W 3-in-1 COB (chip on board) | | LED Life | 100,000 hour average | | Photometric Data | 3,890 LUX 361 FC @ 3.3' (1 m) (82° full on)
1,237 LUX 115 FC @ 6.6' (2 m) (82° full on)
613 LUX 57 FC @ 9.8' (3 m) (82° full on)
345 LUX 32 FC @ 13.1' (4 m) (82° full on)
227 LUX 21 FC @ 16.4' (5 m) (82° full on) | | Effects | Strobe and chase effects
Individual COB module control
Variable and selectable dimming curves | | Control Connections | 8 DMX Channel Modes: (3 / 4 / 6 / 9 / 30 / 33 / 36 / 60)
4-button control panel and LCD menu display
ArtNet + KlingNet protocol support
RDM (remote device management)
2x RJ45 ports
1x 3-pin DMX in
1x 3-pin DMX out
1x 5-pin DMX in
1x 5-pin DMX out
1x powerCON power in
1x powerCON power out | | Power | 110-250 VAC, 50/60 Hz
312 W max power consumption
Power Linking: (5) units at 120 VAC, (10) units at 240 VAC | | Thermal Specification | 5 to 113°F (-15 to 45°C) | | Approvals and Ratings | CE / IP20 | | Dimensions (L x W x H) | 43.3 x 6.4 x 6.8" (1100 x 121 x 172 mm) | | Weight | 21.0 lb (9.5 kg) | | | | Package Weight | 25.5 lb | | Box Dimensions (LxWxH) | 46.0 x 9.1 x 9.04" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
