User Manual for Elation Professional Cuepix Blinder WW2 - 2x 100-Watt COB LED Light Click to enlarge the picture
Contents of the user manual for the Elation Professional Cuepix Blinder WW2 -
- Product category: LED Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional LED Lights
 |
User manual for the Elation Professional Cuepix Blinder WW2 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

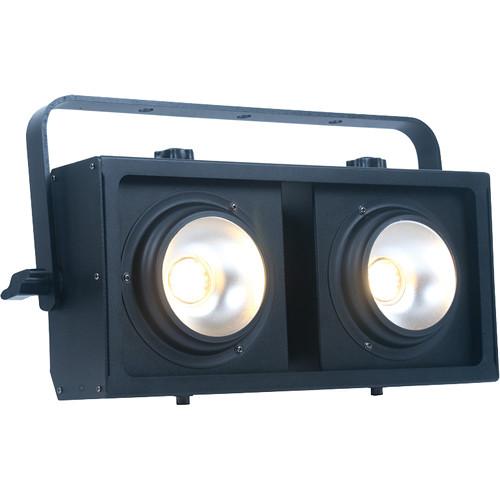

Product description The Elation Professional Cuepix Blinder WW2 - 2x 100-Watt COB LED Light uses tow long life 100-watt warm white 3,200 K COB LEDS rated to 100,000 hours of bulb life to cast a 60° beam angle and an 80° beam angle for flicker-free operation in stage, TV, and film lighting applications.

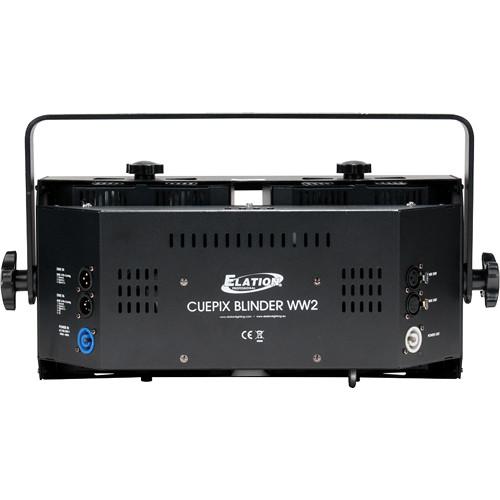

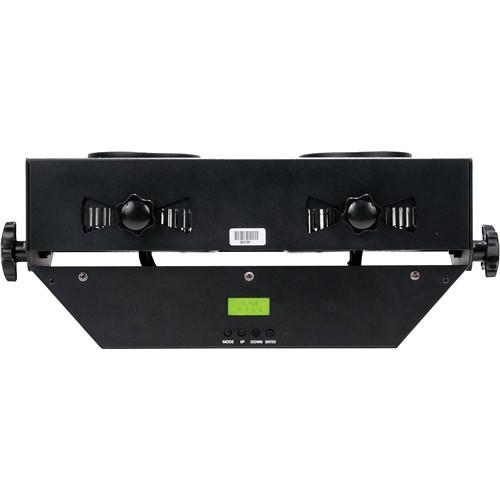

The light features RDM (remote device management), individual control over each COB module including manual pan focus, variable and select-able 0 to 100% dimming curves, and strobe effects. Control is provided on 4 DMX channels (1/2/3/4) with 3-pin and 5-pin DMX I/O connectors or via a 4-button control panel with LCD menu display. Power is supplied through a powerCON I/O ports and with the light's multi-voltage universal audio switching power supply (100 to 250 VAC). For mounting on a stand or Truss, the light includes an integrated rigging bracket. UPC: 837874016628 In the Box Elation Professional Cuepix Blinder WW2 - 2x 100-Watt COB LED Light PowerCon Cable Limited 2-Year Warranty On Internal Parts, Limited 1-Year Warranty on Labor User Manual PDF 3.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Cuepix Blinder WW2 - 2x 100-Watt COB LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Cuepix Blinder WW2 Specs | | | Color Temperature | 3200K | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Expected Lamp Life | 100,000 Hours | | Fixture Dimensions | 18.8 x 7.1 x 10.2" / 478.0 x 181.0 x 259.0 mm | | Fixture Weight | 11.2 lb / 5.20 kg | | | | Power Input Connector | powerCON | | DMX Connector | 3-Pin XLR, 5-Pin XLR | | | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 229 W | | Power Pass-Thru | Yes | | | | IP Rating | IP20 | | Operating Temperature | -14 to 113°F / -10 to 45°C | | | | Package Weight | 14.05 lb | | Box Dimensions (LxWxH) | 19.3 x 11.9 x 9.0" |
