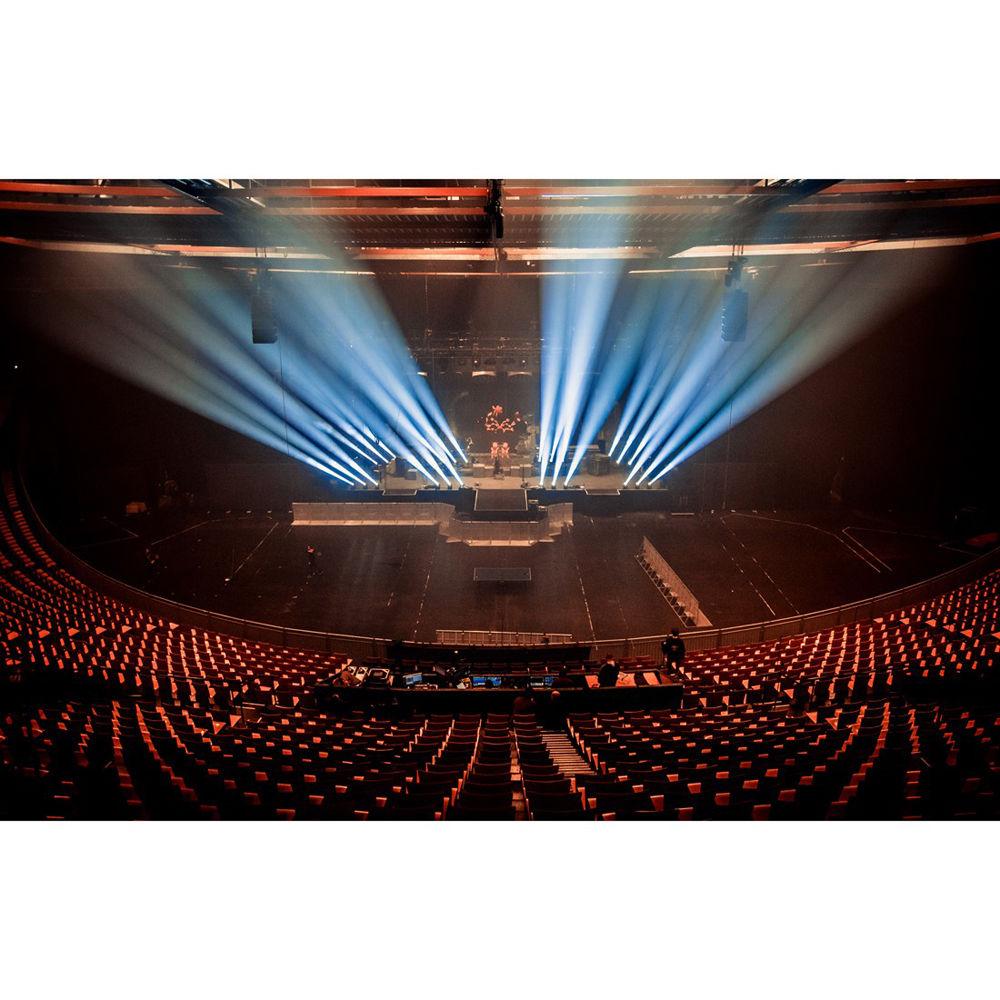

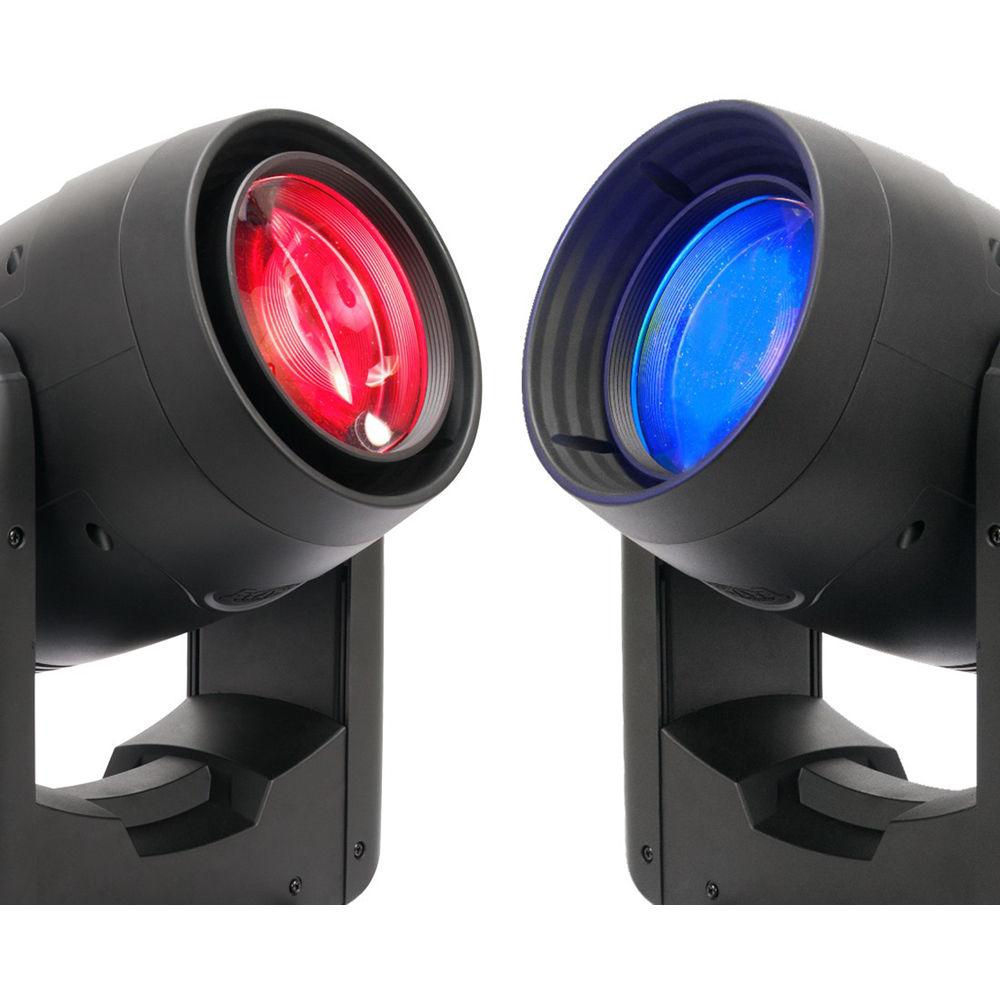

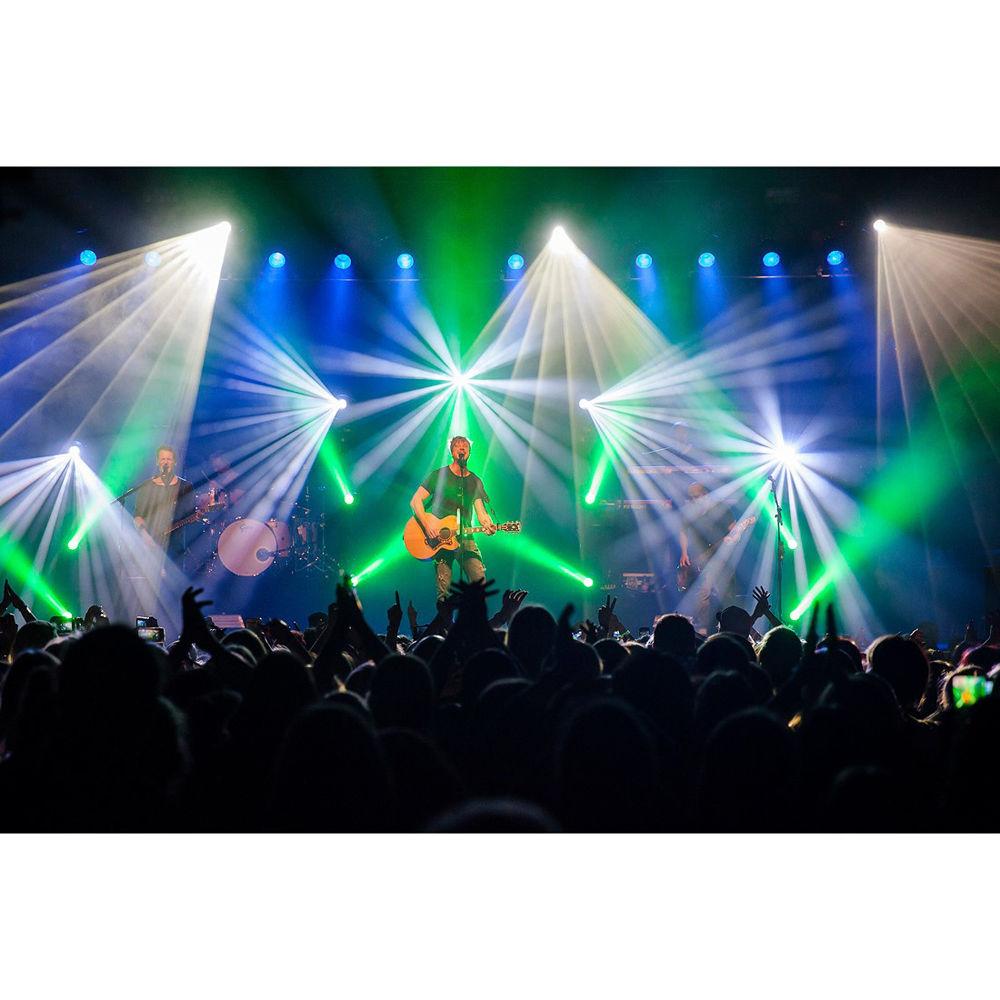

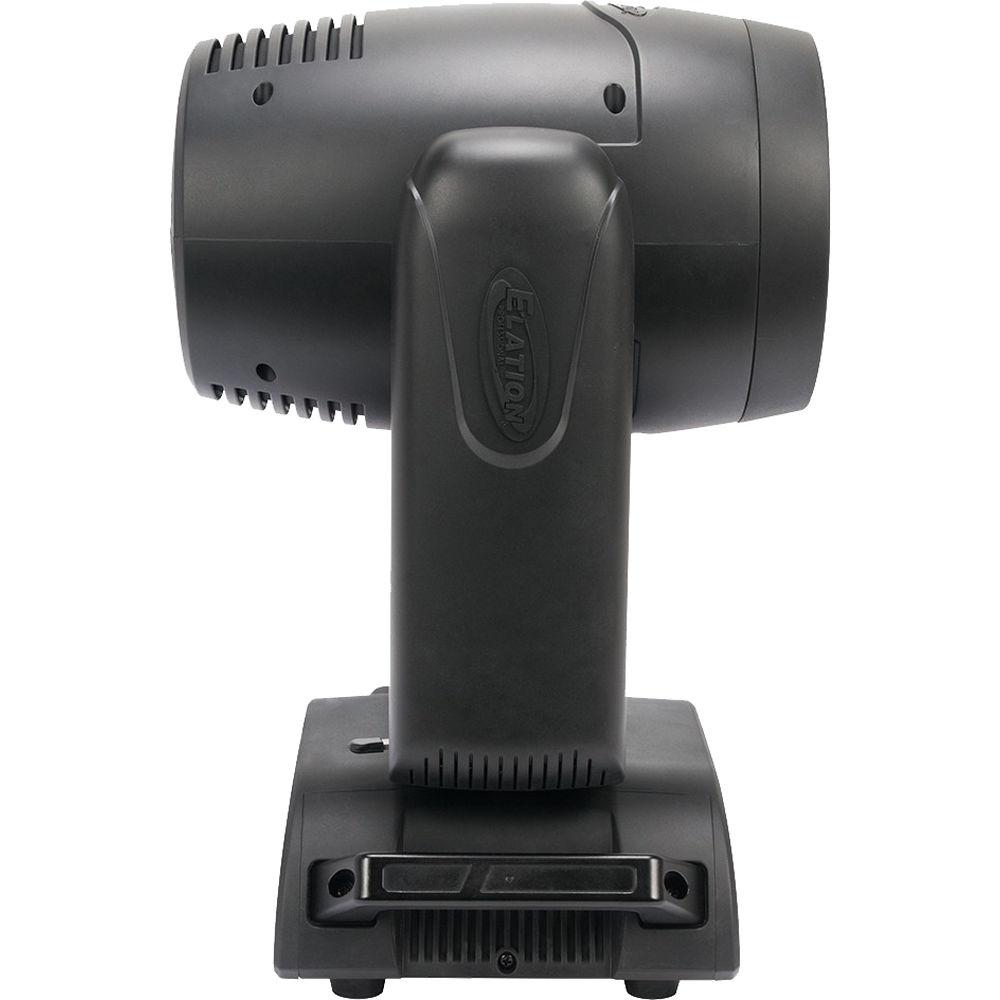

Product description The black Elation Professional DARTZ 360 is a professional compact narrow beam moving head LED fixture, well suited for special events and concerts, as well as TV and film production. The fixture features a single source 50W RGB LED engine with fast and precise continuous 360° pan/tilt rotation. A 3° aperture offers a high output level and smooth color-mixed effects that can be used in a variety of applications requiring no minimum safe project distance as with typical discharge lamp beam fixtures. Additional features include 14 static-stamped metal gobos, 6-facet linear and 8-facet independent rotating prisms, 0-100% linear frost filter for wash effects, high speed electronic shutter and strobe, electronic dimming and variable dimming curve modes, and adjustable LED refresh rate and gamma brightness for flicker free operation for TV and film.

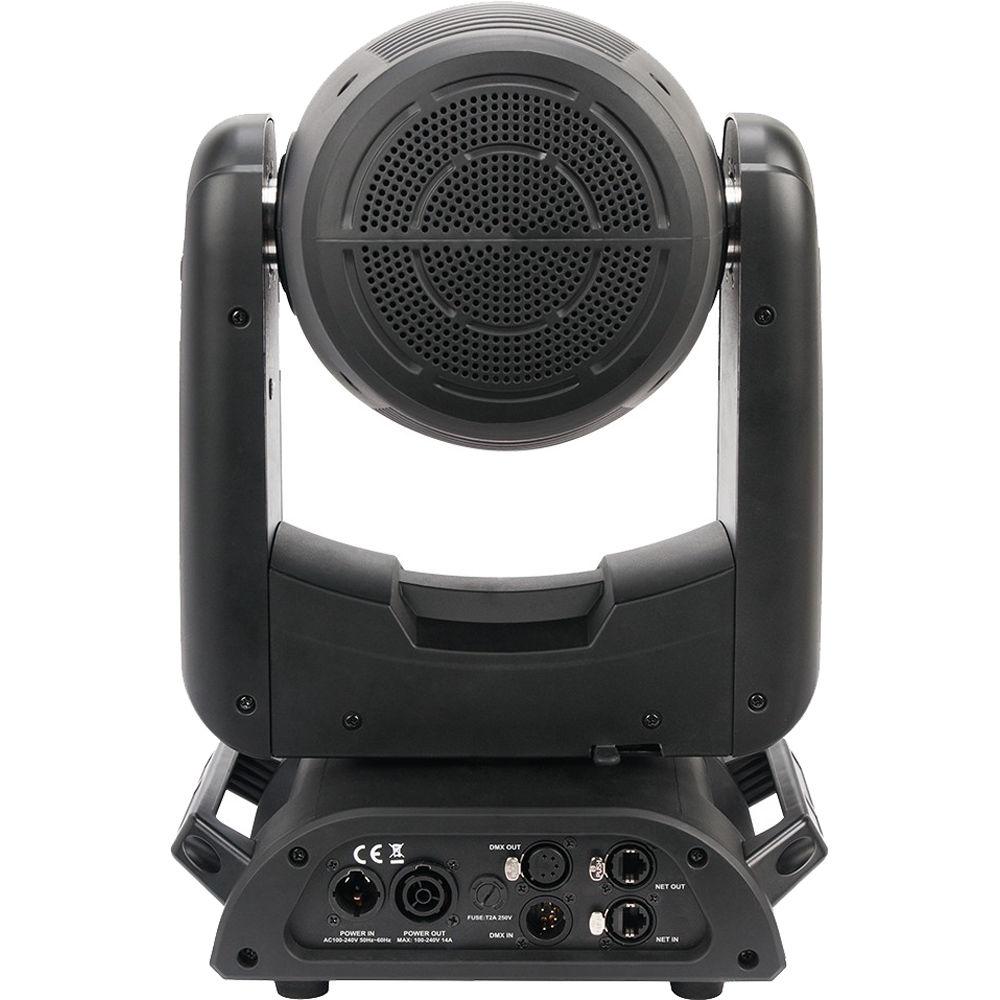

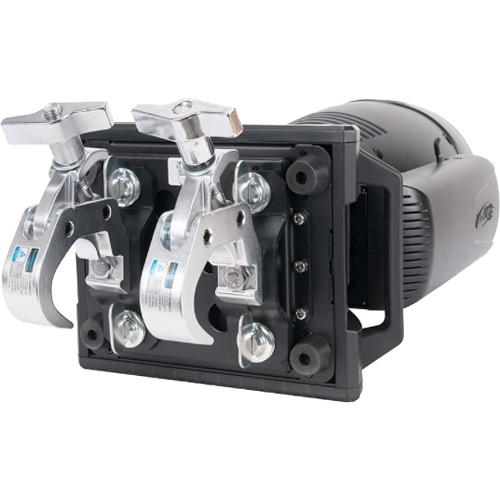

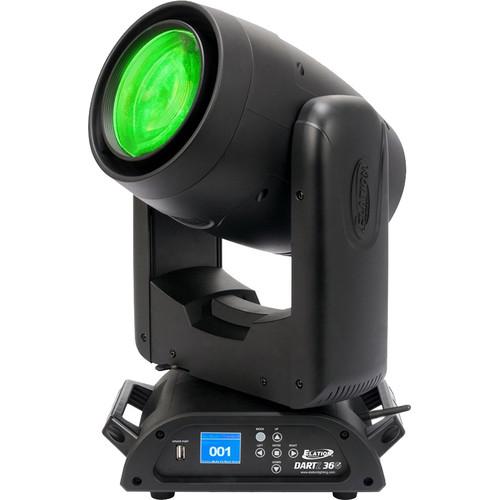

The DARTZ 360 can be controlled by DMX, remote device management (RDM), Art-NET, and sACN protocol support, as well as via Elation's E-FLY internal wireless DMX transceiver technology. The rear panel offers a variety of input and output connections including 5-pin DIN, RJ45 etherCON, powerCON TRUE1, as well as Elation's E-FLY internal wireless DMX transceiver. There is a 6-button control panel and full color 180° reversible menu display. The Elation Professional DARTZ 360 ships with two Omega brackets and a power cord. -
- Compact and precise 360° pan/tilt moving beam luminaire
- Single source 50W RGB LED engine
- No minimum safe project distance; safer than discharge fixtures
- 3° sharp aperture with motorized focus
- Fast and precise 16-bit continuous 360° pan/tilt rotation
- 14 static-stamped metal gobos
- 6-facet linear and 8-facet independent rotating prisms
- 0-100% linear frost filter for wash effects
- High-speed electronic shutter and strobe
- Electronic dimming and variable dimming curve modes
- DMX, RDM, Kling-Net, Art-NET, and sACN Protocol support

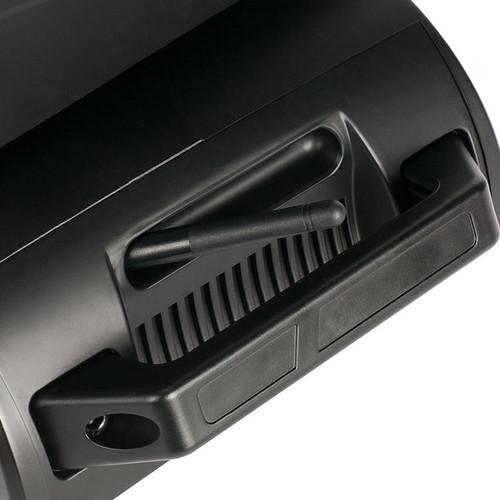

- Elation’s E-FLY internal wireless DMX transceiver
- Adjustable refresh rate frequency and gamma brightness
- Flicker-free operation for TV and film
UPC: 837874005073 In the Box Elation Professional DARTZ 360 Compact Moving Head Fixture (Black) Mounting Brackets powerCON TRUE1 Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional DARTZ 360 Compact Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Dartz 360 Specs | Light Source | Patent pending 50 W RGB LED engine
50,000 hour average LED life | | Photometric Data | 29,562 LUX
2746 FC at 16.4' / 5 m (3° Full ON) | | Effects | Motorized focus
Independent Rotating Prisms: 6 and 8 facet
Linear Frost Filter for Wash Effects: 0-100%
High-speed electronic shutter and strobe
16-bit variable dimming curve modes
Adjustable LED refresh rate and gamma brightness | | Color | RGB smooth color mixing | | Gobos | Static-Stamped Metal Gobos: 14 | | Control and Connectors | DMX Channel Modes: 19, 22, 25
Continuous Pan and Tilt: 360° (8- / 16-bit movement)
Adjustable Refresh Rate: 900 to 25,000 Hz
Adjustable Gamma Brightness: 2.0, 2.2, 2.4, 2.8
Menu Control Panel: 6 button
Reversible LCD Menu Display: Full color 180°
DMX, RDM, Kling-net, Art-NET and sACN Protocol Support
Internal Wireless DMX Transceiver: Elation E-FLY
5-pin DMX
RJ45 Ethernet in/out
powerCON TRUE1 Power in/out | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Maximum 154 W | | Operating Temperature | 14 to 113°F / -10 to 45°C | | Approvals | CE, cETLus | | Ratings | IP20 | | Dimensions (L x W x H) | 11.2 x 7.7 x 17.9" / 284.5 x 195.6 x 454.7 mm | | Weight | 28.0 lb / 12.7 kg | | | | Package Weight | 34.115 lb | | Box Dimensions (LxWxH) | 19.4 x 14.1 x 13.4" |
