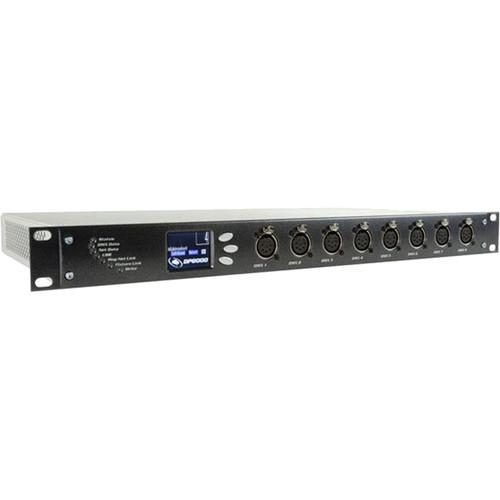

User Manual for Elation Professional DMX Processor 8000 Click to enlarge the picture
Contents of the user manual for the Elation Professional DMX Processor 8000
- Product category: DMX Devices Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DMX Devices
|
User manual for the Elation Professional DMX Processor 8000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The DMX Processor 8000 from Elation Professional adds DMX processing capabilities to the Hog line and provides output power for Hog systems. You can add as many DMX 8000 processors as needed (along with an Ethernet switch) to supply the specified number of DMX universes for the production or installation.
With an unprecedented amount of computing power, the DMX Processor 8000 manages up to sixteen DMX universes with ease, while expanding the power and reliability of the entire WholeHog control system. The DP8K provides a standard XLR, Art-Net, and E1.3.1 (sACN) output at a steady rate. Furthermore, the DMX Processor 8000 supports timecode input if used with the Hedge Hog 4 Series control system. You can connect up to eight USB MIDI/LTC widgets to the DMX Processor 8000. Each input is considered an index and can be used to bring eight timecode clocks into a Hog 4OS control system. - Compatibility
- New Hog 4 Series, Full Boar 4, Road Hog 4, Hog 4PC, Wholehog3, Road Hog, Full Boar, Hog iPC, and Hog 3PC
- General
-
- 16 x Universes of DMX via Art-Net and E1.3.1 (sACN) output
- Distributed processing of cross-fades and effects
- LCD screen and buttons for configuration and testing
- DMX status and test facilities
- All functions are configurable remotely
- Firmware remotely upgradeable over network
UPC: 837874018103 In the Box Elation Professional DMX Processor 8000 Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional DMX Processor 8000 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional HOG034 Specs | Processor | 2.0 GHz Intel Dual Core processor | | RAM | 1 GB RAM + 1 GB flash | | User Interface | Backlit graphic LCD user interface | | Rack Space | 19" mountable with Kensington security slot | | Connectors | 8 x 5-pin XLR DMX outputs / expandable to 16 via widgets
Dual gigabit etherCON ports (Hog-Net and Art-Net)
Locking IEC connector | | Electrical | Main Inputs: 90 to 250 VAC, auto-ranging | | Length | 19" (48.2 cm) 1U rack space | | Width | 10.93" (27.7 cm) | | Vertical Height | 1.74" (4.41 cm) | | Weight | 6 lb (2.7 kg) |
