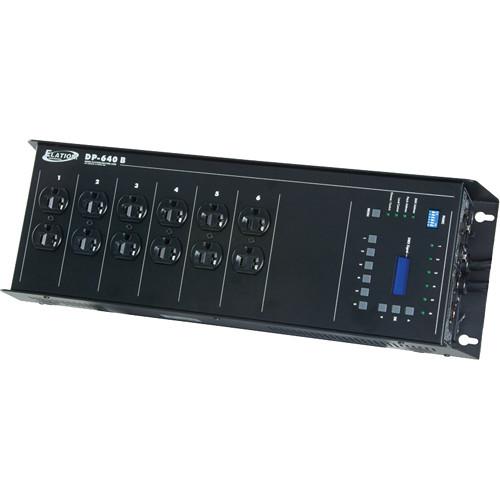

User Manual for Elation Professional DP-640B Hybrid DMX Dimmer Pack Click to enlarge the picture
Contents of the user manual for the Elation Professional DP-640B Hybrid DMX Dimmer
- Product category: Dimmers Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional Dimmers
|
User manual for the Elation Professional DP-640B Hybrid DMX Dimmer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The DP-640B Hybrid DMX Dimmer Pack from Elation Control is a 6-channel portable dimmer pack. Each channel can individually be set to dim or switch as well as accept separate DMX addresses. Each channel can be conveniently manually controlled via an easy to use digital display and function buttons. The Panic function allows you to select desired channels to switch on constantly via the six dip switch settings. An aluminum chassis makes the DP-640B one the lighter portable dimmers of its kind. - Features
-
- 6-Channel hybrid DMX pack serves as dimmer or power pack
- Digital display used to set starting DMX address channel and set all other menu options
- Individual DMX addressing for each channel
- 6-Position dip switches for Panic function
- Adjustable master dim level
- Adjustable channel dim level with HTP
- Two 3-prong Edison sockets per channel
- 3-Pin and 5-Pin XLR DMX input and output
- 6 LEDs display channel activity
- Individual fuse protection for each channel
- 6 External channel fuses for quick and easy replacement
- Aluminum chassis
- Zero crossing circuitry for protection of transformer loads when switching
- Use in conjunction with DMX Operator Pro, Stage Setter-8, Scene Setter, Scene Setter-48 and Stage Desk-16
UPC: 837874003918 In the Box Elation Professional DP-640B Hybrid DMX Dimmer Pack Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional DP-640B Hybrid DMX Dimmer Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional DP-640B Specs | Channels | 6 Channels, 2,400 W per Channel
4,800 W Maximum Total Output | | Display | Digital | | Connectors | Two 3-prong Edison sockets per channel
3-Pin XLR DMX input and output
5-Pin XLR DMX input and output
Power input: dual 12 AWG cables with 15 A plugs | | Voltage | 120 VAC, 60 Hz | | Fuses | 6 External | | Maximum Load | 10 A per channel, 20 A per phase, 40 A total with 20 A plugs | | Dimensions | 19.9 x 6.8 x 3.7" (50.5 x 17.3 x 9.4 cm) | | Weight | 11 lb (5.0 kg) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 23.5 x 9.0 x 6.4" |
