User Manual for Elation Professional DTW BAR 1000 - Variable-White LED Bar Click to enlarge the picture
Contents of the user manual for the Elation Professional DTW BAR 1000 -
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional DTW BAR 1000 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

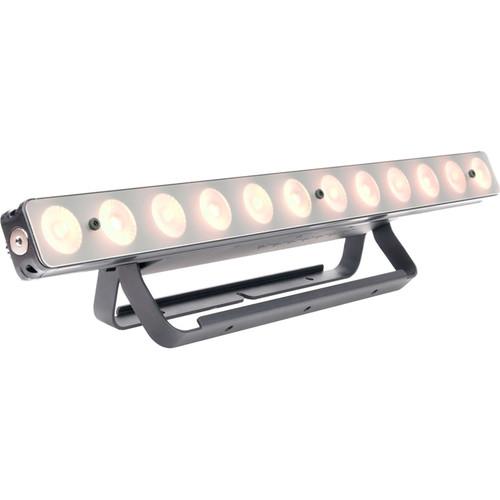

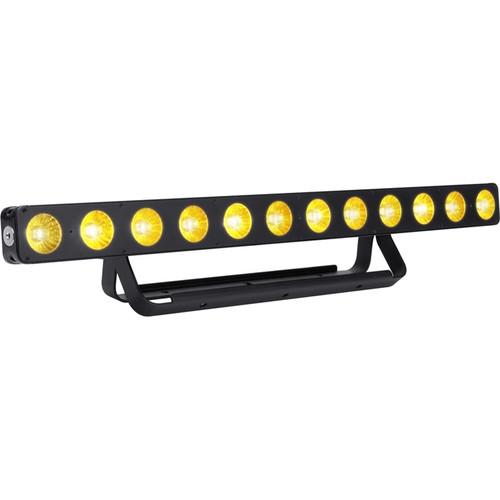

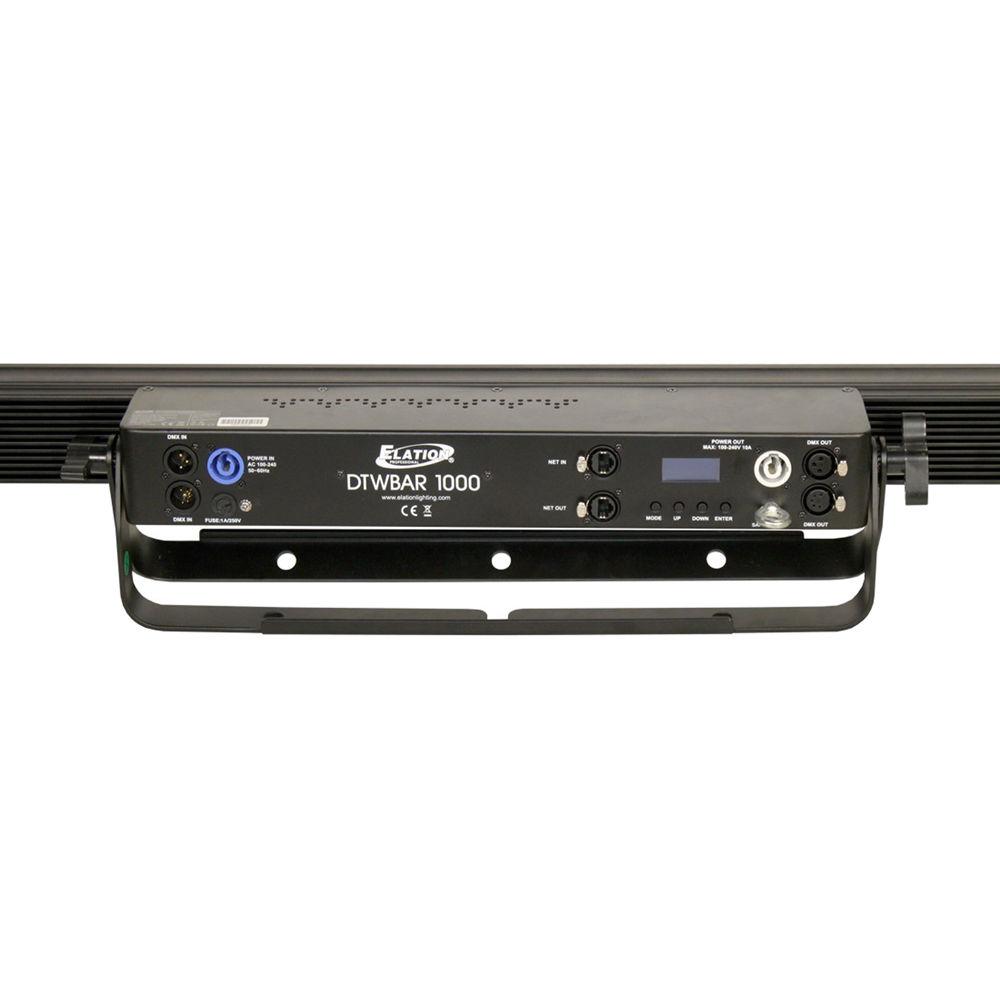

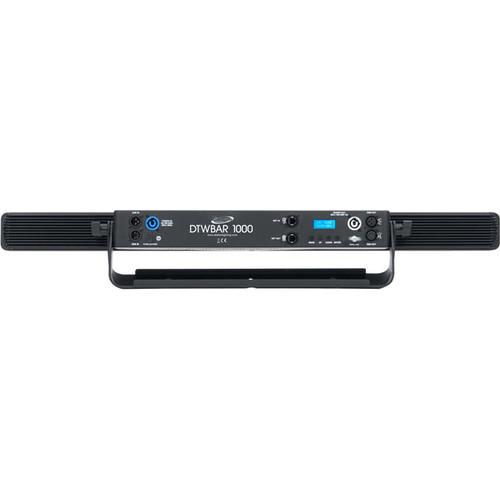

Product description The DTW BAR 1000 from Elation Professional features twelve 10W multi-chip CW, WW, and amber LEDs, a 28° beam angle, full color-temperature range-control from 2700 to 6500K, and independent dim-to-warm channel control range of 1800 to 3200K. Functions such as pixel control, variable dimming curve modes, strobes, and chase effects make for versatile programming options. In addition to DMX, Art-Net, Kling-Net, and RDM (Remote Device Management) protocols are also supported. Along with DMX, RJ45, and power in/out connections, it also features an LCD menu display with 4-button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, frost filter and glare shield (included), flicker-free operation for TV and film, and a multi-voltage universal auto-switching power supply. -
- 28° beam angle
- Fully pixel-mappable with pixel flip option for reversing numbering
- Strobe and chase effects

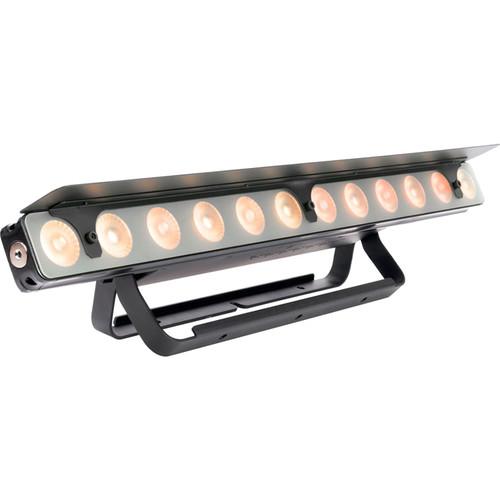

- Frost filter and glare shield (included)
- Variable dimming curve modes
- Full color-temperature range-control of 2700 to 6500K
- Independent dim-to-warm channel control of 1800 to 3200K
- Art-Net and Kling-Net support
- RDM - Remote Device Management
- Rugged die-cast aluminum exterior
- Flicker-free operation for TV and film
UPC: 837874019650 In the Box Elation Professional DTW BAR 1000 - Variable-White LED Bar powerCON Cable Frost Filter Glare Shield Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional DTW BAR 1000 - Variable-White LED Bar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional DTW BAR 1000 Specs | Light Source | 12 x multi-chip CW/WW/A LEDs, 12 W | | Life Expectancy | 100,000 hours | | Illuminance | 28° (Full On): 597 fc / 6,425 lux @ 3.3' (1 m)
38° (Full On, Frost): 297 fc / 3,196 lux @ 3.3' (1 m) | | Beam Angle | 28° | | Field Angle | 33° | | Dimmer | Electronic | | Dimmer Curves | 5 | | Color Mixing | CW/WW/A, Standalone | | Color Temperature | 2700 - 6500K | | Built-In Programs | Yes | | Master/Slave Support | Yes | | Zone Control | 1 or 12 zones | | Protocols | DMX, RDM, Art-Net, Kling-Net | | DMX Connectors | Input: XLR 3-pin, XLR 5-pin
Output: XLR 3-pin, XLR 5-pin | | Data Connector | Input: etherCON
Output: etherCON | | DMX Channel Modes | 1, 2, 3, 5, 6, 7, 10, 12, 14, 36, 41, 45 channels | | Input Voltage | 110 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: powerCON
Output: powerCON | | Power Linking | 110 V: 7 x units
240 V: 15 x units | | Power Consumption | 120 W (maximum) | | Display/Controls | LCD display with 4-button control panel | | Working Position | Vertical, inverted, horizontal | | Operating Temperature | -15 to 45°C (5 to 113°F) | | Certifications & Approvals | CE, cETLus | | IP Rating | IP20 | | Dimensions (L x W x H) | 35.4 x 8.1 x 6.1" (90 x 20.6 x 15.5 cm) | | Weight | 14 lb (6.4 kg) | | | | Package Weight | 18.25 lb | | Box Dimensions (LxWxH) | 37.0 x 9.0 x 8.0" |
