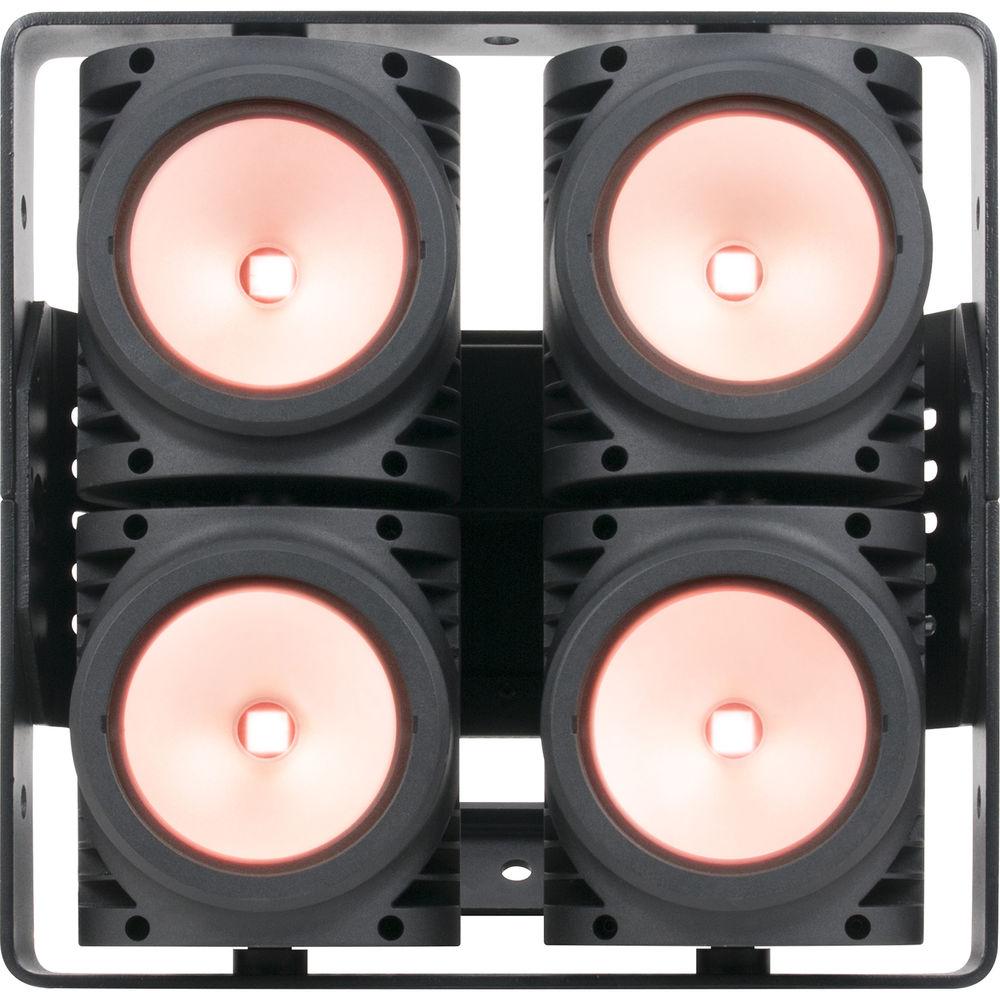

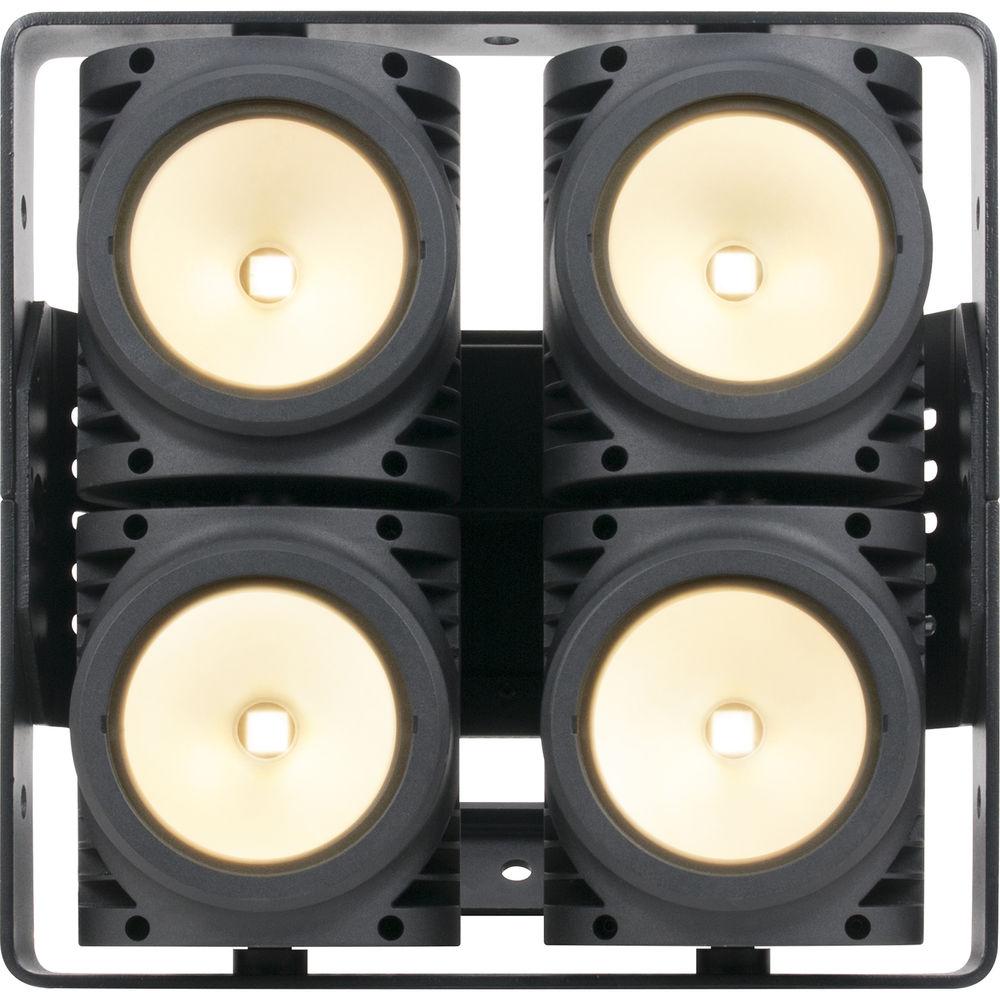

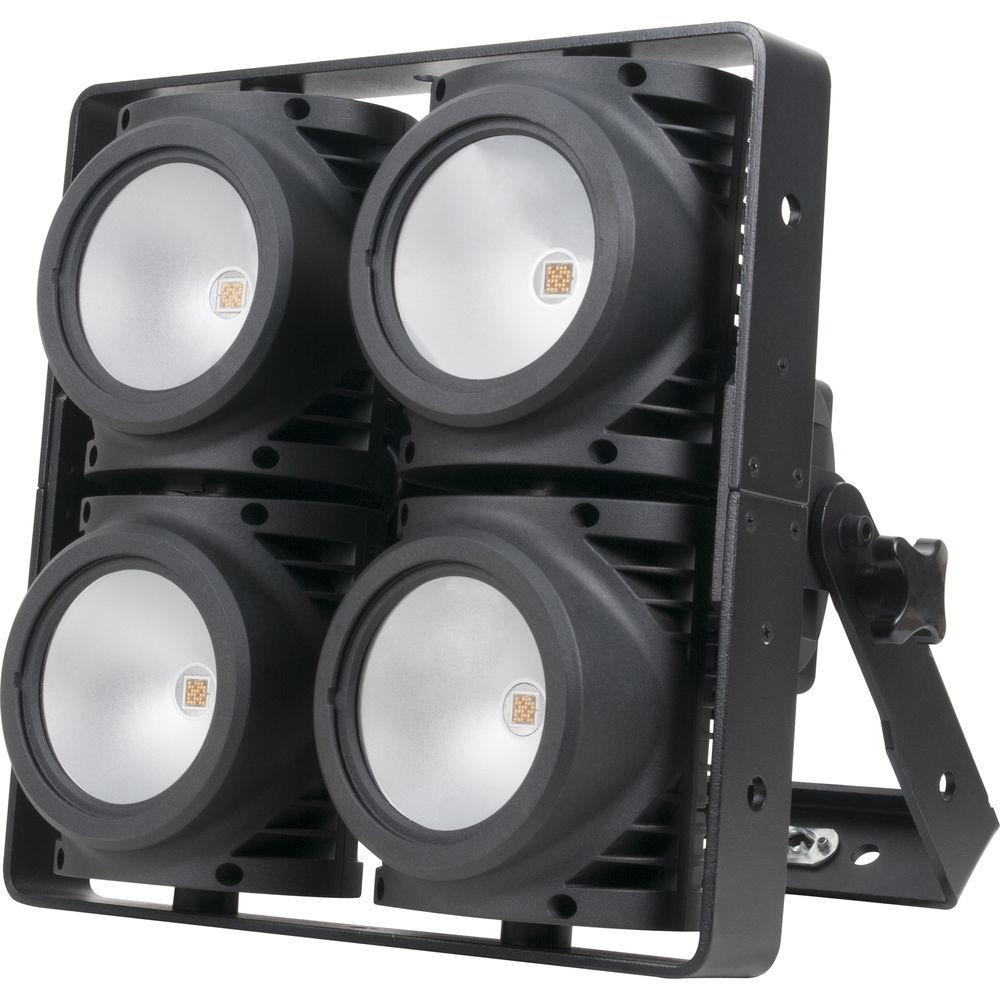

Product description The IP65-rated DTW BLINDER 700 IP from Elation Professional comes with four high-powered 175W 2-in-1 warm-white/amber COB (chip-on-board) LED pods. Its wide 78° beam angle is ideal for "crowd-blinder" effects that cover a large area, but more focused looks can be created by manually panning and attaching the included 25° beam filters to each pod. IP65-rated DMX and power input/output connections allow for both indoor and outdoor use, while full color-temperature range-control, independent dim-to-warm channel control (1800 to 3200K), and independent pixel control ensure a wide array of design options.

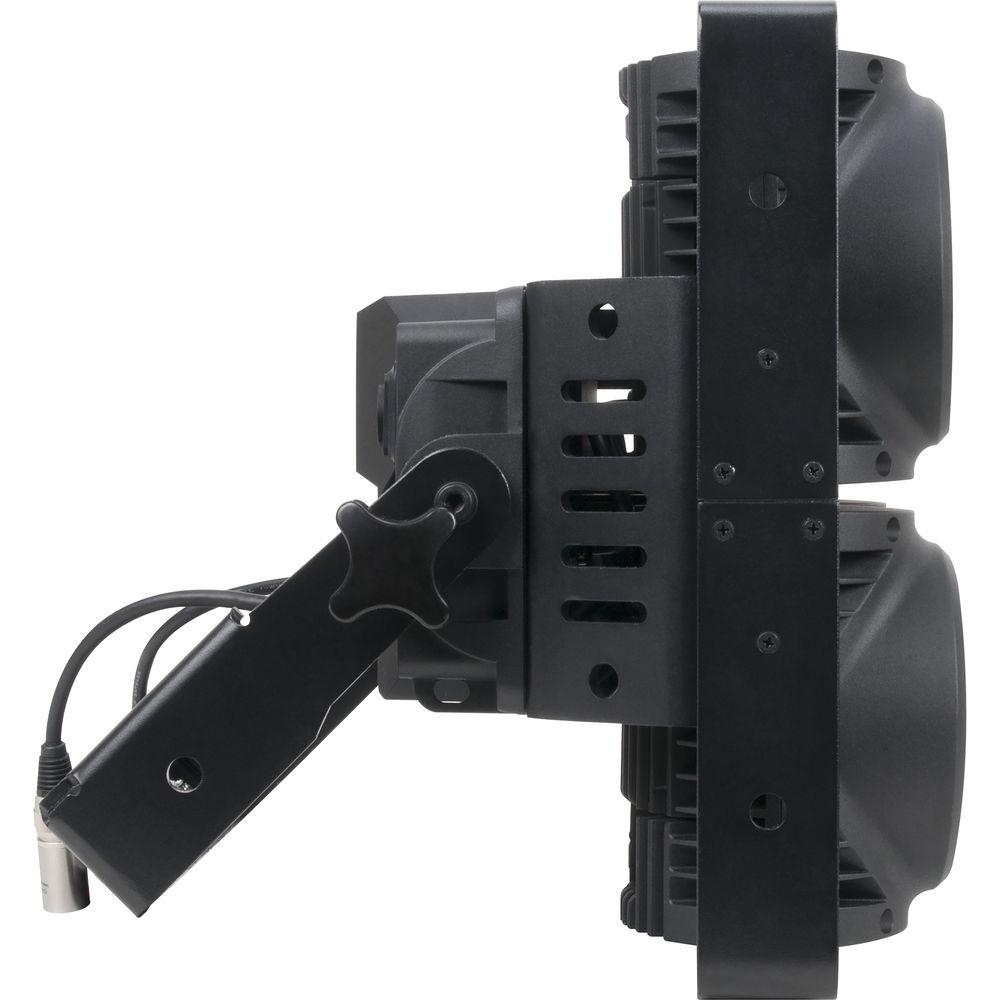

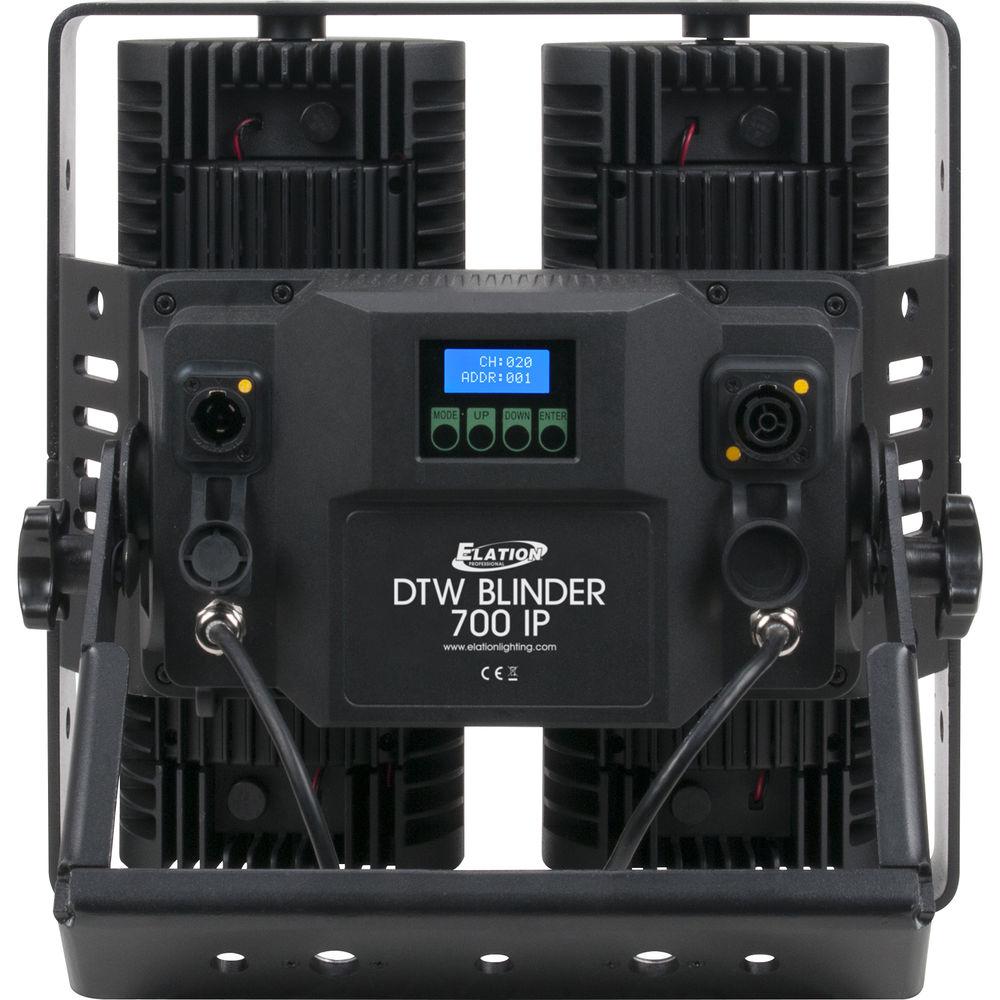

Additional features include variable dimming curves, strobe effects, flicker-free operation for TV and film, RDM (Remote Device Management), an LCD menu display with a 4-button control panel, integrated yoke and side-mounting brackets, and a multi-voltage universal auto-switching power supply. -
- IP65-rated
- Pixel control
- Multiple DMX channel modes
- 4-button control panel and LCD menu display
- 78° wide beam angle
- 25° narrow beam filters (included)
- Strobe effects: standard, pulse, and random
- Independent dimming of each COB LED module
- Independent dim-to-warm channel control range of 1800 to 3200K
- Variable dimming curves
- RDM (Remote Device Management)
- Rugged die-cast aluminum exterior
- Flicker-free operation for TV and film
UPC: 837874019827 In the Box Elation Professional DTW BLINDER 700 IP LED Blinder powerCON TRUE1 Cable 4 x Removable 25° Narrow-Beam Fresnel Lens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional DTW BLINDER 700 IP LED Blinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional DTW Blinder 700 IP Specs | Light Source | 4 x Warm-White/Amber COB LEDs, 175 W | | Life Expectancy | 100,000 hours | | Illuminance | 78°: 962 fc / 10,360 lux @ 3.3' / 1 m
25°: 4,554 fc / 49,020 lux @ 3.3' / 1 m | | Beam Angle | 78° or 25° | | Dimmer | Electronic | | Dimmer Curves | 5 | | Shutter/Strobe | Electronic | | Color Mixing | WW/A, Standalone | | Color Temperature | 1800 - 3200K | | Zone Control | 1 or 4 zones | | Protocols | DMX, RDM | | DMX Connectors | Input: XLR 5-pin, IP-rated
Output: XLR 5-pin, IP-rated | | Input Voltage | 110 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: powerCON, IP-rated
Output: powerCON, IP-rated | | Power Linking | 120 V: 1 x unit
240 V: 2 x units | | Power Consumption | 680 W (maximum) | | IP Rating | IP65 | | Display/Controls | LCD display with 4-button control panel | | Operating Temperature | -15 to 45°C (5 to 113°F) | | Working Position | Vertical, inverted, horizontal | | Certifications & Approvals | CE | | Dimensions (L x W x H) | 15.7 x 9.5 x 16.1" (40.0 x 24.1 x 41.0 cm) | | Weight | 28.0 lb (12.7 kg) |
