User Manual for Elation Professional DTW PAR 300 LED Fixture Click to enlarge the picture
Contents of the user manual for the Elation Professional DTW PAR 300 LED
- Product category: Stage & Studio Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional Stage & Studio
 |
User manual for the Elation Professional DTW PAR 300 LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

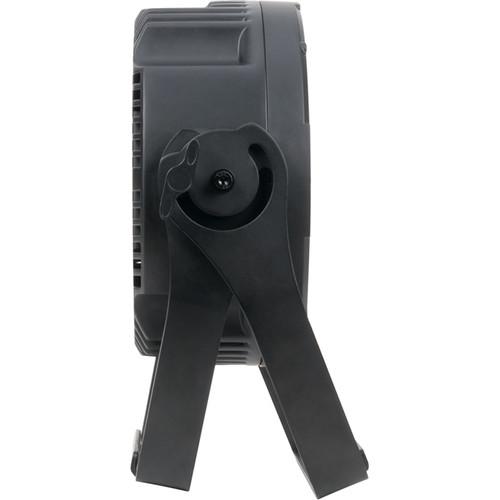

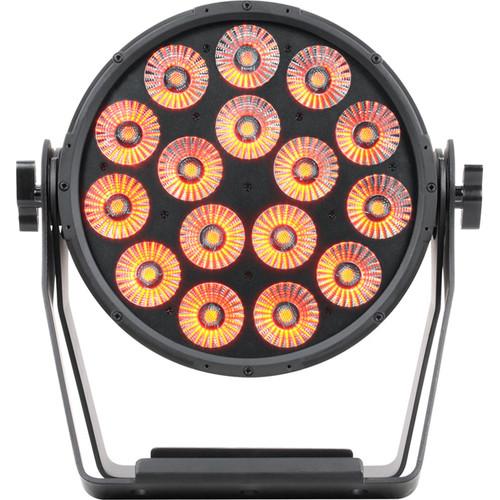

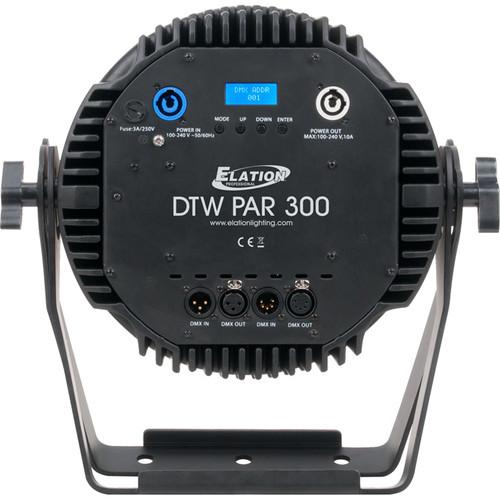

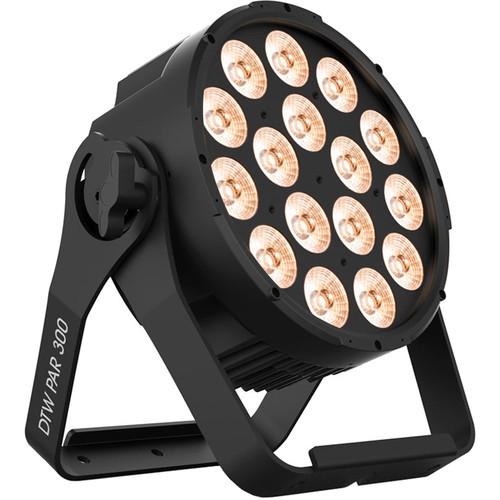

Product description The DTW PAR 300 LED Fixture from Elation Professional is equipped with 16 10W multi-chip CW, WW, amber LEDs, tungsten to daylight range control from 2700 to 6500K, and electronic strobe and variable dimming curve modes. For controlling, it supports DMX and RDM (remote device management) protocol, and features an LCD menu display with four-button touch control panel. Integrated dual rigging brackets allow for easy mounting, and dim-to-warm channel control supports a range from 1800 to 3200K. The fixture also features multiple-unit power linking capability and an integrated universal multi-voltage auto-switching power supply. - Rugged die-cast aluminum exterior
- Flicker-free operation for TV and film applications
- RDM (Remote Device Management)
- Electronic strobe and variable dim curves
- Multiple-unit power linking
- Dim-to-warm channel control
UPC: 837874019803 In the Box Elation Professional DTW PAR 300 LED Fixture (16 LEDs) powerCON Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional DTW PAR 300 LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional DTW Par 300 Specs | Source | 16 x 10 W multi-chip CW/WW/amber LEDs | | Lamp Life | 50,000-hour average LED life | | Photometric Data | 2635 lux 245 FC at 9.8' / 3 m | | Beam Angle | 23° | | Color | Tungsten to daylight (2700 to 6500K) | | DMX Connectors | IP-rated 3-pin DMX
IP-rated 5-pin DMX | | DMX Channels | 7 x DMX channel modes (8 total channels) | | Power Connection Type | powerCON in/out | | Power | 110 to 250 VAC
50/60 Hz | | Power Consumption | 170 W max. | | Rigging Points | Dual | | Color Temperature Control | Tungsten to Daylight: 2700 to 6500K
Dim-to-Warm Channel: 1800 to 3200K | | Controls | 4-button control panel
LCD menu display | | Approvals | CE, cETLus | | IP Rating | IP20 | | Temperature | 5 to 113°F / -15 to 45°C | | Dimensions | 14.4 x 5.1 x 14.7" / 36.5 x 12.9 x 37.3 cm | | Weight | 19 lb / 8.6 kg | | | | Box Dimensions (LxWxH) | 17.0 x 16.0 x 9.5" |
